IslandPath Analysis: Proteus mirabilis HI4320

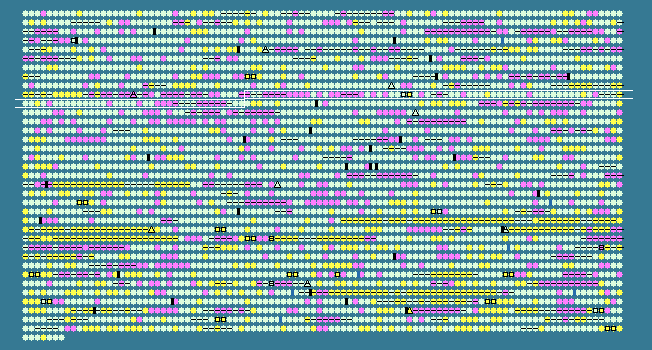

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
938	 30.52	-1	1047094..1047555	+	153	197284853	-	PMI0974	-	hypothetical protein
939	 39.73	0	1047678..1048052	-	124	197284854	-	PMI0975	-	hypothetical protein
940	 40.40	0	1048142..1048990	+	282	197284855	-	PMI0976	-	hypothetical protein
941	 35.86	0	1049231..1049428	+	65	197284856	-	PMI0977	-	lipoprotein
942	 35.54	0	1049452..1049994	-	180	197284857	-	PMI0978	-	hypothetical protein
943	 26.26	-2	1050159..1050257	-	32	197284858	-	PMI0979	-	hypothetical protein
944	 27.92	-2	1050248..1050487	-	79	197284859	-	PMI0980	-	hypothetical protein
945	 26.39	-2	1050691..1050834	-	47	197284860	-	PMI0981	-	hypothetical protein
946	 28.25	-2	1050834..1051148	-	104	197284861	-	PMI0982	-	transcriptional regulator
947	 20.69	-2	1051523..1051783	-	86	197284862	-	PMI0983	-	hypothetical protein
948	 35.34	0	1051792..1052439	-	215	197284863	ibrB	PMI0984	-	immunoglobulin-binding regulator
949	 39.28	0	1052446..1053672	-	408	197284864	ibrA	PMI0985	-	immunoglobulin-binding regulator
950	 28.96	-2	1054230..1054892	+	220	197284865	-	PMI0986	-	hypothetical protein
951	 36.41	0	1055455..1055811	+	118	197284866	-	PMI0987	-	hypothetical protein
952	 32.75	-1	1056014..1056184	+	56	197284867	-	PMI0988	-	hypothetical protein
953	 34.96	0	1056484..1057464	+	326	197284868	-	PMI0989	-	hypothetical protein
954	 35.59	0	1058350..1058571	+	73	197284869	-	PMI0991	-	hypothetical protein
955	 31.56	-1	1058997..1059278	+	93	197284870	-	PMI0992	-	hypothetical protein
956	 33.57	-1	1059647..1060060	+	137	197284871	-	PMI0993	-	lipoprotein
957	 35.80	0	1060088..1060330	+	80	197284872	-	PMI0994	-	lipoprotein
958	 38.15	0	1060393..1060953	-	186	197284873	-	PMI0995	-	ATP-binding protein
959	 30.81	-1	1061329..1061526	+	65	197284874	-	PMI0996	-	hypothetical protein
960	 37.19	0	1061544..1062320	+	258	197284875	map1	PMI0997	-	methionine aminopeptidase
961	 30.73	-1	1062555..1062938	+	127	197284876	-	PMI0998	-	phage antitermination protein
962	 38.43	0	1063081..1063944	+	287	197284877	-	PMI0999	-	lipase
963	 36.57	0	1064059..1064490	-	143	197284878	-	PMI1000	-	hypothetical protein
964	 42.93	0	1064609..1065025	-	138	197284879	-	PMI1001	-	IS element transposase
965	 47.31	+1	1065048..1066256	+	402	197284880	-	PMI1002	-	transposase
966	 38.21	0	1066360..1067097	+	245	197284881	-	PMI1003	-	hypothetical protein
967	 32.42	-1	1067184..1067732	-	182	197284882	-	PMI1004	-	adenylate cyclase
968	 36.62	0	1068184..1068579	-	131	197284883	-	PMI1005	-	hypothetical protein
969	 38.16	0	1068889..1069323	-	144	197284884	uspF	PMI1006	-	universal stress protein F
970	 35.12	0	1069964..1070467	+	167	197284885	ftnA	PMI1007	-	ferritin
971	 38.17	0	1071000..1071392	+	130	197284886	-	PMI1008	-	copper resistance protein
972	 39.11	0	1071392..1072291	+	299	197284887	-	PMI1009	-	copper resistance protein
973	 36.26	0	1072339..1072680	+	113	197284888	-	PMI1010	-	hypothetical protein
974	 32.92	-1	1072981..1073223	-	80	197284889	-	PMI1011	-	hypothetical protein
975	 41.01	0	1073436..1075754	-	772	197284890	-	PMI1012	-	hypothetical protein
976	 39.38	0	1075696..1076952	-	418	197284891	-	PMI1013	-	hypothetical protein
977	 37.35	0	1077230..1077727	+	165	197284892	-	PMI1014	-	hypothetical protein
978	 46.03	+1	1077823..1078515	+	230	197284893	proQ	PMI1015	-	ProP effector
979	 38.57	0	1078535..1080595	+	686	197284894	prc	PMI1016	-	tail-specific protease precursor (C-terminal-processing peptidase)
980	 38.21	0	1081500..1082852	+	450	197284895	-	PMI1017	-	hypothetical protein
981	 42.66	0	1083232..1084110	+	292	197284896	htpX	PMI1018	-	probable protease (heat shock protein)
982	 40.73	0	1084435..1085826	-	463	197284897	-	PMI1019	-	sodium:dicarboxylate symporter
983	 40.21	0	1086068..1086634	-	188	197284898	-	PMI1020	-	membrane-bound metal-dependent hydrolase
984	 41.85	0	1086892..1087560	-	222	197284899	-	PMI1021	-	phosphatase
985	 35.50	0	1087746..1088300	+	184	197284900	-	PMI1022	-	hypothetical protein
986	 40.55	0	1088394..1089266	-	290	197284901	-	PMI1023	-	kinase
987	 38.34	0	1089417..1090274	-	285	197284902	sitD	PMI1024	-	iron ABC transporter, membrane protein
988	 41.56	0	1090271..1091182	-	303	197284903	sitC	PMI1025	-	iron ABC transporter, membrane protein
989	 40.32	0	1091185..1092072	-	295	197284904	sitB	PMI1026	-	iron ABC transporter, ATP-binding protein
990	 39.49	0	1092069..1092977	-	302	197284905	sitA	PMI1027	-	iron ABC transporter, periplasmic substrate-binding protein
991	 40.74	0	1093368..1094069	+	233	197284906	-	PMI1028	-	membrane-bound lytic murein transglycosylase
992	 42.99	0	1094021..1094755	-	244	197284907	marC	PMI1029	-	multiple antibiotic resistance protein
993	 38.36	0	1094862..1095458	-	198	197284908	-	PMI1030	-	acetyltransferase
994	 44.63	+1	1095725..1096078	+	117	197284909	csaA	PMI1031	-	protein secretion chaperone
995	 39.30	0	1096170..1096856	+	228	197284910	-	PMI1032	-	transcriptional regulator
996	 35.75	0	1097083..1097994	+	303	197284911	-	PMI1033	-	fimbrial subunit
997	 40.80	0	1098276..1100204	+	642	197284912	thrS	PMI1034	-	threonyl-tRNA synthetase
998	 42.59	0	1100208..1100747	+	179	197284913	-	PMI1035	-	translation initiation factor IF-3
999	 42.42	0	1100842..1101039	+	65	197284914	rpmI	PMI1036	-	50S ribosomal subunit protein L35
1000	 46.22	+1	1101083..1101439	+	118	197284915	rplT	PMI1037	-	50S ribosomal protein L20
1001	 42.78	0	1101764..1102747	+	327	197284916	pheS	PMI1038	-	phenylalanyl-tRNA synthetase alpha chain
1002	 41.79	0	1102762..1105149	+	795	197284917	pheT	PMI1039	-	phenylalanyl-tRNA synthetase beta chain
1003	 45.12	+1	1105154..1105450	+	98	197284918	ihfA	PMI1040	-	integration host factor alpha-subunit
1004	 38.95	0	1105755..1106768	+	337	197284919	btuC	PMI1041	-	vitamin B12 import system permease protein
1005	 31.60	-1	1106770..1107519	+	249	197284920	btuD	PMI1042	-	vitamin B12 import ATP-binding protein
1006	 42.41	0	1107654..1108799	+	381	197284921	arnB	PMI1043	-	UDP-4-amino-4-deoxy-l-arabinose--oxoglutarate aminotransferase
1007	 40.47	0	1108799..1109779	+	326	197284922	arnC	PMI1044	-	undecaprenyl-phosphate 4-deoxy-4-formamido-l-arabinose transferase
1008	 39.49	0	1109779..1111761	+	660	197284923	arnA	PMI1045	-	bifunctional polymyxin resistance protein [includes: UDP-glucuronic acid decarboxylase and UDP-4-amino-4-deoxy-l-arabinose formyltransferase
1009	 41.50	0	1111761..1112654	+	297	197284924	-	PMI1046	-	polysaccharide deacetylase
1010	 40.31	0	1112662..1114323	+	553	197284925	arnT	PMI1047	-	undecaprenyl phosphate-alpha-4-amino-4-deoxy-l-arabinose arabinosyl transferase
1011	 37.13	0	1114323..1114664	+	113	197284926	-	PMI1048	-	hypothetical protein
1012	 38.81	0	1114661..1115062	+	133	197284927	-	PMI1049	-	hypothetical protein
1013	 39.43	0	1115210..1115701	+	163	197284928	nlpC	PMI1050	-	lipoprotein
1014	 40.00	0	1115779..1116798	+	339	197284929	lplA	PMI1051	-	lipoate-protein ligase A
1015	 34.42	-1	1116915..1117283	-	122	197284930	pqrA	PMI1052	-	AraC-family transcriptional regulator
1016	 40.81	0	1117864..1119066	-	400	197284931	-	PMI1053	-	FAD dependent oxidoreductase
1017	 40.48	0	1119084..1119797	-	237	197284932	-	PMI1054	-	GntR-family transcriptional regulator
1018	 40.60	0	1119798..1121765	-	655	197284933	-	PMI1055	-	TRAP-type C4-dicarboxylate transport system permease component
1019	 39.42	0	1121778..1122812	-	344	197284934	-	PMI1056	-	TRAP-type transport system substrate-binding protein
1020	 35.87	0	1123218..1123730	-	170	197284935	-	PMI1057	-	hypothetical protein
1021	 39.46	0	1123899..1125578	-	559	197284936	budB	PMI1058	-	acetolactate synthase, catabolic
1022	 36.68	0	1125643..1126479	-	278	197284937	budA	PMI1059	-	alpha-acetolactate decarboxylase
1023	 27.54	-2	1127237..1127512	+	91	197284938	-	PMI1060	-	fimbrial operon regulator
1024	 35.65	0	1127562..1128080	+	172	197284939	-	PMI1061	-	fimbrial protein
1025	 31.57	-1	1128290..1130665	+	791	197284940	-	PMI1062	-	Fimbrial usher protein
1026	 34.23	-1	1130658..1131326	+	222	197284941	-	PMI1063	-	fimbrial chaperone
1027	 36.40	0	1131337..1132347	+	336	197284942	-	PMI1064	-	fimbrial protein
1028	 37.18	0	1132348..1132893	+	181	197284943	-	PMI1065	-	fimbrial subunit
1029	 36.61	0	1132904..1133452	+	182	197284944	-	PMI1066	-	fimbrial protein
1030	 27.87	-2	1133454..1134002	+	182	197284945	-	PMI1067	-	fimbrial protein
1031	 23.88	-2	1134187..1134588	-	133	197284946	-	PMI1068	-	hypothetical protein
1032	 31.84	-1	1136286..1136822	-	178	197284947	-	PMI1070	-	hypothetical protein
1033	 31.91	-1	1136839..1136979	-	46	197284948	-	PMI1071	-	hypothetical protein
1034	 33.54	-1	1137942..1138424	-	160	197284949	hocA	PMI1073	-	phosphotriesterase
1035	 37.96	0	1142794..1143225	-	143	197284950	-	PMI1075	-	hypothetical protein
1036	 41.48	0	1143741..1144832	-	363	197284951	engD	PMI1080	-	GTP-dependent nucleic acid-binding protein
1037	 38.46	0	1145024..1145608	-	194	197284952	pth	PMI1081	-	peptidyl-tRNA hydrolase
39.69	MEAN

4.91	STD DEV
