IslandPath Analysis: Proteus mirabilis HI4320

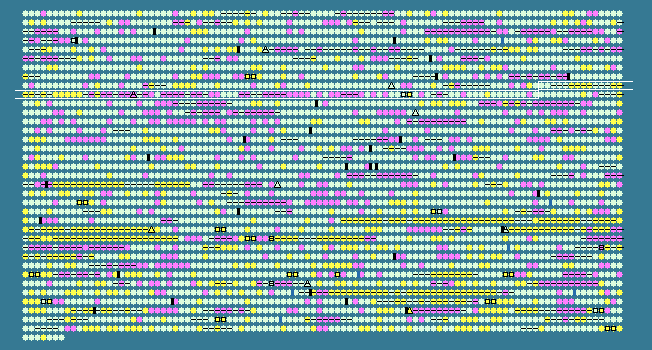

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
887	 38.08	0	1000488..1001414	+	308	197284802	-	PMI0917	-	transcriptional regulator
888	 38.06	0	1001831..1002253	+	140	197284803	-	PMI0918	-	phage protein
889	 40.37	0	1002306..1002575	+	89	197284804	-	PMI0919	-	phage protein
890	 42.68	0	1002575..1003045	+	156	197284805	-	PMI0920	-	phage lysozyme
891	 42.42	0	1003188..1003649	+	153	197284806	-	PMI0921	-	phage endopeptidase (lysis protein)
892	 44.54	0	1004547..1004885	+	112	197284807	-	PMI0922	-	phage protein
893	 47.22	+1	1005004..1005471	+	155	197284808	-	PMI0923	-	phage terminase, small subunit
894	 46.71	+1	1005425..1007158	+	577	197284809	-	PMI0924	-	phage terminase, large subunit
895	 43.18	0	1007158..1008426	+	422	197284810	-	PMI0925	-	phage portal protein
896	 42.00	0	1008444..1009112	+	222	197284811	-	PMI0926	-	head maturation protease
897	 41.73	0	1009116..1010282	+	388	197284812	-	PMI0927	-	major capsid protein
898	 37.67	0	1010321..1010620	+	99	197284813	-	PMI0928	-	phage protein
899	 43.33	0	1010620..1010949	+	109	197284814	-	PMI0929	-	phage protein
900	 45.86	+1	1010942..1011412	+	156	197284815	-	PMI0930	-	phage protein
901	 45.03	+1	1011418..1011759	+	113	197284816	-	PMI0931	-	phage protein
902	 43.39	0	1011769..1012434	+	221	197284817	-	PMI0932	-	phage protein
903	 41.97	0	1012499..1012915	+	138	197284818	-	PMI0933	-	phage protein
904	 45.42	+1	1012918..1013190	+	90	197284819	-	PMI0934	-	phage protein
905	 41.15	0	1013215..1013406	-	63	197284820	-	PMI0935	-	phage membrane protein
906	 45.18	+1	1013509..1016808	+	1099	197284821	-	PMI0936	-	tail length tape measure protein
907	 45.56	+1	1016809..1017405	+	198	197284822	-	PMI0937	-	phage protein
908	 43.99	0	1017405..1017986	+	193	197284823	-	PMI0938	-	phage protein
909	 46.37	+1	1018043..1018441	+	132	197284824	-	PMI0939	-	phage protein
910	 43.93	0	1018441..1021470	+	1009	197284825	-	PMI0940	-	phage tail protein
911	 42.81	0	1021474..1022475	+	333	197284826	-	PMI0941	-	phage protein
912	 29.32	-2	1022674..1022922	+	82	197284827	-	PMI0943	-	colicin immunity protein
913	 44.00	0	1022971..1023120	+	49	197284828	-	PMI0944	-	phage protein
914	 23.86	-2	1023136..1023420	+	94	197284829	-	PMI0945	-	hypothetical protein
915	 24.91	-2	1023589..1023873	-	94	197284830	-	PMI0946	-	hypothetical protein
916	 38.93	0	1025468..1025860	+	130	197284831	-	PMI0949	-	hypothetical protein
917	 26.32	-2	1026081..1027733	+	550	197284832	-	PMI0950	-	hypothetical protein
918	 29.98	-1	1027739..1028602	+	287	197284833	-	PMI0951	-	hypothetical protein
919	 35.99	0	1029338..1030465	-	375	197284834	int	PMI0953	-	phage integrase
920	 37.04	0	1030446..1030688	-	80	197284835	-	PMI0954	-	excisionase
921	 34.41	-1	1030945..1031592	-	215	197284836	-	PMI0955	-	phage repressor
922	 35.10	0	1031923..1032996	+	357	197284837	-	PMI0956	-	phage protein
923	 36.84	0	1033009..1033407	+	132	197284838	-	PMI0957	-	probable phage antitermination protein
924	 30.65	-1	1033629..1033889	+	86	197284839	-	PMI0958	-	phage protein
925	 34.11	-1	1034045..1034302	+	85	197284840	-	PMI0959	-	phage protein
926	 33.70	-1	1034308..1034580	-	90	197284841	-	PMI0960	-	phage protein
927	 28.50	-2	1034887..1035093	+	68	197284842	-	PMI0961	-	phage protein
928	 38.42	0	1035396..1036418	+	340	197284843	-	PMI0962	-	phage DNA adenine-methylase
929	 31.92	-1	1036693..1037682	+	329	197284844	-	PMI0963	-	phage protein
930	 33.50	-1	1037697..1038299	+	200	197284845	-	PMI0964	-	phage protein
931	 42.15	0	1038660..1039124	+	154	197284846	-	PMI0965	-	phage endopeptidase (lysis protein)
932	 31.27	-1	1039168..1039749	-	193	197284847	-	PMI0966	-	hypothetical protein
933	 30.75	-1	1040104..1040607	+	167	197284848	-	PMI0967	-	phage protein
934	 37.76	0	1041531..1042751	+	406	197284849	-	PMI0970	-	hypothetical protein
935	 37.42	0	1044035..1045159	+	374	197284850	-	PMI0971	-	lipase
936	 40.38	0	1045600..1045812	+	70	197284851	-	PMI0972	-	cold shock protein
937	 34.64	-1	1046145..1046603	+	152	197284852	-	PMI0973	-	heat shock protein
938	 30.52	-1	1047094..1047555	+	153	197284853	-	PMI0974	-	hypothetical protein
939	 39.73	0	1047678..1048052	-	124	197284854	-	PMI0975	-	hypothetical protein
940	 40.40	0	1048142..1048990	+	282	197284855	-	PMI0976	-	hypothetical protein
941	 35.86	0	1049231..1049428	+	65	197284856	-	PMI0977	-	lipoprotein
942	 35.54	0	1049452..1049994	-	180	197284857	-	PMI0978	-	hypothetical protein
943	 26.26	-2	1050159..1050257	-	32	197284858	-	PMI0979	-	hypothetical protein
944	 27.92	-2	1050248..1050487	-	79	197284859	-	PMI0980	-	hypothetical protein
945	 26.39	-2	1050691..1050834	-	47	197284860	-	PMI0981	-	hypothetical protein
946	 28.25	-2	1050834..1051148	-	104	197284861	-	PMI0982	-	transcriptional regulator
947	 20.69	-2	1051523..1051783	-	86	197284862	-	PMI0983	-	hypothetical protein
948	 35.34	0	1051792..1052439	-	215	197284863	ibrB	PMI0984	-	immunoglobulin-binding regulator
949	 39.28	0	1052446..1053672	-	408	197284864	ibrA	PMI0985	-	immunoglobulin-binding regulator
950	 28.96	-2	1054230..1054892	+	220	197284865	-	PMI0986	-	hypothetical protein
951	 36.41	0	1055455..1055811	+	118	197284866	-	PMI0987	-	hypothetical protein
952	 32.75	-1	1056014..1056184	+	56	197284867	-	PMI0988	-	hypothetical protein
953	 34.96	0	1056484..1057464	+	326	197284868	-	PMI0989	-	hypothetical protein
954	 35.59	0	1058350..1058571	+	73	197284869	-	PMI0991	-	hypothetical protein
955	 31.56	-1	1058997..1059278	+	93	197284870	-	PMI0992	-	hypothetical protein
956	 33.57	-1	1059647..1060060	+	137	197284871	-	PMI0993	-	lipoprotein
957	 35.80	0	1060088..1060330	+	80	197284872	-	PMI0994	-	lipoprotein
958	 38.15	0	1060393..1060953	-	186	197284873	-	PMI0995	-	ATP-binding protein
959	 30.81	-1	1061329..1061526	+	65	197284874	-	PMI0996	-	hypothetical protein
960	 37.19	0	1061544..1062320	+	258	197284875	map1	PMI0997	-	methionine aminopeptidase
961	 30.73	-1	1062555..1062938	+	127	197284876	-	PMI0998	-	phage antitermination protein
962	 38.43	0	1063081..1063944	+	287	197284877	-	PMI0999	-	lipase
963	 36.57	0	1064059..1064490	-	143	197284878	-	PMI1000	-	hypothetical protein
964	 42.93	0	1064609..1065025	-	138	197284879	-	PMI1001	-	IS element transposase
965	 47.31	+1	1065048..1066256	+	402	197284880	-	PMI1002	-	transposase
966	 38.21	0	1066360..1067097	+	245	197284881	-	PMI1003	-	hypothetical protein
967	 32.42	-1	1067184..1067732	-	182	197284882	-	PMI1004	-	adenylate cyclase
968	 36.62	0	1068184..1068579	-	131	197284883	-	PMI1005	-	hypothetical protein
969	 38.16	0	1068889..1069323	-	144	197284884	uspF	PMI1006	-	universal stress protein F
970	 35.12	0	1069964..1070467	+	167	197284885	ftnA	PMI1007	-	ferritin
971	 38.17	0	1071000..1071392	+	130	197284886	-	PMI1008	-	copper resistance protein
972	 39.11	0	1071392..1072291	+	299	197284887	-	PMI1009	-	copper resistance protein
973	 36.26	0	1072339..1072680	+	113	197284888	-	PMI1010	-	hypothetical protein
974	 32.92	-1	1072981..1073223	-	80	197284889	-	PMI1011	-	hypothetical protein
975	 41.01	0	1073436..1075754	-	772	197284890	-	PMI1012	-	hypothetical protein
976	 39.38	0	1075696..1076952	-	418	197284891	-	PMI1013	-	hypothetical protein
977	 37.35	0	1077230..1077727	+	165	197284892	-	PMI1014	-	hypothetical protein
978	 46.03	+1	1077823..1078515	+	230	197284893	proQ	PMI1015	-	ProP effector
979	 38.57	0	1078535..1080595	+	686	197284894	prc	PMI1016	-	tail-specific protease precursor (C-terminal-processing peptidase)
980	 38.21	0	1081500..1082852	+	450	197284895	-	PMI1017	-	hypothetical protein
981	 42.66	0	1083232..1084110	+	292	197284896	htpX	PMI1018	-	probable protease (heat shock protein)
982	 40.73	0	1084435..1085826	-	463	197284897	-	PMI1019	-	sodium:dicarboxylate symporter
983	 40.21	0	1086068..1086634	-	188	197284898	-	PMI1020	-	membrane-bound metal-dependent hydrolase
984	 41.85	0	1086892..1087560	-	222	197284899	-	PMI1021	-	phosphatase
985	 35.50	0	1087746..1088300	+	184	197284900	-	PMI1022	-	hypothetical protein
986	 40.55	0	1088394..1089266	-	290	197284901	-	PMI1023	-	kinase
39.69	MEAN

4.91	STD DEV
