IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

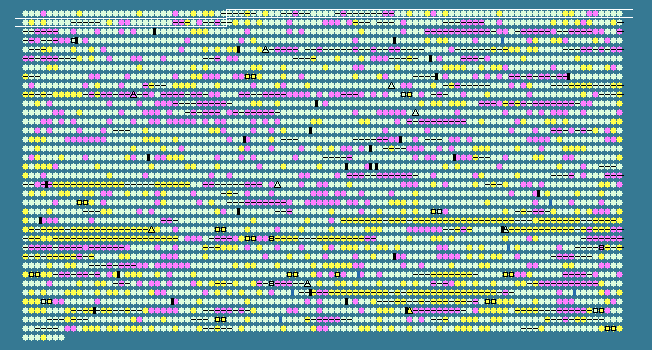

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
35	 41.92	0	58378..58866	+	162	197283950	hybD	PMI0035	-	hydrogenase 2 maturation protease
36	 41.82	0	58863..59357	+	164	197283951	hybE	PMI0036	-	hydrogenase-2 subunit
37	 41.85	0	59419..60615	+	398	197283952	hypB	PMI0037	-	hydrogenase nickel incorporation protein
38	 44.19	0	60606..60872	+	88	197283953	hybG	PMI0038	-	hydrogenase-2 maturation protein
39	 42.28	0	60856..61995	+	379	197283954	hypD	PMI0039	-	hydrogenase formation protein
40	 42.65	0	61992..63011	+	339	197283955	hypE	PMI0040	-	hydrogenase formation protein
41	 43.28	0	63205..64431	+	408	197283956	-	PMI0041	-	hypothetical protein
42	 40.33	0	64428..64670	+	80	197283957	-	PMI0042	-	SirA-like protein
43	 41.25	0	64753..65661	-	302	197283958	rdgC	PMI0043	-	recombination associated protein RdgC
44	 39.22	0	66979..68184	+	401	197283959	-	PMI0044	-	outer membrane protein
45	 40.13	0	68271..70226	+	651	197283960	cpdB	PMI0045	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
46	 35.91	0	70309..71085	+	258	197283961	-	PMI0046	-	lipoprotein
47	 41.71	0	71104..72726	+	540	197283962	-	PMI0047	-	secreted 5'-nucleotidase
48	 39.50	0	73039..73638	-	199	197283963	-	PMI0048	-	hypothetical protein
49	 38.14	0	73768..77493	-	1241	197283964	sbcC	PMI0049	-	exonuclease
50	 41.28	0	77490..78722	-	410	197283965	sbcD	PMI0050	-	exonuclease subunit D
51	 41.59	0	78944..79633	+	229	197283966	phoB	PMI0051	-	phosphate regulon transcriptional regulator (two-component response regulator)
52	 41.38	0	79657..80949	+	430	197283967	phoR	PMI0052	-	phosphate regulon sensor protein (two-component histidine kinase)
53	 40.36	0	81447..82784	+	445	197283968	brnQ	PMI0053	-	branched-chain amino acid transport system II carrier protein
54	 35.66	0	82844..84130	-	428	197283969	-	PMI0054	-	hypothetical protein
55	 36.73	0	84120..84413	-	97	197283970	-	PMI0055	-	hypothetical protein
56	 37.54	0	84801..85727	-	308	197283971	-	PMI0056	-	hypothetical protein
57	 37.85	0	85724..86674	-	316	197283972	-	PMI0057	-	hypothetical protein
58	 36.54	0	87603..88538	-	311	197283973	-	PMI0060	-	hypothetical protein
59	 37.33	0	88535..89485	-	316	197283974	-	PMI0061	-	hypothetical protein
60	 37.43	0	89507..90433	-	308	197283975	-	PMI0062	-	hypothetical protein
61	 34.52	-1	90455..91381	-	308	197283976	-	PMI0063	-	hypothetical protein
62	 25.47	-2	92040..92522	+	160	197283977	-	PMI0064	-	hypothetical protein
63	 40.10	0	92694..93668	-	324	197283978	-	PMI0065	-	subunit of oxidoreductase
64	 39.72	0	93676..94473	-	265	197283979	-	PMI0066	-	oxidoreductase, cytochrome b subunit
65	 43.30	0	94470..95141	-	223	197283980	-	PMI0067	-	oxidoreductase, Fe-S subunit
66	 40.03	0	95208..95924	-	238	197283981	-	PMI0068	-	subunit of oxidoreductase
67	 43.08	0	95940..98042	-	700	197283982	-	PMI0069	-	aldehyde ferredoxin oxidoreductase
68	 43.81	0	98095..98724	-	209	197283983	-	PMI0070	-	oxidoreductase, Fe-S subunit
69	 20.16	-2	99189..99317	-	42	197283984	-	PMI0071	-	hypothetical protein
70	 42.92	0	99339..101111	-	590	197283985	ggt	PMI0072	-	gamma-glutamyltranspeptidase
71	 43.62	0	101402..102004	-	200	197283986	ahpC	PMI0073	-	alkyl hydroperoxide reductase
72	 40.82	0	102415..103002	-	195	197283987	-	PMI0074	-	hypothetical protein
73	 42.27	0	103110..104183	+	357	197283988	queA	PMI0075	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
74	 40.51	0	104365..105507	+	380	197283989	tgt	PMI0076	-	queuine tRNA-ribosyltransferase
75	 37.20	0	105594..105929	+	111	197283990	yajC	PMI0077	-	preprotein translocase subunit
76	 42.86	0	105962..107809	+	615	197283991	secD	PMI0078	-	protein-export membrane protein SecD
77	 40.73	0	107775..108788	+	337	197283992	secF	PMI0079	-	protein-export membrane protein SecF
78	 41.11	0	108907..109356	+	149	197283993	ribX	PMI0080	-	ATP-binding regulatory protein
79	 42.06	0	109413..110570	+	385	197283994	ribD	PMI0081	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase and 5-amino-6-(5-phosphoribosylamino)uracil reductase
80	 43.31	0	110783..111253	+	156	197283995	ribH	PMI0082	-	6,7-dimethyl-8-ribityllumazine synthase
81	 42.75	0	111282..111695	+	137	197283996	nusB	PMI0083	-	N utilization substance protein B
82	 41.49	0	111789..112769	+	326	197283997	thiL	PMI0084	-	thiamine-monophosphate kinase
83	 38.10	0	112855..113190	-	111	197283998	phnA	PMI0085	-	hypothetical protein
84	 37.04	0	114037..114279	-	80	197283999	-	PMI0087	-	plasmid-associated protein
85	 42.46	0	114382..115389	-	335	197284000	rbsR	PMI0088	-	ribose operon repressor (LacI-family transcriptional regulator)
86	 42.61	0	115394..116320	-	308	197284001	rbsK	PMI0089	-	ribokinase
87	 41.75	0	116397..117287	-	296	197284002	rbsB	PMI0090	-	D-ribose ABC transporter, substrate-binding periplasmic protein
88	 41.93	0	117327..118292	-	321	197284003	rbsC	PMI0091	-	ribose ABC transporter, permease protein
89	 39.10	0	118294..119802	-	502	197284004	rbsA	PMI0092	-	ribose ABC transporter, ATP-binding protein
90	 36.90	0	119810..120229	-	139	197284005	rbsD	PMI0093	-	high affinity ribose transport protein
91	 43.63	0	120570..122444	-	624	197284006	dxs	PMI0094	-	1-deoxy-D-xylulose-5-phosphate synthase
92	 44.48	0	122511..123434	-	307	197284007	ispA	PMI0095	-	geranyltranstransferase
93	 37.86	0	123435..123743	-	102	197284008	xseB	PMI0096	-	exodeoxyribonuclease VII small subunit
94	 38.15	0	123898..125349	+	483	197284009	thiI	PMI0097	-	thiamine biosynthesis protein
95	 22.22	-2	125729..125836	-	35	197284010	-	PMI0099	-	hypothetical protein
96	 28.18	-2	125842..126423	-	193	197284011	-	PMI0100	-	hypothetical protein
97	 40.78	0	126594..127211	-	205	197284012	thiJ	PMI0101	-	DJ-1/PfpI family protein
98	 38.85	0	127180..128103	-	307	197284013	panE	PMI0102	-	2-dehydropantoate 2-reductase
99	 37.60	0	128357..128848	+	163	197284014	-	PMI0103	-	hypothetical protein
100	 38.58	0	128911..130281	-	456	197284015	-	PMI0104	-	MFS-family transporter
101	 40.34	0	130455..131339	-	294	197284016	cyoE	PMI0105	-	protoheme IX farnesyltransferase
102	 43.24	0	131351..131683	-	110	197284017	cyoD	PMI0105A	-	cytochrome O ubiquinol oxidase protein
103	 42.97	0	131683..132294	-	203	197284018	cyoC	PMI0106	-	cytochrome O ubiquinol oxidase subunit III
104	 44.38	0	132294..134276	-	660	197284019	cyoB	PMI0107	-	cytochrome O ubiquinol oxidase subunit I
105	 42.17	0	134281..135231	-	316	197284020	cyoA	PMI0108	-	cytochrome O ubiquinol oxidase subunit II
106	 37.27	0	135728..136489	-	253	197284021	-	PMI0109	-	hypothetical protein
107	 40.83	0	136845..138218	+	457	197284022	dbpA	PMI0110	-	ATP-independent RNA helicase
108	 41.22	0	138318..139838	-	506	197284023	ampG	PMI0111	-	Beta-lactamase induction signal transducer (MFS-family transporter)
109	 40.93	0	139896..140474	-	192	197284024	-	PMI0112	-	lipoprotein
110	 40.00	0	140805..141119	+	104	197284025	bolA	PMI0113	-	BolA protein
111	 41.00	0	141442..142746	+	434	197284026	tig	PMI0114	-	Trigger factor
112	 39.74	0	143003..143626	+	207	197284027	clpP	PMI0115	-	ATP-dependent Clp protease proteolytic subunit
113	 40.33	0	143771..145042	+	423	197284028	clpX	PMI0116	-	ATP-dependent Clp protease ATP-binding subunit
114	 42.17	0	145300..147654	+	784	197284029	lon	PMI0117	-	ATP-dependent protease La
115	 44.57	0	147876..148151	+	91	197284030	hupB	PMI0118	-	DNA-binding protein HU-beta
116	 39.08	0	148619..150496	+	625	197284031	ppiD	PMI0119	-	peptidyl-prolyl cis-trans isomerase D
117	 35.73	0	150751..151125	+	124	197284032	-	PMI0120	-	competence protein
118	 35.54	0	151338..151745	+	135	197284033	-	PMI0121	-	hypothetical protein
119	 38.77	0	152136..152834	-	232	197284034	-	PMI0122	-	hypothetical protein
120	 38.53	0	152992..153453	+	153	197284035	-	PMI0123	-	AsnC-family transcriptional regulator
121	 41.07	0	153510..155255	+	581	197284036	mdlA	PMI0124	-	efflux ABC transporter, ATP-binding membrane protein
122	 40.44	0	155242..157029	+	595	197284037	mdlB	PMI0125	-	efflux ABC transporter, ATP-binding membrane protein
123	 39.23	0	157248..157586	+	112	197284038	glnK	PMI0126	-	nitrogen regulatory protein P-II
124	 41.03	0	157599..158897	+	432	197284039	amtB	PMI0127	-	probable ammonium transporter
125	 39.84	0	158941..159816	-	291	197284040	tesB	PMI0128	-	acyl-CoA thioesterase
126	 35.78	0	160608..160811	-	67	197284041	-	PMI0129	-	regulatory protein
127	 33.61	-1	160857..161219	-	120	197284042	-	PMI0130	-	hypothetical protein
128	 43.27	0	161877..165035	-	1052	197284043	acrB	PMI0131	-	inner membrane rnd family protein acrb
129	 42.07	0	165050..166240	-	396	197284044	acrA	PMI0132	-	multidrug efflux protein
130	 35.81	0	166366..167010	+	214	197284045	acrR	PMI0133	-	acrAB operon repressor (tetR-family transcriptional regulator)
131	 39.55	0	167039..167392	+	117	197284046	-	PMI0134	-	cytoplasmic sulphur reductase
132	 36.75	0	167517..170945	+	1142	197284047	kefA	PMI0135	-	potassium efflux protein
133	 35.90	0	170958..171113	-	51	197284048	-	PMI0136	-	hypothetical protein
134	 38.86	0	171125..171667	-	180	197284049	priC	PMI0137	-	primosomal replication protein N''
39.69	MEAN

4.91	STD DEV
