IslandPath Analysis: Proteus mirabilis HI4320

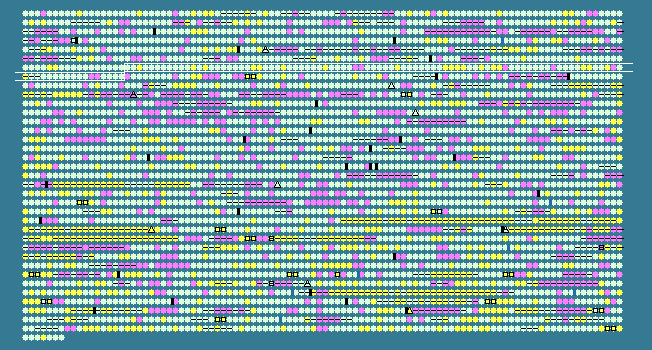

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
618	 41.15	0	691702..692469	-	255	197284533	moeB	PMI0636	-	molybdopterin biosynthesis protein
619	 42.19	0	692475..693716	-	413	197284534	moeA	PMI0637	-	molybdopterin biosynthesis protein
620	 43.68	0	693932..695101	+	389	197284535	-	PMI0638	-	MFS-family transporter
621	 40.27	0	695247..695909	+	220	197284536	folE	PMI0639	-	GTP cyclohydrolase
622	 38.11	0	695919..697070	+	383	197284537	-	PMI0640	-	hypothetical protein
623	 40.50	0	697067..697792	-	241	197284538	sanA	PMI0641	-	transport protein
624	 42.64	0	697927..699624	-	565	197284539	sfcA	PMI0642	-	NAD-dependent malic enzyme
625	 43.16	0	699839..700723	-	294	197284540	cdd	PMI0643	-	cytidine deaminase
626	 39.74	0	700947..701648	-	233	197284541	-	PMI0644	-	hypothetical protein
627	 39.10	0	701642..702109	-	155	197284542	-	PMI0645	-	hypothetical protein
628	 41.57	0	702245..704272	-	675	197284543	metG	PMI0646	-	methionyl-tRNA synthetase
629	 43.31	0	704477..705589	+	370	197284544	-	PMI0648	-	ATP-binding protein
630	 38.16	0	705802..706443	+	213	197284545	udk	PMI0649	-	Uridine kinase
631	 45.88	+1	706520..707101	+	193	197284546	dcd	PMI0650	-	deoxycytidine triphosphate deaminase
632	 37.84	0	707146..709077	+	643	197284547	asmA	PMI0651	-	outer membrane assembly protein
633	 42.00	0	709506..710867	+	453	197284548	dcuC	PMI0652	-	anaerobic C4-dicarboxylate transporter
634	 40.10	0	711028..712608	-	526	197284549	-	PMI0653	-	probable transporter
635	 39.73	0	713406..714812	+	468	197284550	gnd	PMI0655	-	6-phosphogluconate dehydrogenase, decarboxylating
636	 40.92	0	714932..715432	-	166	197284551	-	PMI0656	-	hypothetical protein
637	 40.71	0	715743..716894	+	383	197284552	-	PMI0657	-	probable alcohol dehydrogenase
638	 39.16	0	717037..717654	-	205	197284553	hisI	PMI0658	-	histidine biosynthesis bifunctional protein [includes: phosphoribosyl-AMP cyclohydrolase and phosphoribosyl-ATP pyrophosphatase]
639	 43.41	0	717654..718427	-	257	197284554	hisF	PMI0659	-	imidazole glycerol phosphate synthase subunit HisF
640	 44.17	0	718409..719146	-	245	197284555	hisA	PMI0660	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)me thylideneamino] imidazole-4-carboxamide isomerase
641	 42.30	0	719153..719743	-	196	197284556	hisH	PMI0661	-	imidazole glycerol phosphate synthase subunit
642	 41.67	0	719743..720810	-	355	197284557	hisB	PMI0662	-	histidine biosynthesis bifunctional protein [includes: histidinol-phosphatase and imidazoleglycerol-phosphate dehydratase]
643	 42.38	0	720858..721940	-	360	197284558	hisC	PMI0663	-	histidinol-phosphate aminotransferase
644	 45.48	+1	721943..723259	-	438	197284559	hisD	PMI0664	-	histidinol dehydrogenase
645	 40.56	0	723266..724165	-	299	197284560	hisG	PMI0665	-	ATP phosphoribosyltransferase
646	 40.14	0	724159..724305	-	48	197284561	-	PMI0666	-	hypothetical protein
647	 42.34	0	724671..725492	+	273	197284562	-	PMI0667	-	hypothetical protein
648	 39.13	0	725489..726109	-	206	197284563	-	PMI0668	-	glutathione S-transferase
649	 41.65	0	726267..727469	+	400	197284564	dacC	PMI0669	-	penicillin-binding protein (D-alanyl-D-alanine carboxypeptidase)
650	 40.45	0	727559..729229	-	556	197284565	fhs	PMI0670	-	formate--tetrahydrofolate ligase
651	 43.74	0	729577..730941	-	454	197284566	sdaB	PMI0671	-	L-serine dehydratase
652	 39.73	0	731056..732384	-	442	197284567	sdaC	PMI0672	-	serine transporter
653	 42.16	0	733303..733914	-	203	197284568	-	PMI0673	-	membrane-associated phosphatase
654	 38.97	0	734152..734577	+	141	197284569	-	PMI0674	-	hypothetical protein
655	 37.88	0	734844..735107	-	87	197284570	grxA	PMI0675	-	glutaredoxin
656	 34.98	0	735278..735580	+	100	197284571	-	PMI0676	-	hypothetical protein
657	 35.52	0	735751..736254	+	167	197284572	-	PMI0677	-	hypothetical protein
658	 41.18	0	736283..737416	+	377	197284573	rumB	PMI0678	-	23S rRNA (uracil-5-)-methyltransferase
659	 39.01	0	737559..738227	-	222	197284574	artM	PMI0679	-	arginine ABC transporter, permease protein
660	 42.55	0	738227..738931	-	234	197284575	artQ	PMI0680	-	arginine ABC transporter, permease protein
661	 36.46	0	738962..739696	-	244	197284576	artI	PMI0681	-	arginine ABC transporter, substrate-binding protein
662	 39.64	0	739711..740439	-	242	197284577	artP	PMI0682	-	arginine ABC transporter, ATP-binding protein
663	 43.85	0	740546..742009	-	487	197284578	-	PMI0683	-	hypothetical protein
664	 40.64	0	742061..742963	-	300	197284579	-	PMI0684	-	hypothetical protein
665	 39.67	0	743309..744982	+	557	197284580	-	PMI0685	-	hypothetical protein
666	 38.65	0	745124..746233	+	369	197284581	macA	PMI0686	-	macrolide-specific efflux protein
667	 42.44	0	746233..748176	+	647	197284582	macB	PMI0687	-	macrolide-specific ABC-type efflux carrier
668	 40.48	0	748339..748548	-	69	197284583	cspD	PMI0688	-	cold shock-like protein
669	 39.05	0	748838..749152	+	104	197284584	clpS	PMI0689	-	ATP-dependent Clp protease adaptor protein
670	 40.04	0	749183..751477	+	764	197284585	clpA	PMI0690	-	ATP-dependent Clp protease ATP-binding subunit
671	 45.21	+1	751597..751815	-	72	197284586	infA	PMI0691	-	translation initiation factor IF-1
672	 44.44	0	752135..752827	-	230	197284587	aat	PMI0692	-	leucyl/phenylalanyl-tRNA-protein transferase
673	 44.58	0	752829..754580	-	583	197284588	cydC	PMI0693	-	ABC transporter, ATP-binding and permease protein
674	 43.28	0	754583..756352	-	589	197284589	cydD	PMI0694	-	ABC transporter, ATP-binding and permease protein
675	 42.40	0	756494..757453	-	319	197284590	trxB	PMI0695	-	thioredoxin reductase
676	 39.19	0	757996..758490	+	164	197284591	lrp	PMI0696	-	leucine-responsive regulator
677	 44.66	+1	758618..762421	+	1267	197284592	ftsK	PMI0697	-	cell division protein (DNA translocase)
678	 43.07	0	762534..763139	+	201	197284593	lolA	PMI0698	-	outer-membrane lipoprotein carrier protein
679	 44.30	0	763150..764499	+	449	197284594	-	PMI0699	-	ATPase
680	 43.18	0	764633..765922	+	429	197284595	serS	PMI0700	-	seryl-tRNA synthetase
681	 29.13	-2	766102..766434	-	110	197284596	-	PMI0701	-	hypothetical protein
682	 40.57	0	766835..767884	+	349	197284597	allD	PMI0702	-	ureidoglycolate dehydrogenase
683	 36.98	0	767957..768862	-	301	197284598	-	PMI0703	-	hypothetical protein
684	 40.49	0	769220..769960	-	246	197284599	pflA	PMI0704	-	pyruvate formate-lyase activating enzyme
685	 41.26	0	770068..772350	-	760	197284600	pflB	PMI0705	-	formate acetyltransferase
686	 38.48	0	772405..773259	-	284	197284601	focA	PMI0706	-	probable formate transporter
687	 39.19	0	773930..775687	-	585	197284602	-	PMI0707	-	hypothetical protein
688	 39.98	0	775915..776952	+	345	197284603	ansB	PMI0708	-	L-asparaginase II precursor
689	 29.79	-2	777027..778295	-	422	197284604	-	PMI0709	-	haemagglutinin
690	 40.04	0	778432..779862	-	476	197284605	-	PMI0710	-	MFS-family transporter
691	 41.41	0	779999..781087	+	362	197284606	serC	PMI0711	-	phosphoserine aminotransferase
692	 42.27	0	781284..782570	+	428	197284607	aroA	PMI0713	-	3-phosphoshikimate 1-carboxyvinyltransferase
693	 42.33	0	782859..783536	+	225	197284608	cmk	PMI0714	-	cytidylate kinase
694	 43.97	0	783718..785391	+	557	197284609	rpsA	PMI0715	-	30S ribosomal protein S1
695	 45.14	+1	785456..785743	+	95	197284610	ihfB	PMI0716	-	integration host factor beta-subunit
696	 37.47	0	786165..788534	+	789	197284611	-	PMI0717	-	hypothetical protein
697	 40.78	0	788571..790316	+	581	197284612	msbA	PMI0718	-	lipid A export ATP-binding/permease protein
698	 43.51	0	790313..791314	+	333	197284613	lpxK	PMI0719	-	tetraacyldisaccharide 4'-kinase
699	 35.65	0	791810..792025	+	71	197284614	-	PMI0720	-	cold shock protein
700	 37.78	0	792440..792619	+	59	197284615	-	PMI0721	-	hypothetical protein
701	 44.62	+1	792624..793385	+	253	197284616	kdsB	PMI0722	-	3-deoxy-manno-octulosonate cytidylyltransferase
702	 41.16	0	793509..794339	-	276	197284617	-	PMI0723	-	hypothetical protein
703	 39.92	0	794719..795492	+	257	197284618	smtA	PMI0724	-	S-adenosylmethionine-dependent methyltransferase
704	 41.42	0	795502..796824	+	440	197284619	mukF	PMI0725	-	chromosome partition protein
705	 41.70	0	796784..797536	+	250	197284620	mukE	PMI0726	-	chromosome partition protein
706	 41.61	0	797533..801990	+	1485	197284621	mukB	PMI0727	-	chromosome partition protein
707	 36.39	0	802273..802926	-	217	197284622	cat	PMI0728	-	chloramphenicol acetyltransferase
708	 40.62	0	803332..804045	+	237	197284623	aphA	PMI0729	-	class B acid phosphatase precursor
709	 38.69	0	804395..806110	+	571	197284624	-	PMI0730	-	hypothetical protein
710	 38.62	0	806448..806996	+	182	197284625	-	PMI0731	-	hypothetical protein
711	 37.79	0	807046..807696	+	216	197284626	-	PMI0732	-	metallo-beta-lactamase superfamily protein
712	 32.91	-1	807789..808262	-	157	197284627	-	PMI0733	-	hypothetical protein
713	 33.62	-1	808353..810089	-	578	197284628	-	PMI0734	-	hypothetical protein
714	 37.39	0	810082..811437	-	451	197284629	-	PMI0735	-	hypothetical protein
715	 37.84	0	811475..815023	-	1182	197284630	-	PMI0736	-	hypothetical protein
716	 39.34	0	815026..816489	-	487	197284631	-	PMI0737	-	hypothetical protein
717	 39.78	0	816495..817145	-	216	197284632	-	PMI0738	-	hypothetical protein
39.69	MEAN

4.91	STD DEV
