IslandPath Analysis: Proteus mirabilis HI4320

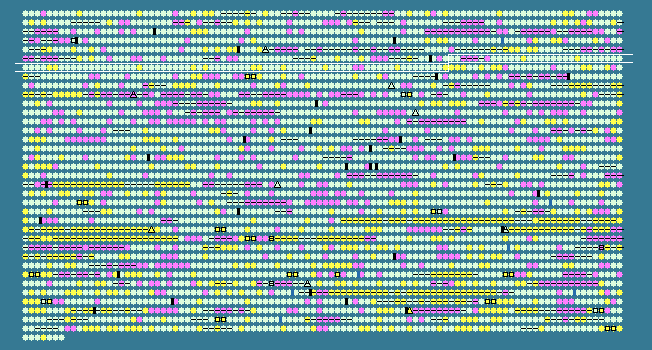

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
572	 41.57	0	636913..637665	-	250	197284487	gpmA	PMI0590	-	phosphoglyceromutase
573	 37.49	0	638016..639482	-	488	197284488	modF	PMI0591	-	molybdenum transport ATP-binding protein (photorepair protein)
574	 29.81	-2	639658..641217	+	519	197284489	-	PMI0592	-	adhesin secretion/activation protein (two-partner secretion system accessory protein)
575	 33.80	-1	641233..646641	+	1802	197284490	-	PMI0593	-	adhesin
576	 24.68	-2	646641..646952	+	103	197284491	-	PMI0594	-	hypothetical protein
577	 40.78	0	647162..647953	-	263	197284492	modR	PMI0595	-	molybdenum transport regulatory protein
578	 34.03	-1	648112..648255	+	47	197284493	-	PMI0596	-	hypothetical protein
579	 39.04	0	649074..649844	+	256	197284494	modA	PMI0597	-	molybdate ABC transporter, substrate-binding protein
580	 43.15	0	649862..650554	+	230	197284495	modB	PMI0598	-	molybdenum ABC transporter, permease protein
581	 39.34	0	650548..651612	+	354	197284496	modC	PMI0599	-	molybdenum ABC transporter, ATP-binding protein
582	 41.97	0	651677..652498	-	273	197284497	-	PMI0600	-	hydrolase
583	 41.41	0	652647..653636	+	329	197284498	pgl	PMI0601	-	6-phosphogluconolactonase
584	 44.13	0	653693..654970	-	425	197284499	bioA	PMI0602	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
585	 41.71	0	655074..656111	+	345	197284500	bioB	PMI0603	-	biotin synthase
586	 41.92	0	656111..657274	+	387	197284501	bioF	PMI0604	-	8-amino-7-oxononanoate synthase
587	 41.41	0	657249..658016	+	255	197284502	bioC	PMI0605	-	biotin synthesis protein BioC
588	 39.59	0	658009..658695	+	228	197284503	bioD	PMI0606	-	dethiobiotin synthetase
589	 41.54	0	659167..661176	+	669	197284504	uvrB	PMI0607	-	excinuclease ABC subunit B
590	 37.42	0	661372..662325	+	317	197284505	-	PMI0608	-	hypothetical protein
591	 42.09	0	662443..663378	-	311	197284506	-	PMI0609	-	hypothetical protein
592	 41.59	0	663808..664788	+	326	197284507	moaA	PMI0610	-	molybdenum cofactor biosynthesis protein A
593	 43.96	0	664830..665309	+	159	197284508	moaC	PMI0611	-	molybdenum cofactor biosynthesis protein C
594	 41.06	0	665306..665551	+	81	197284509	moaD	PMI0612	-	molybdenum cofactor biosynthesis protein D
595	 41.99	0	665553..666014	+	153	197284510	moaE	PMI0613	-	molybdenum cofactor biosynthesis protein E
596	 37.97	0	666209..666919	+	236	197284511	-	PMI0614	-	hypothetical protein
597	 36.94	0	667062..668171	-	369	197284512	-	PMI0615	-	ABC transporter, permease protein
598	 41.23	0	668187..669338	-	383	197284513	-	PMI0616	-	ABC transporter, permease protein
599	 41.98	0	669331..671100	-	589	197284514	-	PMI0617	-	ABC transporter, ATP-binding protein
600	 41.03	0	671121..672107	-	328	197284515	-	PMI0618	-	HlyD-family secretion protein
601	 38.77	0	672125..672823	-	232	197284516	-	PMI0619	-	TetR-family transcriptional regulator
602	 40.70	0	673134..674531	+	465	197284517	rhlE	PMI0620	-	ATP-dependent RNA helicase
603	 41.80	0	674541..675473	+	310	197284518	dusC	PMI0621	-	tRNA-dihydrouridine synthase C
604	 38.96	0	675679..675927	+	82	197284519	-	PMI0622	-	transglycosylase associated protein
605	 43.26	0	676011..676856	-	281	197284520	sseA	PMI0623	-	3-mercaptopyruvate sulfurtransferase
606	 45.16	+1	676869..677054	-	61	197284521	-	PMI0624	-	hypothetical protein
607	 37.94	0	677340..678707	-	455	197284522	dcuD	PMI0625	-	C4-dicarboxylate transporter
608	 40.31	0	678743..679918	-	391	197284523	metC	PMI0626	-	cystathionine beta-lyase
609	 37.72	0	680327..681694	+	455	197284524	-	PMI0627	-	lyase
610	 40.58	0	681765..683144	+	459	197284525	-	PMI0628	-	MmgE/Prp family protein
611	 39.93	0	683265..684173	-	302	197284526	-	PMI0629	-	LysR-family transcriptional regulator
612	 39.78	0	684437..686545	+	702	197284527	dinG	PMI0630	-	ATP-dependent helicase
613	 39.05	0	686606..687112	-	168	197284528	dps	PMI0631	-	DNA protection during starvation protein
614	 40.40	0	687390..688280	-	296	197284529	-	PMI0632	-	hypothetical protein
615	 37.48	0	688629..689207	+	192	197284530	-	PMI0633	-	lysine decarboxylase
616	 37.63	0	689217..689681	+	154	197284531	-	PMI0634	-	acetyltransferase
617	 42.36	0	689745..691505	-	586	197284532	-	PMI0635	-	amidohydrolase
618	 41.15	0	691702..692469	-	255	197284533	moeB	PMI0636	-	molybdopterin biosynthesis protein
619	 42.19	0	692475..693716	-	413	197284534	moeA	PMI0637	-	molybdopterin biosynthesis protein
620	 43.68	0	693932..695101	+	389	197284535	-	PMI0638	-	MFS-family transporter
621	 40.27	0	695247..695909	+	220	197284536	folE	PMI0639	-	GTP cyclohydrolase
622	 38.11	0	695919..697070	+	383	197284537	-	PMI0640	-	hypothetical protein
623	 40.50	0	697067..697792	-	241	197284538	sanA	PMI0641	-	transport protein
624	 42.64	0	697927..699624	-	565	197284539	sfcA	PMI0642	-	NAD-dependent malic enzyme
625	 43.16	0	699839..700723	-	294	197284540	cdd	PMI0643	-	cytidine deaminase
626	 39.74	0	700947..701648	-	233	197284541	-	PMI0644	-	hypothetical protein
627	 39.10	0	701642..702109	-	155	197284542	-	PMI0645	-	hypothetical protein
628	 41.57	0	702245..704272	-	675	197284543	metG	PMI0646	-	methionyl-tRNA synthetase
629	 43.31	0	704477..705589	+	370	197284544	-	PMI0648	-	ATP-binding protein
630	 38.16	0	705802..706443	+	213	197284545	udk	PMI0649	-	Uridine kinase
631	 45.88	+1	706520..707101	+	193	197284546	dcd	PMI0650	-	deoxycytidine triphosphate deaminase
632	 37.84	0	707146..709077	+	643	197284547	asmA	PMI0651	-	outer membrane assembly protein
633	 42.00	0	709506..710867	+	453	197284548	dcuC	PMI0652	-	anaerobic C4-dicarboxylate transporter
634	 40.10	0	711028..712608	-	526	197284549	-	PMI0653	-	probable transporter
635	 39.73	0	713406..714812	+	468	197284550	gnd	PMI0655	-	6-phosphogluconate dehydrogenase, decarboxylating
636	 40.92	0	714932..715432	-	166	197284551	-	PMI0656	-	hypothetical protein
637	 40.71	0	715743..716894	+	383	197284552	-	PMI0657	-	probable alcohol dehydrogenase
638	 39.16	0	717037..717654	-	205	197284553	hisI	PMI0658	-	histidine biosynthesis bifunctional protein [includes: phosphoribosyl-AMP cyclohydrolase and phosphoribosyl-ATP pyrophosphatase]
639	 43.41	0	717654..718427	-	257	197284554	hisF	PMI0659	-	imidazole glycerol phosphate synthase subunit HisF
640	 44.17	0	718409..719146	-	245	197284555	hisA	PMI0660	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)me thylideneamino] imidazole-4-carboxamide isomerase
641	 42.30	0	719153..719743	-	196	197284556	hisH	PMI0661	-	imidazole glycerol phosphate synthase subunit
642	 41.67	0	719743..720810	-	355	197284557	hisB	PMI0662	-	histidine biosynthesis bifunctional protein [includes: histidinol-phosphatase and imidazoleglycerol-phosphate dehydratase]
643	 42.38	0	720858..721940	-	360	197284558	hisC	PMI0663	-	histidinol-phosphate aminotransferase
644	 45.48	+1	721943..723259	-	438	197284559	hisD	PMI0664	-	histidinol dehydrogenase
645	 40.56	0	723266..724165	-	299	197284560	hisG	PMI0665	-	ATP phosphoribosyltransferase
646	 40.14	0	724159..724305	-	48	197284561	-	PMI0666	-	hypothetical protein
647	 42.34	0	724671..725492	+	273	197284562	-	PMI0667	-	hypothetical protein
648	 39.13	0	725489..726109	-	206	197284563	-	PMI0668	-	glutathione S-transferase
649	 41.65	0	726267..727469	+	400	197284564	dacC	PMI0669	-	penicillin-binding protein (D-alanyl-D-alanine carboxypeptidase)
650	 40.45	0	727559..729229	-	556	197284565	fhs	PMI0670	-	formate--tetrahydrofolate ligase
651	 43.74	0	729577..730941	-	454	197284566	sdaB	PMI0671	-	L-serine dehydratase
652	 39.73	0	731056..732384	-	442	197284567	sdaC	PMI0672	-	serine transporter
653	 42.16	0	733303..733914	-	203	197284568	-	PMI0673	-	membrane-associated phosphatase
654	 38.97	0	734152..734577	+	141	197284569	-	PMI0674	-	hypothetical protein
655	 37.88	0	734844..735107	-	87	197284570	grxA	PMI0675	-	glutaredoxin
656	 34.98	0	735278..735580	+	100	197284571	-	PMI0676	-	hypothetical protein
657	 35.52	0	735751..736254	+	167	197284572	-	PMI0677	-	hypothetical protein
658	 41.18	0	736283..737416	+	377	197284573	rumB	PMI0678	-	23S rRNA (uracil-5-)-methyltransferase
659	 39.01	0	737559..738227	-	222	197284574	artM	PMI0679	-	arginine ABC transporter, permease protein
660	 42.55	0	738227..738931	-	234	197284575	artQ	PMI0680	-	arginine ABC transporter, permease protein
661	 36.46	0	738962..739696	-	244	197284576	artI	PMI0681	-	arginine ABC transporter, substrate-binding protein
662	 39.64	0	739711..740439	-	242	197284577	artP	PMI0682	-	arginine ABC transporter, ATP-binding protein
663	 43.85	0	740546..742009	-	487	197284578	-	PMI0683	-	hypothetical protein
664	 40.64	0	742061..742963	-	300	197284579	-	PMI0684	-	hypothetical protein
665	 39.67	0	743309..744982	+	557	197284580	-	PMI0685	-	hypothetical protein
666	 38.65	0	745124..746233	+	369	197284581	macA	PMI0686	-	macrolide-specific efflux protein
667	 42.44	0	746233..748176	+	647	197284582	macB	PMI0687	-	macrolide-specific ABC-type efflux carrier
668	 40.48	0	748339..748548	-	69	197284583	cspD	PMI0688	-	cold shock-like protein
669	 39.05	0	748838..749152	+	104	197284584	clpS	PMI0689	-	ATP-dependent Clp protease adaptor protein
670	 40.04	0	749183..751477	+	764	197284585	clpA	PMI0690	-	ATP-dependent Clp protease ATP-binding subunit
671	 45.21	+1	751597..751815	-	72	197284586	infA	PMI0691	-	translation initiation factor IF-1
39.69	MEAN

4.91	STD DEV
