IslandPath Analysis: Proteus mirabilis HI4320

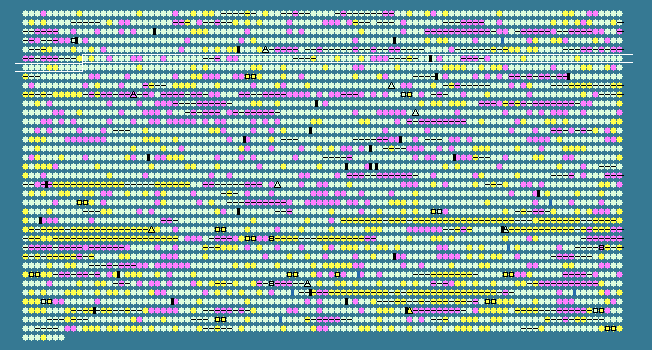

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
511	 42.13	0	568468..572661	+	1397	197284426	-	PMI0527	-	phage host specificity protein
512	 44.17	0	572655..573023	+	122	197284427	-	PMI0528	-	phage protein
513	 40.33	0	573025..573639	+	204	197284428	-	PMI0529	-	phage protein
514	 37.93	0	573689..573949	+	86	197284429	-	PMI0530	-	hypothetical protein
515	 30.72	-1	574658..574963	-	101	197284430	-	PMI0532	-	fimbrial operon regulator
516	 36.66	0	575064..576146	-	360	197284431	-	PMI0533	-	fimbrial adhesin
517	 40.04	0	576156..578690	-	844	197284432	-	PMI0534	-	fimbrial usher protein
518	 38.71	0	578700..579425	-	241	197284433	-	PMI0535	-	fimbrial chaperone
519	 35.16	0	579491..580036	-	181	197284434	uca	PMI0536	-	major fimbrial subunit
520	 30.07	-1	580267..580419	+	50	197284435	-	PMI0537	-	hypothetical protein
521	 41.13	0	580530..580670	-	46	197284436	holE1	PMI0538	-	DNA polymerase III, theta subunit
522	 39.87	0	580915..582582	+	555	197284437	glnS	PMI0539	-	glutaminyl-tRNA synthetase
523	 39.78	0	583221..584615	+	464	197284438	-	PMI0540	-	hypothetical protein
524	 36.07	0	584889..585728	+	279	197284439	-	PMI0542	-	hypothetical protein
525	 39.60	0	585792..586238	-	148	197284440	fur	PMI0543	-	ferric uptake regulation protein
526	 41.10	0	586429..586956	-	175	197284441	fldA	PMI0544	-	flavodoxin 1
527	 41.33	0	587115..587414	-	99	197284442	-	PMI0545	-	DNA-binding protein
528	 40.20	0	587613..588398	-	261	197284443	-	PMI0546	-	hydrolase
529	 41.30	0	588863..589414	+	183	197284444	seqA	PMI0547	-	negative regulator of replication initiation
530	 41.12	0	589489..591132	+	547	197284445	pgm	PMI0548	-	phosphoglucomutase
531	 37.06	0	591289..591771	+	160	197284446	-	PMI0549	-	hypothetical protein
532	 36.63	0	591928..592170	+	80	197284447	-	PMI0550	-	hypothetical protein
533	 28.23	-2	592163..592456	+	97	197284448	-	PMI0551	-	hypothetical protein
534	 41.51	0	592626..592784	+	52	197284449	-	PMI0552	-	hypothetical protein
535	 30.63	-1	592933..593265	+	110	197284450	-	PMI0553	-	hypothetical protein
536	 34.74	-1	593267..593551	+	94	197284451	-	PMI0554	-	transcriptional regulator
537	 38.65	0	593889..594095	+	68	197284452	-	PMI0555	-	hypothetical protein
538	 40.05	0	594319..595062	+	247	197284453	-	PMI0556	-	hypothetical protein
539	 38.44	0	595143..597218	-	691	197284454	-	PMI0557	-	hypothetical protein
540	 41.80	0	597215..598348	-	377	197284455	-	PMI0558	-	hypothetical protein
541	 40.57	0	598356..600938	-	860	197284456	-	PMI0559	-	hypothetical protein
542	 42.16	0	601039..602148	-	369	197284457	-	PMI0560	-	ATPase
543	 38.78	0	602174..605902	-	1242	197284458	-	PMI0561	-	hypothetical protein
544	 38.20	0	606290..607420	-	376	197284459	-	PMI0562	-	MFS-family transporter
545	 38.85	0	607523..608284	+	253	197284460	-	PMI0563	-	regulatory protein
546	 41.82	0	608354..609637	-	427	197284461	gltA	PMI0564	-	citrate synthase GltA
547	 42.33	0	610272..610649	+	125	197284462	sdhC	PMI0565	-	succinate dehydrogenase cytochrome b-556 subunit
548	 36.23	0	610643..610987	+	114	197284463	sdhD	PMI0566	-	succinate dehydrogenase hydrophobic membrane anchor protein
549	 44.77	+1	610987..612753	+	588	197284464	sdhA	PMI0567	-	succinate dehydrogenase flavoprotein subunit
550	 39.61	0	612788..613504	+	238	197284465	sdhB	PMI0568	-	succinate dehydrogenase iron-sulfur protein
551	 42.50	0	613789..616593	+	934	197284466	sucA	PMI0569	-	2-oxoglutarate dehydrogenase E1 component
552	 42.93	0	616607..617815	+	402	197284467	sucB	PMI0570	-	dihydrolipoamide succinyltransferase component of 2-oxoglutarate dehydrogenase complex
553	 43.53	0	617977..619143	+	388	197284468	sucC	PMI0571	-	succinyl-CoA synthetase beta chain
554	 41.58	0	619143..620015	+	290	197284469	sucD	PMI0572	-	succinyl-CoA synthetase alpha chain
555	 42.89	0	621499..623067	+	522	197284470	cydA	PMI0573	-	cytochrome D ubiquinol oxidase subunit I
556	 41.62	0	623082..624239	+	385	197284471	cydB	PMI0574	-	cytochrome D ubiquinol oxidase subunit II
557	 44.74	+1	624252..624365	+	37	197284472	-	PMI0575	-	hypothetical protein
558	 40.00	0	624365..624649	+	94	197284473	-	PMI0576	-	hypothetical protein
559	 33.89	-1	624740..625633	-	297	197284474	-	PMI0577	-	LysR-family transcriptional regulator
560	 33.63	-1	625724..627094	+	456	197284475	-	PMI0578	-	MFS-family transporter
561	 35.05	0	627084..627491	+	135	197284476	-	PMI0579	-	hypothetical protein
562	 39.65	0	627801..628196	+	131	197284477	-	PMI0580	-	thioesterase
563	 41.92	0	628196..628882	+	228	197284478	tolQ	PMI0581	-	biopolymer transport protein
564	 41.55	0	628905..629330	+	141	197284479	tolR	PMI0582	-	biopolymer transport protein
565	 45.41	+1	629358..630425	+	355	197284480	tolA	PMI0583	-	TolA protein
566	 42.88	0	630565..631863	+	432	197284481	tolB	PMI0584	-	TolB protein
567	 41.97	0	631909..632406	+	165	197284482	pal	PMI0585	-	peptidoglycan-associated lipoprotein
568	 39.28	0	632416..633189	+	257	197284483	-	PMI0586	-	hypothetical protein
569	 39.06	0	633679..634569	-	296	197284484	-	PMI0587	-	aminoglycoside 6-adenylyltransferase
570	 34.84	0	634809..635537	+	242	197284485	pnuC	PMI0588	-	nicotinamide mononucleotide transport protein
571	 40.51	0	635781..636839	+	352	197284486	aroG	PMI0589	-	phospho-2-dehydro-3-deoxyheptonate aldolase (DAHP synthetase) phenylalanine-repressible
572	 41.57	0	636913..637665	-	250	197284487	gpmA	PMI0590	-	phosphoglyceromutase
573	 37.49	0	638016..639482	-	488	197284488	modF	PMI0591	-	molybdenum transport ATP-binding protein (photorepair protein)
574	 29.81	-2	639658..641217	+	519	197284489	-	PMI0592	-	adhesin secretion/activation protein (two-partner secretion system accessory protein)
575	 33.80	-1	641233..646641	+	1802	197284490	-	PMI0593	-	adhesin
576	 24.68	-2	646641..646952	+	103	197284491	-	PMI0594	-	hypothetical protein
577	 40.78	0	647162..647953	-	263	197284492	modR	PMI0595	-	molybdenum transport regulatory protein
578	 34.03	-1	648112..648255	+	47	197284493	-	PMI0596	-	hypothetical protein
579	 39.04	0	649074..649844	+	256	197284494	modA	PMI0597	-	molybdate ABC transporter, substrate-binding protein
580	 43.15	0	649862..650554	+	230	197284495	modB	PMI0598	-	molybdenum ABC transporter, permease protein
581	 39.34	0	650548..651612	+	354	197284496	modC	PMI0599	-	molybdenum ABC transporter, ATP-binding protein
582	 41.97	0	651677..652498	-	273	197284497	-	PMI0600	-	hydrolase
583	 41.41	0	652647..653636	+	329	197284498	pgl	PMI0601	-	6-phosphogluconolactonase
584	 44.13	0	653693..654970	-	425	197284499	bioA	PMI0602	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
585	 41.71	0	655074..656111	+	345	197284500	bioB	PMI0603	-	biotin synthase
586	 41.92	0	656111..657274	+	387	197284501	bioF	PMI0604	-	8-amino-7-oxononanoate synthase
587	 41.41	0	657249..658016	+	255	197284502	bioC	PMI0605	-	biotin synthesis protein BioC
588	 39.59	0	658009..658695	+	228	197284503	bioD	PMI0606	-	dethiobiotin synthetase
589	 41.54	0	659167..661176	+	669	197284504	uvrB	PMI0607	-	excinuclease ABC subunit B
590	 37.42	0	661372..662325	+	317	197284505	-	PMI0608	-	hypothetical protein
591	 42.09	0	662443..663378	-	311	197284506	-	PMI0609	-	hypothetical protein
592	 41.59	0	663808..664788	+	326	197284507	moaA	PMI0610	-	molybdenum cofactor biosynthesis protein A
593	 43.96	0	664830..665309	+	159	197284508	moaC	PMI0611	-	molybdenum cofactor biosynthesis protein C
594	 41.06	0	665306..665551	+	81	197284509	moaD	PMI0612	-	molybdenum cofactor biosynthesis protein D
595	 41.99	0	665553..666014	+	153	197284510	moaE	PMI0613	-	molybdenum cofactor biosynthesis protein E
596	 37.97	0	666209..666919	+	236	197284511	-	PMI0614	-	hypothetical protein
597	 36.94	0	667062..668171	-	369	197284512	-	PMI0615	-	ABC transporter, permease protein
598	 41.23	0	668187..669338	-	383	197284513	-	PMI0616	-	ABC transporter, permease protein
599	 41.98	0	669331..671100	-	589	197284514	-	PMI0617	-	ABC transporter, ATP-binding protein
600	 41.03	0	671121..672107	-	328	197284515	-	PMI0618	-	HlyD-family secretion protein
601	 38.77	0	672125..672823	-	232	197284516	-	PMI0619	-	TetR-family transcriptional regulator
602	 40.70	0	673134..674531	+	465	197284517	rhlE	PMI0620	-	ATP-dependent RNA helicase
603	 41.80	0	674541..675473	+	310	197284518	dusC	PMI0621	-	tRNA-dihydrouridine synthase C
604	 38.96	0	675679..675927	+	82	197284519	-	PMI0622	-	transglycosylase associated protein
605	 43.26	0	676011..676856	-	281	197284520	sseA	PMI0623	-	3-mercaptopyruvate sulfurtransferase
606	 45.16	+1	676869..677054	-	61	197284521	-	PMI0624	-	hypothetical protein
607	 37.94	0	677340..678707	-	455	197284522	dcuD	PMI0625	-	C4-dicarboxylate transporter
608	 40.31	0	678743..679918	-	391	197284523	metC	PMI0626	-	cystathionine beta-lyase
609	 37.72	0	680327..681694	+	455	197284524	-	PMI0627	-	lyase
610	 40.58	0	681765..683144	+	459	197284525	-	PMI0628	-	MmgE/Prp family protein
39.69	MEAN

4.91	STD DEV
