IslandPath Analysis: Proteus mirabilis HI4320

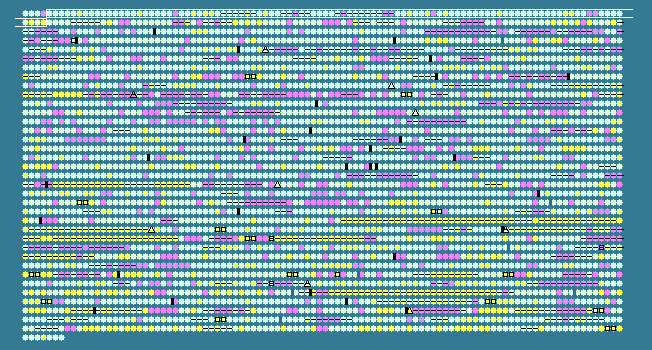

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
5	 37.28	0	13618..14403	-	261	197283920	-	PMI0005	-	hypothetical protein
6	 38.57	0	14706..15659	+	317	197283921	talB	PMI0006	-	transaldolase B
7	 41.36	0	15844..16827	+	327	197283922	-	PMI0007	-	hypothetical protein
8	 42.69	0	16989..17576	+	195	197283923	mog	PMI0008	-	molybdopterin biosynthesis protein
9	 40.34	0	18101..20026	+	641	197283924	dnaK	PMI0009	-	chaperone protein DnaK (heat shock protein 70)
10	 43.27	0	20133..21269	+	378	197283925	dnaJ	PMI0010	-	chaperone protein DnaJ
11	 39.69	0	21812..22990	+	392	197283926	nhaA	PMI0011	-	Na+/H+ antiporter
12	 37.68	0	23179..24075	+	298	197283927	nhaR	PMI0012	-	transcriptional activator protein NhaR
13	 40.23	0	24170..24430	-	86	197283928	rpsT	PMI0013	-	30S ribosomal protein S20
14	 41.40	0	24861..25802	+	313	197283929	ribF	PMI0014	-	riboflavin biosynthesis protein (includes: riboflavin kinase and FMN adenyltransferase)
15	 42.30	0	25832..28642	+	936	197283930	ileS	PMI0015	-	isoleucyl-tRNA synthetase
16	 40.08	0	28643..29161	+	172	197283931	lspA	PMI0016	-	lipoprotein signal peptidase
17	 40.13	0	29232..29702	+	156	197283932	fkpB	PMI0017	-	FKBP-type peptidyl-prolyl cis-trans isomerase
18	 42.87	0	29683..30636	+	317	197283933	lytB	PMI0018	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
19	 42.58	0	30879..31700	+	273	197283934	dapB	PMI0019	-	dihydrodipicolinate reductase
20	 43.21	0	32136..33299	+	387	197283935	carA	PMI0020	-	carbamoyl-phosphate synthase small chain
21	 42.75	0	33316..36543	+	1075	197283936	carB	PMI0021	-	carbamoyl-phosphate synthase large chain
22	 36.81	0	37025..37168	+	47	197283937	-	PMI0022	-	cell killing protein
23	 37.01	0	37240..44316	-	2358	197283938	-	PMI0023	-	intimin/invasin
24	 38.87	0	44615..45445	-	276	197283939	dkgA	PMI0024	-	2,5-diketo-D-gluconic acid reductase A
25	 42.40	0	45473..46630	-	385	197283940	-	PMI0025	-	iron-containing alcohol dehydrogenase
26	 35.50	0	46818..47600	+	260	197283941	-	PMI0026	-	hypothetical protein
27	 38.10	0	47778..48449	-	223	197283942	-	PMI0027	-	DedA-family membrane protein
28	 39.11	0	48574..49767	-	397	197283943	metC	PMI0028	-	cystathionine beta-lyase
29	 45.60	+1	50098..51108	+	336	197283944	exbB	PMI0029	-	biopolymer transport protein
30	 41.03	0	51115..51543	+	142	197283945	exbD	PMI0030	-	biopolymer transport protein
31	 44.36	0	53376..54500	+	374	197283946	hyb0	PMI0031	-	hydrogenase-2 small chain precursor
32	 43.20	0	54497..55510	+	337	197283947	hybA	PMI0032	-	hydrogenase-2 4fe-4s subunit
33	 40.61	0	55497..56678	+	393	197283948	hybB	PMI0033	-	hydrogenase-2 cytochrome b subunit
34	 41.90	0	56675..58378	+	567	197283949	hybC	PMI0034	-	hydrogenase-2 large subunit
35	 41.92	0	58378..58866	+	162	197283950	hybD	PMI0035	-	hydrogenase 2 maturation protease
36	 41.82	0	58863..59357	+	164	197283951	hybE	PMI0036	-	hydrogenase-2 subunit
37	 41.85	0	59419..60615	+	398	197283952	hypB	PMI0037	-	hydrogenase nickel incorporation protein
38	 44.19	0	60606..60872	+	88	197283953	hybG	PMI0038	-	hydrogenase-2 maturation protein
39	 42.28	0	60856..61995	+	379	197283954	hypD	PMI0039	-	hydrogenase formation protein
40	 42.65	0	61992..63011	+	339	197283955	hypE	PMI0040	-	hydrogenase formation protein
41	 43.28	0	63205..64431	+	408	197283956	-	PMI0041	-	hypothetical protein
42	 40.33	0	64428..64670	+	80	197283957	-	PMI0042	-	SirA-like protein
43	 41.25	0	64753..65661	-	302	197283958	rdgC	PMI0043	-	recombination associated protein RdgC
44	 39.22	0	66979..68184	+	401	197283959	-	PMI0044	-	outer membrane protein
45	 40.13	0	68271..70226	+	651	197283960	cpdB	PMI0045	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase precursor
46	 35.91	0	70309..71085	+	258	197283961	-	PMI0046	-	lipoprotein
47	 41.71	0	71104..72726	+	540	197283962	-	PMI0047	-	secreted 5'-nucleotidase
48	 39.50	0	73039..73638	-	199	197283963	-	PMI0048	-	hypothetical protein
49	 38.14	0	73768..77493	-	1241	197283964	sbcC	PMI0049	-	exonuclease
50	 41.28	0	77490..78722	-	410	197283965	sbcD	PMI0050	-	exonuclease subunit D
51	 41.59	0	78944..79633	+	229	197283966	phoB	PMI0051	-	phosphate regulon transcriptional regulator (two-component response regulator)
52	 41.38	0	79657..80949	+	430	197283967	phoR	PMI0052	-	phosphate regulon sensor protein (two-component histidine kinase)
53	 40.36	0	81447..82784	+	445	197283968	brnQ	PMI0053	-	branched-chain amino acid transport system II carrier protein
54	 35.66	0	82844..84130	-	428	197283969	-	PMI0054	-	hypothetical protein
55	 36.73	0	84120..84413	-	97	197283970	-	PMI0055	-	hypothetical protein
56	 37.54	0	84801..85727	-	308	197283971	-	PMI0056	-	hypothetical protein
57	 37.85	0	85724..86674	-	316	197283972	-	PMI0057	-	hypothetical protein
58	 36.54	0	87603..88538	-	311	197283973	-	PMI0060	-	hypothetical protein
59	 37.33	0	88535..89485	-	316	197283974	-	PMI0061	-	hypothetical protein
60	 37.43	0	89507..90433	-	308	197283975	-	PMI0062	-	hypothetical protein
61	 34.52	-1	90455..91381	-	308	197283976	-	PMI0063	-	hypothetical protein
62	 25.47	-2	92040..92522	+	160	197283977	-	PMI0064	-	hypothetical protein
63	 40.10	0	92694..93668	-	324	197283978	-	PMI0065	-	subunit of oxidoreductase
64	 39.72	0	93676..94473	-	265	197283979	-	PMI0066	-	oxidoreductase, cytochrome b subunit
65	 43.30	0	94470..95141	-	223	197283980	-	PMI0067	-	oxidoreductase, Fe-S subunit
66	 40.03	0	95208..95924	-	238	197283981	-	PMI0068	-	subunit of oxidoreductase
67	 43.08	0	95940..98042	-	700	197283982	-	PMI0069	-	aldehyde ferredoxin oxidoreductase
68	 43.81	0	98095..98724	-	209	197283983	-	PMI0070	-	oxidoreductase, Fe-S subunit
69	 20.16	-2	99189..99317	-	42	197283984	-	PMI0071	-	hypothetical protein
70	 42.92	0	99339..101111	-	590	197283985	ggt	PMI0072	-	gamma-glutamyltranspeptidase
71	 43.62	0	101402..102004	-	200	197283986	ahpC	PMI0073	-	alkyl hydroperoxide reductase
72	 40.82	0	102415..103002	-	195	197283987	-	PMI0074	-	hypothetical protein
73	 42.27	0	103110..104183	+	357	197283988	queA	PMI0075	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
74	 40.51	0	104365..105507	+	380	197283989	tgt	PMI0076	-	queuine tRNA-ribosyltransferase
75	 37.20	0	105594..105929	+	111	197283990	yajC	PMI0077	-	preprotein translocase subunit
76	 42.86	0	105962..107809	+	615	197283991	secD	PMI0078	-	protein-export membrane protein SecD
77	 40.73	0	107775..108788	+	337	197283992	secF	PMI0079	-	protein-export membrane protein SecF
78	 41.11	0	108907..109356	+	149	197283993	ribX	PMI0080	-	ATP-binding regulatory protein
79	 42.06	0	109413..110570	+	385	197283994	ribD	PMI0081	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase and 5-amino-6-(5-phosphoribosylamino)uracil reductase
80	 43.31	0	110783..111253	+	156	197283995	ribH	PMI0082	-	6,7-dimethyl-8-ribityllumazine synthase
81	 42.75	0	111282..111695	+	137	197283996	nusB	PMI0083	-	N utilization substance protein B
82	 41.49	0	111789..112769	+	326	197283997	thiL	PMI0084	-	thiamine-monophosphate kinase
83	 38.10	0	112855..113190	-	111	197283998	phnA	PMI0085	-	hypothetical protein
84	 37.04	0	114037..114279	-	80	197283999	-	PMI0087	-	plasmid-associated protein
85	 42.46	0	114382..115389	-	335	197284000	rbsR	PMI0088	-	ribose operon repressor (LacI-family transcriptional regulator)
86	 42.61	0	115394..116320	-	308	197284001	rbsK	PMI0089	-	ribokinase
87	 41.75	0	116397..117287	-	296	197284002	rbsB	PMI0090	-	D-ribose ABC transporter, substrate-binding periplasmic protein
88	 41.93	0	117327..118292	-	321	197284003	rbsC	PMI0091	-	ribose ABC transporter, permease protein
89	 39.10	0	118294..119802	-	502	197284004	rbsA	PMI0092	-	ribose ABC transporter, ATP-binding protein
90	 36.90	0	119810..120229	-	139	197284005	rbsD	PMI0093	-	high affinity ribose transport protein
91	 43.63	0	120570..122444	-	624	197284006	dxs	PMI0094	-	1-deoxy-D-xylulose-5-phosphate synthase
92	 44.48	0	122511..123434	-	307	197284007	ispA	PMI0095	-	geranyltranstransferase
93	 37.86	0	123435..123743	-	102	197284008	xseB	PMI0096	-	exodeoxyribonuclease VII small subunit
94	 38.15	0	123898..125349	+	483	197284009	thiI	PMI0097	-	thiamine biosynthesis protein
95	 22.22	-2	125729..125836	-	35	197284010	-	PMI0099	-	hypothetical protein
96	 28.18	-2	125842..126423	-	193	197284011	-	PMI0100	-	hypothetical protein
97	 40.78	0	126594..127211	-	205	197284012	thiJ	PMI0101	-	DJ-1/PfpI family protein
98	 38.85	0	127180..128103	-	307	197284013	panE	PMI0102	-	2-dehydropantoate 2-reductase
99	 37.60	0	128357..128848	+	163	197284014	-	PMI0103	-	hypothetical protein
100	 38.58	0	128911..130281	-	456	197284015	-	PMI0104	-	MFS-family transporter
101	 40.34	0	130455..131339	-	294	197284016	cyoE	PMI0105	-	protoheme IX farnesyltransferase
102	 43.24	0	131351..131683	-	110	197284017	cyoD	PMI0105A	-	cytochrome O ubiquinol oxidase protein
103	 42.97	0	131683..132294	-	203	197284018	cyoC	PMI0106	-	cytochrome O ubiquinol oxidase subunit III
104	 44.38	0	132294..134276	-	660	197284019	cyoB	PMI0107	-	cytochrome O ubiquinol oxidase subunit I
39.69	MEAN

4.91	STD DEV
