IslandPath Analysis: Proteus mirabilis HI4320

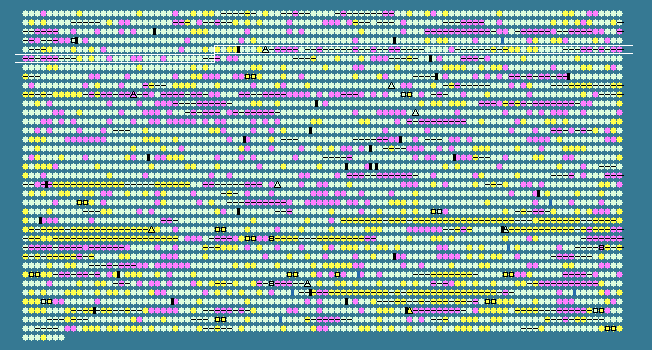

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
433	 43.63	0	516195..517379	+	394	197284348	ubiF	PMI0448	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
434	 41.03	0	517428..518258	-	276	197284349	-	PMI0449	-	esterase
435	 44.20	0	518312..519424	-	370	197284350	adhC	PMI0450	-	alcohol dehydrogenase (glutathione-dependent formaldehyde dehydrogenase)
436	 45.29	+1	519444..519719	-	91	197284351	-	PMI0451	-	hypothetical protein
437	 42.25	0	521124..522356	-	410	197284352	nagC	PMI0452	-	N-acetylglucosamine regulatory protein
438	 39.95	0	522366..523529	-	387	197284353	nagA	PMI0453	-	N-acetylglucosamine-6-phosphate deacetylase
439	 40.89	0	523652..524458	-	268	197284354	nagB	PMI0454	-	glucosamine-6-phosphate deaminase
440	 43.45	0	524804..526849	+	681	197284355	nagE	PMI0455	-	N-acetylglucosamine-specific PTS system, EIICBA component
441	 36.53	0	527077..528078	-	333	197284356	-	PMI0456	-	integrase
442	 37.40	0	528035..528280	-	81	197284357	-	PMI0456A	-	excisionase
443	 34.51	-1	528277..528615	-	112	197284358	-	PMI0457	-	phage recombination protein
444	 26.55	-2	528608..528784	-	58	197284359	-	PMI0458	-	hypothetical protein
445	 35.19	0	528774..528935	-	53	197284360	-	PMI0459	-	hypothetical protein
446	 25.90	-2	528991..529716	-	241	197284361	-	PMI0460	-	hypothetical protein
447	 36.50	0	529745..530281	-	178	197284362	-	PMI0461	-	hypothetical protein
448	 38.33	0	530288..530467	-	59	197284363	-	PMI0462	-	hypothetical protein
449	 38.97	0	530495..530689	-	64	197284364	-	PMI0463	-	hypothetical protein
450	 31.07	-1	530729..530905	-	58	197284365	-	PMI0464	-	hypothetical protein
451	 43.00	0	531420..532226	-	268	197284366	recT	PMI0467	-	phage DNA recombinase
452	 40.90	0	532219..533037	-	272	197284367	-	PMI0468	-	phage-related exonuclease
453	 41.96	0	533034..533288	-	84	197284368	-	PMI0469	-	hypothetical protein
454	 41.67	0	533285..533548	-	87	197284369	-	PMI0470	-	hypothetical protein
455	 42.95	0	533556..533711	-	51	197284370	-	PMI0471	-	hypothetical protein
456	 24.56	-2	533800..534027	-	75	197284371	-	PMI0472	-	hypothetical protein
457	 41.30	0	534150..534425	-	91	197284372	-	PMI0473	-	hypothetical protein
458	 39.81	0	534593..534808	+	71	197284373	-	PMI0474	-	hypothetical protein
459	 29.63	-2	534805..535020	-	71	197284374	-	PMI0475	-	hypothetical protein
460	 37.86	0	535180..535488	-	102	197284375	nun	PMI0476	-	transcription termination factor
461	 42.29	0	535490..535768	-	92	197284376	-	PMI0477	-	hypothetical protein
462	 31.37	-1	536291..536596	-	101	197284377	-	PMI0478	-	hypothetical protein
463	 36.18	0	536627..537328	-	233	197284378	ci	PMI0479	-	phage reprossor
464	 37.10	0	537436..537621	+	61	197284379	-	PMI0480	-	phage regulatory protein
465	 38.22	0	537742..538089	+	115	197284380	-	PMI0481	-	phage regulatory protein
466	 39.06	0	538355..539122	+	255	197284381	-	PMI0482	-	phage replication protein
467	 41.63	0	539122..540507	+	461	197284382	-	PMI0483	-	phage replicative DNA helicase
468	 41.11	0	540533..540982	+	149	197284383	-	PMI0484	-	phage protein
469	 41.58	0	541061..541351	+	96	197284384	-	PMI0485	-	phage protein
470	 40.06	0	541348..541704	+	118	197284385	-	PMI0486	-	phage holliday junction resolvase
471	 36.97	0	541704..542336	+	210	197284386	-	PMI0487	-	phage antitermination protein Q
472	 36.02	0	542647..543168	+	173	197284387	-	PMI0488	-	phage membrane protein
473	 39.01	0	543327..543749	+	140	197284388	-	PMI0489	-	phage protein
474	 40.58	0	543797..544072	+	91	197284389	-	PMI0490	-	phage protein
475	 42.68	0	544072..544542	+	156	197284390	-	PMI0491	-	phage lysozome
476	 36.48	0	544524..544682	+	52	197284391	-	PMI0491A	-	hypothetical protein
477	 42.86	0	544685..545146	+	153	197284392	-	PMI0492	-	phage endopeptidase
478	 39.65	0	545287..546078	+	263	197284393	-	PMI0493	-	phage protein
479	 43.48	0	546075..546281	+	68	197284394	-	PMI0494	-	hypothetical protein
480	 38.36	0	546278..546436	+	52	197284395	-	PMI0495	-	hypothetical protein
481	 44.50	0	546464..547072	+	202	197284396	-	PMI0496	-	phage protein
482	 45.36	+1	547075..548562	+	495	197284397	-	PMI0497	-	phage terminase large subunit
483	 43.47	0	548562..549932	+	456	197284398	-	PMI0498	-	phage protein
484	 42.60	0	549929..551050	+	373	197284399	-	PMI0499	-	phage protein
485	 44.62	+1	551162..551923	+	253	197284400	-	PMI0500	-	phage protein
486	 44.23	0	551937..552890	+	317	197284401	-	PMI0501	-	phage protein
487	 42.08	0	553217..553696	+	159	197284402	-	PMI0503	-	phage protein
488	 42.45	0	553699..554049	+	116	197284403	-	PMI0504	-	phage protein
489	 38.83	0	554051..554632	+	193	197284404	-	PMI0505	-	hypothetical protein
490	 39.80	0	554629..555030	+	133	197284405	-	PMI0506	-	phage protein
491	 41.25	0	555076..555732	+	218	197284406	-	PMI0507	-	phage protein
492	 38.56	0	555784..556089	+	101	197284407	-	PMI0508	-	phage protein
493	 42.03	0	556116..556391	+	91	197284408	-	PMI0509	-	phage protein
494	 32.48	-1	556617..556850	+	77	197284409	-	PMI0510	-	phage protein
495	 36.05	0	556857..557666	+	269	197284410	-	PMI0511	-	phage protein
496	 38.25	0	557917..558750	-	277	197284411	ant	PMI0512	-	phage antirepressor protein
497	 32.72	-1	558820..558981	-	53	197284412	-	PMI0513	-	phage protein
498	 37.60	0	559095..559352	+	85	197284413	mnt	PMI0514	-	phage regulatory protein
499	 32.39	-1	559453..560298	+	281	197284414	EP0005	PMI0515	-	phage replication protein
500	 29.05	-2	560285..560704	+	139	197284415	-	PMI0516	-	hypothetical protein
501	 29.00	-2	560697..561365	+	222	197284416	-	PMI0517	-	hypothetical protein
502	 30.73	-1	561463..562116	+	217	197284417	-	PMI0518	-	phage lipoprotein
503	 42.01	0	562176..565115	+	979	197284418	-	PMI0519	-	phage tail tape measure protein
504	 29.11	-2	565138..565350	+	70	197284419	-	PMI0520	-	hypothetical protein
505	 35.40	0	565390..565680	+	96	197284420	-	PMI0521	-	phage protein
506	 30.85	-1	565700..565900	-	66	197284421	-	PMI0522	-	phage protein
507	 38.30	0	566044..566385	+	113	197284422	-	PMI0523	-	phage minor tail protein
508	 42.07	0	566382..567125	+	247	197284423	-	PMI0524	-	phage minor tail protein
509	 41.63	0	567122..567832	+	236	197284424	-	PMI0525	-	phage tail assembly protein
510	 44.05	0	567829..568416	+	195	197284425	-	PMI0526	-	phage tail assembly protein
511	 42.13	0	568468..572661	+	1397	197284426	-	PMI0527	-	phage host specificity protein
512	 44.17	0	572655..573023	+	122	197284427	-	PMI0528	-	phage protein
513	 40.33	0	573025..573639	+	204	197284428	-	PMI0529	-	phage protein
514	 37.93	0	573689..573949	+	86	197284429	-	PMI0530	-	hypothetical protein
515	 30.72	-1	574658..574963	-	101	197284430	-	PMI0532	-	fimbrial operon regulator
516	 36.66	0	575064..576146	-	360	197284431	-	PMI0533	-	fimbrial adhesin
517	 40.04	0	576156..578690	-	844	197284432	-	PMI0534	-	fimbrial usher protein
518	 38.71	0	578700..579425	-	241	197284433	-	PMI0535	-	fimbrial chaperone
519	 35.16	0	579491..580036	-	181	197284434	uca	PMI0536	-	major fimbrial subunit
520	 30.07	-1	580267..580419	+	50	197284435	-	PMI0537	-	hypothetical protein
521	 41.13	0	580530..580670	-	46	197284436	holE1	PMI0538	-	DNA polymerase III, theta subunit
522	 39.87	0	580915..582582	+	555	197284437	glnS	PMI0539	-	glutaminyl-tRNA synthetase
523	 39.78	0	583221..584615	+	464	197284438	-	PMI0540	-	hypothetical protein
524	 36.07	0	584889..585728	+	279	197284439	-	PMI0542	-	hypothetical protein
525	 39.60	0	585792..586238	-	148	197284440	fur	PMI0543	-	ferric uptake regulation protein
526	 41.10	0	586429..586956	-	175	197284441	fldA	PMI0544	-	flavodoxin 1
527	 41.33	0	587115..587414	-	99	197284442	-	PMI0545	-	DNA-binding protein
528	 40.20	0	587613..588398	-	261	197284443	-	PMI0546	-	hydrolase
529	 41.30	0	588863..589414	+	183	197284444	seqA	PMI0547	-	negative regulator of replication initiation
530	 41.12	0	589489..591132	+	547	197284445	pgm	PMI0548	-	phosphoglucomutase
531	 37.06	0	591289..591771	+	160	197284446	-	PMI0549	-	hypothetical protein
532	 36.63	0	591928..592170	+	80	197284447	-	PMI0550	-	hypothetical protein
39.69	MEAN

4.91	STD DEV
