IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

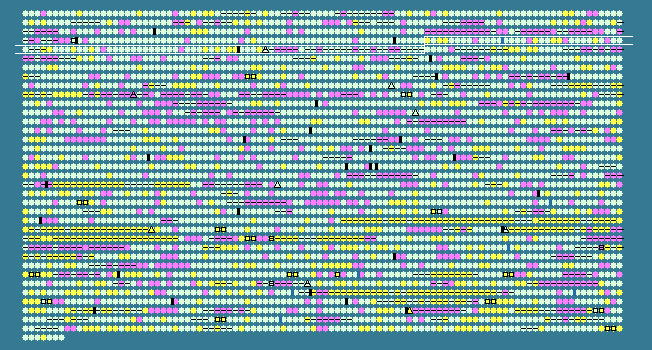

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
368	 46.59	+1	438017..438265	+	82	197284283	rpsP	PMI0383	-	30S ribosomal protein S16
369	 41.03	0	438284..438829	+	181	197284284	rimM	PMI0384	-	16S rRNA processing protein
370	 47.54	+1	438869..439621	+	250	197284285	trmD	PMI0385	-	tRNA (guanine-N1)-methyltransferase
371	 43.22	0	439674..440027	+	117	197284286	rplS	PMI0386	-	50S ribosomal subunit protein L19
372	 39.00	0	440479..441573	+	364	197284287	aroF	PMI0387	-	phospho-2-dehydro-3-deoxyheptonate aldolase, Tyr-sensitive
373	 38.22	0	441609..442733	+	374	197284288	tyrA	PMI0388	-	T-protein [includes: chorismate mutase and prephenate dehydrogenase]
374	 36.83	0	443581..444924	+	447	197284289	dcuB	PMI0389	-	anaerobic C4-dicarboxylate transporter
375	 37.65	0	445018..446175	-	385	197284290	pheA	PMI0390	-	P-protein [includes: chorismate mutase and prephenate dehydratase]
376	 34.23	-1	446485..446820	-	111	197284291	-	PMI0391	-	sigma 54 modulation protein
377	 42.18	0	447090..447824	-	244	197284292	-	PMI0392	-	lipoprotein
378	 43.15	0	447955..448932	+	325	197284293	rluD	PMI0393	-	ribosomal large subunit pseudouridine synthase D
379	 42.49	0	448933..449664	+	243	197284294	-	PMI0394	-	hypothetical protein
380	 40.40	0	449810..452386	+	858	197284295	clpB	PMI0395	-	chaperone ClpB (heat-shock protein F84.1)
381	 39.08	0	458689..459036	-	115	197284296	-	PMI0396	-	hypothetical protein
382	 36.64	0	459184..460545	-	453	197284297	pssA	PMI0397	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
383	 41.07	0	460731..463391	-	886	197284298	-	PMI0398	-	acyl-CoA synthetase/acetyltransferase
384	 40.94	0	463436..464119	-	227	197284299	-	PMI0399	-	hypothetical protein
385	 28.05	-2	464257..465315	+	352	197284300	-	PMI0400	-	hypothetical protein
386	 43.21	0	465490..466593	+	367	197284301	-	PMI0401	-	tRNA/rRNA methyltransferase
387	 40.35	0	466701..468239	-	512	197284302	emrB	PMI0402	-	MFS-family transporter
388	 40.82	0	468236..469411	-	391	197284303	emrA	PMI0403	-	multidrug resistance protein A
389	 44.24	0	469587..470237	-	216	197284304	-	PMI0404	-	GntR-family transcriptional regulator
390	 44.97	+1	470323..471525	+	400	197284305	-	PMI0405	-	MFS-family transporter
391	 36.15	0	471566..472168	+	200	197284306	-	PMI0406	-	hydrolase
392	 36.93	0	472371..472898	-	175	197284307	emrR	PMI0407	-	MarR-family transcriptional regulator
393	 41.03	0	473391..474611	-	406	197284308	-	PMI0408	-	MFS-family transporter
394	 38.68	0	474978..477371	+	797	197284309	-	PMI0409	-	TonB-dependent receptor
395	 40.26	0	477460..478455	-	331	197284310	proX	PMI0410	-	glycine betaine/L-proline ABC transporter, substrate-binding protein
396	 44.31	0	478575..479804	-	409	197284311	proW	PMI0411	-	glycine betaine/L-proline ABC transporter, permease protein
397	 40.58	0	479797..480996	-	399	197284312	proV	PMI0412	-	glycine betaine/L-proline ABC transporter, ATP-binding protein
398	 33.95	-1	481605..482573	-	322	197284313	nrdF	PMI0413	-	ribonucleoside-diphosphate reductase beta chain
399	 38.65	0	482599..484725	-	708	197284314	nrdE	PMI0414	-	ribonucleoside-diphosphate reductase alpha chain
400	 41.48	0	484754..485158	-	134	197284315	nrdI	PMI0415	-	NrdI protein
401	 42.67	0	485170..485394	-	74	197284316	nrdH	PMI0416	-	glutaredoxin-like protein
402	 38.61	0	485676..486149	+	157	197284317	ogt	PMI0417	-	methylated-DNA--protein-cysteine methyltransferase
403	 39.52	0	486347..486556	+	69	197284318	cspE	PMI0418	-	cold shock protein
404	 45.60	+1	487014..487388	-	124	197284319	crcB	PMI0419	-	membrane protein (protein CrcB)
405	 43.27	0	487404..488369	-	321	197284320	lipA	PMI0420	-	lipoic acid synthetase
406	 41.24	0	488471..489115	-	214	197284321	lipB	PMI0421	-	lipoyltransferase
407	 39.33	0	489467..489733	-	88	197284322	-	PMI0422	-	hypothetical protein
408	 40.10	0	489929..491140	-	403	197284323	dacA	PMI0423	-	penicillin-binding protein
409	 43.59	0	491267..492280	-	337	197284324	rlpA	PMI0424	-	rare lipoprotein A precursor
410	 40.61	0	492291..493403	-	370	197284325	rodA	PMI0425	-	rod shape-determining protein
411	 42.67	0	493408..495303	-	631	197284326	pbpA	PMI0426	-	penicillin-binding protein
412	 46.07	+1	495341..495811	-	156	197284327	-	PMI0427	-	hypothetical protein
413	 41.51	0	495814..496131	-	105	197284328	-	PMI0428	-	hypothetical protein
414	 36.11	0	496531..497286	+	251	197284329	-	PMI0429	-	hypothetical protein
415	 41.22	0	497300..497971	-	223	197284330	nadD	PMI0430	-	nicotinate-nucleotide adenylyltransferase
416	 41.16	0	497964..498998	-	344	197284331	holA	PMI0431	-	DNA polymerase III delta subunit
417	 42.62	0	498995..499543	-	182	197284332	rlpB	PMI0432	-	rare lipoprotein B
418	 42.43	0	499556..502138	-	860	197284333	leuS	PMI0433	-	leucyl-tRNA synthetase
419	 38.71	0	502498..503223	-	241	197284334	gltL	PMI0434	-	glutamate/aspartate ABC transporter, ATP-binding protein
420	 37.78	0	503224..503898	-	224	197284335	gltK	PMI0435	-	glutamate/aspartate ABC transporter, permease protein
421	 41.57	0	503898..504638	-	246	197284336	gltJ	PMI0436	-	glutamate/aspartate ABC transporter, permease protein
422	 39.37	0	504757..505650	-	297	197284337	gltI	PMI0437	-	glutamate/aspartate ABC transporter, substrate-binding protein
423	 42.29	0	505995..506396	+	133	197284338	-	PMI0438	-	metal resistance protein
424	 42.02	0	506477..508513	+	678	197284339	-	PMI0439	-	metal resistance protein
425	 39.34	0	508513..509244	+	243	197284340	-	PMI0440	-	metal resistance protein
426	 39.48	0	509244..509747	+	167	197284341	-	PMI0441	-	metal resistance protein
427	 34.06	-1	509756..510439	-	227	197284342	-	PMI0442	-	hypothetical protein
428	 39.63	0	510516..512039	-	507	197284343	cutE	PMI0443	-	apolipoprotein N-acyltransferase (copper homeostasis protein)
429	 40.59	0	512047..512928	-	293	197284344	corC	PMI0444	-	magnesium and cobalt efflux protein
430	 39.32	0	512999..513466	-	155	197284345	-	PMI0445	-	hypothetical protein
431	 44.07	0	513459..514520	-	353	197284346	-	PMI0446	-	PhoH-like ATP-binding protein
432	 41.44	0	514549..515979	-	476	197284347	miaB	PMI0447	-	MiaB protein (methylthiolation of isopentenylated A37 derivatives in rRNA)
433	 43.63	0	516195..517379	+	394	197284348	ubiF	PMI0448	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
434	 41.03	0	517428..518258	-	276	197284349	-	PMI0449	-	esterase
435	 44.20	0	518312..519424	-	370	197284350	adhC	PMI0450	-	alcohol dehydrogenase (glutathione-dependent formaldehyde dehydrogenase)
436	 45.29	+1	519444..519719	-	91	197284351	-	PMI0451	-	hypothetical protein
437	 42.25	0	521124..522356	-	410	197284352	nagC	PMI0452	-	N-acetylglucosamine regulatory protein
438	 39.95	0	522366..523529	-	387	197284353	nagA	PMI0453	-	N-acetylglucosamine-6-phosphate deacetylase
439	 40.89	0	523652..524458	-	268	197284354	nagB	PMI0454	-	glucosamine-6-phosphate deaminase
440	 43.45	0	524804..526849	+	681	197284355	nagE	PMI0455	-	N-acetylglucosamine-specific PTS system, EIICBA component
441	 36.53	0	527077..528078	-	333	197284356	-	PMI0456	-	integrase
442	 37.40	0	528035..528280	-	81	197284357	-	PMI0456A	-	excisionase
443	 34.51	-1	528277..528615	-	112	197284358	-	PMI0457	-	phage recombination protein
444	 26.55	-2	528608..528784	-	58	197284359	-	PMI0458	-	hypothetical protein
445	 35.19	0	528774..528935	-	53	197284360	-	PMI0459	-	hypothetical protein
446	 25.90	-2	528991..529716	-	241	197284361	-	PMI0460	-	hypothetical protein
447	 36.50	0	529745..530281	-	178	197284362	-	PMI0461	-	hypothetical protein
448	 38.33	0	530288..530467	-	59	197284363	-	PMI0462	-	hypothetical protein
449	 38.97	0	530495..530689	-	64	197284364	-	PMI0463	-	hypothetical protein
450	 31.07	-1	530729..530905	-	58	197284365	-	PMI0464	-	hypothetical protein
451	 43.00	0	531420..532226	-	268	197284366	recT	PMI0467	-	phage DNA recombinase
452	 40.90	0	532219..533037	-	272	197284367	-	PMI0468	-	phage-related exonuclease
453	 41.96	0	533034..533288	-	84	197284368	-	PMI0469	-	hypothetical protein
454	 41.67	0	533285..533548	-	87	197284369	-	PMI0470	-	hypothetical protein
455	 42.95	0	533556..533711	-	51	197284370	-	PMI0471	-	hypothetical protein
456	 24.56	-2	533800..534027	-	75	197284371	-	PMI0472	-	hypothetical protein
457	 41.30	0	534150..534425	-	91	197284372	-	PMI0473	-	hypothetical protein
458	 39.81	0	534593..534808	+	71	197284373	-	PMI0474	-	hypothetical protein
459	 29.63	-2	534805..535020	-	71	197284374	-	PMI0475	-	hypothetical protein
460	 37.86	0	535180..535488	-	102	197284375	nun	PMI0476	-	transcription termination factor
461	 42.29	0	535490..535768	-	92	197284376	-	PMI0477	-	hypothetical protein
462	 31.37	-1	536291..536596	-	101	197284377	-	PMI0478	-	hypothetical protein
463	 36.18	0	536627..537328	-	233	197284378	ci	PMI0479	-	phage reprossor
464	 37.10	0	537436..537621	+	61	197284379	-	PMI0480	-	phage regulatory protein
465	 38.22	0	537742..538089	+	115	197284380	-	PMI0481	-	phage regulatory protein
466	 39.06	0	538355..539122	+	255	197284381	-	PMI0482	-	phage replication protein
467	 41.63	0	539122..540507	+	461	197284382	-	PMI0483	-	phage replicative DNA helicase
39.69	MEAN

4.91	STD DEV
