IslandPath Analysis: Proteus mirabilis HI4320

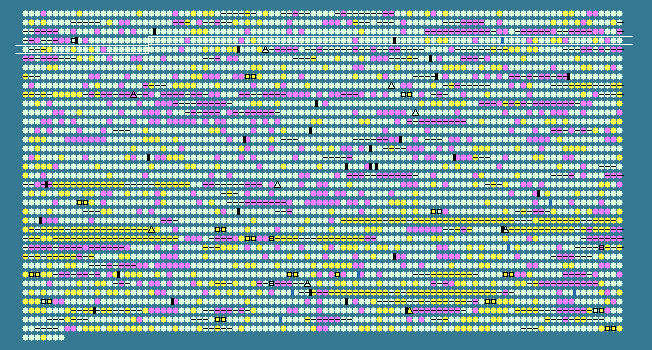

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
322	 40.77	0	386143..386841	-	232	197284237	-	PMI0336	-	amino acid racemase
323	 39.94	0	386869..387882	+	337	197284238	-	PMI0337	-	type II/IV secretion system protein
324	 43.10	0	387879..388298	-	139	197284239	-	PMI0338	-	holliday junction resolvase
325	 40.78	0	388298..388861	-	187	197284240	-	PMI0339	-	hypothetical protein
326	 41.07	0	388974..389930	-	318	197284241	gshB	PMI0340	-	glutathione synthetase
327	 40.16	0	389941..390672	-	243	197284242	-	PMI0341	-	hypothetical protein
328	 33.18	-1	390920..391552	+	210	197284243	-	PMI0342	-	type IV prepilin-like leader peptidase
329	 39.35	0	391654..392301	-	215	197284244	-	PMI0343	-	hypothetical protein
330	 37.05	0	392307..393194	-	295	197284245	-	PMI0344	-	metallo-beta-lactamase superfamily protein
331	 42.35	0	393284..394204	+	306	197284246	-	PMI0345	-	LysR-family transcriptional regulator
332	 39.91	0	394181..395107	-	308	197284247	lysR	PMI0346	-	LysR-family transcriptional regulator
333	 41.77	0	395217..396461	+	414	197284248	lysA	PMI0347	-	diaminopimelate decarboxylase
334	 42.85	0	396595..399042	-	815	197284249	fadE	PMI0348	-	acyl-coenzyme A dehydrogenase
335	 39.55	0	399281..399859	+	192	197284250	gmhA	PMI0349	-	Phosphoheptose isomerase
336	 39.97	0	399918..400685	+	255	197284251	-	PMI0350	-	amidotransferase
337	 34.26	-1	400656..401408	-	250	197284252	-	PMI0351	-	hypothetical protein
338	 42.13	0	401824..403164	+	446	197284253	nqrA	PMI0352	-	Na(+)-translocating NADH-quinone reductase subunit A
339	 43.42	0	403168..404406	+	412	197284254	nqrB	PMI0353	-	Na(+)-translocating NADH-quinone reductase subunit B
340	 42.62	0	404399..405184	+	261	197284255	nqrC	PMI0354	-	Na+-translocating NADH-quinone reductase subunit C
341	 41.27	0	405177..405806	+	209	197284256	nqrD	PMI0355	-	Na+-translocating NADH-quinone reductase subunit D
342	 39.53	0	405812..406408	+	198	197284257	nqrE	PMI0356	-	Na+-translocating NADH-quinone reductase subunit E
343	 40.18	0	406425..407651	+	408	197284258	nqrF	PMI0357	-	Na(+)-translocating NADH-quinone reductase subunit F
344	 38.51	0	407737..408759	+	340	197284259	apbE	PMI0358	-	thiamine biosynthesis lipoprotein
345	 37.28	0	408779..409006	+	75	197284260	-	PMI0359	-	hypothetical protein
346	 36.62	0	409163..409375	-	70	197284261	-	PMI0360	-	general stress response protein
347	 38.60	0	409469..410341	-	290	197284262	-	PMI0361	-	phosphodiesterase
348	 39.58	0	410577..411632	+	351	197284263	dinB	PMI0362	-	DNA polymerase IV
349	 38.70	0	411709..413871	-	720	197284264	-	PMI0363	-	TonB-dependent ferric siderephore receptor
350	 40.60	0	414121..415578	-	485	197284265	pepD	PMI0364	-	aminoacyl-histidine dipeptidase
351	 41.77	0	415932..416393	+	153	197284266	gpt	PMI0366	-	xanthine-guanine phosphoribosyltransferase
352	 38.69	0	416626..417876	+	416	197284267	yafA	PMI0367	-	esterase
353	 36.32	0	417948..418349	+	133	197284268	crl	PMI0368	-	curlin genes transcriptional regulator
354	 43.12	0	418462..419565	+	367	197284269	proB	PMI0369	-	glutamate 5-kinase
355	 43.14	0	419577..420830	+	417	197284270	proA	PMI0370	-	gamma-glutamyl phosphate reductase
356	 34.50	-1	420975..421487	+	170	197284271	aroL	PMI0371	-	shikimate kinase
357	 40.19	0	421594..423750	+	718	197284272	aas	PMI0372	-	Aas bifunctional protein [includes: 2-acylglycerophosphoethanolamine acyltransferase and acyl-[acyl-carrier-protein] synthetase
358	 41.06	0	423750..424952	+	400	197284273	-	PMI0373	-	MFS-family transporter
359	 40.24	0	424985..425491	+	168	197284274	-	PMI0374	-	competence-damaged protein
360	 40.82	0	425599..426666	+	355	197284275	recA	PMI0375	-	protein RecA (recombinase A)
361	 40.79	0	427567..430194	+	875	197284276	alaS	PMI0376	-	alanyl-tRNA synthetase
362	 42.86	0	430412..430600	+	62	197284277	csrA	PMI0377	-	carbon storage regulator
363	 38.65	0	431843..433423	+	526	197284278	gshA	PMI0378	-	glutamate--cysteine ligase
364	 39.73	0	433589..434104	+	171	197284279	luxS	PMI0379	-	S-ribosylhomocysteine lyase (autoinducer-2 production protein)
365	 38.90	0	434235..435509	-	424	197284280	-	PMI0380	-	transporter of ion substrates
366	 38.70	0	435545..436345	-	266	197284281	-	PMI0381	-	hypothetical protein
367	 42.80	0	436518..437879	+	453	197284282	ffh	PMI0382	-	signal recognition particle protein
368	 46.59	+1	438017..438265	+	82	197284283	rpsP	PMI0383	-	30S ribosomal protein S16
369	 41.03	0	438284..438829	+	181	197284284	rimM	PMI0384	-	16S rRNA processing protein
370	 47.54	+1	438869..439621	+	250	197284285	trmD	PMI0385	-	tRNA (guanine-N1)-methyltransferase
371	 43.22	0	439674..440027	+	117	197284286	rplS	PMI0386	-	50S ribosomal subunit protein L19
372	 39.00	0	440479..441573	+	364	197284287	aroF	PMI0387	-	phospho-2-dehydro-3-deoxyheptonate aldolase, Tyr-sensitive
373	 38.22	0	441609..442733	+	374	197284288	tyrA	PMI0388	-	T-protein [includes: chorismate mutase and prephenate dehydrogenase]
374	 36.83	0	443581..444924	+	447	197284289	dcuB	PMI0389	-	anaerobic C4-dicarboxylate transporter
375	 37.65	0	445018..446175	-	385	197284290	pheA	PMI0390	-	P-protein [includes: chorismate mutase and prephenate dehydratase]
376	 34.23	-1	446485..446820	-	111	197284291	-	PMI0391	-	sigma 54 modulation protein
377	 42.18	0	447090..447824	-	244	197284292	-	PMI0392	-	lipoprotein
378	 43.15	0	447955..448932	+	325	197284293	rluD	PMI0393	-	ribosomal large subunit pseudouridine synthase D
379	 42.49	0	448933..449664	+	243	197284294	-	PMI0394	-	hypothetical protein
380	 40.40	0	449810..452386	+	858	197284295	clpB	PMI0395	-	chaperone ClpB (heat-shock protein F84.1)
381	 39.08	0	458689..459036	-	115	197284296	-	PMI0396	-	hypothetical protein
382	 36.64	0	459184..460545	-	453	197284297	pssA	PMI0397	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
383	 41.07	0	460731..463391	-	886	197284298	-	PMI0398	-	acyl-CoA synthetase/acetyltransferase
384	 40.94	0	463436..464119	-	227	197284299	-	PMI0399	-	hypothetical protein
385	 28.05	-2	464257..465315	+	352	197284300	-	PMI0400	-	hypothetical protein
386	 43.21	0	465490..466593	+	367	197284301	-	PMI0401	-	tRNA/rRNA methyltransferase
387	 40.35	0	466701..468239	-	512	197284302	emrB	PMI0402	-	MFS-family transporter
388	 40.82	0	468236..469411	-	391	197284303	emrA	PMI0403	-	multidrug resistance protein A
389	 44.24	0	469587..470237	-	216	197284304	-	PMI0404	-	GntR-family transcriptional regulator
390	 44.97	+1	470323..471525	+	400	197284305	-	PMI0405	-	MFS-family transporter
391	 36.15	0	471566..472168	+	200	197284306	-	PMI0406	-	hydrolase
392	 36.93	0	472371..472898	-	175	197284307	emrR	PMI0407	-	MarR-family transcriptional regulator
393	 41.03	0	473391..474611	-	406	197284308	-	PMI0408	-	MFS-family transporter
394	 38.68	0	474978..477371	+	797	197284309	-	PMI0409	-	TonB-dependent receptor
395	 40.26	0	477460..478455	-	331	197284310	proX	PMI0410	-	glycine betaine/L-proline ABC transporter, substrate-binding protein
396	 44.31	0	478575..479804	-	409	197284311	proW	PMI0411	-	glycine betaine/L-proline ABC transporter, permease protein
397	 40.58	0	479797..480996	-	399	197284312	proV	PMI0412	-	glycine betaine/L-proline ABC transporter, ATP-binding protein
398	 33.95	-1	481605..482573	-	322	197284313	nrdF	PMI0413	-	ribonucleoside-diphosphate reductase beta chain
399	 38.65	0	482599..484725	-	708	197284314	nrdE	PMI0414	-	ribonucleoside-diphosphate reductase alpha chain
400	 41.48	0	484754..485158	-	134	197284315	nrdI	PMI0415	-	NrdI protein
401	 42.67	0	485170..485394	-	74	197284316	nrdH	PMI0416	-	glutaredoxin-like protein
402	 38.61	0	485676..486149	+	157	197284317	ogt	PMI0417	-	methylated-DNA--protein-cysteine methyltransferase
403	 39.52	0	486347..486556	+	69	197284318	cspE	PMI0418	-	cold shock protein
404	 45.60	+1	487014..487388	-	124	197284319	crcB	PMI0419	-	membrane protein (protein CrcB)
405	 43.27	0	487404..488369	-	321	197284320	lipA	PMI0420	-	lipoic acid synthetase
406	 41.24	0	488471..489115	-	214	197284321	lipB	PMI0421	-	lipoyltransferase
407	 39.33	0	489467..489733	-	88	197284322	-	PMI0422	-	hypothetical protein
408	 40.10	0	489929..491140	-	403	197284323	dacA	PMI0423	-	penicillin-binding protein
409	 43.59	0	491267..492280	-	337	197284324	rlpA	PMI0424	-	rare lipoprotein A precursor
410	 40.61	0	492291..493403	-	370	197284325	rodA	PMI0425	-	rod shape-determining protein
411	 42.67	0	493408..495303	-	631	197284326	pbpA	PMI0426	-	penicillin-binding protein
412	 46.07	+1	495341..495811	-	156	197284327	-	PMI0427	-	hypothetical protein
413	 41.51	0	495814..496131	-	105	197284328	-	PMI0428	-	hypothetical protein
414	 36.11	0	496531..497286	+	251	197284329	-	PMI0429	-	hypothetical protein
415	 41.22	0	497300..497971	-	223	197284330	nadD	PMI0430	-	nicotinate-nucleotide adenylyltransferase
416	 41.16	0	497964..498998	-	344	197284331	holA	PMI0431	-	DNA polymerase III delta subunit
417	 42.62	0	498995..499543	-	182	197284332	rlpB	PMI0432	-	rare lipoprotein B
418	 42.43	0	499556..502138	-	860	197284333	leuS	PMI0433	-	leucyl-tRNA synthetase
419	 38.71	0	502498..503223	-	241	197284334	gltL	PMI0434	-	glutamate/aspartate ABC transporter, ATP-binding protein
420	 37.78	0	503224..503898	-	224	197284335	gltK	PMI0435	-	glutamate/aspartate ABC transporter, permease protein
421	 41.57	0	503898..504638	-	246	197284336	gltJ	PMI0436	-	glutamate/aspartate ABC transporter, permease protein
39.69	MEAN

4.91	STD DEV
