IslandPath Analysis: Proteus mirabilis HI4320

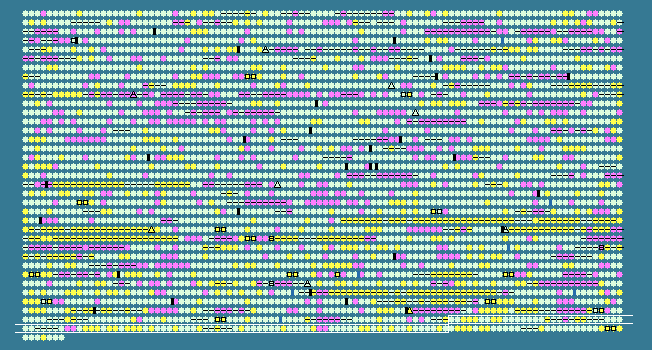

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3472	 41.90	0	3916613..3916927	+	104	197287387	sugE	PMI3584	-	quaternary ammonium compound-resistance protein
3473	 39.44	0	3917000..3917359	-	119	197287388	frdD	PMI3585	-	fumarate reductase subunit D
3474	 43.69	0	3917374..3917769	-	131	197287389	frdC	PMI3586	-	fumarate reductase subunit C
3475	 45.32	+1	3917784..3918509	-	241	197287390	frdB	PMI3587	-	fumarate reductase iron-sulfur protein
3476	 45.85	+1	3918514..3920310	-	598	197287391	frdA	PMI3588	-	fumarate reductase flavoprotein subunit
3477	 42.13	0	3921270..3922247	+	325	197287392	poxA	PMI3589	-	lysyl-tRNA synthetase
3478	 39.81	0	3922509..3923588	-	359	197287393	glpQ	PMI3590	-	glycerophosphoryl diester phosphodiesterase
3479	 43.39	0	3923722..3925074	-	450	197287394	glpT	PMI3591	-	glycerol-3-phosphate transporter (MFS-family transporter)
3480	 45.87	+1	3925455..3927113	+	552	197287395	glpA	PMI3592	-	anaerobic glycerol-3-phosphate dehydrogenase subunit A
3481	 42.28	0	3927103..3928410	+	435	197287396	glpB	PMI3593	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
3482	 37.60	0	3928407..3929600	+	397	197287397	glpC	PMI3594	-	anaerobic glycerol-3-phosphate dehydrogenase subunit C
3483	 42.57	0	3929757..3930860	-	367	197287398	gldA	PMI3595	-	glycerol dehydrogenase
3484	 38.67	0	3931181..3931855	-	224	197287399	-	PMI3596	-	hypothetical protein
3485	 42.35	0	3932066..3932320	+	84	197287400	sirA	PMI3597	-	sulfurtransferase (tRNA 2-thiouridine synthesizing protein A)
3486	 39.82	0	3933031..3934170	+	379	197287401	-	PMI3598	-	multidrug efflux pump
3487	 42.33	0	3934196..3937330	+	1044	197287402	-	PMI3599	-	multidrug efflux pump
3488	 43.75	0	3937417..3939759	-	780	197287403	ppaA	PMI3600	-	P-type cation-translocating membrane ATPase
3489	 38.44	0	3939930..3940556	-	208	197287404	-	PMI3601	-	hypothetical protein
3490	 37.53	0	3940703..3941107	+	134	197287405	-	PMI3602	-	hypothetical protein
3491	 31.97	-1	3941171..3941464	-	97	197287406	-	PMI3603	-	hypothetical protein
3492	 41.37	0	3941482..3942066	-	194	197287407	-	PMI3604	-	hypothetical protein
3493	 46.93	+1	3942294..3944132	+	612	197287408	ftsY	PMI3605	-	cell division protein
3494	 44.74	+1	3944138..3944803	+	221	197287409	ftsE	PMI3606	-	cell division ATP-binding protein
3495	 41.92	0	3944796..3945773	+	325	197287410	ftsX	PMI3607	-	cell division protein
3496	 42.81	0	3946115..3946969	+	284	197287411	rpoH	PMI3608	-	RNA polymerase sigma-32 factor
3497	 42.82	0	3947064..3948212	+	382	197287412	garK	PMI3609	-	glycerate kinase
3498	 39.09	0	3948188..3948604	-	138	197287413	-	PMI3610	-	acetyltransferase
3499	 38.30	0	3948616..3949803	-	395	197287414	-	PMI3611	-	MFS-family transporter
3500	 36.27	0	3949917..3950393	+	158	197287415	-	PMI3612	-	MarR-family transcriptional regulator
3501	 41.43	0	3950433..3951185	-	250	197287416	-	PMI3613	-	peptidase
3502	 40.73	0	3951675..3952769	-	364	197287417	ugpC	PMI3614	-	sn-glycerol-3-phosphate ABC transporter, ATP-binding protein
3503	 42.29	0	3952771..3953619	-	282	197287418	ugpE	PMI3615	-	sn-glycerol-3-phosphate ABC transporter, permease protein
3504	 37.74	0	3953619..3954503	-	294	197287419	ugpA	PMI3616	-	sn-glycerol-3-phosphate ABC transporter, permease protein
3505	 42.68	0	3954571..3955875	-	434	197287420	ugpB	PMI3617	-	glycerol-3-phosphate ABC transporter, substrate-binding protein
3506	 40.31	0	3956051..3956767	+	238	197287421	ugpQ	PMI3618	-	glycerophosphoryl diester phosphodiesterase
3507	 41.35	0	3956830..3958026	-	398	197287422	cynX	PMI3619	-	cyanate transport protein (MFS-family transporter)
3508	 29.30	-2	3958314..3959279	+	321	197287423	-	PMI3620	-	hypothetical protein
3509	 29.11	-2	3959384..3959596	+	70	197287424	-	PMI3621	-	hypothetical protein
3510	 41.08	0	3959637..3959933	-	98	197287425	fis	PMI3622	-	DNA-binding protein Fis
3511	 47.53	+1	3959954..3960925	-	323	197287426	dusB	PMI3623	-	tRNA-dihydrouridine synthase B
3512	 45.92	+1	3961247..3962128	-	293	197287427	prmA	PMI3624	-	ribosomal protein L11 methyltransferase
3513	 44.61	+1	3962153..3963598	-	481	197287428	panF	PMI3625	-	sodium/pantothenate symporter
3514	 40.96	0	3963588..3963836	-	82	197287429	-	PMI3626	-	hypothetical protein
3515	 44.89	+1	3964066..3965415	-	449	197287430	accC	PMI3627	-	biotin carboxylase
3516	 45.22	+1	3965428..3965898	-	156	197287431	accB	PMI3628	-	biotin carboxyl carrier protein
3517	 41.44	0	3965931..3966374	-	147	197287432	aroQ	PMI3629	-	3-dehydroquinate dehydratase
3518	 45.03	+1	3966808..3967782	-	324	197287433	-	PMI3630	-	possible zinc-binding dehydrogenase
3519	 44.54	0	3968469..3969512	+	347	197287434	mreB	PMI3631	-	rod shape-determining protein
3520	 43.55	0	3969614..3970660	+	348	197287435	mreC	PMI3632	-	rod shape-determining protein
3521	 40.20	0	3970660..3971154	+	164	197287436	mreD	PMI3633	-	rod shape-determining protein
3522	 44.05	0	3971206..3971793	+	195	197287437	-	PMI3634	-	inhibitor of septum formation
3523	 41.36	0	3971790..3973259	+	489	197287438	cafA	PMI3635	-	ribonuclease G
3524	 40.48	0	3973304..3977107	+	1267	197287439	-	PMI3636	-	hypothetical protein
3525	 41.35	0	3977104..3977964	+	286	197287440	-	PMI3637	-	carbon-nitrogen hydrolase
3526	 44.12	0	3977961..3979406	+	481	197287441	tldD	PMI3638	-	modulator of DNA gyrase
3527	 41.81	0	3979500..3980006	+	168	197287442	-	PMI3639	-	exported ribonuclease
3528	 38.30	0	3980006..3980287	+	93	197287443	-	PMI3640	-	ribonuclease inhibitor
3529	 40.82	0	3980378..3980938	-	186	197287444	-	PMI3641	-	hypothetical protein
3530	 45.21	+1	3981098..3982453	+	451	197287445	tldE	PMI3642	-	modulator of DNA gyrase
3531	 40.15	0	3982559..3982969	-	136	197287446	rnk	PMI3643	-	regulator of nucleoside diphosphate kinase
3532	 41.76	0	3983144..3983416	-	90	197287447	ptsO	PMI3644	-	phosphocarrier protein
3533	 45.26	+1	3983413..3984267	-	284	197287448	-	PMI3645	-	P-loop ATPase
3534	 40.17	0	3984352..3984819	-	155	197287449	ptsN	PMI3646	-	nitrogen regulatory protein [includes: PTS system EIIA component]
3535	 37.50	0	3984975..3985262	-	95	197287450	-	PMI3647	-	probable sigma(54) modulation protein
3536	 41.73	0	3985286..3986761	-	491	197287451	rpoN	PMI3648	-	RNA polymerase sigma-54 factor (sigma-N)
3537	 43.53	0	3986821..3987546	-	241	197287452	-	PMI3649	-	ABC transporter ATP-binding protein
3538	 36.89	0	3987553..3988086	-	177	197287453	-	PMI3650	-	organic solvent tolerance protein
3539	 39.21	0	3988067..3988645	-	192	197287454	-	PMI3651	-	hypothetical protein
3540	 40.86	0	3988663..3989220	-	185	197287455	kdsC	PMI3652	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
3541	 41.24	0	3989248..3990234	-	328	197287456	kdsD	PMI3653	-	arabinose 5-phosphate isomerase
3542	 40.67	0	3990240..3991220	-	326	197287457	-	PMI3654	-	sodium/calcium exchanger protein
3543	 41.70	0	3991464..3992276	+	270	197287458	-	PMI3655	-	ABC transporter ATP-binding protein
3544	 45.77	+1	3992280..3993059	+	259	197287459	-	PMI3656	-	hypothetical protein
3545	 38.18	0	3993063..3993599	+	178	197287460	-	PMI3657	-	hypothetical protein
3546	 39.05	0	3993673..3994302	+	209	197287461	-	PMI3658	-	toluene tolerance protein
3547	 36.73	0	3994304..3994597	+	97	197287462	-	PMI3659	-	anti-sigma factor antagonist
3548	 38.43	0	3994738..3994992	+	84	197287463	-	PMI3660	-	morphoprotein
3549	 44.34	0	3995041..3996303	+	420	197287464	murA	PMI3661	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3550	 28.05	-2	3996387..3997691	-	434	197287465	-	PMI3662	-	hypothetical protein
3551	 28.18	-2	3997684..3998595	-	303	197287466	-	PMI3663	-	hypothetical protein
3552	 36.57	0	3998924..3999973	+	349	197287467	-	PMI3664	-	hypothetical protein
3553	 42.39	0	4000014..4001084	-	356	197287468	degS	PMI3665	-	protease
3554	 42.31	0	4001276..4002667	-	463	197287469	degQ	PMI3666	-	protease
3555	 40.99	0	4002901..4003305	-	134	197287470	-	PMI3667	-	hypothetical protein
3556	 40.39	0	4003508..4004626	+	372	197287471	-	PMI3668	-	ATPase
3557	 46.62	+1	4005076..4005504	+	142	197287472	rplM	PMI3669	-	50S ribosomal protein L13
3558	 46.56	+1	4005520..4005912	+	130	197287473	rpsI	PMI3670	-	30S ribosomal protein S9
3559	 42.68	0	4006548..4007189	+	213	197287474	sspA	PMI3671	-	stringent starvation protein A
3560	 46.67	+1	4007196..4007705	+	169	197287475	sspB	PMI3672	-	stringent starvation protein B
3561	 38.50	0	4007785..4008810	-	341	197287476	-	PMI3673	-	MerR-family transcriptional regulator
3562	 44.31	0	4008961..4010226	-	421	197287477	-	PMI3674	-	probable aminohydrolase
3563	 43.06	0	4010241..4011515	-	424	197287478	-	PMI3675	-	C4-dicarboxylate transporter
3564	 41.61	0	4012039..4013439	-	466	197287479	gltD	PMI3676	-	glutamate synthase (NADPH) small chain
3565	 44.35	0	4013447..4017904	-	1485	197287480	gltB	PMI3677	-	glutamate synthase [NADPH] large chain
3566	 40.86	0	4018571..4020907	+	778	197287481	arcB	PMI3678	-	aerobic respiration control sensor/response regulatory protein
3567	 39.17	0	4021144..4021794	+	216	197287482	elbB	PMI3679	-	enhancing lycopene biosynthesis protein 2
3568	 38.18	0	4021815..4022516	+	233	197287483	mtgA	PMI3680	-	monofunctional biosynthetic peptidoglycan transglycosylase
3569	 37.19	0	4022520..4023401	-	293	197287484	ureR	PMI3681	-	urease operon transcriptional activator
3570	 43.76	0	4023895..4024719	+	274	197287485	UreD	PMI3682	-	urease accessory protein
3571	 41.91	0	4024741..4025043	+	100	197287486	ureA	PMI3683	-	urease gamma subunit
39.69	MEAN

4.91	STD DEV
