IslandPath Analysis: Proteus mirabilis HI4320

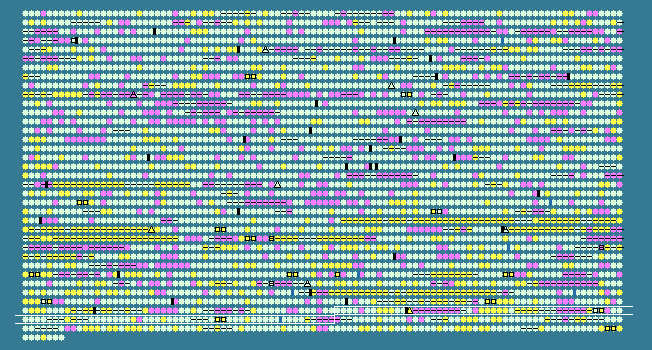

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3353	 39.35	0	3782915..3783130	-	71	197287268	-	PMI3456	-	hypothetical protein
3354	 40.70	0	3783274..3784278	-	334	197287269	argI	PMI3457	-	ornithine carbamoyltransferase chain I
3355	 41.20	0	3784460..3784891	+	143	197287270	-	PMI3458	-	hypothetical protein
3356	 41.84	0	3784985..3785854	-	289	197287271	-	PMI3459	-	pirin-like protein
3357	 33.33	-1	3786163..3786330	-	55	197287272	-	PMI3460	-	lipoprotein
3358	 40.59	0	3786745..3787254	-	169	197287273	-	PMI3461	-	acetyltransferase
3359	 42.26	0	3787654..3790542	-	962	197287274	valS	PMI3462	-	valyl-tRNA synthetase
3360	 45.33	+1	3790556..3791005	-	149	197287275	holC	PMI3463	-	DNA polymerase III, chi subunit
3361	 44.27	0	3791086..3792594	-	502	197287276	pepA	PMI3464	-	cytosol aminopeptidase
3362	 43.81	0	3792881..3793978	+	365	197287277	-	PMI3465	-	permease
3363	 41.39	0	3793978..3795057	+	359	197287278	-	PMI3466	-	permease
3364	 42.20	0	3795147..3796364	-	405	197287279	ampH	PMI3467	-	penicillin-binding protein
3365	 43.68	0	3798109..3799374	+	421	197287280	intB	PMI3468	-	prophage integrase
3366	 34.07	-1	3799990..3800259	+	89	197287281	-	PMI3470	-	hypothetical protein
3367	 28.90	-2	3800237..3801025	+	262	197287282	-	PMI3471	-	hypothetical protein
3368	 30.30	-1	3801072..3801203	+	43	197287283	-	PMI3472	-	hypothetical protein
3369	 25.13	-2	3801359..3801553	+	64	197287284	-	PMI3473	-	hypothetical protein
3370	 35.53	0	3801982..3803076	+	364	197287285	-	PMI3474	-	hypothetical protein
3371	 31.03	-1	3803069..3804328	+	419	197287286	-	PMI3475	-	hypothetical protein
3372	 31.59	-1	3804404..3804919	-	171	197287287	-	PMI3476	-	hypothetical protein
3373	 30.19	-1	3804960..3805436	-	158	197287288	-	PMI3477	-	hypothetical protein
3374	 39.83	0	3806544..3806774	-	76	197287289	-	PMI3478	-	phage regulatory protein
3375	 39.97	0	3806880..3807467	-	195	197287290	-	PMI3479	-	hypothetical protein
3376	 32.68	-1	3807957..3808724	+	255	197287291	-	PMI3480	-	hypothetical protein
3377	 43.75	0	3808777..3809640	+	287	197287292	-	PMI3481	-	ATP/GTP-binding protein
3378	 46.24	+1	3809732..3810157	+	141	197287293	-	PMI3482	-	plasmid-related antirestriction protein
3379	 48.86	+1	3810172..3811008	+	278	197287294	-	PMI3483	-	plasmid-related protein
3380	 44.63	+1	3811220..3811927	+	235	197287295	-	PMI3484	-	hypothetical protein
3381	 49.15	+1	3811924..3812100	+	58	197287296	-	PMI3485	-	hypothetical protein
3382	 42.42	0	3812105..3812566	+	153	197287297	-	PMI3486	-	hypothetical protein
3383	 44.95	+1	3812729..3812926	+	65	197287298	-	PMI3487	-	hypothetical protein
3384	 45.93	+1	3812971..3813216	+	81	197287299	-	PMI3488	-	hypothetical protein
3385	 44.44	0	3813446..3813778	+	110	197287300	-	PMI3489	-	hypothetical protein
3386	 43.45	0	3813809..3814243	+	144	197287301	-	PMI3490	-	hypothetical protein
3387	 42.36	0	3814944..3816527	+	527	197287302	-	PMI3491	-	plasmid-related protein
3388	 41.56	0	3816783..3817013	-	76	197287303	-	PMI3492	-	hypothetical protein
3389	 42.94	0	3817050..3817226	-	58	197287304	-	PMI3493	-	hypothetical protein
3390	 30.79	-1	3818322..3818675	+	117	197287305	-	PMI3495	-	hypothetical protein
3391	 34.49	-1	3818665..3819873	+	402	197287306	-	PMI3496	-	hypothetical protein
3392	 30.70	-1	3819892..3821031	+	379	197287307	-	PMI3497	-	hypothetical protein
3393	 24.49	-2	3822084..3822818	-	244	197287308	-	PMI3500	-	hypothetical protein
3394	 28.15	-2	3822824..3824308	-	494	197287309	-	PMI3501	-	deoxyguanosinetriphosphate triphosphohydrolase
3395	 43.75	0	3825382..3827900	-	259	197287310	-	PMI3507	-	hypothetical protein
3396	 41.67	0	3825614..3826093	-	159	197287311	-	PMI3505	-	IS element transposase
3397	 47.58	+1	3826053..3827252	+	399	197287312	-	PMI3506	-	transposase
3398	 27.13	-2	3828735..3828992	+	85	197287313	-	PMI3508	-	transcriptional regulator
3399	 40.36	0	3829468..3830079	-	203	197287314	prfH	PMI3509	-	probable peptide chain release factor
3400	 39.51	0	3830079..3831227	-	382	197287315	-	PMI3510	-	hypothetical protein
3401	 42.34	0	3831482..3832258	-	258	197287316	deoR	PMI3511	-	deoxyribose operon repressor
3402	 41.41	0	3832314..3832982	-	222	197287317	deoC	PMI3512	-	deoxyribose-phosphate aldolase
3403	 39.96	0	3833162..3834082	+	306	197287318	deoK	PMI3513	-	deoxyribokinase
3404	 42.95	0	3834299..3835213	+	304	197287319	-	PMI3514	-	phosphosugar binding/isomerase
3405	 40.73	0	3835253..3836617	+	454	197287320	-	PMI3515	-	PTS system EIIBC component
3406	 41.55	0	3836649..3837500	+	283	197287321	-	PMI3516	-	phosphosugar-binding transcriptional regulator
3407	 39.54	0	3837500..3838288	+	262	197287322	-	PMI3517	-	hypothetical protein
3408	 52.53	+2	3838524..3838622	+	32	197287323	ivbL	PMI3518	-	ilvBN operon leader peptide
3409	 44.01	0	3838730..3840424	+	564	197287324	ilvB	PMI3519	-	acetolactate synthase isozyme I large subunit
3410	 37.54	0	3840428..3840712	+	94	197287325	ilvN	PMI3520	-	acetolactate synthase isozyme I small subunit
3411	 40.91	0	3840767..3841663	-	298	197287326	-	PMI3521	-	cation efflux protein
3412	 41.11	0	3841740..3842318	-	192	197287327	-	PMI3522	-	transcriptional regulator
3413	 40.82	0	3842557..3843744	+	395	197287328	-	PMI3523	-	MFS-family transporter
3414	 42.69	0	3844515..3845861	+	448	197287329	-	PMI3524	-	permease
3415	 37.50	0	3845989..3846492	+	167	197287330	-	PMI3525	-	acetyltransferase
3416	 42.91	0	3846850..3848499	+	549	197287331	-	PMI3526	-	Na(+)/H(+) exchanger
3417	 42.61	0	3848502..3849374	+	290	197287332	-	PMI3527	-	hypothetical protein
3418	 43.08	0	3849289..3850242	-	317	197287333	metR	PMI3528	-	LysR-family transcriptional regulator
3419	 43.36	0	3850350..3852623	+	757	197287334	metE	PMI3529	-	5-methyltetrahydropteroyltriglutamate--homocystei ne methyltransferase
3420	 33.82	-1	3852792..3853619	+	275	197287335	-	PMI3530	-	hypothetical protein
3421	 39.69	0	3853724..3854116	-	130	197287336	-	PMI3531	-	hypothetical protein
3422	 42.95	0	3854459..3855217	+	252	197287337	udp	PMI3532	-	uridine phosphorylase
3423	 39.85	0	3855367..3856149	+	260	197287338	-	PMI3533	-	hypothetical protein
3424	 45.76	+1	3856221..3856751	+	176	197287339	-	PMI3534	-	hypothetical protein
3425	 41.69	0	3856854..3858194	+	446	197287340	rumC	PMI3535	-	DNA recombination protein
3426	 39.68	0	3858276..3859031	+	251	197287341	ubiE	PMI3536	-	ubiquinone/menaquinone biosynthesis methyltransferase
3427	 39.72	0	3859033..3859674	+	213	197287342	-	PMI3537	-	hypothetical protein
3428	 38.28	0	3859674..3861311	+	545	197287343	ubiB	PMI3538	-	probable ubiquinone biosynthesis protein
3429	 40.45	0	3861437..3861703	+	88	197287344	tatA	PMI3539	-	sec-independent protein translocase
3430	 43.13	0	3861707..3862237	+	176	197287345	tatB	PMI3540	-	Sec-independent protein translocase
3431	 39.31	0	3862241..3863026	+	261	197287346	tatC	PMI3541	-	sec-independent protein translocase
3432	 39.52	0	3863089..3863589	-	166	197287347	rfaH	PMI3542	-	transcriptional activator
3433	 47.64	+1	3863776..3864984	-	402	197287348	-	PMI3543	-	transposase
3434	 43.65	0	3865007..3865423	+	138	197287349	-	PMI3544	-	transposase
3435	 40.50	0	3865622..3866347	+	241	197287350	pepE	PMI3545	-	dipeptidase E
3436	 41.29	0	3866467..3867936	+	489	197287351	ubiD	PMI3546	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
3437	 40.31	0	3867952..3868653	+	233	197287352	fadI	PMI3547	-	NAD(P)H-flavin reductase
3438	 43.64	0	3868809..3869972	-	387	197287353	fadA	PMI3549	-	3-ketoacyl-CoA thiolase
3439	 41.45	0	3869984..3872164	-	726	197287354	fadB	PMI3550	-	fatty oxidation complex alpha subunit [includes: enoyl-CoA hydratase; 3-hydroxyacyl-CoA dehydrogenase and 3-hydroxybutyryl-CoA epimerase]
3440	 37.98	0	3872453..3873787	+	444	197287355	pepQ	PMI3551	-	Xaa-Pro dipeptidase
3441	 42.19	0	3873787..3874407	+	206	197287356	-	PMI3552	-	hypothetical protein
3442	 40.36	0	3874433..3875884	+	483	197287357	trkH	PMI3553	-	Trk system potassium uptake protein
3443	 36.53	0	3875905..3876435	+	176	197287358	hemG	PMI3554	-	protoporphyrinogen oxidase
3444	 37.42	0	3882343..3883002	-	219	197287359	-	PMI3555	-	GntR-family transcriptional regulator
3445	 39.74	0	3883493..3884725	+	410	197287360	-	PMI3556	-	hypothetical protein
3446	 41.86	0	3884739..3885524	+	261	197287361	-	PMI3557	-	hypothetical protein
3447	 41.63	0	3885606..3887183	+	525	197287362	-	PMI3558	-	allophanate hydrolase
3448	 43.36	0	3887200..3888945	+	581	197287363	-	PMI3559	-	bifunctional acetyl-/propionyl-coenzyme A carboxylase alpha chain [includes: biotin carboxylase and biotin carboxyl carrier protein]
3449	 38.22	0	3889105..3889902	+	265	197287364	-	PMI3560	-	hypothetical protein
3450	 24.67	-2	3889971..3890270	+	99	197287365	-	PMI3561	-	hypothetical protein
3451	 28.94	-2	3890267..3891655	+	462	197287366	-	PMI3562	-	radical SAM superfamily protein
3452	 29.46	-2	3891648..3892757	+	369	197287367	-	PMI3563	-	radical SAM superfamily protein
39.69	MEAN

4.91	STD DEV
