IslandPath Analysis: Proteus mirabilis HI4320

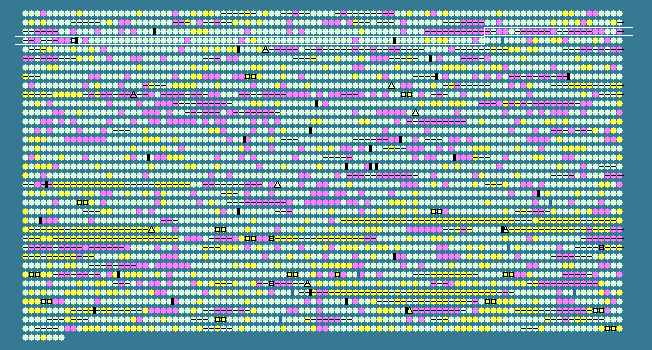

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
278	 34.01	-1	340636..341520	+	294	197284193	-	PMI0286	-	transcriptional regulator
279	 39.70	0	341514..342770	-	418	197284194	-	PMI0287	-	amidohydrolase/metallopeptidase
280	 33.55	-1	343139..344524	-	461	197284195	rafY	PMI0288	-	glycoporin
281	 32.87	-1	344579..345223	-	214	197284196	pgmB	PMI0289	-	beta-phosphoglucomutase
282	 36.31	0	345216..347933	-	905	197284197	-	PMI0290	-	glycosyl hydrolase
283	 37.13	0	347959..349380	-	473	197284198	treB	PMI0291	-	trehalose-specific PTS system, EIIBC component
284	 29.17	-2	349391..349486	-	31	197284199	-	PMI0292	-	hypothetical protein
285	 34.98	0	349499..350467	-	322	197284200	treR	PMI0293	-	trehalose operon repressor (LacI-family transcriptional regulator)
286	 27.15	-2	350630..351082	-	150	197284201	-	PMI0294	-	hypothetical protein
287	 21.21	-2	351079..351903	-	274	197284202	-	PMI0295	-	hypothetical protein
288	 28.07	-2	352544..352828	+	94	197284203	-	PMI0296	-	fimbrial operon regulator
289	 32.44	-1	352973..353533	+	186	197284204	-	PMI0297	-	fimbrial subunit
290	 36.41	0	353710..354294	+	194	197284205	-	PMI0298	-	fimbrial subunit
291	 36.77	0	354349..356877	+	842	197284206	-	PMI0299	-	fimbrial outer membrane usher protein
292	 33.73	-1	356889..357644	+	251	197284207	-	PMI0300	-	fimbrial chaperone protein
293	 32.17	-1	357676..358104	+	142	197284208	-	PMI0301	-	fimbrial protein
294	 32.40	-1	358097..358630	+	177	197284209	-	PMI0302	-	fimbrial subunit
295	 29.05	-2	358630..359166	+	178	197284210	-	PMI0303	-	fimbrial subunit
296	 32.47	-1	359179..360330	+	383	197284211	-	PMI0304	-	fimbrial adhesin
297	 30.59	-1	360449..361141	-	230	197284212	-	PMI0305	-	TetR-family transcriptional regulator
298	 41.23	0	361271..362599	-	442	197284213	potE	PMI0306	-	putrescine-ornithine antiporter
299	 39.39	0	362663..364825	-	720	197284214	speF	PMI0307	-	ornithine decarboxylase, inducible
300	 30.22	-1	366482..367252	-	256	197284215	-	PMI0308	-	hypothetical protein
301	 37.07	0	368261..368581	-	106	197284216	-	PMI0311	-	hypothetical protein
302	 23.93	-2	369084..369944	-	286	197284217	-	PMI0312	-	hypothetical protein
303	 23.75	-2	370951..371931	-	326	197284218	-	PMI0316	-	hypothetical protein
304	 37.84	0	372184..372738	+	184	197284219	-	PMI0317	-	lipoprotein
305	 37.02	0	372735..373439	+	234	197284220	-	PMI0318	-	hypothetical protein
306	 35.27	0	373458..373715	+	85	197284221	-	PMI0319	-	hypothetical protein
307	 35.06	0	373758..374336	+	192	197284222	-	PMI0320	-	hypothetical protein
308	 35.56	0	374340..374609	+	89	197284223	-	PMI0321	-	hypothetical protein
309	 39.19	0	374836..375108	+	90	197284224	-	PMI0322	-	transposase
310	 41.83	0	376247..377317	-	356	197284225	mltC	PMI0324	-	membrane-bound lytic murein transglycosylase
311	 35.90	0	377380..377652	-	90	197284226	yggX	PMI0325	-	probable Fe(2+) trafficking protein
312	 41.31	0	377683..378723	-	346	197284227	mutY	PMI0326	-	A/G-specific adenine glycosylase
313	 41.81	0	378939..379658	+	239	197284228	trmB	PMI0327	-	tRNA (guanine-N(7)-)-methyltransferase
314	 39.45	0	379658..379984	+	108	197284229	-	PMI0328	-	hypothetical protein
315	 40.45	0	380061..380987	+	308	197284230	glsA	PMI0329	-	glutaminase
316	 38.75	0	381059..381796	+	245	197284231	-	PMI0330	-	hypothetical protein
317	 37.75	0	381944..382894	+	316	197284232	-	PMI0331	-	ABC transporter, substrate-binding protein
318	 40.32	0	382997..384127	-	376	197284233	yggW	PMI0332	-	oxygen-independent coproporphyrinogen III oxidase
319	 42.09	0	384120..384713	-	197	197284234	-	PMI0333	-	hydrolase
320	 38.48	0	384724..385287	-	187	197284235	-	PMI0334	-	hypothetical protein
321	 42.12	0	385306..386124	-	272	197284236	proC	PMI0335	-	pyrroline-5-carboxylate reductase
322	 40.77	0	386143..386841	-	232	197284237	-	PMI0336	-	amino acid racemase
323	 39.94	0	386869..387882	+	337	197284238	-	PMI0337	-	type II/IV secretion system protein
324	 43.10	0	387879..388298	-	139	197284239	-	PMI0338	-	holliday junction resolvase
325	 40.78	0	388298..388861	-	187	197284240	-	PMI0339	-	hypothetical protein
326	 41.07	0	388974..389930	-	318	197284241	gshB	PMI0340	-	glutathione synthetase
327	 40.16	0	389941..390672	-	243	197284242	-	PMI0341	-	hypothetical protein
328	 33.18	-1	390920..391552	+	210	197284243	-	PMI0342	-	type IV prepilin-like leader peptidase
329	 39.35	0	391654..392301	-	215	197284244	-	PMI0343	-	hypothetical protein
330	 37.05	0	392307..393194	-	295	197284245	-	PMI0344	-	metallo-beta-lactamase superfamily protein
331	 42.35	0	393284..394204	+	306	197284246	-	PMI0345	-	LysR-family transcriptional regulator
332	 39.91	0	394181..395107	-	308	197284247	lysR	PMI0346	-	LysR-family transcriptional regulator
333	 41.77	0	395217..396461	+	414	197284248	lysA	PMI0347	-	diaminopimelate decarboxylase
334	 42.85	0	396595..399042	-	815	197284249	fadE	PMI0348	-	acyl-coenzyme A dehydrogenase
335	 39.55	0	399281..399859	+	192	197284250	gmhA	PMI0349	-	Phosphoheptose isomerase
336	 39.97	0	399918..400685	+	255	197284251	-	PMI0350	-	amidotransferase
337	 34.26	-1	400656..401408	-	250	197284252	-	PMI0351	-	hypothetical protein
338	 42.13	0	401824..403164	+	446	197284253	nqrA	PMI0352	-	Na(+)-translocating NADH-quinone reductase subunit A
339	 43.42	0	403168..404406	+	412	197284254	nqrB	PMI0353	-	Na(+)-translocating NADH-quinone reductase subunit B
340	 42.62	0	404399..405184	+	261	197284255	nqrC	PMI0354	-	Na+-translocating NADH-quinone reductase subunit C
341	 41.27	0	405177..405806	+	209	197284256	nqrD	PMI0355	-	Na+-translocating NADH-quinone reductase subunit D
342	 39.53	0	405812..406408	+	198	197284257	nqrE	PMI0356	-	Na+-translocating NADH-quinone reductase subunit E
343	 40.18	0	406425..407651	+	408	197284258	nqrF	PMI0357	-	Na(+)-translocating NADH-quinone reductase subunit F
344	 38.51	0	407737..408759	+	340	197284259	apbE	PMI0358	-	thiamine biosynthesis lipoprotein
345	 37.28	0	408779..409006	+	75	197284260	-	PMI0359	-	hypothetical protein
346	 36.62	0	409163..409375	-	70	197284261	-	PMI0360	-	general stress response protein
347	 38.60	0	409469..410341	-	290	197284262	-	PMI0361	-	phosphodiesterase
348	 39.58	0	410577..411632	+	351	197284263	dinB	PMI0362	-	DNA polymerase IV
349	 38.70	0	411709..413871	-	720	197284264	-	PMI0363	-	TonB-dependent ferric siderephore receptor
350	 40.60	0	414121..415578	-	485	197284265	pepD	PMI0364	-	aminoacyl-histidine dipeptidase
351	 41.77	0	415932..416393	+	153	197284266	gpt	PMI0366	-	xanthine-guanine phosphoribosyltransferase
352	 38.69	0	416626..417876	+	416	197284267	yafA	PMI0367	-	esterase
353	 36.32	0	417948..418349	+	133	197284268	crl	PMI0368	-	curlin genes transcriptional regulator
354	 43.12	0	418462..419565	+	367	197284269	proB	PMI0369	-	glutamate 5-kinase
355	 43.14	0	419577..420830	+	417	197284270	proA	PMI0370	-	gamma-glutamyl phosphate reductase
356	 34.50	-1	420975..421487	+	170	197284271	aroL	PMI0371	-	shikimate kinase
357	 40.19	0	421594..423750	+	718	197284272	aas	PMI0372	-	Aas bifunctional protein [includes: 2-acylglycerophosphoethanolamine acyltransferase and acyl-[acyl-carrier-protein] synthetase
358	 41.06	0	423750..424952	+	400	197284273	-	PMI0373	-	MFS-family transporter
359	 40.24	0	424985..425491	+	168	197284274	-	PMI0374	-	competence-damaged protein
360	 40.82	0	425599..426666	+	355	197284275	recA	PMI0375	-	protein RecA (recombinase A)
361	 40.79	0	427567..430194	+	875	197284276	alaS	PMI0376	-	alanyl-tRNA synthetase
362	 42.86	0	430412..430600	+	62	197284277	csrA	PMI0377	-	carbon storage regulator
363	 38.65	0	431843..433423	+	526	197284278	gshA	PMI0378	-	glutamate--cysteine ligase
364	 39.73	0	433589..434104	+	171	197284279	luxS	PMI0379	-	S-ribosylhomocysteine lyase (autoinducer-2 production protein)
365	 38.90	0	434235..435509	-	424	197284280	-	PMI0380	-	transporter of ion substrates
366	 38.70	0	435545..436345	-	266	197284281	-	PMI0381	-	hypothetical protein
367	 42.80	0	436518..437879	+	453	197284282	ffh	PMI0382	-	signal recognition particle protein
368	 46.59	+1	438017..438265	+	82	197284283	rpsP	PMI0383	-	30S ribosomal protein S16
369	 41.03	0	438284..438829	+	181	197284284	rimM	PMI0384	-	16S rRNA processing protein
370	 47.54	+1	438869..439621	+	250	197284285	trmD	PMI0385	-	tRNA (guanine-N1)-methyltransferase
371	 43.22	0	439674..440027	+	117	197284286	rplS	PMI0386	-	50S ribosomal subunit protein L19
372	 39.00	0	440479..441573	+	364	197284287	aroF	PMI0387	-	phospho-2-dehydro-3-deoxyheptonate aldolase, Tyr-sensitive
373	 38.22	0	441609..442733	+	374	197284288	tyrA	PMI0388	-	T-protein [includes: chorismate mutase and prephenate dehydrogenase]
374	 36.83	0	443581..444924	+	447	197284289	dcuB	PMI0389	-	anaerobic C4-dicarboxylate transporter
375	 37.65	0	445018..446175	-	385	197284290	pheA	PMI0390	-	P-protein [includes: chorismate mutase and prephenate dehydratase]
376	 34.23	-1	446485..446820	-	111	197284291	-	PMI0391	-	sigma 54 modulation protein
377	 42.18	0	447090..447824	-	244	197284292	-	PMI0392	-	lipoprotein
39.69	MEAN

4.91	STD DEV
