IslandPath Analysis: Proteus mirabilis HI4320

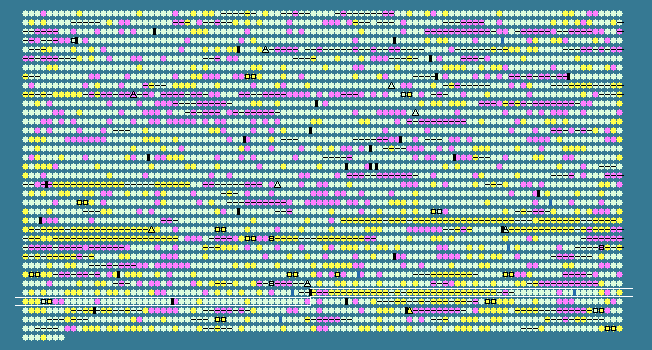

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3149	 45.15	+1	3579887..3581071	+	394	197287064	tufB	PMI3251	-	elongation factor Tu
3150	 34.85	0	3581274..3581471	+	65	197287065	bfd	PMI3252	-	bacterioferritin-associated ferredoxin
3151	 36.08	0	3581549..3582022	+	157	197287066	bfr	PMI3253	-	bacterioferritin
3152	 49.36	+1	3582388..3582699	+	103	197287067	rpsJ	PMI3254	-	30S ribosomal protein S10
3153	 46.51	+1	3582732..3583361	+	209	197287068	rplC	PMI3255	-	50S ribosomal protein L3
3154	 47.19	+1	3583378..3583983	+	201	197287069	rplD	PMI3256	-	50S ribosomal protein L4
3155	 46.86	+1	3583980..3584282	+	100	197287070	rplW	PMI3257	-	50S ribosomal protein L23
3156	 47.27	+1	3584302..3585126	+	274	197287071	rplB	PMI3258	-	50S ribosomal protein L2
3157	 46.95	+1	3585141..3585419	+	92	197287072	rpsS	PMI3259	-	30S ribosomal protein S19
3158	 48.35	+1	3585434..3585766	+	110	197287073	rplV	PMI3260	-	50S ribosomal protein L22
3159	 47.15	+1	3585784..3586485	+	233	197287074	rpsC	PMI3261	-	30S ribosomal protein S3
3160	 48.66	+1	3586498..3586908	+	136	197287075	rplP	PMI3262	-	50S ribosomal protein L16
3161	 46.88	+1	3586908..3587099	+	63	197287076	rpmC	PMI3263	-	50S ribosomal protein L29
3162	 41.18	0	3587099..3587353	+	84	197287077	rpsQ	PMI3264	-	30S ribosomal protein S17
3163	 46.24	+1	3587530..3587901	+	123	197287078	rplN	PMI3265	-	50S ribosomal protein L14
3164	 40.95	0	3587912..3588226	+	104	197287079	rplX	PMI3266	-	50S ribosomal protein L24
3165	 46.67	+1	3588240..3588779	+	179	197287080	rplE	PMI3267	-	50S ribosomal protein L5
3166	 47.39	+1	3588792..3589097	+	101	197287081	rpsN	PMI3268	-	30S ribosomal protein S14
3167	 46.56	+1	3589130..3589522	+	130	197287082	rpsH	PMI3269	-	30S ribosomal protein S8
3168	 46.25	+1	3589537..3590070	+	177	197287083	rplF	PMI3270	-	50S ribosomal protein L6
3169	 49.44	+1	3590080..3590433	+	117	197287084	rplR	PMI3271	-	50S ribosomal protein L18
3170	 48.10	+1	3590448..3590948	+	166	197287085	rpsE	PMI3272	-	30S ribosomal protein S5
3171	 43.89	0	3590954..3591133	+	59	197287086	rpmD	PMI3273	-	50S ribosomal protein L30
3172	 47.59	+1	3591137..3591571	+	144	197287087	rplO	PMI3274	-	50S ribosomal protein L15
3173	 43.24	0	3591579..3592901	+	440	197287088	secY	PMI3275	-	preprotein translocase SecY subunit
3174	 46.15	+1	3592946..3593062	+	38	197287089	rpmJ	PMI3276	-	50S ribosomal protein L36
3175	 46.22	+1	3593207..3593563	+	118	197287090	rpsM	PMI3277	-	30S ribosomal protein S13
3176	 47.44	+1	3593580..3593969	+	129	197287091	rpsK	PMI3278	-	30S ribosomal protein S11
3177	 46.05	+1	3594006..3594626	+	206	197287092	rpsD	PMI3279	-	30S ribosomal protein S4
3178	 48.08	+1	3594652..3595641	+	329	197287093	rpoA	PMI3280	-	DNA-directed RNA polymerase alpha chain
3179	 49.61	+2	3595679..3596065	+	128	197287094	rplQ	PMI3281	-	50S ribosomal protein L17
3180	 37.20	0	3596328..3596741	+	137	197287095	zntR	PMI3282	-	Zn(II)-responsive regulator of zntA (MerR-family transcriptional regulator)
3181	 35.78	0	3596802..3597005	+	67	197287096	-	PMI3283	-	hypothetical protein
3182	 36.52	0	3597009..3597416	-	135	197287097	mscL	PMI3284	-	large-conductance mechanosensitive channel
3183	 41.10	0	3597523..3598899	-	458	197287098	trkA	PMI3285	-	trk system potassium uptake protein
3184	 40.98	0	3599012..3600280	-	422	197287099	rsmB	PMI3286	-	ribosomal RNA small subunit methyltransferase B
3185	 40.17	0	3600377..3601327	-	316	197287100	fmt	PMI3287	-	methionyl-tRNA formyltransferase
3186	 40.70	0	3601354..3601869	-	171	197287101	fms	PMI3288	-	polypeptide deformylase
3187	 37.47	0	3602001..3603161	+	386	197287102	smf	PMI3289	-	hypothetical protein
3188	 37.10	0	3603180..3603737	+	185	197287103	-	PMI3290	-	DNA-binding protein
3189	 40.88	0	3603730..3604299	+	189	197287104	-	PMI3291	-	RNA-binding protein
3190	 35.39	0	3604307..3605131	+	274	197287105	aroE	PMI3292	-	shikimate dehydrogenase
3191	 37.50	0	3605128..3605391	+	87	197287106	-	PMI3293	-	hypothetical protein
3192	 41.31	0	3605367..3605930	-	187	197287107	-	PMI3294	-	transferase
3193	 40.36	0	3612413..3613237	-	274	197287108	hdfR	PMI3295	-	H-NS-depdendent flhDC regulator (LysR-family transcriptional regulator)
3194	 40.41	0	3613353..3613691	+	112	197287109	-	PMI3296	-	hypothetical protein
3195	 36.99	0	3613739..3615271	-	510	197287110	-	PMI3297	-	magnesium-chelatase
3196	 43.14	0	3615716..3615817	+	33	197287111	ilvL	PMI3298	-	ilvGMEDA operon leader peptide
3197	 43.58	0	3615947..3617596	+	549	197287112	ilvG	PMI3299	-	Acetolactate synthase isozyme II large subunit
3198	 35.84	0	3617593..3617871	+	92	197287113	ilvM	PMI3300	-	acetolactate synthase isozyme II small subunit
3199	 43.15	0	3617882..3618808	+	308	197287114	ilvE	PMI3301	-	branched-chain amino acid aminotransferase
3200	 43.92	0	3618881..3620731	+	616	197287115	ilvD	PMI3302	-	dihydroxy-acid dehydratase
3201	 44.13	0	3620735..3622309	+	524	197287116	ilvA	PMI3303	-	threonine dehydratase biosynthetic
3202	 45.16	+1	3622295..3623182	-	295	197287117	ilvY	PMI3304	-	LysR-family transcriptional regulator
3203	 43.43	0	3623355..3624830	+	491	197287118	ilvC	PMI3305	-	ketol-acid reductoisomerase
3204	 43.17	0	3625058..3625474	-	138	197287119	-	PMI3306	-	transposase
3205	 47.39	+1	3625497..3626705	+	402	197287120	-	PMI3307	-	transposase
3206	 32.57	-1	3626837..3627097	-	86	197287121	-	PMI3308	-	plasmid stability protein
3207	 31.73	-1	3627107..3627355	-	82	197287122	-	PMI3309	-	plasmid-related protein
3208	 40.85	0	3627528..3629549	+	673	197287123	rep	PMI3310	-	ATP-dependent DNA helicase
3209	 43.01	0	3629624..3631132	-	502	197287124	gppA	PMI3311	-	guanosine-5'-triphosphate,3'-diphosphate pyrophosphatase
3210	 41.11	0	3631136..3632434	-	432	197287125	rhlB	PMI3312	-	ATP-dependent RNA helicase
3211	 40.67	0	3632554..3632880	+	108	197287126	trxA	PMI3313	-	thioredoxin
3212	 40.87	0	3633442..3634701	+	419	197287127	rho	PMI3314	-	transcription termination factor Rho
3213	 28.07	-2	3634895..3635065	+	56	197287128	-	PMI3315	-	hypothetical protein
3214	 40.11	0	3635096..3636187	+	363	197287129	wecA	PMI3316	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyl 1-phosphate transferase
3215	 41.15	0	3636208..3637269	+	353	197287130	wzzE	PMI3317	-	lipopolysaccharide biosynthesis protein
3216	 41.82	0	3637399..3638529	+	376	197287131	rffE	PMI3318	-	UDP-N-acetylglucosamine 2-epimerase
3217	 42.36	0	3638526..3639788	+	420	197287132	rffD	PMI3319	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3218	 42.46	0	3639779..3640852	+	357	197287133	rffG	PMI3320	-	dTDP-D-glucose-4,6-dehydratase
3219	 42.26	0	3640868..3641752	+	294	197287134	rffH	PMI3321	-	glucose-1-phosphate thymidylyltransferase
3220	 40.48	0	3641730..3642443	+	237	197287135	rffC	PMI3322	-	lipopolysaccharide biosynthesis acetyltransferase
3221	 42.09	0	3642445..3643575	+	376	197287136	rffA	PMI3323	-	lipopolysaccharide biosynthesis aminotransferase
3222	 39.70	0	3643577..3644833	+	418	197287137	wzxE	PMI3324	-	O-antigen translocase (flippase)
3223	 38.86	0	3644830..3645915	+	361	197287138	rffT	PMI3325	-	4-alpha-L-fucosyltransferase
3224	 39.56	0	3645912..3647276	+	454	197287139	wzyE	PMI3326	-	ECA polymerase
3225	 41.87	0	3647276..3648013	+	245	197287140	rffM	PMI3327	-	probable UDP-N-acetyl-D-mannosaminuronic acid transferase
3226	 35.22	0	3649632..3649949	+	105	197287141	-	PMI3328	-	hypothetical protein
3227	 42.03	0	3650012..3651241	-	409	197287142	hemY	PMI3329	-	porphyrin biosynthesis protein
3228	 40.85	0	3651246..3652496	-	416	197287143	hemX	PMI3330	-	uroporphyrin-III C-methyltransferase
3229	 38.89	0	3652517..3653254	-	245	197287144	hemD	PMI3331	-	uroporphyrinogen-III synthase
3230	 44.69	+1	3653251..3654192	-	313	197287145	hemC	PMI3332	-	porphobilinogen deaminase
3231	 40.03	0	3655180..3657777	+	865	197287146	cyaA	PMI3333	-	adenylate cyclase
3232	 37.35	0	3657847..3658170	-	107	197287147	cyaY	PMI3334	-	CyaY protein
3233	 42.47	0	3658227..3658412	+	61	197287148	-	PMI3335	-	lipoprotein
3234	 40.97	0	3658454..3659278	+	274	197287149	dapF	PMI3336	-	diaminopimelate epimerase
3235	 40.37	0	3659303..3660013	+	236	197287150	-	PMI3337	-	hypothetical protein
3236	 41.45	0	3660010..3660933	+	307	197287151	xerC	PMI3338	-	tyrosine recombinase
3237	 39.61	0	3660933..3661649	+	238	197287152	-	PMI3339	-	haloacid dehalogenase-like hydrolase
3238	 43.86	0	3661795..3663951	+	718	197287153	uvrD	PMI3340	-	DNA helicase II
3239	 40.00	0	3664107..3664511	+	134	197287154	-	PMI3341	-	hypothetical protein
3240	 41.50	0	3664522..3665415	-	297	197287155	rarD	PMI3342	-	chloramphenicol-sensitive protein
3241	 41.24	0	3665550..3666017	-	155	197287156	-	PMI3343	-	thioesterase
3242	 42.01	0	3666252..3667127	+	291	197287157	pldA	PMI3344	-	phospholipase A
3243	 42.02	0	3667239..3669068	+	609	197287158	recQ	PMI3345	-	ATP-dependent DNA helicase
3244	 41.19	0	3669089..3670093	+	334	197287159	pldB	PMI3346	-	lysophospholipase L2
3245	 38.20	0	3670106..3670906	+	266	197287160	-	PMI3347	-	haloacid dehalogenase-like hydrolase
3246	 40.82	0	3670975..3672003	-	342	197287161	-	PMI3348	-	fimbrial adhesin
3247	 38.92	0	3672004..3674529	-	841	197287162	-	PMI3349	-	fimbrial outer membrane usher protein
3248	 35.15	0	3674542..3675201	-	219	197287163	-	PMI3350	-	fimbrial chaperone
39.69	MEAN

4.91	STD DEV
