IslandPath Analysis: Proteus mirabilis HI4320

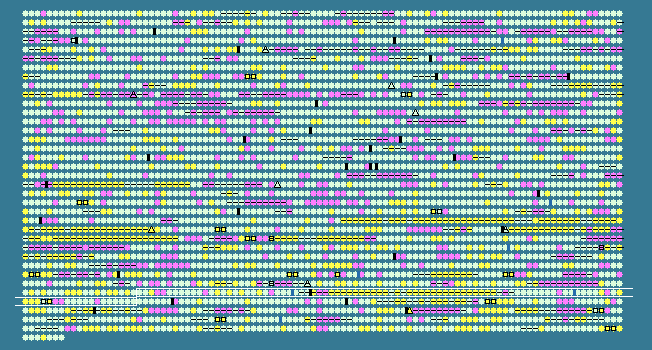

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3120	 42.14	0	3536773..3537090	-	105	197287035	metJ	PMI3222	-	repressor of the methionine regulon
3121	 42.38	0	3537376..3538536	+	386	197287036	metB	PMI3223	-	cystathionine gamma-synthase
3122	 43.95	0	3538546..3540984	+	812	197287037	metL	PMI3224	-	bifunctional aspartokinase/homoserine dehydrogenase II [includes: aspartokinase II and homoserine dehydrogenase II]
3123	 35.45	0	3541107..3541625	+	172	197287038	-	PMI3225	-	hypothetical protein
3124	 33.33	-1	3541704..3541865	+	53	197287039	-	PMI3226	-	hypothetical protein
3125	 42.97	0	3542338..3544974	+	878	197287040	ppc	PMI3227	-	phosphoenolpyruvate carboxylase
3126	 39.23	0	3545031..3546014	-	327	197287041	-	PMI3228	-	glycosyl transferase
3127	 41.93	0	3546054..3547484	-	476	197287042	phrB	PMI3229	-	deoxyribodipyrimidine photolyase
3128	 40.98	0	3547495..3548997	-	500	197287043	proP	PMI3230	-	proline/betaine transporter (MFS-family transporter)
3129	 36.88	0	3549766..3550779	+	337	197287044	cysB	PMI3231	-	cys regulon transcriptional activator ( LysR-family transcriptional regulator)
3130	 39.42	0	3550855..3552036	-	393	197287045	-	PMI3232	-	amidohydrolase/metallopeptidase
3131	 33.78	-1	3552036..3552485	-	149	197287046	-	PMI3233	-	hypothetical protein
3132	 36.98	0	3552482..3553303	-	273	197287047	-	PMI3234	-	hypothetical protein
3133	 43.30	0	3553868..3555592	+	574	197287048	poxB	PMI3235	-	pyruvate dehydrogenase [cytochrome]
3134	 42.78	0	3555684..3556847	-	387	197287049	argE	PMI3236	-	acetylornithine deacetylase
3135	 44.38	0	3556948..3557952	+	334	197287050	argC	PMI3237	-	N-acetyl-gamma-glutamyl-phosphate reductase
3136	 42.25	0	3557973..3558746	+	257	197287051	argB	PMI3238	-	acetylglutamate kinase
3137	 44.14	0	3558811..3560022	+	403	197287052	argG	PMI3239	-	argininosuccinate synthase
3138	 42.52	0	3560115..3561497	+	460	197287053	argH	PMI3240	-	argininosuccinate lyase
3139	 41.39	0	3561732..3562649	+	305	197287054	oxyR	PMI3241	-	hydrogen peroxide-inducible genes activator (LysR-family transcriptional regulator)
3140	 43.20	0	3562641..3564038	-	465	197287055	sthA	PMI3242	-	soluble pyridine nucleotide transhydrogenase
3141	 40.53	0	3564239..3564919	+	226	197287056	-	PMI3243	-	TetR-family transcriptional regulatory
3142	 35.57	0	3564919..3565320	+	133	197287057	-	PMI3244	-	hypothetical protein
3143	 38.62	0	3565442..3566539	-	365	197287058	trmA	PMI3245	-	tRNA (uracil-5)-methyltransferase
3144	 37.97	0	3566925..3568778	+	617	197287059	btuB	PMI3246	-	vitamin B12 transporter (TonB-dependent receptor)
3145	 41.87	0	3568723..3569589	+	288	197287060	murI	PMI3247	-	glutamate racemase
3146	 37.87	0	3575840..3576874	+	344	197287061	murB	PMI3248	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3147	 39.56	0	3576871..3577833	+	320	197287062	birA	PMI3249	-	BirA bifunctional protein [includes: biotin operon repressor; biotin--[acetyl-coa-carboxylase] synthetase]
3148	 36.50	0	3577966..3578913	-	315	197287063	coaA	PMI3250	-	pantothenate kinase
3149	 45.15	+1	3579887..3581071	+	394	197287064	tufB	PMI3251	-	elongation factor Tu
3150	 34.85	0	3581274..3581471	+	65	197287065	bfd	PMI3252	-	bacterioferritin-associated ferredoxin
3151	 36.08	0	3581549..3582022	+	157	197287066	bfr	PMI3253	-	bacterioferritin
3152	 49.36	+1	3582388..3582699	+	103	197287067	rpsJ	PMI3254	-	30S ribosomal protein S10
3153	 46.51	+1	3582732..3583361	+	209	197287068	rplC	PMI3255	-	50S ribosomal protein L3
3154	 47.19	+1	3583378..3583983	+	201	197287069	rplD	PMI3256	-	50S ribosomal protein L4
3155	 46.86	+1	3583980..3584282	+	100	197287070	rplW	PMI3257	-	50S ribosomal protein L23
3156	 47.27	+1	3584302..3585126	+	274	197287071	rplB	PMI3258	-	50S ribosomal protein L2
3157	 46.95	+1	3585141..3585419	+	92	197287072	rpsS	PMI3259	-	30S ribosomal protein S19
3158	 48.35	+1	3585434..3585766	+	110	197287073	rplV	PMI3260	-	50S ribosomal protein L22
3159	 47.15	+1	3585784..3586485	+	233	197287074	rpsC	PMI3261	-	30S ribosomal protein S3
3160	 48.66	+1	3586498..3586908	+	136	197287075	rplP	PMI3262	-	50S ribosomal protein L16
3161	 46.88	+1	3586908..3587099	+	63	197287076	rpmC	PMI3263	-	50S ribosomal protein L29
3162	 41.18	0	3587099..3587353	+	84	197287077	rpsQ	PMI3264	-	30S ribosomal protein S17
3163	 46.24	+1	3587530..3587901	+	123	197287078	rplN	PMI3265	-	50S ribosomal protein L14
3164	 40.95	0	3587912..3588226	+	104	197287079	rplX	PMI3266	-	50S ribosomal protein L24
3165	 46.67	+1	3588240..3588779	+	179	197287080	rplE	PMI3267	-	50S ribosomal protein L5
3166	 47.39	+1	3588792..3589097	+	101	197287081	rpsN	PMI3268	-	30S ribosomal protein S14
3167	 46.56	+1	3589130..3589522	+	130	197287082	rpsH	PMI3269	-	30S ribosomal protein S8
3168	 46.25	+1	3589537..3590070	+	177	197287083	rplF	PMI3270	-	50S ribosomal protein L6
3169	 49.44	+1	3590080..3590433	+	117	197287084	rplR	PMI3271	-	50S ribosomal protein L18
3170	 48.10	+1	3590448..3590948	+	166	197287085	rpsE	PMI3272	-	30S ribosomal protein S5
3171	 43.89	0	3590954..3591133	+	59	197287086	rpmD	PMI3273	-	50S ribosomal protein L30
3172	 47.59	+1	3591137..3591571	+	144	197287087	rplO	PMI3274	-	50S ribosomal protein L15
3173	 43.24	0	3591579..3592901	+	440	197287088	secY	PMI3275	-	preprotein translocase SecY subunit
3174	 46.15	+1	3592946..3593062	+	38	197287089	rpmJ	PMI3276	-	50S ribosomal protein L36
3175	 46.22	+1	3593207..3593563	+	118	197287090	rpsM	PMI3277	-	30S ribosomal protein S13
3176	 47.44	+1	3593580..3593969	+	129	197287091	rpsK	PMI3278	-	30S ribosomal protein S11
3177	 46.05	+1	3594006..3594626	+	206	197287092	rpsD	PMI3279	-	30S ribosomal protein S4
3178	 48.08	+1	3594652..3595641	+	329	197287093	rpoA	PMI3280	-	DNA-directed RNA polymerase alpha chain
3179	 49.61	+2	3595679..3596065	+	128	197287094	rplQ	PMI3281	-	50S ribosomal protein L17
3180	 37.20	0	3596328..3596741	+	137	197287095	zntR	PMI3282	-	Zn(II)-responsive regulator of zntA (MerR-family transcriptional regulator)
3181	 35.78	0	3596802..3597005	+	67	197287096	-	PMI3283	-	hypothetical protein
3182	 36.52	0	3597009..3597416	-	135	197287097	mscL	PMI3284	-	large-conductance mechanosensitive channel
3183	 41.10	0	3597523..3598899	-	458	197287098	trkA	PMI3285	-	trk system potassium uptake protein
3184	 40.98	0	3599012..3600280	-	422	197287099	rsmB	PMI3286	-	ribosomal RNA small subunit methyltransferase B
3185	 40.17	0	3600377..3601327	-	316	197287100	fmt	PMI3287	-	methionyl-tRNA formyltransferase
3186	 40.70	0	3601354..3601869	-	171	197287101	fms	PMI3288	-	polypeptide deformylase
3187	 37.47	0	3602001..3603161	+	386	197287102	smf	PMI3289	-	hypothetical protein
3188	 37.10	0	3603180..3603737	+	185	197287103	-	PMI3290	-	DNA-binding protein
3189	 40.88	0	3603730..3604299	+	189	197287104	-	PMI3291	-	RNA-binding protein
3190	 35.39	0	3604307..3605131	+	274	197287105	aroE	PMI3292	-	shikimate dehydrogenase
3191	 37.50	0	3605128..3605391	+	87	197287106	-	PMI3293	-	hypothetical protein
3192	 41.31	0	3605367..3605930	-	187	197287107	-	PMI3294	-	transferase
3193	 40.36	0	3612413..3613237	-	274	197287108	hdfR	PMI3295	-	H-NS-depdendent flhDC regulator (LysR-family transcriptional regulator)
3194	 40.41	0	3613353..3613691	+	112	197287109	-	PMI3296	-	hypothetical protein
3195	 36.99	0	3613739..3615271	-	510	197287110	-	PMI3297	-	magnesium-chelatase
3196	 43.14	0	3615716..3615817	+	33	197287111	ilvL	PMI3298	-	ilvGMEDA operon leader peptide
3197	 43.58	0	3615947..3617596	+	549	197287112	ilvG	PMI3299	-	Acetolactate synthase isozyme II large subunit
3198	 35.84	0	3617593..3617871	+	92	197287113	ilvM	PMI3300	-	acetolactate synthase isozyme II small subunit
3199	 43.15	0	3617882..3618808	+	308	197287114	ilvE	PMI3301	-	branched-chain amino acid aminotransferase
3200	 43.92	0	3618881..3620731	+	616	197287115	ilvD	PMI3302	-	dihydroxy-acid dehydratase
3201	 44.13	0	3620735..3622309	+	524	197287116	ilvA	PMI3303	-	threonine dehydratase biosynthetic
3202	 45.16	+1	3622295..3623182	-	295	197287117	ilvY	PMI3304	-	LysR-family transcriptional regulator
3203	 43.43	0	3623355..3624830	+	491	197287118	ilvC	PMI3305	-	ketol-acid reductoisomerase
3204	 43.17	0	3625058..3625474	-	138	197287119	-	PMI3306	-	transposase
3205	 47.39	+1	3625497..3626705	+	402	197287120	-	PMI3307	-	transposase
3206	 32.57	-1	3626837..3627097	-	86	197287121	-	PMI3308	-	plasmid stability protein
3207	 31.73	-1	3627107..3627355	-	82	197287122	-	PMI3309	-	plasmid-related protein
3208	 40.85	0	3627528..3629549	+	673	197287123	rep	PMI3310	-	ATP-dependent DNA helicase
3209	 43.01	0	3629624..3631132	-	502	197287124	gppA	PMI3311	-	guanosine-5'-triphosphate,3'-diphosphate pyrophosphatase
3210	 41.11	0	3631136..3632434	-	432	197287125	rhlB	PMI3312	-	ATP-dependent RNA helicase
3211	 40.67	0	3632554..3632880	+	108	197287126	trxA	PMI3313	-	thioredoxin
3212	 40.87	0	3633442..3634701	+	419	197287127	rho	PMI3314	-	transcription termination factor Rho
3213	 28.07	-2	3634895..3635065	+	56	197287128	-	PMI3315	-	hypothetical protein
3214	 40.11	0	3635096..3636187	+	363	197287129	wecA	PMI3316	-	undecaprenyl-phosphate alpha-N-acetylglucosaminyl 1-phosphate transferase
3215	 41.15	0	3636208..3637269	+	353	197287130	wzzE	PMI3317	-	lipopolysaccharide biosynthesis protein
3216	 41.82	0	3637399..3638529	+	376	197287131	rffE	PMI3318	-	UDP-N-acetylglucosamine 2-epimerase
3217	 42.36	0	3638526..3639788	+	420	197287132	rffD	PMI3319	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3218	 42.46	0	3639779..3640852	+	357	197287133	rffG	PMI3320	-	dTDP-D-glucose-4,6-dehydratase
3219	 42.26	0	3640868..3641752	+	294	197287134	rffH	PMI3321	-	glucose-1-phosphate thymidylyltransferase
39.69	MEAN

4.91	STD DEV
