IslandPath Analysis: Proteus mirabilis HI4320

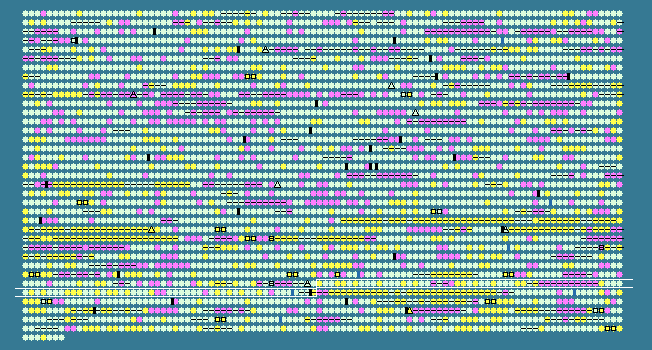

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3050	 46.03	+1	3464895..3465611	+	238	197286965	rph	PMI3151	-	ribonuclease PH
3051	 39.07	0	3465693..3466337	+	214	197286966	pyrE	PMI3152	-	orotate phosphoribosyltransferase
3052	 40.76	0	3466656..3467261	-	201	197286967	slmA	PMI3153	-	TetR-family transcriptional regulator
3053	 45.39	+1	3467381..3467836	-	151	197286968	dut	PMI3154	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3054	 45.33	+1	3467823..3469031	-	402	197286969	coaBC	PMI3155	-	coenzyme A biosynthesis bifunctional protein [includes: phosphopantothenoylcysteine decarboxylase and phosphopantothenate--cysteine ligase]
3055	 38.69	0	3469339..3470010	+	223	197286970	radC	PMI3156	-	DNA repair protein
3056	 48.52	+1	3470258..3470494	+	78	197286971	rpmB	PMI3157	-	50S ribosomal protein L28
3057	 36.31	0	3470506..3470673	+	55	197286972	rpmG	PMI3158	-	50S ribosomal rotein L33
3058	 42.11	0	3470823..3471950	+	375	197286973	-	PMI3159	-	glycosyl transferase
3059	 41.82	0	3472089..3473090	+	333	197286974	-	PMI3160	-	glycosyl transferase
3060	 43.45	0	3473094..3474200	+	368	197286975	-	PMI3161	-	glycosyl transferase
3061	 41.07	0	3474200..3475375	+	391	197286976	-	PMI3162	-	glycosyl transferase
3062	 36.72	0	3475368..3476636	-	422	197286977	rfaL	PMI3163	-	O-antigen ligase
3063	 42.55	0	3476758..3477582	+	274	197286978	mutM	PMI3164	-	formamidopyrimidine-DNA glycosylase
3064	 43.62	0	3477579..3478064	-	161	197286979	coaD	PMI3165	-	phosphopantetheine adenylyltransferase
3065	 40.51	0	3478054..3478833	-	259	197286980	waaE	PMI3166	-	lipopolysaccharide core biosynthesis glycosyl transferase
3066	 46.17	+1	3478833..3480110	-	425	197286981	waaA	PMI3167	-	KDO transferase
3067	 37.65	0	3480328..3481392	+	354	197286982	waaQ	PMI3168	-	lipopolysaccharide core biosynthesis glycosyl transferase
3068	 40.94	0	3481389..3482519	+	376	197286983	wabG	PMI3169	-	lipopolysaccharide core biosynthesis glycosyl transferase
3069	 34.88	0	3482516..3483613	+	365	197286984	wabH	PMI3170	-	lipopolysaccharide core biosynthesis glycosyl transferase
3070	 38.01	0	3483650..3484612	+	320	197286985	-	PMI3171	-	lipopolysaccharide core biosynthesis protein
3071	 34.93	0	3484614..3485675	+	353	197286986	-	PMI3172	-	lipopolysaccharide core biosynthesis glycosyl transferase
3072	 21.89	-2	3485702..3486610	-	302	197286987	-	PMI3173	-	glycosyltransferase
3073	 46.11	+1	3486674..3487636	-	320	197286988	waaC	PMI3174	-	lipopolysaccharide heptosyltransferase 1
3074	 45.49	+1	3487633..3488685	-	350	197286989	waaF	PMI3175	-	ADP-heptose--LPS heptosyltransferase II
3075	 40.04	0	3488695..3489633	-	312	197286990	waaD	PMI3176	-	ADP-L-glycero-D-manno-heptose-6-epimerase
3076	 43.58	0	3489901..3491100	+	399	197286991	kbl	PMI3177	-	2-amino-3-ketobutyrate coenzyme A ligase
3077	 43.08	0	3491110..3492135	+	341	197286992	tdh	PMI3178	-	L-threonine 3-dehydrogenase
3078	 41.51	0	3492675..3493640	-	321	197286993	-	PMI3179	-	exported polysaccharide deacetylase
3079	 46.17	+1	3493643..3494935	-	430	197286994	-	PMI3180	-	exported peptidase
3080	 41.67	0	3495155..3496486	-	443	197286995	-	PMI3181	-	hypothetical protein
3081	 38.36	0	3496843..3497280	+	145	197286996	-	PMI3182	-	rhodanese-like protein
3082	 39.24	0	3497351..3497824	+	157	197286997	secB	PMI3183	-	protein-export protein
3083	 45.66	+1	3497824..3498837	+	337	197286998	gpsA	PMI3184	-	glycerol-3-phosphate dehydrogenase (NAD(P)+)
3084	 46.47	+1	3498949..3499770	+	273	197286999	cysE	PMI3185	-	serine acetyltransferase
3085	 40.00	0	3499773..3500327	+	184	197287000	-	PMI3186	-	serine acetyltransferase
3086	 43.25	0	3500457..3500960	-	167	197287001	-	PMI3187	-	methyltransferase
3087	 33.83	-1	3500964..3501974	-	336	197287002	wbnF	PMI3188	-	nucleotide sugar epimerase
3088	 35.30	0	3502000..3503166	-	388	197287003	ugd	PMI3189	-	UDP-glucose 6-dehydrogenase
3089	 28.48	-2	3503181..3504293	-	370	197287004	cpsF	PMI3190	-	glycosyl transferase
3090	 23.85	-2	3504328..3505497	-	389	197287005	-	PMI3191	-	glycosyl transferase
3091	 23.43	-2	3505472..3506662	-	396	197287006	wzy	PMI3192	-	O antigen polysaccharide unit polymerase
3092	 25.32	-2	3506656..3507828	-	390	197287007	-	PMI3193	-	O antigen biosynthesis protein
3093	 23.10	-2	3507798..3509018	-	406	197287008	-	PMI3194	-	flippase
3094	 26.05	-2	3509018..3509800	-	260	197287009	-	PMI3195	-	glycosyl transferase
3095	 28.28	-2	3510410..3511399	+	329	197287010	-	PMI3196	-	glycosyl transferase
3096	 27.29	-2	3511411..3512304	-	297	197287011	-	PMI3197	-	O antigen biosynthesis protein
3097	 44.30	0	3512374..3513741	-	455	197287012	cpxA	PMI3198	-	two-component system sensor kinase
3098	 42.49	0	3513754..3514452	-	232	197287013	cpxR	PMI3199	-	two component system response regulator
3099	 40.74	0	3514636..3515202	+	188	197287014	cpxP	PMI3200	-	periplasmic protein
3100	 36.54	0	3515773..3516084	+	103	197287015	-	PMI3201	-	DNA-binding protein
3101	 43.12	0	3516230..3516985	-	251	197287016	-	PMI3202	-	probable short chain dehydrogenase
3102	 43.76	0	3517519..3518496	+	325	197287017	pfkA	PMI3203	-	6-phosphofructokinase
3103	 42.29	0	3518791..3519795	+	334	197287018	sbp	PMI3204	-	sulfate-binding protein (sulfate starvation-induced protein)
3104	 43.58	0	3519891..3520661	-	256	197287019	tpiA	PMI3205	-	triosephosphate isomerase
3105	 39.62	0	3520768..3521403	-	211	197287020	-	PMI3206	-	hypothetical protein
3106	 42.19	0	3521515..3521943	+	142	197287021	-	PMI3207	-	hypothetical protein
3107	 42.57	0	3522004..3522750	-	248	197287022	fpr	PMI3208	-	ferredoxin--NADP reductase
3108	 44.30	0	3523089..3524273	+	394	197287023	emrD	PMI3209	-	multidrug resistance protein D (MFS-family transporter)
3109	 45.08	+1	3524383..3525915	-	510	197287024	glpK	PMI3210	-	glycerol kinase
3110	 44.49	0	3525958..3526773	-	271	197287025	glpF	PMI3211	-	glycerol uptake facilitator protein
3111	 38.27	0	3527070..3527312	+	80	197287026	-	PMI3212	-	hypothetical protein
3112	 41.62	0	3527406..3527924	-	172	197287027	rraA	PMI3213	-	regulator of ribonuclease activity
3113	 43.79	0	3528033..3528950	-	305	197287028	menA	PMI3214	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3114	 42.58	0	3529049..3530389	-	446	197287029	hslU	PMI3215	-	ATP-dependent Hsl protease, ATP-binding subunit
3115	 45.01	+1	3530402..3530932	-	176	197287030	hslV	PMI3216	-	ATP-dependent protease HslV (heat shock protein)
3116	 48.43	+1	3531043..3531837	-	264	197287031	ftsN	PMI3217	-	cell division protein
3117	 41.47	0	3531908..3532939	-	343	197287032	cytR	PMI3218	-	LacI-family transcriptional regulator
3118	 44.28	0	3533192..3535393	-	733	197287033	priA	PMI3219	-	primosomal protein n'
3119	 39.91	0	3535597..3535809	+	70	197287034	rpmE	PMI3220	-	50S ribosomal protein L31
3120	 42.14	0	3536773..3537090	-	105	197287035	metJ	PMI3222	-	repressor of the methionine regulon
3121	 42.38	0	3537376..3538536	+	386	197287036	metB	PMI3223	-	cystathionine gamma-synthase
3122	 43.95	0	3538546..3540984	+	812	197287037	metL	PMI3224	-	bifunctional aspartokinase/homoserine dehydrogenase II [includes: aspartokinase II and homoserine dehydrogenase II]
3123	 35.45	0	3541107..3541625	+	172	197287038	-	PMI3225	-	hypothetical protein
3124	 33.33	-1	3541704..3541865	+	53	197287039	-	PMI3226	-	hypothetical protein
3125	 42.97	0	3542338..3544974	+	878	197287040	ppc	PMI3227	-	phosphoenolpyruvate carboxylase
3126	 39.23	0	3545031..3546014	-	327	197287041	-	PMI3228	-	glycosyl transferase
3127	 41.93	0	3546054..3547484	-	476	197287042	phrB	PMI3229	-	deoxyribodipyrimidine photolyase
3128	 40.98	0	3547495..3548997	-	500	197287043	proP	PMI3230	-	proline/betaine transporter (MFS-family transporter)
3129	 36.88	0	3549766..3550779	+	337	197287044	cysB	PMI3231	-	cys regulon transcriptional activator ( LysR-family transcriptional regulator)
3130	 39.42	0	3550855..3552036	-	393	197287045	-	PMI3232	-	amidohydrolase/metallopeptidase
3131	 33.78	-1	3552036..3552485	-	149	197287046	-	PMI3233	-	hypothetical protein
3132	 36.98	0	3552482..3553303	-	273	197287047	-	PMI3234	-	hypothetical protein
3133	 43.30	0	3553868..3555592	+	574	197287048	poxB	PMI3235	-	pyruvate dehydrogenase [cytochrome]
3134	 42.78	0	3555684..3556847	-	387	197287049	argE	PMI3236	-	acetylornithine deacetylase
3135	 44.38	0	3556948..3557952	+	334	197287050	argC	PMI3237	-	N-acetyl-gamma-glutamyl-phosphate reductase
3136	 42.25	0	3557973..3558746	+	257	197287051	argB	PMI3238	-	acetylglutamate kinase
3137	 44.14	0	3558811..3560022	+	403	197287052	argG	PMI3239	-	argininosuccinate synthase
3138	 42.52	0	3560115..3561497	+	460	197287053	argH	PMI3240	-	argininosuccinate lyase
3139	 41.39	0	3561732..3562649	+	305	197287054	oxyR	PMI3241	-	hydrogen peroxide-inducible genes activator (LysR-family transcriptional regulator)
3140	 43.20	0	3562641..3564038	-	465	197287055	sthA	PMI3242	-	soluble pyridine nucleotide transhydrogenase
3141	 40.53	0	3564239..3564919	+	226	197287056	-	PMI3243	-	TetR-family transcriptional regulatory
3142	 35.57	0	3564919..3565320	+	133	197287057	-	PMI3244	-	hypothetical protein
3143	 38.62	0	3565442..3566539	-	365	197287058	trmA	PMI3245	-	tRNA (uracil-5)-methyltransferase
3144	 37.97	0	3566925..3568778	+	617	197287059	btuB	PMI3246	-	vitamin B12 transporter (TonB-dependent receptor)
3145	 41.87	0	3568723..3569589	+	288	197287060	murI	PMI3247	-	glutamate racemase
3146	 37.87	0	3575840..3576874	+	344	197287061	murB	PMI3248	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3147	 39.56	0	3576871..3577833	+	320	197287062	birA	PMI3249	-	BirA bifunctional protein [includes: biotin operon repressor; biotin--[acetyl-coa-carboxylase] synthetase]
3148	 36.50	0	3577966..3578913	-	315	197287063	coaA	PMI3250	-	pantothenate kinase
3149	 45.15	+1	3579887..3581071	+	394	197287064	tufB	PMI3251	-	elongation factor Tu
39.69	MEAN

4.91	STD DEV
