IslandPath Analysis: Proteus mirabilis HI4320

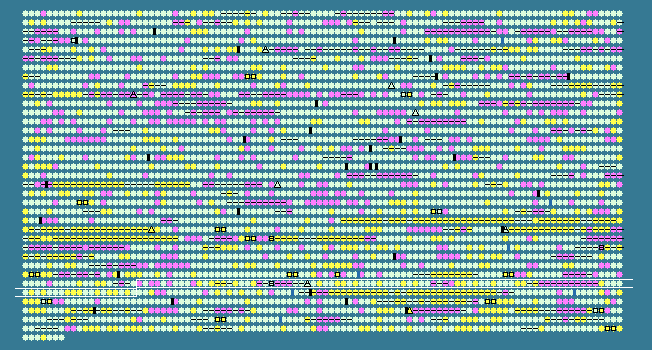

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3020	 35.92	0	3427878..3428765	+	295	197286935	-	PMI3117	-	LysR-family transcriptional regulator
3021	 39.95	0	3429180..3429980	+	266	197286936	-	PMI3118	-	hypothetical protein
3022	 29.49	-2	3430155..3431507	+	450	197286937	-	PMI3119	-	hypothetical protein
3023	 35.61	0	3431552..3434629	+	1025	197286938	-	PMI3120	-	TonB-dependent receptor
3024	 40.17	0	3434657..3435460	+	267	197286939	-	PMI3121	-	TonB-like protein
3025	 34.81	0	3435514..3437475	-	653	197286940	-	PMI3122	-	hypothetical protein
3026	 38.39	0	3437507..3438436	-	309	197286941	-	PMI3123	-	phosphoesterase
3027	 40.86	0	3438621..3439085	-	154	197286942	-	PMI3124	-	hypothetical protein
3028	 36.30	0	3439488..3440801	-	437	197286943	hipA	PMI3125	-	regulatory protein
3029	 35.27	0	3440802..3441059	-	85	197286944	hipB	PMI3126	-	transcriptional regulator
3030	 45.71	+1	3441208..3442572	-	454	197286945	trmE	PMI3127	-	probable tRNA modification GTPase
3031	 41.01	0	3442710..3444350	-	546	197286946	oxaA	PMI3128	-	inner membrane protein
3032	 44.06	0	3444353..3444613	-	86	197286947	-	PMI3129	-	hypothetical protein
3033	 44.44	0	3444577..3444936	-	119	197286948	rnpA	PMI3130	-	ribonuclease P protein component
3034	 54.17	+2	3444954..3445097	-	47	197286949	rpmH	PMI3131	-	50s ribosomal protein l34
3035	 42.04	0	3445820..3447220	+	466	197286950	dnaA	PMI3132	-	chromosomal replication initiator protein
3036	 43.39	0	3447225..3448328	+	367	197286951	dnaN	PMI3133	-	DNA polymerase III beta subunit
3037	 41.78	0	3448340..3449428	+	362	197286952	recF	PMI3134	-	dna replication and repair protein
3038	 42.40	0	3449449..3451863	+	804	197286953	gyrB	PMI3135	-	DNA gyrase subunit B
3039	 43.54	0	3451943..3453049	-	368	197286954	asd	PMI3136	-	aspartate-semialdehyde dehydrogenase
3040	 35.46	0	3453549..3454112	+	187	197286955	-	PMI3137	-	methyltransferase
3041	 43.00	0	3454388..3455287	+	299	197286956	-	PMI3138	-	phosphosugar binding/isomerase
3042	 42.03	0	3455806..3455943	+	45	197286957	-	PMI3140	-	transposase
3043	 34.61	-1	3456453..3458798	-	781	197286958	-	PMI3141	-	restriction endonuclease
3044	 31.12	-1	3458799..3460334	-	511	197286959	-	PMI3142	-	DNA modification methyltransferase
3045	 35.16	0	3460331..3461587	-	418	197286960	-	PMI3143	-	DNA modification methyltransferase
3046	 38.80	0	3461648..3461830	-	60	197286961	-	PMI3144	-	excisionase
3047	 38.25	0	3461951..3462133	+	60	197286962	-	PMI3145	-	hypothetical protein
3048	 37.01	0	3462173..3463177	+	334	197286963	-	PMI3146	-	integrase
3049	 41.67	0	3463905..3464768	-	287	197286964	-	PMI3150	-	hypothetical protein
3050	 46.03	+1	3464895..3465611	+	238	197286965	rph	PMI3151	-	ribonuclease PH
3051	 39.07	0	3465693..3466337	+	214	197286966	pyrE	PMI3152	-	orotate phosphoribosyltransferase
3052	 40.76	0	3466656..3467261	-	201	197286967	slmA	PMI3153	-	TetR-family transcriptional regulator
3053	 45.39	+1	3467381..3467836	-	151	197286968	dut	PMI3154	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3054	 45.33	+1	3467823..3469031	-	402	197286969	coaBC	PMI3155	-	coenzyme A biosynthesis bifunctional protein [includes: phosphopantothenoylcysteine decarboxylase and phosphopantothenate--cysteine ligase]
3055	 38.69	0	3469339..3470010	+	223	197286970	radC	PMI3156	-	DNA repair protein
3056	 48.52	+1	3470258..3470494	+	78	197286971	rpmB	PMI3157	-	50S ribosomal protein L28
3057	 36.31	0	3470506..3470673	+	55	197286972	rpmG	PMI3158	-	50S ribosomal rotein L33
3058	 42.11	0	3470823..3471950	+	375	197286973	-	PMI3159	-	glycosyl transferase
3059	 41.82	0	3472089..3473090	+	333	197286974	-	PMI3160	-	glycosyl transferase
3060	 43.45	0	3473094..3474200	+	368	197286975	-	PMI3161	-	glycosyl transferase
3061	 41.07	0	3474200..3475375	+	391	197286976	-	PMI3162	-	glycosyl transferase
3062	 36.72	0	3475368..3476636	-	422	197286977	rfaL	PMI3163	-	O-antigen ligase
3063	 42.55	0	3476758..3477582	+	274	197286978	mutM	PMI3164	-	formamidopyrimidine-DNA glycosylase
3064	 43.62	0	3477579..3478064	-	161	197286979	coaD	PMI3165	-	phosphopantetheine adenylyltransferase
3065	 40.51	0	3478054..3478833	-	259	197286980	waaE	PMI3166	-	lipopolysaccharide core biosynthesis glycosyl transferase
3066	 46.17	+1	3478833..3480110	-	425	197286981	waaA	PMI3167	-	KDO transferase
3067	 37.65	0	3480328..3481392	+	354	197286982	waaQ	PMI3168	-	lipopolysaccharide core biosynthesis glycosyl transferase
3068	 40.94	0	3481389..3482519	+	376	197286983	wabG	PMI3169	-	lipopolysaccharide core biosynthesis glycosyl transferase
3069	 34.88	0	3482516..3483613	+	365	197286984	wabH	PMI3170	-	lipopolysaccharide core biosynthesis glycosyl transferase
3070	 38.01	0	3483650..3484612	+	320	197286985	-	PMI3171	-	lipopolysaccharide core biosynthesis protein
3071	 34.93	0	3484614..3485675	+	353	197286986	-	PMI3172	-	lipopolysaccharide core biosynthesis glycosyl transferase
3072	 21.89	-2	3485702..3486610	-	302	197286987	-	PMI3173	-	glycosyltransferase
3073	 46.11	+1	3486674..3487636	-	320	197286988	waaC	PMI3174	-	lipopolysaccharide heptosyltransferase 1
3074	 45.49	+1	3487633..3488685	-	350	197286989	waaF	PMI3175	-	ADP-heptose--LPS heptosyltransferase II
3075	 40.04	0	3488695..3489633	-	312	197286990	waaD	PMI3176	-	ADP-L-glycero-D-manno-heptose-6-epimerase
3076	 43.58	0	3489901..3491100	+	399	197286991	kbl	PMI3177	-	2-amino-3-ketobutyrate coenzyme A ligase
3077	 43.08	0	3491110..3492135	+	341	197286992	tdh	PMI3178	-	L-threonine 3-dehydrogenase
3078	 41.51	0	3492675..3493640	-	321	197286993	-	PMI3179	-	exported polysaccharide deacetylase
3079	 46.17	+1	3493643..3494935	-	430	197286994	-	PMI3180	-	exported peptidase
3080	 41.67	0	3495155..3496486	-	443	197286995	-	PMI3181	-	hypothetical protein
3081	 38.36	0	3496843..3497280	+	145	197286996	-	PMI3182	-	rhodanese-like protein
3082	 39.24	0	3497351..3497824	+	157	197286997	secB	PMI3183	-	protein-export protein
3083	 45.66	+1	3497824..3498837	+	337	197286998	gpsA	PMI3184	-	glycerol-3-phosphate dehydrogenase (NAD(P)+)
3084	 46.47	+1	3498949..3499770	+	273	197286999	cysE	PMI3185	-	serine acetyltransferase
3085	 40.00	0	3499773..3500327	+	184	197287000	-	PMI3186	-	serine acetyltransferase
3086	 43.25	0	3500457..3500960	-	167	197287001	-	PMI3187	-	methyltransferase
3087	 33.83	-1	3500964..3501974	-	336	197287002	wbnF	PMI3188	-	nucleotide sugar epimerase
3088	 35.30	0	3502000..3503166	-	388	197287003	ugd	PMI3189	-	UDP-glucose 6-dehydrogenase
3089	 28.48	-2	3503181..3504293	-	370	197287004	cpsF	PMI3190	-	glycosyl transferase
3090	 23.85	-2	3504328..3505497	-	389	197287005	-	PMI3191	-	glycosyl transferase
3091	 23.43	-2	3505472..3506662	-	396	197287006	wzy	PMI3192	-	O antigen polysaccharide unit polymerase
3092	 25.32	-2	3506656..3507828	-	390	197287007	-	PMI3193	-	O antigen biosynthesis protein
3093	 23.10	-2	3507798..3509018	-	406	197287008	-	PMI3194	-	flippase
3094	 26.05	-2	3509018..3509800	-	260	197287009	-	PMI3195	-	glycosyl transferase
3095	 28.28	-2	3510410..3511399	+	329	197287010	-	PMI3196	-	glycosyl transferase
3096	 27.29	-2	3511411..3512304	-	297	197287011	-	PMI3197	-	O antigen biosynthesis protein
3097	 44.30	0	3512374..3513741	-	455	197287012	cpxA	PMI3198	-	two-component system sensor kinase
3098	 42.49	0	3513754..3514452	-	232	197287013	cpxR	PMI3199	-	two component system response regulator
3099	 40.74	0	3514636..3515202	+	188	197287014	cpxP	PMI3200	-	periplasmic protein
3100	 36.54	0	3515773..3516084	+	103	197287015	-	PMI3201	-	DNA-binding protein
3101	 43.12	0	3516230..3516985	-	251	197287016	-	PMI3202	-	probable short chain dehydrogenase
3102	 43.76	0	3517519..3518496	+	325	197287017	pfkA	PMI3203	-	6-phosphofructokinase
3103	 42.29	0	3518791..3519795	+	334	197287018	sbp	PMI3204	-	sulfate-binding protein (sulfate starvation-induced protein)
3104	 43.58	0	3519891..3520661	-	256	197287019	tpiA	PMI3205	-	triosephosphate isomerase
3105	 39.62	0	3520768..3521403	-	211	197287020	-	PMI3206	-	hypothetical protein
3106	 42.19	0	3521515..3521943	+	142	197287021	-	PMI3207	-	hypothetical protein
3107	 42.57	0	3522004..3522750	-	248	197287022	fpr	PMI3208	-	ferredoxin--NADP reductase
3108	 44.30	0	3523089..3524273	+	394	197287023	emrD	PMI3209	-	multidrug resistance protein D (MFS-family transporter)
3109	 45.08	+1	3524383..3525915	-	510	197287024	glpK	PMI3210	-	glycerol kinase
3110	 44.49	0	3525958..3526773	-	271	197287025	glpF	PMI3211	-	glycerol uptake facilitator protein
3111	 38.27	0	3527070..3527312	+	80	197287026	-	PMI3212	-	hypothetical protein
3112	 41.62	0	3527406..3527924	-	172	197287027	rraA	PMI3213	-	regulator of ribonuclease activity
3113	 43.79	0	3528033..3528950	-	305	197287028	menA	PMI3214	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3114	 42.58	0	3529049..3530389	-	446	197287029	hslU	PMI3215	-	ATP-dependent Hsl protease, ATP-binding subunit
3115	 45.01	+1	3530402..3530932	-	176	197287030	hslV	PMI3216	-	ATP-dependent protease HslV (heat shock protein)
3116	 48.43	+1	3531043..3531837	-	264	197287031	ftsN	PMI3217	-	cell division protein
3117	 41.47	0	3531908..3532939	-	343	197287032	cytR	PMI3218	-	LacI-family transcriptional regulator
3118	 44.28	0	3533192..3535393	-	733	197287033	priA	PMI3219	-	primosomal protein n'
3119	 39.91	0	3535597..3535809	+	70	197287034	rpmE	PMI3220	-	50S ribosomal protein L31
39.69	MEAN

4.91	STD DEV
