IslandPath Analysis: Proteus mirabilis HI4320

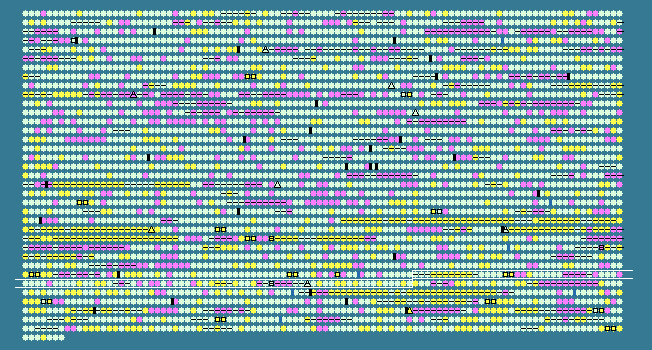

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2966	 37.96	0	3360176..3360802	+	208	197286881	gidB	PMI3056	-	methyltransferase (glucose-inhibited division protein B)
2967	 39.95	0	3361417..3361794	+	125	197286882	atpI	PMI3057	-	ATP synthase protein I
2968	 41.45	0	3361826..3362650	+	274	197286883	atpB	PMI3058	-	ATP synthase A chain
2969	 49.17	+1	3362696..3362935	+	79	197286884	atpE	PMI3059	-	ATP synthase C chain
2970	 43.74	0	3362997..3363467	+	156	197286885	atpF	PMI3060	-	ATP synthase B chain
2971	 44.76	+1	3363480..3364013	+	177	197286886	atpH	PMI3061	-	ATP synthase delta chain
2972	 45.85	+1	3364028..3365569	+	513	197286887	atpA	PMI3062	-	ATP synthase alpha chain
2973	 45.60	+1	3365627..3366490	+	287	197286888	atpG	PMI3063	-	ATP synthase gamma chain
2974	 46.20	+1	3366525..3367907	+	460	197286889	atpD	PMI3064	-	ATP synthase beta chain
2975	 44.36	0	3367929..3368345	+	138	197286890	atpC	PMI3065	-	ATP synthase epsilon chain
2976	 42.14	0	3368496..3369869	+	457	197286891	glmU	PMI3066	-	bifunctional protein GlmU [includes: UDP-N-acetylglucosamine pyrophosphorylase and glucosamine-1-phosphate N-acetyltransferase]
2977	 41.87	0	3370027..3371853	+	608	197286892	glmS	PMI3067	-	glucosamine--fructose-6-phosphate aminotransferase
2978	 42.26	0	3373382..3375073	+	563	197286893	-	PMI3070	-	ABC transporter permease protein
2979	 41.15	0	3375119..3376129	+	336	197286894	-	PMI3071	-	ABC transporter, substrate-binding protein
2980	 41.76	0	3376194..3377321	+	375	197286895	-	PMI3072	-	oxidoreductase
2981	 43.65	0	3377415..3377831	-	138	197286896	-	PMI3073	-	transposase
2982	 47.06	+1	3377854..3379011	+	385	197286897	-	PMI3074	-	transposase
2983	 27.16	-2	3379144..3379548	-	134	197286898	-	PMI3075	-	hypothetical protein
2984	 24.31	-2	3380226..3380513	-	95	197286899	-	PMI3078	-	hypothetical protein
2985	 43.30	0	3380602..3381414	-	270	197286900	phnX	PMI3079	-	phosphonoacetaldehyde phosphonohydrolase
2986	 39.77	0	3382289..3383422	+	377	197286901	-	PMI3080	-	amidohydrolase/metallopeptidase
2987	 38.95	0	3383432..3384838	+	468	197286902	-	PMI3081	-	C4-dicarboxylate anaerobic carrier
2988	 37.40	0	3384931..3385569	-	212	197286903	-	PMI3082	-	TetR-family transcriptional regulator
2989	 36.60	0	3385691..3386791	+	366	197286904	-	PMI3083	-	multidrug efflux protein
2990	 36.75	0	3386784..3388304	+	506	197286905	-	PMI3084	-	multidrug efflux protein (MFS-family transporter)
2991	 35.98	0	3388399..3388851	-	150	197286906	-	PMI3085	-	hypothetical protein
2992	 28.30	-2	3389033..3389707	-	224	197286907	-	PMI3086	-	fimbrial chaperone
2993	 28.79	-2	3392155..3392793	-	212	197286908	-	PMI3089	-	fimbrial subunit
2994	 35.75	0	3393078..3393740	-	220	197286909	-	PMI3090	-	fimbrial subunit
2995	 37.14	0	3394154..3394810	-	218	197286910	-	PMI3091	-	fimbrial subunit
2996	 34.38	-1	3395207..3395872	-	221	197286911	-	PMI3092	-	fimbrial subunit
2997	 36.79	0	3396170..3396574	-	134	197286912	-	PMI3093	-	hypothetical protein
2998	 36.92	0	3396723..3397307	-	194	197286913	-	PMI3094	-	hypothetical protein
2999	 39.58	0	3397402..3398313	-	303	197286914	-	PMI3095	-	ROK-family protein
3000	 28.54	-2	3399757..3400152	+	131	197286915	-	PMI3096	-	hypothetical protein
3001	 36.93	0	3400249..3402414	+	721	197286916	-	PMI3097	-	cellulose synthase catalytic subunit [UDP-forming]
3002	 40.40	0	3402417..3404765	+	782	197286917	-	PMI3098	-	cellulose biosynthesis protein B
3003	 40.74	0	3404776..3408462	+	1228	197286918	-	PMI3099	-	cellulose biosynthesis protein C
3004	 38.43	0	3408478..3408948	+	156	197286919	-	PMI3100	-	cellulose biosynthesis protein
3005	 28.92	-2	3408987..3409892	+	301	197286920	-	PMI3101	-	signaling protein
3006	 38.53	0	3410065..3411027	+	320	197286921	galU	PMI3102	-	UTP--glucose-1-phosphate uridylyltransferase
3007	 39.11	0	3411101..3412138	+	345	197286922	celY	PMI3103	-	cellulase
3008	 37.58	0	3412277..3413926	-	549	197286923	-	PMI3104	-	hypothetical protein
3009	 43.00	0	3414035..3415897	-	620	197286924	selB	PMI3105	-	selenocysteine-specific elongation factor
3010	 43.25	0	3415894..3417285	-	463	197286925	selA	PMI3106	-	L-seryl-tRNA(sec) selenium transferase
3011	 39.74	0	3417301..3418221	-	306	197286926	fdhE	PMI3107	-	formate dehydrogenase formation protein
3012	 40.94	0	3418420..3419076	-	218	197286927	fdoI	PMI3108	-	formate dehydrogenase-O gamma subunit
3013	 44.73	+1	3419073..3420011	-	312	197286928	fdoH	PMI3109	-	formate dehydrogenase-O beta subunit
3014	 43.86	0	3420023..3423070	-	1014	197286929	fdoG	PMI3110	-	formate dehydrogenase-O, major subunit
3015	 42.48	0	3423250..3424080	+	276	197286930	fdhD	PMI3112	-	formate dehydrogenase accessory protein
3016	 40.34	0	3424077..3424847	-	256	197286931	-	PMI3113	-	hypothetical protein
3017	 35.16	0	3424858..3425733	-	291	197286932	-	PMI3114	-	glycosyltransferase
3018	 41.44	0	3426025..3426567	-	180	197286933	umoA	PMI3115	-	upregulatior of flagellar operon (exported protein)
3019	 40.95	0	3426782..3427753	+	323	197286934	-	PMI3116	-	carbon-nitrogen hydrolase
3020	 35.92	0	3427878..3428765	+	295	197286935	-	PMI3117	-	LysR-family transcriptional regulator
3021	 39.95	0	3429180..3429980	+	266	197286936	-	PMI3118	-	hypothetical protein
3022	 29.49	-2	3430155..3431507	+	450	197286937	-	PMI3119	-	hypothetical protein
3023	 35.61	0	3431552..3434629	+	1025	197286938	-	PMI3120	-	TonB-dependent receptor
3024	 40.17	0	3434657..3435460	+	267	197286939	-	PMI3121	-	TonB-like protein
3025	 34.81	0	3435514..3437475	-	653	197286940	-	PMI3122	-	hypothetical protein
3026	 38.39	0	3437507..3438436	-	309	197286941	-	PMI3123	-	phosphoesterase
3027	 40.86	0	3438621..3439085	-	154	197286942	-	PMI3124	-	hypothetical protein
3028	 36.30	0	3439488..3440801	-	437	197286943	hipA	PMI3125	-	regulatory protein
3029	 35.27	0	3440802..3441059	-	85	197286944	hipB	PMI3126	-	transcriptional regulator
3030	 45.71	+1	3441208..3442572	-	454	197286945	trmE	PMI3127	-	probable tRNA modification GTPase
3031	 41.01	0	3442710..3444350	-	546	197286946	oxaA	PMI3128	-	inner membrane protein
3032	 44.06	0	3444353..3444613	-	86	197286947	-	PMI3129	-	hypothetical protein
3033	 44.44	0	3444577..3444936	-	119	197286948	rnpA	PMI3130	-	ribonuclease P protein component
3034	 54.17	+2	3444954..3445097	-	47	197286949	rpmH	PMI3131	-	50s ribosomal protein l34
3035	 42.04	0	3445820..3447220	+	466	197286950	dnaA	PMI3132	-	chromosomal replication initiator protein
3036	 43.39	0	3447225..3448328	+	367	197286951	dnaN	PMI3133	-	DNA polymerase III beta subunit
3037	 41.78	0	3448340..3449428	+	362	197286952	recF	PMI3134	-	dna replication and repair protein
3038	 42.40	0	3449449..3451863	+	804	197286953	gyrB	PMI3135	-	DNA gyrase subunit B
3039	 43.54	0	3451943..3453049	-	368	197286954	asd	PMI3136	-	aspartate-semialdehyde dehydrogenase
3040	 35.46	0	3453549..3454112	+	187	197286955	-	PMI3137	-	methyltransferase
3041	 43.00	0	3454388..3455287	+	299	197286956	-	PMI3138	-	phosphosugar binding/isomerase
3042	 42.03	0	3455806..3455943	+	45	197286957	-	PMI3140	-	transposase
3043	 34.61	-1	3456453..3458798	-	781	197286958	-	PMI3141	-	restriction endonuclease
3044	 31.12	-1	3458799..3460334	-	511	197286959	-	PMI3142	-	DNA modification methyltransferase
3045	 35.16	0	3460331..3461587	-	418	197286960	-	PMI3143	-	DNA modification methyltransferase
3046	 38.80	0	3461648..3461830	-	60	197286961	-	PMI3144	-	excisionase
3047	 38.25	0	3461951..3462133	+	60	197286962	-	PMI3145	-	hypothetical protein
3048	 37.01	0	3462173..3463177	+	334	197286963	-	PMI3146	-	integrase
3049	 41.67	0	3463905..3464768	-	287	197286964	-	PMI3150	-	hypothetical protein
3050	 46.03	+1	3464895..3465611	+	238	197286965	rph	PMI3151	-	ribonuclease PH
3051	 39.07	0	3465693..3466337	+	214	197286966	pyrE	PMI3152	-	orotate phosphoribosyltransferase
3052	 40.76	0	3466656..3467261	-	201	197286967	slmA	PMI3153	-	TetR-family transcriptional regulator
3053	 45.39	+1	3467381..3467836	-	151	197286968	dut	PMI3154	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3054	 45.33	+1	3467823..3469031	-	402	197286969	coaBC	PMI3155	-	coenzyme A biosynthesis bifunctional protein [includes: phosphopantothenoylcysteine decarboxylase and phosphopantothenate--cysteine ligase]
3055	 38.69	0	3469339..3470010	+	223	197286970	radC	PMI3156	-	DNA repair protein
3056	 48.52	+1	3470258..3470494	+	78	197286971	rpmB	PMI3157	-	50S ribosomal protein L28
3057	 36.31	0	3470506..3470673	+	55	197286972	rpmG	PMI3158	-	50S ribosomal rotein L33
3058	 42.11	0	3470823..3471950	+	375	197286973	-	PMI3159	-	glycosyl transferase
3059	 41.82	0	3472089..3473090	+	333	197286974	-	PMI3160	-	glycosyl transferase
3060	 43.45	0	3473094..3474200	+	368	197286975	-	PMI3161	-	glycosyl transferase
3061	 41.07	0	3474200..3475375	+	391	197286976	-	PMI3162	-	glycosyl transferase
3062	 36.72	0	3475368..3476636	-	422	197286977	rfaL	PMI3163	-	O-antigen ligase
3063	 42.55	0	3476758..3477582	+	274	197286978	mutM	PMI3164	-	formamidopyrimidine-DNA glycosylase
3064	 43.62	0	3477579..3478064	-	161	197286979	coaD	PMI3165	-	phosphopantetheine adenylyltransferase
3065	 40.51	0	3478054..3478833	-	259	197286980	waaE	PMI3166	-	lipopolysaccharide core biosynthesis glycosyl transferase
39.69	MEAN

4.91	STD DEV
