IslandPath Analysis: Proteus mirabilis HI4320

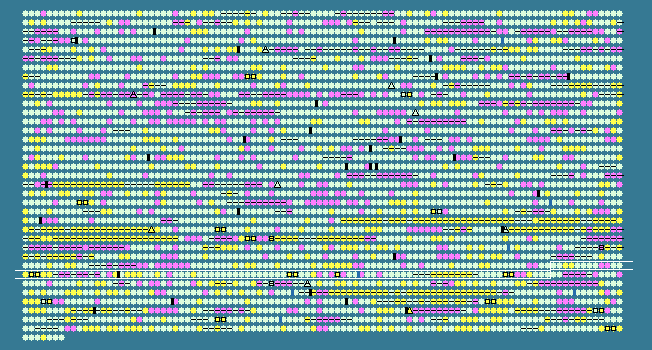

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2889	 39.45	0	3261805..3262278	-	157	197286804	-	PMI2975	-	hypothetical protein
2890	 37.36	0	3262292..3263782	-	496	197286805	-	PMI2976	-	sodium:solute symporter
2891	 44.25	0	3263834..3264703	-	289	197286806	nanK	PMI2977	-	N-acetylmannosamine kinase
2892	 44.06	0	3264700..3265398	-	232	197286807	nanE	PMI2978	-	N-acetylmannosamine-6-phosphate 2-epimerase
2893	 42.09	0	3265604..3267772	-	722	197286808	fdhF	PMI2979	-	formate dehydrogenase H
2894	 40.32	0	3268333..3269649	+	438	197286809	-	PMI2980	-	sodium:solute symporter
2895	 39.68	0	3269739..3271109	-	456	197286810	-	PMI2981	-	lyase
2896	 42.65	0	3271123..3272679	-	518	197286811	-	PMI2982	-	PTS system, EIIBC component
2897	 30.63	-1	3273031..3273771	-	246	197286812	-	PMI2983	-	phosphosugar isomerase/binding protein
2898	 35.20	0	3273903..3274385	-	160	197286813	-	PMI2984	-	cold-shock protein
2899	 42.92	0	3274566..3275264	+	232	197286814	rluA	PMI2985	-	ribosomal large subunit pseudouridine synthase
2900	 36.84	0	3275284..3275796	-	170	197286815	-	PMI2986	-	hypothetical protein
2901	 43.39	0	3276048..3276395	+	115	197286816	-	PMI2987	-	HNH endonuclease
2902	 47.26	+1	3276463..3277611	-	382	197286817	-	PMI2988	-	transposase
2903	 43.65	0	3277694..3278110	+	138	197286818	-	PMI2989	-	transposase
2904	 47.98	+1	3278930..3279448	+	172	197286819	-	PMI2990	-	hypothetical protein
2905	 44.15	0	3279686..3281692	+	668	197286820	-	PMI2991	-	VgrG-like protein
2906	 42.16	0	3281692..3282915	+	407	197286821	-	PMI2992	-	hypothetical protein
2907	 32.08	-1	3282912..3286013	+	1033	197286822	-	PMI2993	-	hypothetical protein
2908	 35.14	0	3286013..3286951	+	312	197286823	-	PMI2994	-	hypothetical protein
2909	 41.11	0	3286944..3287213	+	89	197286824	-	PMI2995	-	hypothetical protein
2910	 33.55	-1	3287393..3288328	+	311	197286825	-	PMI2996	-	hypothetical protein
2911	 31.86	-1	3288418..3289095	-	225	197286826	-	PMI2997	-	fimbrial protein
2912	 36.63	0	3289188..3290795	-	535	197286827	-	PMI2998	-	fimbrial protein
2913	 33.19	-1	3293326..3294009	-	227	197286828	-	PMI3001	-	fimbrial protein
2914	 38.62	0	3294099..3294722	-	207	197286829	-	PMI3002	-	fimbrial protein
2915	 25.86	-2	3294862..3295182	-	106	197286830	-	PMI3003	-	fimbrial operon regulator
2916	 43.86	0	3296230..3297264	-	344	197286831	-	PMI3004	-	hypothetical protein
2917	 42.83	0	3297985..3300027	+	680	197286832	prlC	PMI3005	-	oligopeptidase A
2918	 44.85	+1	3300031..3300777	+	248	197286833	-	PMI3006	-	hypothetical protein
2919	 43.73	0	3300848..3301597	-	249	197286834	-	PMI3007	-	short chain dehydrogenase
2920	 43.77	0	3301726..3303066	-	446	197286835	gdhA	PMI3008	-	NADP-specific glutamate dehydrogenase
2921	 38.16	0	3303320..3303754	-	144	197286836	uspA	PMI3009	-	universal stress protein A
2922	 36.34	0	3304168..3304500	+	110	197286837	uspB	PMI3010	-	universal stress protein B
2923	 43.27	0	3304572..3306071	-	499	197286838	pitA	PMI3011	-	low-affinity inorganic phosphate transporter
2924	 42.12	0	3306380..3307585	+	401	197286839	-	PMI3012	-	hypothetical protein
2925	 21.00	-2	3308190..3308489	+	99	197286840	-	PMI3013	-	hypothetical protein
2926	 40.74	0	3308737..3309438	+	233	197286841	-	PMI3014	-	hypothetical protein
2927	 41.23	0	3309554..3311173	-	539	197286842	pckA	PMI3015	-	phosphoenolpyruvate carboxykinase [ATP]
2928	 38.98	0	3311378..3312262	-	294	197286843	hslO	PMI3016	-	heat-shock chaperonin
2929	 44.93	+1	3312290..3312703	-	137	197286844	hslR	PMI3017	-	heat shock protein 15
2930	 37.74	0	3312777..3314885	-	702	197286845	umoB	PMI3018	-	flagellar operon control protein (membrane protein)
2931	 41.04	0	3315241..3315798	+	185	197286846	nudE	PMI3019	-	ADP compounds hydrolase
2932	 36.69	0	3315888..3316691	-	267	197286847	-	PMI3020	-	probable lipoprotein
2933	 42.88	0	3317025..3319559	-	844	197286848	mrcA	PMI3021	-	penicillin-binding protein 1A
2934	 38.42	0	3319676..3320500	+	274	197286849	-	PMI3022	-	hypothetical protein
2935	 38.17	0	3320488..3321087	+	199	197286850	-	PMI3023	-	fimbrial assembly protein
2936	 39.33	0	3321071..3321604	+	177	197286851	-	PMI3024	-	hypothetical protein
2937	 37.46	0	3321611..3322726	+	371	197286852	-	PMI3025	-	hypothetical protein
2938	 41.00	0	3323307..3323828	+	173	197286853	aroK	PMI3026	-	shikimate kinase I
2939	 41.28	0	3323881..3324975	+	364	197286854	aroB	PMI3027	-	3-dehydroquinate synthase
2940	 42.96	0	3325130..3326074	+	314	197286855	damX	PMI3028	-	hypothetical protein
2941	 37.01	0	3326156..3326971	+	271	197286856	dam	PMI3029	-	DNA adenine methylase
2942	 40.59	0	3327016..3327690	+	224	197286857	rpe	PMI3030	-	ribulose-phosphate 3-epimerase
2943	 40.65	0	3327687..3328397	+	236	197286858	gph	PMI3031	-	phosphoglycolate phosphatase
2944	 41.50	0	3328399..3329427	+	342	197286859	trpS	PMI3032	-	tryptophanyl-tRNA synthetase
2945	 47.56	+1	3329488..3330696	-	402	197286860	-	PMI3033	-	transposase
2946	 43.65	0	3330719..3331135	+	138	197286861	-	PMI3034	-	transposase
2947	 41.78	0	3331216..3331890	-	224	197286862	-	PMI3035	-	sulfur-carrier protein
2948	 38.94	0	3332008..3332631	-	207	197286863	sodA	PMI3036	-	superoxide dismutase [Mn]
2949	 43.49	0	3332999..3334957	+	652	197286864	acs	PMI3037	-	acetyl-coenzyme A synthetase
2950	 35.26	0	3335122..3335433	+	103	197286865	-	PMI3038	-	hypothetical protein
2951	 40.04	0	3335430..3337085	+	551	197286866	actP	PMI3039	-	cation/acetate symporter
2952	 32.35	-1	3337408..3339039	+	543	197286867	-	PMI3040	-	membrane-associated sulfatase
2953	 43.65	0	3339858..3340274	+	138	197286868	-	PMI3043	-	transposase
2954	 35.06	0	3340361..3341053	-	230	197286869	-	PMI3044	-	hypothetical protein
2955	 38.41	0	3341057..3342475	-	472	197286870	-	PMI3045	-	iron-sulfur cluster-binding protein
2956	 36.59	0	3342466..3343203	-	245	197286871	-	PMI3046	-	oxidoreductase (cysteine-rich protein)
2957	 35.08	0	3349328..3350014	+	228	197286872	-	PMI3047	-	GntR-family transcriptional regulator
2958	 38.84	0	3350095..3351492	+	465	197286873	-	PMI3048	-	MFS-family transporter
2959	 39.70	0	3351574..3352500	-	308	197286874	rbsK	PMI3049	-	ribokinase
2960	 34.87	0	3352781..3354280	+	499	197286875	-	PMI3050	-	ATPase
2961	 36.90	0	3354288..3355745	+	485	197286876	-	PMI3051	-	hypothetical protein
2962	 40.18	0	3355746..3356738	-	330	197286877	asnA	PMI3052	-	aspartate-ammonia ligase (asparagine synthetase A)
2963	 36.58	0	3356899..3357360	+	153	197286878	asnC	PMI3053	-	AsnC-family transcriptional regulator
2964	 42.86	0	3357461..3357901	+	146	197286879	mioC	PMI3054	-	flavoprotein involved in biotin synthesis
2965	 41.18	0	3358281..3360179	+	632	197286880	gidA	PMI3055	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme (glucose-inhibited division protein A)
2966	 37.96	0	3360176..3360802	+	208	197286881	gidB	PMI3056	-	methyltransferase (glucose-inhibited division protein B)
2967	 39.95	0	3361417..3361794	+	125	197286882	atpI	PMI3057	-	ATP synthase protein I
2968	 41.45	0	3361826..3362650	+	274	197286883	atpB	PMI3058	-	ATP synthase A chain
2969	 49.17	+1	3362696..3362935	+	79	197286884	atpE	PMI3059	-	ATP synthase C chain
2970	 43.74	0	3362997..3363467	+	156	197286885	atpF	PMI3060	-	ATP synthase B chain
2971	 44.76	+1	3363480..3364013	+	177	197286886	atpH	PMI3061	-	ATP synthase delta chain
2972	 45.85	+1	3364028..3365569	+	513	197286887	atpA	PMI3062	-	ATP synthase alpha chain
2973	 45.60	+1	3365627..3366490	+	287	197286888	atpG	PMI3063	-	ATP synthase gamma chain
2974	 46.20	+1	3366525..3367907	+	460	197286889	atpD	PMI3064	-	ATP synthase beta chain
2975	 44.36	0	3367929..3368345	+	138	197286890	atpC	PMI3065	-	ATP synthase epsilon chain
2976	 42.14	0	3368496..3369869	+	457	197286891	glmU	PMI3066	-	bifunctional protein GlmU [includes: UDP-N-acetylglucosamine pyrophosphorylase and glucosamine-1-phosphate N-acetyltransferase]
2977	 41.87	0	3370027..3371853	+	608	197286892	glmS	PMI3067	-	glucosamine--fructose-6-phosphate aminotransferase
2978	 42.26	0	3373382..3375073	+	563	197286893	-	PMI3070	-	ABC transporter permease protein
2979	 41.15	0	3375119..3376129	+	336	197286894	-	PMI3071	-	ABC transporter, substrate-binding protein
2980	 41.76	0	3376194..3377321	+	375	197286895	-	PMI3072	-	oxidoreductase
2981	 43.65	0	3377415..3377831	-	138	197286896	-	PMI3073	-	transposase
2982	 47.06	+1	3377854..3379011	+	385	197286897	-	PMI3074	-	transposase
2983	 27.16	-2	3379144..3379548	-	134	197286898	-	PMI3075	-	hypothetical protein
2984	 24.31	-2	3380226..3380513	-	95	197286899	-	PMI3078	-	hypothetical protein
2985	 43.30	0	3380602..3381414	-	270	197286900	phnX	PMI3079	-	phosphonoacetaldehyde phosphonohydrolase
2986	 39.77	0	3382289..3383422	+	377	197286901	-	PMI3080	-	amidohydrolase/metallopeptidase
2987	 38.95	0	3383432..3384838	+	468	197286902	-	PMI3081	-	C4-dicarboxylate anaerobic carrier
2988	 37.40	0	3384931..3385569	-	212	197286903	-	PMI3082	-	TetR-family transcriptional regulator
39.69	MEAN

4.91	STD DEV
