IslandPath Analysis: Proteus mirabilis HI4320

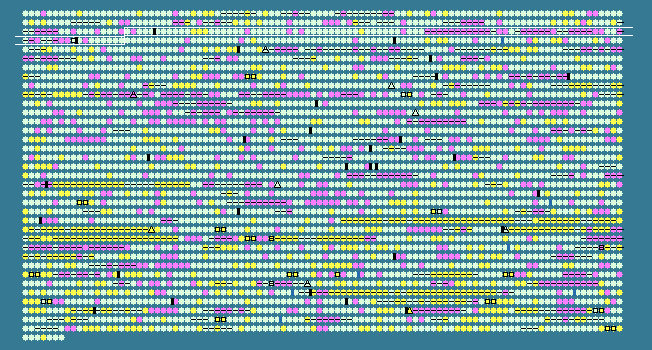

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.69   STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
218	 39.85	0	267762..269096	-	444	197284133	mltD	PMI0224	-	membrane-bound lytic murein transglycosylase D precursor
219	 35.19	0	269170..269925	-	251	197284134	gloB	PMI0225	-	hydroxyacylglutathione hydrolase
220	 39.62	0	270041..270676	+	211	197284135	-	PMI0226	-	hypothetical protein
221	 42.50	0	270701..271180	-	159	197284136	rnhA	PMI0227	-	ribonuclease HI
222	 41.24	0	271246..272004	+	252	197284137	dnaQ	PMI0228	-	DNA polymerase III, epsilon subunit
223	 43.03	0	272591..273673	+	360	197284138	-	PMI0229	-	ABC transporter, permease protein (FecCD transport family)
224	 41.26	0	273673..274467	+	264	197284139	-	PMI0230	-	ABC transporter, ATP-binding subunit
225	 37.16	0	274538..275374	-	278	197284140	-	PMI0231	-	citrate lyase beta chain
226	 41.99	0	275588..277471	+	627	197284141	-	PMI0232	-	siderophore biosynthesis protein
227	 42.52	0	277482..279593	+	703	197284142	-	PMI0233	-	TonB-dependent siderophore receptor
228	 41.38	0	279605..281008	+	467	197284143	-	PMI0234	-	decarboxylase
229	 44.15	0	281020..282036	+	338	197284144	-	PMI0235	-	pyridoxal-phosphate dependent enzyme
230	 43.35	0	282033..283190	+	385	197284145	-	PMI0236	-	octopine/opine/tauropine dehydrogenase
231	 44.39	0	283192..284403	+	403	197284146	-	PMI0237	-	MFS-family transporter
232	 42.64	0	284414..285541	+	375	197284147	-	PMI0238	-	substrate-binding protein
233	 39.37	0	285544..285990	+	148	197284148	-	PMI0239	-	hypothetical protein
234	 42.61	0	286327..288321	+	664	197284149	tktA	PMI0240	-	transketolase
235	 40.49	0	288580..289599	+	339	197284150	epd	PMI0241	-	D-erythrose 4-phosphate dehydrogenase
236	 41.84	0	289702..290865	+	387	197284151	pgk	PMI0242	-	phosphoglycerate kinase
237	 39.17	0	290930..292009	+	359	197284152	fbaA	PMI0243	-	fructose-bisphosphate aldolase class II
238	 33.33	-1	292101..292313	-	70	197284153	-	PMI0244	-	hypothetical protein
239	 39.01	0	292575..294053	-	492	197284154	-	PMI0245	-	MFS-family transporter
240	 41.04	0	294677..295195	-	172	197284155	hpaC	PMI0246	-	4-hydroxyphenylacetate 3-monooxygenase, reductase component
241	 37.56	0	295282..295494	+	70	197284156	-	PMI0247	-	hypothetical protein
242	 37.44	0	295772..296209	+	145	197284157	hpcR	PMI0248	-	homoprotocatechuate degradative operon repressor (MarR family transcriptional regulator)
243	 41.52	0	296280..298283	-	667	197284158	betU	PMI0249	-	secondary glycine betaine transporter
244	 37.24	0	298652..299317	-	221	197284159	-	PMI0250	-	lipoprotein
245	 32.89	-1	299567..300241	+	224	197284160	-	PMI0251	-	hypothetical protein
246	 39.98	0	300324..301241	-	305	197284161	rnz	PMI0252	-	ribonuclease Z
247	 17.09	-2	301428..301544	+	38	197284162	-	PMI0253	-	hypothetical protein
248	 39.39	0	302482..303009	+	175	197284163	-	PMI0254	-	fimbrial protein
249	 39.73	0	303249..305876	+	875	197284164	-	PMI0255	-	fimbrial outer membrane usher protein
250	 38.38	0	306695..307249	+	184	197284165	-	PMI0257	-	fimbrial protein
251	 37.38	0	307263..307781	+	172	197284166	-	PMI0258	-	minor fimbrial subunit
252	 37.80	0	307792..308328	+	178	197284167	-	PMI0259	-	fimbrial protein
253	 39.58	0	308347..309195	+	282	197284168	-	PMI0260	-	fimbrial adhesin
254	 39.25	0	309216..309536	+	106	197284169	-	PMI0261	-	fimbrial operon regulator
255	 36.86	0	310101..310667	-	188	197284170	mrpI	PMI0262	-	fimbriae recombinase
256	 38.64	0	311346..311873	+	175	197284171	mrpA	PMI0263	-	major mannose-resistant/Proteus-like fimbrial protein
257	 45.45	+1	311959..312519	+	186	197284172	mrpB	PMI0264	-	fimbrial subunit
258	 41.13	0	312542..315157	+	871	197284173	mrpC	PMI0265	-	fimbrial outer membrane usher protein
259	 40.05	0	315213..315971	+	252	197284174	mrpD	PMI0266	-	fimbrial chaperone protein
260	 41.21	0	315985..316530	+	181	197284175	mrpE	PMI0267	-	fimbrial subunit
261	 38.07	0	316543..317028	+	161	197284176	mrpF	PMI0268	-	fimbrial subunit
262	 39.53	0	317039..317587	+	182	197284177	mrpG	PMI0269	-	fimbrial subunit
263	 41.79	0	317609..318436	+	275	197284178	mrpH	PMI0270	-	fimbrial adhesin
264	 33.64	-1	318461..318781	+	106	197284179	mrpJ	PMI0271	-	fimbrial operon regulator
265	 39.43	0	319405..320979	+	524	197284180	mtrF	PMI0272	-	efflux pump component
266	 37.50	0	321019..321402	-	127	197284181	-	PMI0273	-	hypothetical protein
267	 42.48	0	321534..321872	+	112	197284182	-	PMI0274	-	hypothetical protein
268	 35.58	0	322226..323872	+	548	197284183	arnT	PMI0275	-	undecaprenyl phosphate-alpha-4-amino-4-deoxy-l-arabinose arabinosyl transferase
269	 33.63	-1	324361..325713	-	450	197284184	zapD	PMI0276	-	type I secretion outer membrane protein
270	 32.96	-1	325713..327038	-	441	197284185	zapC	PMI0277	-	type I secretion protein
271	 34.89	0	327055..328794	-	579	197284186	zapB	PMI0278	-	Type I secretion ATP-binding protein
272	 34.55	-1	328957..330432	-	491	197284187	zapA	PMI0279	-	metalloprotease
273	 29.12	-2	331042..333105	-	687	197284188	zapE	PMI0281	-	metalloprotease
274	 30.74	-1	333336..335300	-	654	197284189	-	PMI0282	-	metalloprotease
275	 32.11	-1	335607..337571	-	654	197284190	-	PMI0283	-	metalloprotease
276	 22.54	-2	337728..338144	+	138	197284191	-	PMI0284	-	hypothetical protein
277	 33.08	-1	338218..340167	-	649	197284192	-	PMI0285	-	metalloprotease
278	 34.01	-1	340636..341520	+	294	197284193	-	PMI0286	-	transcriptional regulator
279	 39.70	0	341514..342770	-	418	197284194	-	PMI0287	-	amidohydrolase/metallopeptidase
280	 33.55	-1	343139..344524	-	461	197284195	rafY	PMI0288	-	glycoporin
281	 32.87	-1	344579..345223	-	214	197284196	pgmB	PMI0289	-	beta-phosphoglucomutase
282	 36.31	0	345216..347933	-	905	197284197	-	PMI0290	-	glycosyl hydrolase
283	 37.13	0	347959..349380	-	473	197284198	treB	PMI0291	-	trehalose-specific PTS system, EIIBC component
284	 29.17	-2	349391..349486	-	31	197284199	-	PMI0292	-	hypothetical protein
285	 34.98	0	349499..350467	-	322	197284200	treR	PMI0293	-	trehalose operon repressor (LacI-family transcriptional regulator)
286	 27.15	-2	350630..351082	-	150	197284201	-	PMI0294	-	hypothetical protein
287	 21.21	-2	351079..351903	-	274	197284202	-	PMI0295	-	hypothetical protein
288	 28.07	-2	352544..352828	+	94	197284203	-	PMI0296	-	fimbrial operon regulator
289	 32.44	-1	352973..353533	+	186	197284204	-	PMI0297	-	fimbrial subunit
290	 36.41	0	353710..354294	+	194	197284205	-	PMI0298	-	fimbrial subunit
291	 36.77	0	354349..356877	+	842	197284206	-	PMI0299	-	fimbrial outer membrane usher protein
292	 33.73	-1	356889..357644	+	251	197284207	-	PMI0300	-	fimbrial chaperone protein
293	 32.17	-1	357676..358104	+	142	197284208	-	PMI0301	-	fimbrial protein
294	 32.40	-1	358097..358630	+	177	197284209	-	PMI0302	-	fimbrial subunit
295	 29.05	-2	358630..359166	+	178	197284210	-	PMI0303	-	fimbrial subunit
296	 32.47	-1	359179..360330	+	383	197284211	-	PMI0304	-	fimbrial adhesin
297	 30.59	-1	360449..361141	-	230	197284212	-	PMI0305	-	TetR-family transcriptional regulator
298	 41.23	0	361271..362599	-	442	197284213	potE	PMI0306	-	putrescine-ornithine antiporter
299	 39.39	0	362663..364825	-	720	197284214	speF	PMI0307	-	ornithine decarboxylase, inducible
300	 30.22	-1	366482..367252	-	256	197284215	-	PMI0308	-	hypothetical protein
301	 37.07	0	368261..368581	-	106	197284216	-	PMI0311	-	hypothetical protein
302	 23.93	-2	369084..369944	-	286	197284217	-	PMI0312	-	hypothetical protein
303	 23.75	-2	370951..371931	-	326	197284218	-	PMI0316	-	hypothetical protein
304	 37.84	0	372184..372738	+	184	197284219	-	PMI0317	-	lipoprotein
305	 37.02	0	372735..373439	+	234	197284220	-	PMI0318	-	hypothetical protein
306	 35.27	0	373458..373715	+	85	197284221	-	PMI0319	-	hypothetical protein
307	 35.06	0	373758..374336	+	192	197284222	-	PMI0320	-	hypothetical protein
308	 35.56	0	374340..374609	+	89	197284223	-	PMI0321	-	hypothetical protein
309	 39.19	0	374836..375108	+	90	197284224	-	PMI0322	-	transposase
310	 41.83	0	376247..377317	-	356	197284225	mltC	PMI0324	-	membrane-bound lytic murein transglycosylase
311	 35.90	0	377380..377652	-	90	197284226	yggX	PMI0325	-	probable Fe(2+) trafficking protein
312	 41.31	0	377683..378723	-	346	197284227	mutY	PMI0326	-	A/G-specific adenine glycosylase
313	 41.81	0	378939..379658	+	239	197284228	trmB	PMI0327	-	tRNA (guanine-N(7)-)-methyltransferase
314	 39.45	0	379658..379984	+	108	197284229	-	PMI0328	-	hypothetical protein
315	 40.45	0	380061..380987	+	308	197284230	glsA	PMI0329	-	glutaminase
316	 38.75	0	381059..381796	+	245	197284231	-	PMI0330	-	hypothetical protein
317	 37.75	0	381944..382894	+	316	197284232	-	PMI0331	-	ABC transporter, substrate-binding protein
39.69	MEAN

4.91	STD DEV
