IslandPath Analysis: Proteus mirabilis HI4320

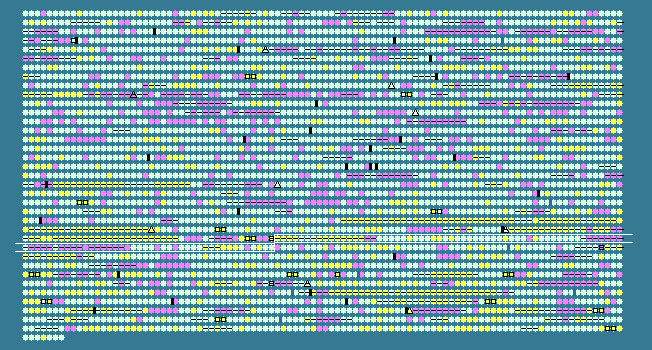

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2543	 44.66	+1	2873014..2873481	-	155	197286458	-	PMI2628	-	hypothetical protein
2544	 43.96	0	2873465..2873671	-	68	197286459	-	PMI2629	-	hypothetical protein
2545	 51.73	+2	2874365..2876419	-	684	197286460	-	PMI2630	-	topoisomerase
2546	 47.49	+1	2876429..2876965	-	178	197286461	-	PMI2631	-	lipoprotein
2547	 42.70	0	2877013..2877717	-	234	197286462	-	PMI2632	-	hypothetical protein
2548	 36.99	0	2878000..2878518	+	172	197286463	-	PMI2633	-	hypothetical protein
2549	 41.98	0	2878555..2878716	+	53	197286464	-	PMI2634	-	hypothetical protein
2550	 49.54	+2	2878804..2880099	-	431	197286465	-	PMI2635	-	hypothetical protein
2551	 45.96	+1	2880226..2880510	-	94	197286466	-	PMI2636	-	hypothetical protein
2552	 50.25	+2	2880500..2881090	-	196	197286467	-	PMI2637	-	hypothetical protein
2553	 50.10	+2	2881005..2881517	-	170	197286468	-	PMI2638	-	hypothetical protein
2554	 49.33	+1	2881615..2883264	-	549	197286469	-	PMI2639	-	hypothetical protein
2555	 52.25	+2	2883279..2884631	-	450	197286470	-	PMI2640	-	DNA helicase
2556	 46.58	+1	2884624..2885355	-	243	197286471	-	PMI2641	-	hypothetical protein
2557	 46.62	+1	2885352..2886224	-	290	197286472	-	PMI2642	-	chromosome partitioning related protein
2558	 35.37	0	2886711..2887889	-	392	197286473	-	PMI2644	-	hypothetical protein
2559	 34.67	-1	2887886..2888482	-	198	197286474	-	PMI2645	-	hypothetical protein
2560	 36.98	0	2888961..2889590	+	209	197286475	-	PMI2646	-	hypothetical protein
2561	 41.07	0	2889677..2891872	+	731	197286476	-	PMI2647	-	hypothetical protein
2562	 39.84	0	2891965..2896899	+	1644	197286477	-	PMI2648	-	hypothetical protein
2563	 43.17	0	2897135..2898466	-	443	197286478	-	PMI2649	-	MFS-family transporter
2564	 40.97	0	2898550..2898837	-	95	197286479	fixX	PMI2650	-	ferredoxin subunit for carnitine metabolism
2565	 44.55	0	2898834..2900126	-	430	197286480	fixC	PMI2651	-	FAD-dependent oxidoreductase subunit for carnitine metabolism
2566	 41.96	0	2900182..2901120	-	312	197286481	fixB	PMI2652	-	electron transfer flavoprotein alpha subunit for carnitine metabolism
2567	 42.51	0	2901132..2901905	-	257	197286482	fixA	PMI2653	-	electron transfer flavoprotein beta subunit for carnitine metabolism
2568	 43.11	0	2902504..2904048	+	514	197286483	caiT	PMI2654	-	L-carnitine/gamma-butyrobetaine antiporter
2569	 45.41	+1	2904061..2905203	+	380	197286484	caiA	PMI2655	-	crotonobetainyl-CoA dehydrogenase
2570	 43.90	0	2905273..2906493	+	406	197286485	caiB	PMI2656	-	crotonobetainyl-coa:carnitine CoA-transferase
2571	 41.62	0	2906571..2908127	+	518	197286486	caiC	PMI2657	-	probable crotonobetaine/carnitine-CoA ligase
2572	 46.06	+1	2908193..2908978	+	261	197286487	caiD	PMI2658	-	carnitinyl-CoA dehydratase
2573	 42.42	0	2909018..2909611	+	197	197286488	caiE	PMI2659	-	transferase in carnitine metabolism
2574	 40.46	0	2909675..2910067	-	130	197286489	caiF	PMI2660	-	transcriptional activator for carnitine metabolism
2575	 41.78	0	2910786..2911448	-	220	197286490	fsaA	PMI2661	-	fructose-6-phosphate aldolase
2576	 37.25	0	2911710..2912321	-	203	197286491	-	PMI2662	-	chitin binding protein
2577	 38.96	0	2912650..2913111	-	153	197286492	-	PMI2663	-	regulatory protein
2578	 37.68	0	2913469..2914458	+	329	197286493	-	PMI2664	-	hypothetical protein
2579	 42.69	0	2914458..2915600	+	380	197286494	-	PMI2665	-	hypothetical protein
2580	 42.53	0	2915600..2916751	+	383	197286495	-	PMI2666	-	lipoprotein
2581	 43.52	0	2917027..2917821	+	264	197286496	-	PMI2667	-	mannosyl-glycoprotein endo-beta-N-acetylglucosaminidase
2582	 39.75	0	2917986..2919404	+	472	197286497	pacA	PMI2668	-	peptidoglycan O-acyl transferase
2583	 40.54	0	2919391..2920584	+	397	197286498	pacB	PMI2669	-	peptidoglycan O-acyl transferase
2584	 41.85	0	2920559..2921791	+	410	197286499	-	PMI2670	-	lipoprotein
2585	 33.33	-1	2921858..2922784	-	308	197286500	-	PMI2671	-	methyl-accepting chemotaxis protein
2586	 44.92	+1	2922936..2924273	-	445	197286501	gntU	PMI2672	-	low-affinity gluconate transporter
2587	 38.38	0	2924270..2924824	-	184	197286502	gntK	PMI2673	-	thermoresistant gluconokinase
2588	 42.37	0	2925131..2926126	-	331	197286503	gntR	PMI2674	-	gluconate utilization system Gnt-I transcriptional repressor (LacI-family transcriptional regulator)
2589	 42.15	0	2926361..2927392	+	343	197286504	-	PMI2675	-	iron compound ABC transporter, substrate-binding protein
2590	 42.84	0	2927389..2928387	+	332	197286505	-	PMI2676	-	iron compound ABC transporter, permease
2591	 40.50	0	2928384..2929178	+	264	197286506	-	PMI2677	-	iron compound ABC transporter, ATP-binding protein
2592	 40.48	0	2929165..2929989	+	274	197286507	-	PMI2678	-	hypothetical protein
2593	 41.70	0	2929986..2930834	+	282	197286508	modD	PMI2679	-	pyrophosphorylase
2594	 39.49	0	2930965..2932914	+	649	197286509	prrA	PMI2680	-	TonB-dependent receptor
2595	 28.37	-2	2933022..2934068	-	348	197286510	-	PMI2681	-	cell invasion protein
2596	 31.89	-1	2934129..2934959	-	276	197286511	-	PMI2682	-	type III secretion system protein
2597	 29.77	-2	2934984..2937143	-	719	197286512	-	PMI2683	-	cell invasion protein
2598	 30.25	-1	2937148..2937666	-	172	197286513	-	PMI2684	-	chaperone protein
2599	 29.85	-2	2937788..2938849	-	353	197286514	-	PMI2685	-	type III secretion system protein
2600	 31.27	-1	2938842..2939615	-	257	197286515	-	PMI2686	-	type III secretion system protein
2601	 38.43	0	2939621..2939875	-	84	197286516	-	PMI2687	-	type III secretion system protein
2602	 32.58	-1	2939875..2940534	-	219	197286517	-	PMI2688	-	type III secretion system protein
2603	 27.20	-2	2940538..2941467	-	309	197286518	-	PMI2689	-	type III secretion system protein
2604	 29.33	-2	2941464..2942612	-	382	197286519	-	PMI2690	-	type III secretion system protein
2605	 31.17	-1	2942623..2943084	-	153	197286520	-	PMI2691	-	type III secretion system protein
2606	 36.57	0	2943068..2944366	-	432	197286521	-	PMI2692	-	type III secretion system protein
2607	 34.54	-1	2944370..2944783	-	137	197286522	-	PMI2693	-	type III secretion system protein
2608	 31.19	-1	2944792..2946891	-	699	197286523	-	PMI2694	-	type III secretion system protein
2609	 28.69	-2	2946918..2947994	-	358	197286524	-	PMI2695	-	type III secretion system protein
2610	 34.50	-1	2947999..2949714	-	571	197286525	-	PMI2696	-	type III secretion system protein
2611	 29.76	-2	2949698..2950453	-	251	197286526	-	PMI2697	-	type III secretion system regulatory protein
2612	 23.46	-2	2950743..2951816	+	357	197286527	-	PMI2698	-	hypothetical protein
2613	 35.29	0	2951866..2952120	+	84	197286528	-	PMI2699	-	type III secretion system protein
2614	 32.26	-1	2952144..2952422	+	92	197286529	-	PMI2700	-	type III secretion system protein
2615	 31.87	-1	2952425..2953177	+	250	197286530	-	PMI2701	-	type III secretion system protein
2616	 30.54	-1	2953170..2953742	+	190	197286531	-	PMI2702	-	type III secretion system protein (oxygen-regulated invasion protein)
2617	 34.34	-1	2953723..2954415	+	230	197286532	-	PMI2703	-	type III secretion system protein (oxygen-regulated invasion protein)
2618	 33.80	-1	2954405..2954836	+	143	197286533	-	PMI2704	-	hypothetical protein
2619	 40.44	0	2954837..2955286	-	149	197286534	soxR	PMI2705	-	redox-sensitive transcriptional activator
2620	 39.72	0	2955412..2955834	+	140	197286535	-	PMI2706	-	hypothetical protein
2621	 42.82	0	2955880..2956986	+	368	197286536	-	PMI2707	-	multidrug efflux protein
2622	 41.81	0	2956999..2960076	+	1025	197286537	-	PMI2708	-	multidrug efflux protein
2623	 27.23	-2	2960157..2961287	-	376	197286538	-	PMI2709	-	protein-tyrosine phosphatase
2624	 39.76	0	2961494..2961820	-	108	197286539	-	PMI2710	-	multidrug resistance protein
2625	 37.99	0	2961911..2962318	-	135	197286540	-	PMI2711	-	quaternary ammonium compound resistance protein
2626	 32.34	-1	2962353..2963057	-	234	197286541	-	PMI2712	-	hypothetical protein
2627	 41.55	0	2963075..2963719	-	214	197286542	pduL	PMI2713	-	propanediol utilization protein
2628	 41.81	0	2963719..2964225	-	168	197286543	pduJ	PMI2714	-	propanediol utilization protein
2629	 41.96	0	2964242..2965192	-	316	197286544	-	PMI2715	-	propanediol utilization protein (dehydratase activating enzyme)
2630	 42.58	0	2965296..2968724	-	1142	197286545	-	PMI2716	-	propanediol utilization protein (dehydratase)
2631	 43.86	0	2968776..2969924	-	382	197286546	-	PMI2717	-	propanediol utilization protein (alcohol dehydrogenase)
2632	 42.80	0	2969932..2970195	-	87	197286547	-	PMI2718	-	hypothetical protein
2633	 43.86	0	2970222..2971874	-	550	197286548	-	PMI2719	-	aldehyde-alcohol dehydrogenase
2634	 46.95	+1	2971942..2972220	-	92	197286549	-	PMI2720	-	microcompartments protein
2635	 45.26	+1	2972235..2972519	-	94	197286550	-	PMI2721	-	microcompartments protein
2636	 47.31	+1	2972540..2972818	-	92	197286551	-	PMI2722	-	microcompartments protein
2637	 37.57	0	2973402..2973920	-	172	197286552	-	PMI2723	-	hypothetical protein
2638	 35.31	0	2973920..2974780	-	286	197286553	-	PMI2724	-	regulatory protein
2639	 41.08	0	2974801..2975394	-	197	197286554	-	PMI2725	-	TetR-family transcriptional regulator
2640	 43.29	0	2975825..2977099	-	424	197286555	cysD	PMI2726	-	O-acetylhomoserine sulfhydrylase
2641	 41.24	0	2977288..2978223	-	311	197286556	-	PMI2727	-	hypothetical protein
2642	 37.79	0	2979093..2979653	+	186	197286557	atfA	PMI2728	-	major subunit of type 1 fimbria
39.69	MEAN

4.91	STD DEV
