IslandPath Analysis: Proteus mirabilis HI4320

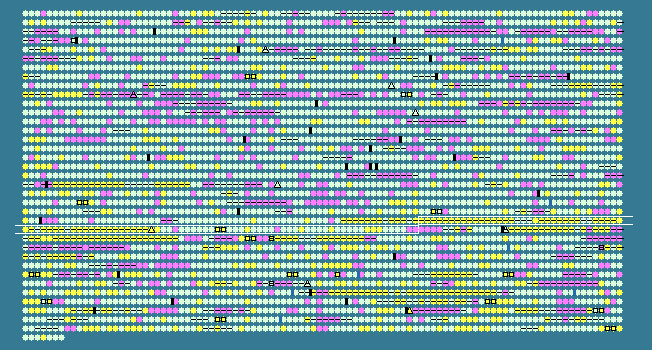

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2367	 44.78	+1	2666041..2666241	-	66	197286282	-	PMI2436	-	plasmid-related protein
2368	 45.48	+1	2666375..2667082	-	235	197286283	-	PMI2437	-	plasmid-related protein
2369	 47.58	+1	2667172..2668245	-	357	197286284	-	PMI2438	-	plasmid-related protein
2370	 47.37	+1	2668337..2668678	-	113	197286285	-	PMI2439	-	plasmid-related protein
2371	 47.19	+1	2668678..2669175	-	165	197286286	-	PMI2440	-	plasmid-related DNA repair protein
2372	 49.21	+1	2669258..2670913	-	551	197286287	-	PMI2441	-	plasmid-related protein
2373	 46.94	+1	2670983..2671423	-	146	197286288	-	PMI2442	-	plasmid-related protein
2374	 46.86	+1	2671485..2672438	-	317	197286289	-	PMI2443	-	plasmid-related protein
2375	 46.88	+1	2672537..2673304	-	255	197286290	-	PMI2444	-	plasmid-related protein
2376	 49.90	+2	2673304..2674263	-	319	197286291	-	PMI2445	-	plasmid-related ATPase
2377	 48.18	+1	2674473..2675489	-	338	197286292	-	PMI2446	-	plasmid-related protein
2378	 45.14	+1	2675550..2675693	-	47	197286293	-	PMI2447	-	plasmid-related protein
2379	 47.37	+1	2675777..2676595	-	272	197286294	-	PMI2448	-	phage recombination protein
2380	 48.57	+1	2676675..2677094	-	139	197286295	-	PMI2449	-	plasmid-related single-stranded DNA-binding protein
2381	 46.48	+1	2677110..2677436	-	108	197286296	-	PMI2450	-	plasmid-related protein
2382	 46.93	+1	2677804..2678406	+	200	197286297	-	PMI2451	-	plasmid-related protein
2383	 42.67	0	2678515..2679189	+	224	197286298	-	PMI2452	-	endonuclease precursor
2384	 39.11	0	2679254..2679772	-	172	197286299	-	PMI2453	-	plasmid-related regulatory protein
2385	 38.04	0	2679792..2682065	-	757	197286300	-	PMI2454	-	plasmid-related membrane protein
2386	 53.01	+2	2682075..2682323	-	82	197286301	-	PMI2455	-	plasmid-related glycin-rich membrane protein
2387	 49.88	+2	2682565..2686257	-	1230	197286302	-	PMI2456	-	mating pair stabilization protein
2388	 50.53	+2	2686260..2687288	-	342	197286303	-	PMI2457	-	plasmid pilus assembly
2389	 48.85	+1	2687272..2688399	-	375	197286304	-	PMI2458	-	plasmid pilus assembly protein
2390	 51.27	+2	2688407..2688919	-	170	197286305	-	PMI2459	-	plasmid conjugation signal peptidase
2391	 47.99	+1	2688903..2689250	-	115	197286306	-	PMI2460	-	plasmid-related protein
2392	 49.38	+1	2689243..2691642	-	799	197286307	-	PMI2461	-	plasmid pilus assembly protein
2393	 50.07	+2	2691642..2692334	-	230	197286308	-	PMI2462	-	plasmid-related disulfide bond isomerase
2394	 42.17	0	2692466..2693404	-	312	197286309	-	PMI2463	-	plasmid-related protein
2395	 41.37	0	2693397..2694230	-	277	197286310	-	PMI2464	-	plasmid-related protein
2396	 51.42	+2	2694408..2694794	-	128	197286311	-	PMI2465	-	plasmid-related protein
2397	 48.39	+1	2694791..2695441	-	216	197286312	-	PMI2466	-	plasmid-related protein
2398	 50.85	+2	2695438..2696727	-	429	197286313	-	PMI2467	-	plasmid pilus assembly protein
2399	 49.11	+1	2696730..2697629	-	299	197286314	-	PMI2468	-	plasmid-related protein
2400	 50.40	+2	2697610..2698236	-	208	197286315	-	PMI2469	-	plasmid pilus assembly protein
2401	 51.42	+2	2698233..2698514	-	93	197286316	-	PMI2470	-	plasmid pilus assembly protein
2402	 45.83	+1	2698550..2698789	+	79	197286317	-	PMI2471	-	plasmid-related protein
2403	 41.33	0	2698803..2699390	+	195	197286318	-	PMI2472	-	plasmid-related protein
2404	 47.13	+1	2699417..2700061	-	214	197286319	-	PMI2473	-	plasmid-related protein
2405	 49.38	+1	2700039..2700599	-	186	197286320	-	PMI2474	-	plasmid-related protein
2406	 49.92	+2	2700609..2702429	-	606	197286321	-	PMI2475	-	plasmid conjugative transfer protein
2407	 48.91	+1	2702478..2704628	-	716	197286322	-	PMI2476	-	plasmid conjugative relaxase
2408	 42.84	0	2704877..2707012	-	711	197286323	-	PMI2477	-	DNA helicase
2409	 47.02	+1	2707018..2713440	-	2140	197286324	-	PMI2478	-	DNA helicase
2410	 46.05	+1	2713633..2718603	-	1656	197286325	-	PMI2479	-	plasmid-related protein
2411	 45.61	+1	2718606..2721569	-	987	197286326	-	PMI2480	-	plasmid ATP-dependent helicase
2412	 48.38	+1	2721596..2722519	-	307	197286327	-	PMI2481	-	plasmid-related protein
2413	 52.33	+2	2722837..2723136	-	99	197286328	-	PMI2482	-	plasmid-related protein
2414	 48.90	+1	2723224..2724129	-	301	197286329	-	PMI2483	-	plasmid-related exonuclease
2415	 50.22	+2	2724786..2725235	+	149	197286330	umuD	PMI2484	-	DNA repair protein
2416	 48.46	+1	2725243..2726511	+	422	197286331	umuC	PMI2485	-	DNA repair protein
2417	 49.12	+1	2726550..2726720	+	56	197286332	-	PMI2485A	-	plasmid-related protein
2418	 45.68	+1	2726717..2726878	+	53	197286333	-	PMI2486	-	conjugative transposon protein
2419	 48.81	+1	2727158..2727325	+	55	197286334	-	PMI2487	-	conjugative transposon protein
2420	 49.85	+2	2727430..2728404	+	324	197286335	-	PMI2488	-	plasmid-related protein
2421	 50.00	+2	2728407..2728676	+	89	197286336	-	PMI2489	-	plasmid-related protein
2422	 46.05	+1	2728678..2729919	+	413	197286337	-	PMI2490	-	integrase
2423	 46.15	+1	2729936..2730130	-	64	197286338	-	PMI2491	-	DNA-binding protein
2424	 39.48	0	2731174..2731710	+	178	197286339	-	PMI2492	-	hypothetical protein
2425	 37.13	0	2731700..2732620	+	306	197286340	-	PMI2493	-	hypothetical protein
2426	 31.32	-1	2732932..2733378	-	148	197286341	rimI	PMI2494	-	ribosomal-protein-alanine acetyltransferase
2427	 38.93	0	2733347..2733757	-	136	197286342	holD	PMI2495	-	DNA polymerase III, psi subunit
2428	 40.73	0	2733887..2734900	+	337	197286343	rsmC	PMI2496	-	ribosomal RNA small subunit methyltransferase C
2429	 39.49	0	2735017..2735292	-	91	197286344	-	PMI2497	-	hypothetical protein
2430	 39.78	0	2735464..2736006	-	180	197286345	-	PMI2498	-	acetyltransferase
2431	 42.31	0	2736003..2737640	-	545	197286346	-	PMI2499	-	Na+/Pi-cotransporter
2432	 42.64	0	2738069..2739508	-	479	197286347	phoA	PMI2500	-	alkaline phosphatase precursor
2433	 47.45	+1	2739680..2740912	-	410	197286348	-	PMI2501	-	transposase
2434	 44.72	+1	2740959..2741327	+	122	197286349	-	PMI2502	-	transposase
2435	 41.94	0	2741466..2743010	-	514	197286350	-	PMI2503	-	esterase
2436	 39.30	0	2743195..2744334	-	379	197286351	-	PMI2504	-	hypothetical protein
2437	 37.19	0	2744652..2745896	-	414	197286352	nadR	PMI2505	-	transcriptional regulator
2438	 44.54	0	2745908..2747299	-	463	197286353	radA	PMI2506	-	DNA repair protein
2439	 41.82	0	2747333..2748310	-	325	197286354	serB	PMI2507	-	phosphoserine phosphatase
2440	 39.54	0	2748420..2749112	+	230	197286355	smp	PMI2508	-	hypothetical protein
2441	 40.34	0	2749359..2750900	+	513	197286356	-	PMI2509	-	hypothetical protein
2442	 36.91	0	2750872..2751738	+	288	197286357	-	PMI2510	-	radical SAM superfamily protein
2443	 35.66	0	2751837..2754803	+	988	197286358	-	PMI2511	-	autotransporter
2444	 40.52	0	2754905..2755516	-	203	197286359	yntE	PMI2512	-	nickel/di-oligopepetide ABC transporter, ATP-binding protein
2445	 42.41	0	2755584..2756387	-	267	197286360	yntD	PMI2513	-	nickel/di-oligopepetide ABC transporter, ATP-binding protein
2446	 40.96	0	2756381..2757193	-	270	197286361	yntC	PMI2514	-	nickel/di-oligopepetide ABC transporter, permease protein
2447	 43.70	0	2757190..2758173	-	327	197286362	yntB	PMI2515	-	nickel/di-oligopepetide ABC transporter, permease protein
2448	 42.68	0	2758158..2759741	-	527	197286363	yntA	PMI2516	-	nickel/di-oligopepetide ABC transporter, substrate-binding protein
2449	 37.06	0	2760142..2761134	-	330	197286364	-	PMI2517	-	glycosyltransferase
2450	 41.12	0	2761552..2762052	-	166	197286365	hycI	PMI2518	-	hydrogenase maturation protease
2451	 37.47	0	2762049..2762459	-	136	197286366	hyfJ	PMI2519	-	hydrogenase-4 component J
2452	 43.30	0	2762452..2763234	-	260	197286367	hyfI	PMI2520	-	hydrogenase-4 component I
2453	 40.36	0	2763231..2763785	-	184	197286368	hyfH	PMI2521	-	hydrogenase-4 component H
2454	 42.16	0	2763797..2765530	-	577	197286369	hyfG	PMI2522	-	hydrogenase-4 component G
2455	 41.11	0	2765532..2767100	-	522	197286370	hyfF	PMI2523	-	hydrogenase-4 component F
2456	 42.86	0	2767105..2767755	-	216	197286371	hyfE	PMI2524	-	hydrogenase-4 component E
2457	 42.37	0	2767767..2769215	-	482	197286372	hyfD	PMI2525	-	hydrogenase-4 component D
2458	 44.16	0	2769222..2770172	-	316	197286373	hyfC	PMI2526	-	hydrogenase-4 component C
2459	 43.55	0	2770185..2772200	-	671	197286374	hyfB	PMI2527	-	hydrogenase-4 component B
2460	 46.86	+1	2772202..2772822	-	206	197286375	hyfA	PMI2528	-	hydrogenase-4 component A
2461	 36.27	0	2773060..2773536	-	158	197286376	rpiB	PMI2529	-	ribose 5-phosphate isomerase
2462	 41.98	0	2774425..2774991	-	188	197286377	efp	PMI2530	-	elongation factor P
2463	 43.05	0	2775035..2776063	+	342	197286378	-	PMI2531	-	radical SAM superfamily protein
2464	 37.04	0	2776204..2776824	-	206	197286379	-	PMI2532	-	hypothetical protein
2465	 35.50	0	2776918..2779461	-	847	197286380	-	PMI2533	-	outer membrane usher protein
2466	 28.68	-2	2779505..2780320	-	271	197286381	-	PMI2534	-	fimbrial chaperone
39.69	MEAN

4.91	STD DEV
