IslandPath Analysis: Proteus mirabilis HI4320

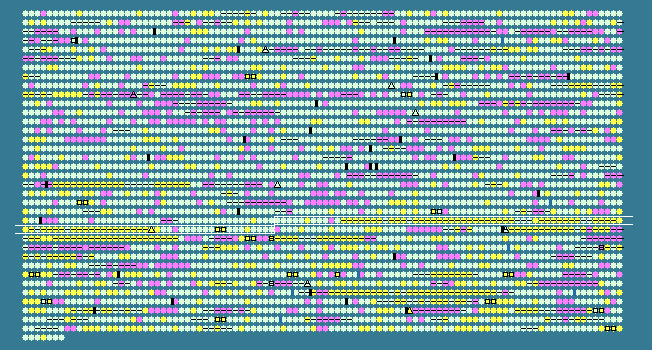

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2343	 40.11	0	2638876..2640189	-	437	197286258	-	PMI2412	-	Mg(2+)/citrate complex transporter
2344	 39.75	0	2640434..2641150	-	238	197286259	deoD	PMI2413	-	purine nucleoside phosphorylase
2345	 41.56	0	2641229..2642455	-	408	197286260	deoB	PMI2414	-	phosphopentomutase
2346	 42.25	0	2642522..2643844	-	440	197286261	deoA	PMI2415	-	thymidine phosphorylase
2347	 42.44	0	2643914..2644693	-	259	197286262	deoC	PMI2416	-	deoxyribose-phosphate aldolase
2348	 48.85	+1	2644690..2644863	-	57	197286263	-	PMI2417	-	hypothetical protein
2349	 42.70	0	2645217..2646518	-	433	197286264	-	PMI2418	-	Na+ dependent nucleoside transporter
2350	 41.12	0	2646806..2647588	-	260	197286265	-	PMI2419	-	TatD-related deoxyribonuclease
2351	 40.58	0	2647585..2648646	-	353	197286266	-	PMI2420	-	patatin-like phospholipase
2352	 34.77	-1	2648743..2649090	-	115	197286267	-	PMI2421	-	phospholipid-binding protein
2353	 41.51	0	2649499..2651088	-	529	197286268	prfC	PMI2422	-	peptide chain release factor 3
2354	 48.30	+1	2651345..2651992	-	215	197286269	-	PMI2423	-	phage repressor
2355	 49.60	+2	2652110..2652361	+	83	197286270	-	PMI2424	-	phage regulatory protein
2356	 46.55	+1	2652417..2653286	+	289	197286271	-	PMI2425	-	hypothetical protein
2357	 47.45	+1	2653327..2653935	+	202	197286272	-	PMI2426	-	hypothetical protein
2358	 48.45	+1	2653922..2654470	+	182	197286273	-	PMI2427	-	phage transglycosylase
2359	 47.00	+1	2654467..2654766	+	99	197286274	-	PMI2428	-	hypothetical protein
2360	 44.19	0	2654763..2655296	+	177	197286275	-	PMI2429	-	phage regulatory protein
2361	 40.05	0	2655354..2655785	+	143	197286276	-	PMI2430	-	phage membrane protein
2362	 48.49	+1	2655818..2659387	-	1189	197286277	-	PMI2431	-	pilus assembly protein
2363	 47.08	+1	2659391..2660779	-	462	197286278	-	PMI2432	-	pilus assembly protein
2364	 48.36	+1	2660782..2661726	-	314	197286279	-	PMI2433	-	pilus assembly
2365	 41.63	0	2662014..2663906	-	630	197286280	-	PMI2434	-	plasmid-related helicase
2366	 47.12	+1	2663903..2665867	-	654	197286281	-	PMI2435	-	plasmid-related protein
2367	 44.78	+1	2666041..2666241	-	66	197286282	-	PMI2436	-	plasmid-related protein
2368	 45.48	+1	2666375..2667082	-	235	197286283	-	PMI2437	-	plasmid-related protein
2369	 47.58	+1	2667172..2668245	-	357	197286284	-	PMI2438	-	plasmid-related protein
2370	 47.37	+1	2668337..2668678	-	113	197286285	-	PMI2439	-	plasmid-related protein
2371	 47.19	+1	2668678..2669175	-	165	197286286	-	PMI2440	-	plasmid-related DNA repair protein
2372	 49.21	+1	2669258..2670913	-	551	197286287	-	PMI2441	-	plasmid-related protein
2373	 46.94	+1	2670983..2671423	-	146	197286288	-	PMI2442	-	plasmid-related protein
2374	 46.86	+1	2671485..2672438	-	317	197286289	-	PMI2443	-	plasmid-related protein
2375	 46.88	+1	2672537..2673304	-	255	197286290	-	PMI2444	-	plasmid-related protein
2376	 49.90	+2	2673304..2674263	-	319	197286291	-	PMI2445	-	plasmid-related ATPase
2377	 48.18	+1	2674473..2675489	-	338	197286292	-	PMI2446	-	plasmid-related protein
2378	 45.14	+1	2675550..2675693	-	47	197286293	-	PMI2447	-	plasmid-related protein
2379	 47.37	+1	2675777..2676595	-	272	197286294	-	PMI2448	-	phage recombination protein
2380	 48.57	+1	2676675..2677094	-	139	197286295	-	PMI2449	-	plasmid-related single-stranded DNA-binding protein
2381	 46.48	+1	2677110..2677436	-	108	197286296	-	PMI2450	-	plasmid-related protein
2382	 46.93	+1	2677804..2678406	+	200	197286297	-	PMI2451	-	plasmid-related protein
2383	 42.67	0	2678515..2679189	+	224	197286298	-	PMI2452	-	endonuclease precursor
2384	 39.11	0	2679254..2679772	-	172	197286299	-	PMI2453	-	plasmid-related regulatory protein
2385	 38.04	0	2679792..2682065	-	757	197286300	-	PMI2454	-	plasmid-related membrane protein
2386	 53.01	+2	2682075..2682323	-	82	197286301	-	PMI2455	-	plasmid-related glycin-rich membrane protein
2387	 49.88	+2	2682565..2686257	-	1230	197286302	-	PMI2456	-	mating pair stabilization protein
2388	 50.53	+2	2686260..2687288	-	342	197286303	-	PMI2457	-	plasmid pilus assembly
2389	 48.85	+1	2687272..2688399	-	375	197286304	-	PMI2458	-	plasmid pilus assembly protein
2390	 51.27	+2	2688407..2688919	-	170	197286305	-	PMI2459	-	plasmid conjugation signal peptidase
2391	 47.99	+1	2688903..2689250	-	115	197286306	-	PMI2460	-	plasmid-related protein
2392	 49.38	+1	2689243..2691642	-	799	197286307	-	PMI2461	-	plasmid pilus assembly protein
2393	 50.07	+2	2691642..2692334	-	230	197286308	-	PMI2462	-	plasmid-related disulfide bond isomerase
2394	 42.17	0	2692466..2693404	-	312	197286309	-	PMI2463	-	plasmid-related protein
2395	 41.37	0	2693397..2694230	-	277	197286310	-	PMI2464	-	plasmid-related protein
2396	 51.42	+2	2694408..2694794	-	128	197286311	-	PMI2465	-	plasmid-related protein
2397	 48.39	+1	2694791..2695441	-	216	197286312	-	PMI2466	-	plasmid-related protein
2398	 50.85	+2	2695438..2696727	-	429	197286313	-	PMI2467	-	plasmid pilus assembly protein
2399	 49.11	+1	2696730..2697629	-	299	197286314	-	PMI2468	-	plasmid-related protein
2400	 50.40	+2	2697610..2698236	-	208	197286315	-	PMI2469	-	plasmid pilus assembly protein
2401	 51.42	+2	2698233..2698514	-	93	197286316	-	PMI2470	-	plasmid pilus assembly protein
2402	 45.83	+1	2698550..2698789	+	79	197286317	-	PMI2471	-	plasmid-related protein
2403	 41.33	0	2698803..2699390	+	195	197286318	-	PMI2472	-	plasmid-related protein
2404	 47.13	+1	2699417..2700061	-	214	197286319	-	PMI2473	-	plasmid-related protein
2405	 49.38	+1	2700039..2700599	-	186	197286320	-	PMI2474	-	plasmid-related protein
2406	 49.92	+2	2700609..2702429	-	606	197286321	-	PMI2475	-	plasmid conjugative transfer protein
2407	 48.91	+1	2702478..2704628	-	716	197286322	-	PMI2476	-	plasmid conjugative relaxase
2408	 42.84	0	2704877..2707012	-	711	197286323	-	PMI2477	-	DNA helicase
2409	 47.02	+1	2707018..2713440	-	2140	197286324	-	PMI2478	-	DNA helicase
2410	 46.05	+1	2713633..2718603	-	1656	197286325	-	PMI2479	-	plasmid-related protein
2411	 45.61	+1	2718606..2721569	-	987	197286326	-	PMI2480	-	plasmid ATP-dependent helicase
2412	 48.38	+1	2721596..2722519	-	307	197286327	-	PMI2481	-	plasmid-related protein
2413	 52.33	+2	2722837..2723136	-	99	197286328	-	PMI2482	-	plasmid-related protein
2414	 48.90	+1	2723224..2724129	-	301	197286329	-	PMI2483	-	plasmid-related exonuclease
2415	 50.22	+2	2724786..2725235	+	149	197286330	umuD	PMI2484	-	DNA repair protein
2416	 48.46	+1	2725243..2726511	+	422	197286331	umuC	PMI2485	-	DNA repair protein
2417	 49.12	+1	2726550..2726720	+	56	197286332	-	PMI2485A	-	plasmid-related protein
2418	 45.68	+1	2726717..2726878	+	53	197286333	-	PMI2486	-	conjugative transposon protein
2419	 48.81	+1	2727158..2727325	+	55	197286334	-	PMI2487	-	conjugative transposon protein
2420	 49.85	+2	2727430..2728404	+	324	197286335	-	PMI2488	-	plasmid-related protein
2421	 50.00	+2	2728407..2728676	+	89	197286336	-	PMI2489	-	plasmid-related protein
2422	 46.05	+1	2728678..2729919	+	413	197286337	-	PMI2490	-	integrase
2423	 46.15	+1	2729936..2730130	-	64	197286338	-	PMI2491	-	DNA-binding protein
2424	 39.48	0	2731174..2731710	+	178	197286339	-	PMI2492	-	hypothetical protein
2425	 37.13	0	2731700..2732620	+	306	197286340	-	PMI2493	-	hypothetical protein
2426	 31.32	-1	2732932..2733378	-	148	197286341	rimI	PMI2494	-	ribosomal-protein-alanine acetyltransferase
2427	 38.93	0	2733347..2733757	-	136	197286342	holD	PMI2495	-	DNA polymerase III, psi subunit
2428	 40.73	0	2733887..2734900	+	337	197286343	rsmC	PMI2496	-	ribosomal RNA small subunit methyltransferase C
2429	 39.49	0	2735017..2735292	-	91	197286344	-	PMI2497	-	hypothetical protein
2430	 39.78	0	2735464..2736006	-	180	197286345	-	PMI2498	-	acetyltransferase
2431	 42.31	0	2736003..2737640	-	545	197286346	-	PMI2499	-	Na+/Pi-cotransporter
2432	 42.64	0	2738069..2739508	-	479	197286347	phoA	PMI2500	-	alkaline phosphatase precursor
2433	 47.45	+1	2739680..2740912	-	410	197286348	-	PMI2501	-	transposase
2434	 44.72	+1	2740959..2741327	+	122	197286349	-	PMI2502	-	transposase
2435	 41.94	0	2741466..2743010	-	514	197286350	-	PMI2503	-	esterase
2436	 39.30	0	2743195..2744334	-	379	197286351	-	PMI2504	-	hypothetical protein
2437	 37.19	0	2744652..2745896	-	414	197286352	nadR	PMI2505	-	transcriptional regulator
2438	 44.54	0	2745908..2747299	-	463	197286353	radA	PMI2506	-	DNA repair protein
2439	 41.82	0	2747333..2748310	-	325	197286354	serB	PMI2507	-	phosphoserine phosphatase
2440	 39.54	0	2748420..2749112	+	230	197286355	smp	PMI2508	-	hypothetical protein
2441	 40.34	0	2749359..2750900	+	513	197286356	-	PMI2509	-	hypothetical protein
2442	 36.91	0	2750872..2751738	+	288	197286357	-	PMI2510	-	radical SAM superfamily protein
39.69	MEAN

4.91	STD DEV
