IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

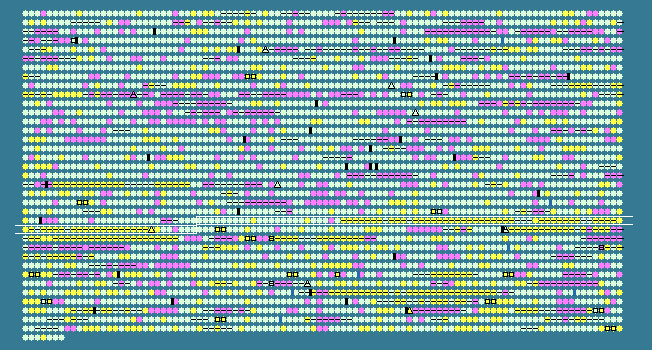

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2330	 38.76	0	2621559..2622755	+	398	197286245	tetAJ	PMI2399	-	tetracycline resistance protein (MFS-family transporter)
2331	 42.16	0	2623022..2623327	-	101	197286246	-	PMI2400	-	phage lysis protein (holin)
2332	 38.31	0	2623819..2624079	+	86	197286247	-	PMI2401	-	hypothetical protein
2333	 42.72	0	2624374..2625438	+	354	197286248	dhaK	PMI2402	-	PTS-dependent dihydroxyacetone kinase, dihydroxyacetone-binding subunit
2334	 41.23	0	2625471..2626103	+	210	197286249	dhaL	PMI2403	-	PTS-dependent dihydroxyacetone kinase, ADP-binding subunit
2335	 40.92	0	2626135..2627583	+	482	197286250	dhaM	PMI2404	-	PTS-dependent dihydroxyacetone kinase, phosphotransferase subunit [includes: phosphocarrier protein Hpr and phosphotransferase enzyme IIa component]
2336	 40.92	0	2627627..2628904	-	425	197286251	pgtA	PMI2405	-	phosphoglycerate transport system transcriptional regulator
2337	 37.61	0	2628882..2631245	-	787	197286252	pgtB	PMI2406	-	phosphoglycerate transport system sensor kinase
2338	 39.39	0	2631315..2632601	-	428	197286253	pgtC	PMI2407	-	phosphoglycerate transport system, substrate-binding/regulatory protein
2339	 45.14	+1	2632914..2634251	+	445	197286254	-	PMI2408	-	MFS-family transporter
2340	 43.11	0	2634314..2635765	+	483	197286255	-	PMI2409	-	pyruvate kinase
2341	 41.57	0	2635986..2636252	+	88	197286256	-	PMI2410	-	zinc-finger
2342	 37.65	0	2636339..2638075	-	578	197286257	-	PMI2411	-	pyridoxal-dependent decarboxylase
2343	 40.11	0	2638876..2640189	-	437	197286258	-	PMI2412	-	Mg(2+)/citrate complex transporter
2344	 39.75	0	2640434..2641150	-	238	197286259	deoD	PMI2413	-	purine nucleoside phosphorylase
2345	 41.56	0	2641229..2642455	-	408	197286260	deoB	PMI2414	-	phosphopentomutase
2346	 42.25	0	2642522..2643844	-	440	197286261	deoA	PMI2415	-	thymidine phosphorylase
2347	 42.44	0	2643914..2644693	-	259	197286262	deoC	PMI2416	-	deoxyribose-phosphate aldolase
2348	 48.85	+1	2644690..2644863	-	57	197286263	-	PMI2417	-	hypothetical protein
2349	 42.70	0	2645217..2646518	-	433	197286264	-	PMI2418	-	Na+ dependent nucleoside transporter
2350	 41.12	0	2646806..2647588	-	260	197286265	-	PMI2419	-	TatD-related deoxyribonuclease
2351	 40.58	0	2647585..2648646	-	353	197286266	-	PMI2420	-	patatin-like phospholipase
2352	 34.77	-1	2648743..2649090	-	115	197286267	-	PMI2421	-	phospholipid-binding protein
2353	 41.51	0	2649499..2651088	-	529	197286268	prfC	PMI2422	-	peptide chain release factor 3
2354	 48.30	+1	2651345..2651992	-	215	197286269	-	PMI2423	-	phage repressor
2355	 49.60	+2	2652110..2652361	+	83	197286270	-	PMI2424	-	phage regulatory protein
2356	 46.55	+1	2652417..2653286	+	289	197286271	-	PMI2425	-	hypothetical protein
2357	 47.45	+1	2653327..2653935	+	202	197286272	-	PMI2426	-	hypothetical protein
2358	 48.45	+1	2653922..2654470	+	182	197286273	-	PMI2427	-	phage transglycosylase
2359	 47.00	+1	2654467..2654766	+	99	197286274	-	PMI2428	-	hypothetical protein
2360	 44.19	0	2654763..2655296	+	177	197286275	-	PMI2429	-	phage regulatory protein
2361	 40.05	0	2655354..2655785	+	143	197286276	-	PMI2430	-	phage membrane protein
2362	 48.49	+1	2655818..2659387	-	1189	197286277	-	PMI2431	-	pilus assembly protein
2363	 47.08	+1	2659391..2660779	-	462	197286278	-	PMI2432	-	pilus assembly protein
2364	 48.36	+1	2660782..2661726	-	314	197286279	-	PMI2433	-	pilus assembly
2365	 41.63	0	2662014..2663906	-	630	197286280	-	PMI2434	-	plasmid-related helicase
2366	 47.12	+1	2663903..2665867	-	654	197286281	-	PMI2435	-	plasmid-related protein
2367	 44.78	+1	2666041..2666241	-	66	197286282	-	PMI2436	-	plasmid-related protein
2368	 45.48	+1	2666375..2667082	-	235	197286283	-	PMI2437	-	plasmid-related protein
2369	 47.58	+1	2667172..2668245	-	357	197286284	-	PMI2438	-	plasmid-related protein
2370	 47.37	+1	2668337..2668678	-	113	197286285	-	PMI2439	-	plasmid-related protein
2371	 47.19	+1	2668678..2669175	-	165	197286286	-	PMI2440	-	plasmid-related DNA repair protein
2372	 49.21	+1	2669258..2670913	-	551	197286287	-	PMI2441	-	plasmid-related protein
2373	 46.94	+1	2670983..2671423	-	146	197286288	-	PMI2442	-	plasmid-related protein
2374	 46.86	+1	2671485..2672438	-	317	197286289	-	PMI2443	-	plasmid-related protein
2375	 46.88	+1	2672537..2673304	-	255	197286290	-	PMI2444	-	plasmid-related protein
2376	 49.90	+2	2673304..2674263	-	319	197286291	-	PMI2445	-	plasmid-related ATPase
2377	 48.18	+1	2674473..2675489	-	338	197286292	-	PMI2446	-	plasmid-related protein
2378	 45.14	+1	2675550..2675693	-	47	197286293	-	PMI2447	-	plasmid-related protein
2379	 47.37	+1	2675777..2676595	-	272	197286294	-	PMI2448	-	phage recombination protein
2380	 48.57	+1	2676675..2677094	-	139	197286295	-	PMI2449	-	plasmid-related single-stranded DNA-binding protein
2381	 46.48	+1	2677110..2677436	-	108	197286296	-	PMI2450	-	plasmid-related protein
2382	 46.93	+1	2677804..2678406	+	200	197286297	-	PMI2451	-	plasmid-related protein
2383	 42.67	0	2678515..2679189	+	224	197286298	-	PMI2452	-	endonuclease precursor
2384	 39.11	0	2679254..2679772	-	172	197286299	-	PMI2453	-	plasmid-related regulatory protein
2385	 38.04	0	2679792..2682065	-	757	197286300	-	PMI2454	-	plasmid-related membrane protein
2386	 53.01	+2	2682075..2682323	-	82	197286301	-	PMI2455	-	plasmid-related glycin-rich membrane protein
2387	 49.88	+2	2682565..2686257	-	1230	197286302	-	PMI2456	-	mating pair stabilization protein
2388	 50.53	+2	2686260..2687288	-	342	197286303	-	PMI2457	-	plasmid pilus assembly
2389	 48.85	+1	2687272..2688399	-	375	197286304	-	PMI2458	-	plasmid pilus assembly protein
2390	 51.27	+2	2688407..2688919	-	170	197286305	-	PMI2459	-	plasmid conjugation signal peptidase
2391	 47.99	+1	2688903..2689250	-	115	197286306	-	PMI2460	-	plasmid-related protein
2392	 49.38	+1	2689243..2691642	-	799	197286307	-	PMI2461	-	plasmid pilus assembly protein
2393	 50.07	+2	2691642..2692334	-	230	197286308	-	PMI2462	-	plasmid-related disulfide bond isomerase
2394	 42.17	0	2692466..2693404	-	312	197286309	-	PMI2463	-	plasmid-related protein
2395	 41.37	0	2693397..2694230	-	277	197286310	-	PMI2464	-	plasmid-related protein
2396	 51.42	+2	2694408..2694794	-	128	197286311	-	PMI2465	-	plasmid-related protein
2397	 48.39	+1	2694791..2695441	-	216	197286312	-	PMI2466	-	plasmid-related protein
2398	 50.85	+2	2695438..2696727	-	429	197286313	-	PMI2467	-	plasmid pilus assembly protein
2399	 49.11	+1	2696730..2697629	-	299	197286314	-	PMI2468	-	plasmid-related protein
2400	 50.40	+2	2697610..2698236	-	208	197286315	-	PMI2469	-	plasmid pilus assembly protein
2401	 51.42	+2	2698233..2698514	-	93	197286316	-	PMI2470	-	plasmid pilus assembly protein
2402	 45.83	+1	2698550..2698789	+	79	197286317	-	PMI2471	-	plasmid-related protein
2403	 41.33	0	2698803..2699390	+	195	197286318	-	PMI2472	-	plasmid-related protein
2404	 47.13	+1	2699417..2700061	-	214	197286319	-	PMI2473	-	plasmid-related protein
2405	 49.38	+1	2700039..2700599	-	186	197286320	-	PMI2474	-	plasmid-related protein
2406	 49.92	+2	2700609..2702429	-	606	197286321	-	PMI2475	-	plasmid conjugative transfer protein
2407	 48.91	+1	2702478..2704628	-	716	197286322	-	PMI2476	-	plasmid conjugative relaxase
2408	 42.84	0	2704877..2707012	-	711	197286323	-	PMI2477	-	DNA helicase
2409	 47.02	+1	2707018..2713440	-	2140	197286324	-	PMI2478	-	DNA helicase
2410	 46.05	+1	2713633..2718603	-	1656	197286325	-	PMI2479	-	plasmid-related protein
2411	 45.61	+1	2718606..2721569	-	987	197286326	-	PMI2480	-	plasmid ATP-dependent helicase
2412	 48.38	+1	2721596..2722519	-	307	197286327	-	PMI2481	-	plasmid-related protein
2413	 52.33	+2	2722837..2723136	-	99	197286328	-	PMI2482	-	plasmid-related protein
2414	 48.90	+1	2723224..2724129	-	301	197286329	-	PMI2483	-	plasmid-related exonuclease
2415	 50.22	+2	2724786..2725235	+	149	197286330	umuD	PMI2484	-	DNA repair protein
2416	 48.46	+1	2725243..2726511	+	422	197286331	umuC	PMI2485	-	DNA repair protein
2417	 49.12	+1	2726550..2726720	+	56	197286332	-	PMI2485A	-	plasmid-related protein
2418	 45.68	+1	2726717..2726878	+	53	197286333	-	PMI2486	-	conjugative transposon protein
2419	 48.81	+1	2727158..2727325	+	55	197286334	-	PMI2487	-	conjugative transposon protein
2420	 49.85	+2	2727430..2728404	+	324	197286335	-	PMI2488	-	plasmid-related protein
2421	 50.00	+2	2728407..2728676	+	89	197286336	-	PMI2489	-	plasmid-related protein
2422	 46.05	+1	2728678..2729919	+	413	197286337	-	PMI2490	-	integrase
2423	 46.15	+1	2729936..2730130	-	64	197286338	-	PMI2491	-	DNA-binding protein
2424	 39.48	0	2731174..2731710	+	178	197286339	-	PMI2492	-	hypothetical protein
2425	 37.13	0	2731700..2732620	+	306	197286340	-	PMI2493	-	hypothetical protein
2426	 31.32	-1	2732932..2733378	-	148	197286341	rimI	PMI2494	-	ribosomal-protein-alanine acetyltransferase
2427	 38.93	0	2733347..2733757	-	136	197286342	holD	PMI2495	-	DNA polymerase III, psi subunit
2428	 40.73	0	2733887..2734900	+	337	197286343	rsmC	PMI2496	-	ribosomal RNA small subunit methyltransferase C
2429	 39.49	0	2735017..2735292	-	91	197286344	-	PMI2497	-	hypothetical protein
39.69	MEAN

4.91	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
