IslandPath Analysis: Proteus mirabilis HI4320

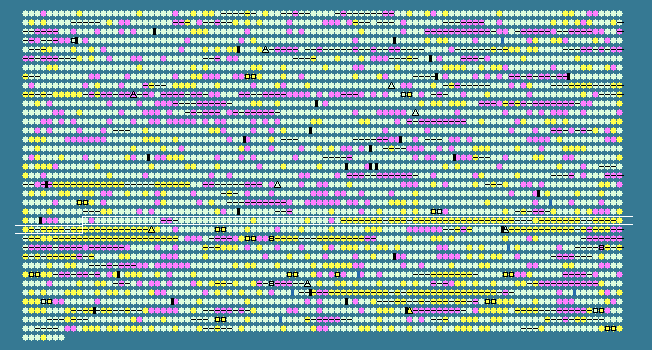

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2311	 38.03	0	2603326..2604858	-	510	197286226	-	PMI2380	-	methyl-accepting chemotaxis protein
2312	 34.48	-1	2605002..2606570	-	522	197286227	-	PMI2381	-	methyl-accepting chemotaxis protein
2313	 38.62	0	2606971..2607651	+	226	197286228	-	PMI2382	-	phosphotransferase/phosphoserine phosphatase
2314	 42.19	0	2607748..2608323	-	191	197286229	terE	PMI2383	-	tellurite resistance protein
2315	 42.66	0	2608400..2608978	-	192	197286230	terD	PMI2384	-	tellurite resistance protein
2316	 41.33	0	2609046..2610071	-	341	197286231	terC	PMI2385	-	tellurite resistance protein
2317	 40.13	0	2610106..2610561	-	151	197286232	terB	PMI2386	-	tellurite resistance protein
2318	 41.38	0	2610586..2611728	-	380	197286233	terA	PMI2387	-	tellurite resistance protein
2319	 39.83	0	2611729..2612313	-	194	197286234	terZ	PMI2388	-	tellurite resistance protein
2320	 40.58	0	2612706..2613851	+	381	197286235	-	PMI2389	-	hypothetical protein
2321	 39.17	0	2613844..2614614	+	256	197286236	-	PMI2390	-	hypothetical protein
2322	 41.04	0	2614617..2615693	+	358	197286237	-	PMI2391	-	hypothetical protein
2323	 39.79	0	2615693..2616637	+	314	197286238	-	PMI2392	-	ATP/GTP-binding protein
2324	 35.04	0	2616912..2617379	+	155	197286239	terW	PMI2393	-	tellurium resistance protein
2325	 34.56	-1	2617514..2617921	-	135	197286240	-	PMI2394	-	TonB-like protein
2326	 39.36	0	2618018..2618731	-	237	197286241	-	PMI2395	-	NUDIX-family hydrolase
2327	 39.63	0	2618884..2619900	+	338	197286242	-	PMI2396	-	hypothetical protein
2328	 38.41	0	2619904..2620848	+	314	197286243	-	PMI2397	-	hypothetical protein
2329	 37.82	0	2620845..2621468	-	207	197286244	tetRJ	PMI2398	-	tetracycline repressor protein
2330	 38.76	0	2621559..2622755	+	398	197286245	tetAJ	PMI2399	-	tetracycline resistance protein (MFS-family transporter)
2331	 42.16	0	2623022..2623327	-	101	197286246	-	PMI2400	-	phage lysis protein (holin)
2332	 38.31	0	2623819..2624079	+	86	197286247	-	PMI2401	-	hypothetical protein
2333	 42.72	0	2624374..2625438	+	354	197286248	dhaK	PMI2402	-	PTS-dependent dihydroxyacetone kinase, dihydroxyacetone-binding subunit
2334	 41.23	0	2625471..2626103	+	210	197286249	dhaL	PMI2403	-	PTS-dependent dihydroxyacetone kinase, ADP-binding subunit
2335	 40.92	0	2626135..2627583	+	482	197286250	dhaM	PMI2404	-	PTS-dependent dihydroxyacetone kinase, phosphotransferase subunit [includes: phosphocarrier protein Hpr and phosphotransferase enzyme IIa component]
2336	 40.92	0	2627627..2628904	-	425	197286251	pgtA	PMI2405	-	phosphoglycerate transport system transcriptional regulator
2337	 37.61	0	2628882..2631245	-	787	197286252	pgtB	PMI2406	-	phosphoglycerate transport system sensor kinase
2338	 39.39	0	2631315..2632601	-	428	197286253	pgtC	PMI2407	-	phosphoglycerate transport system, substrate-binding/regulatory protein
2339	 45.14	+1	2632914..2634251	+	445	197286254	-	PMI2408	-	MFS-family transporter
2340	 43.11	0	2634314..2635765	+	483	197286255	-	PMI2409	-	pyruvate kinase
2341	 41.57	0	2635986..2636252	+	88	197286256	-	PMI2410	-	zinc-finger
2342	 37.65	0	2636339..2638075	-	578	197286257	-	PMI2411	-	pyridoxal-dependent decarboxylase
2343	 40.11	0	2638876..2640189	-	437	197286258	-	PMI2412	-	Mg(2+)/citrate complex transporter
2344	 39.75	0	2640434..2641150	-	238	197286259	deoD	PMI2413	-	purine nucleoside phosphorylase
2345	 41.56	0	2641229..2642455	-	408	197286260	deoB	PMI2414	-	phosphopentomutase
2346	 42.25	0	2642522..2643844	-	440	197286261	deoA	PMI2415	-	thymidine phosphorylase
2347	 42.44	0	2643914..2644693	-	259	197286262	deoC	PMI2416	-	deoxyribose-phosphate aldolase
2348	 48.85	+1	2644690..2644863	-	57	197286263	-	PMI2417	-	hypothetical protein
2349	 42.70	0	2645217..2646518	-	433	197286264	-	PMI2418	-	Na+ dependent nucleoside transporter
2350	 41.12	0	2646806..2647588	-	260	197286265	-	PMI2419	-	TatD-related deoxyribonuclease
2351	 40.58	0	2647585..2648646	-	353	197286266	-	PMI2420	-	patatin-like phospholipase
2352	 34.77	-1	2648743..2649090	-	115	197286267	-	PMI2421	-	phospholipid-binding protein
2353	 41.51	0	2649499..2651088	-	529	197286268	prfC	PMI2422	-	peptide chain release factor 3
2354	 48.30	+1	2651345..2651992	-	215	197286269	-	PMI2423	-	phage repressor
2355	 49.60	+2	2652110..2652361	+	83	197286270	-	PMI2424	-	phage regulatory protein
2356	 46.55	+1	2652417..2653286	+	289	197286271	-	PMI2425	-	hypothetical protein
2357	 47.45	+1	2653327..2653935	+	202	197286272	-	PMI2426	-	hypothetical protein
2358	 48.45	+1	2653922..2654470	+	182	197286273	-	PMI2427	-	phage transglycosylase
2359	 47.00	+1	2654467..2654766	+	99	197286274	-	PMI2428	-	hypothetical protein
2360	 44.19	0	2654763..2655296	+	177	197286275	-	PMI2429	-	phage regulatory protein
2361	 40.05	0	2655354..2655785	+	143	197286276	-	PMI2430	-	phage membrane protein
2362	 48.49	+1	2655818..2659387	-	1189	197286277	-	PMI2431	-	pilus assembly protein
2363	 47.08	+1	2659391..2660779	-	462	197286278	-	PMI2432	-	pilus assembly protein
2364	 48.36	+1	2660782..2661726	-	314	197286279	-	PMI2433	-	pilus assembly
2365	 41.63	0	2662014..2663906	-	630	197286280	-	PMI2434	-	plasmid-related helicase
2366	 47.12	+1	2663903..2665867	-	654	197286281	-	PMI2435	-	plasmid-related protein
2367	 44.78	+1	2666041..2666241	-	66	197286282	-	PMI2436	-	plasmid-related protein
2368	 45.48	+1	2666375..2667082	-	235	197286283	-	PMI2437	-	plasmid-related protein
2369	 47.58	+1	2667172..2668245	-	357	197286284	-	PMI2438	-	plasmid-related protein
2370	 47.37	+1	2668337..2668678	-	113	197286285	-	PMI2439	-	plasmid-related protein
2371	 47.19	+1	2668678..2669175	-	165	197286286	-	PMI2440	-	plasmid-related DNA repair protein
2372	 49.21	+1	2669258..2670913	-	551	197286287	-	PMI2441	-	plasmid-related protein
2373	 46.94	+1	2670983..2671423	-	146	197286288	-	PMI2442	-	plasmid-related protein
2374	 46.86	+1	2671485..2672438	-	317	197286289	-	PMI2443	-	plasmid-related protein
2375	 46.88	+1	2672537..2673304	-	255	197286290	-	PMI2444	-	plasmid-related protein
2376	 49.90	+2	2673304..2674263	-	319	197286291	-	PMI2445	-	plasmid-related ATPase
2377	 48.18	+1	2674473..2675489	-	338	197286292	-	PMI2446	-	plasmid-related protein
2378	 45.14	+1	2675550..2675693	-	47	197286293	-	PMI2447	-	plasmid-related protein
2379	 47.37	+1	2675777..2676595	-	272	197286294	-	PMI2448	-	phage recombination protein
2380	 48.57	+1	2676675..2677094	-	139	197286295	-	PMI2449	-	plasmid-related single-stranded DNA-binding protein
2381	 46.48	+1	2677110..2677436	-	108	197286296	-	PMI2450	-	plasmid-related protein
2382	 46.93	+1	2677804..2678406	+	200	197286297	-	PMI2451	-	plasmid-related protein
2383	 42.67	0	2678515..2679189	+	224	197286298	-	PMI2452	-	endonuclease precursor
2384	 39.11	0	2679254..2679772	-	172	197286299	-	PMI2453	-	plasmid-related regulatory protein
2385	 38.04	0	2679792..2682065	-	757	197286300	-	PMI2454	-	plasmid-related membrane protein
2386	 53.01	+2	2682075..2682323	-	82	197286301	-	PMI2455	-	plasmid-related glycin-rich membrane protein
2387	 49.88	+2	2682565..2686257	-	1230	197286302	-	PMI2456	-	mating pair stabilization protein
2388	 50.53	+2	2686260..2687288	-	342	197286303	-	PMI2457	-	plasmid pilus assembly
2389	 48.85	+1	2687272..2688399	-	375	197286304	-	PMI2458	-	plasmid pilus assembly protein
2390	 51.27	+2	2688407..2688919	-	170	197286305	-	PMI2459	-	plasmid conjugation signal peptidase
2391	 47.99	+1	2688903..2689250	-	115	197286306	-	PMI2460	-	plasmid-related protein
2392	 49.38	+1	2689243..2691642	-	799	197286307	-	PMI2461	-	plasmid pilus assembly protein
2393	 50.07	+2	2691642..2692334	-	230	197286308	-	PMI2462	-	plasmid-related disulfide bond isomerase
2394	 42.17	0	2692466..2693404	-	312	197286309	-	PMI2463	-	plasmid-related protein
2395	 41.37	0	2693397..2694230	-	277	197286310	-	PMI2464	-	plasmid-related protein
2396	 51.42	+2	2694408..2694794	-	128	197286311	-	PMI2465	-	plasmid-related protein
2397	 48.39	+1	2694791..2695441	-	216	197286312	-	PMI2466	-	plasmid-related protein
2398	 50.85	+2	2695438..2696727	-	429	197286313	-	PMI2467	-	plasmid pilus assembly protein
2399	 49.11	+1	2696730..2697629	-	299	197286314	-	PMI2468	-	plasmid-related protein
2400	 50.40	+2	2697610..2698236	-	208	197286315	-	PMI2469	-	plasmid pilus assembly protein
2401	 51.42	+2	2698233..2698514	-	93	197286316	-	PMI2470	-	plasmid pilus assembly protein
2402	 45.83	+1	2698550..2698789	+	79	197286317	-	PMI2471	-	plasmid-related protein
2403	 41.33	0	2698803..2699390	+	195	197286318	-	PMI2472	-	plasmid-related protein
2404	 47.13	+1	2699417..2700061	-	214	197286319	-	PMI2473	-	plasmid-related protein
2405	 49.38	+1	2700039..2700599	-	186	197286320	-	PMI2474	-	plasmid-related protein
2406	 49.92	+2	2700609..2702429	-	606	197286321	-	PMI2475	-	plasmid conjugative transfer protein
2407	 48.91	+1	2702478..2704628	-	716	197286322	-	PMI2476	-	plasmid conjugative relaxase
2408	 42.84	0	2704877..2707012	-	711	197286323	-	PMI2477	-	DNA helicase
2409	 47.02	+1	2707018..2713440	-	2140	197286324	-	PMI2478	-	DNA helicase
2410	 46.05	+1	2713633..2718603	-	1656	197286325	-	PMI2479	-	plasmid-related protein
39.69	MEAN

4.91	STD DEV
