IslandPath Analysis: Proteus mirabilis HI4320

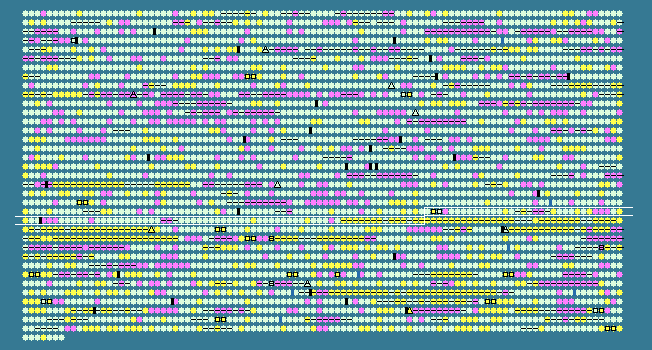

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2268	 37.65	0	2549655..2550140	-	161	197286183	folA	PMI2337	-	dihydrofolate reductase
2269	 47.23	+1	2550554..2551762	-	402	197286184	-	PMI2338	-	transposase
2270	 42.38	0	2551785..2552204	+	139	197286185	-	PMI2339	-	transposase
2271	 22.78	-2	2552268..2553461	-	397	197286186	-	PMI2340	-	hypothetical protein
2272	 39.78	0	2553568..2556822	-	1084	197286187	-	PMI2341	-	autotransporter (serine protease)
2273	 42.55	0	2557281..2558702	-	473	197286188	sufI	PMI2342	-	multicopper oxidase (suppressor of ftsI)
2274	 39.07	0	2559057..2559806	-	249	197286189	plsC	PMI2343	-	1-acyl-glycerol-3-phosphate acyltransferase
2275	 41.21	0	2559871..2562828	-	985	197286190	parC	PMI2344	-	DNA topoisomerase IV subunit A
2276	 42.77	0	2562862..2564757	-	631	197286191	parE	PMI2345	-	DNA topoisomerase IV subunit B
2277	 39.42	0	2564865..2565455	-	196	197286192	-	PMI2346	-	hypothetical protein
2278	 40.12	0	2565459..2566298	-	279	197286193	icc	PMI2347	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
2279	 43.02	0	2566530..2567159	-	209	197286194	nudF	PMI2348	-	ADP-ribose pyrophosphatase
2280	 40.20	0	2567373..2568770	+	465	197286195	tolC	PMI2349	-	outer membrane protein TolC precursor
2281	 47.60	+1	2569099..2569827	+	242	197286196	-	PMI2350	-	lipoprotein
2282	 40.89	0	2569835..2570998	+	387	197286197	-	PMI2351	-	glutathionylspermidine synthase
2283	 37.91	0	2571138..2571923	-	261	197286198	-	PMI2352	-	aromatic ring-opening dioxygenase
2284	 46.02	+1	2572099..2572752	-	217	197286199	ribB	PMI2353	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
2285	 38.10	0	2573238..2573552	+	104	197286200	-	PMI2354	-	hypothetical protein
2286	 24.77	-2	2573613..2574920	-	435	197286201	-	PMI2355	-	hypothetical protein
2287	 21.07	-2	2574920..2575873	-	317	197286202	-	PMI2356	-	reverse transcriptase
2288	 36.41	0	2575851..2576045	-	64	197286203	-	PMI2357	-	hypothetical protein
2289	 44.07	0	2576084..2577508	-	474	197286204	rfaE	PMI2358	-	bifunctional protein HldE [includes: D-beta-D-heptose 7-phosphate kinase and D-beta-D-heptose 1-phosphate adenosyltransferase]
2290	 41.41	0	2577609..2580443	-	944	197286205	glnE	PMI2359	-	glutamate-ammonia-ligase adenylyltransferase
2291	 41.99	0	2580468..2581391	-	307	197286206	-	PMI2360	-	adenylate cyclase-like protein
2292	 40.74	0	2581611..2582231	+	206	197286207	-	PMI2361	-	hypothetical protein
2293	 45.02	+1	2582259..2583482	+	407	197286208	cca	PMI2362	-	multifunctional Cca protein [includes: tRNA nucleotidyltransferase; 2'-nucleotidase and 2',3'-cyclic phosphodiesterase]
2294	 40.74	0	2583502..2583852	-	116	197286209	folB	PMI2363	-	dihydroneopterin aldolase
2295	 44.29	0	2583957..2584613	+	218	197286210	-	PMI2364	-	hypothetical protein
2296	 34.91	0	2584983..2585681	+	232	197286211	-	PMI2365	-	demethylmenaquinone methyltransferase
2297	 30.29	-1	2585701..2586225	+	174	197286212	-	PMI2366	-	hypothetical protein
2298	 35.09	0	2586296..2586694	+	132	197286213	-	PMI2367	-	hypothetical protein
2299	 37.88	0	2586754..2588160	+	468	197286214	aroH	PMI2368	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2300	 46.63	+1	2588230..2589252	-	340	197286215	gcp	PMI2369	-	O-sialoglycoprotein endopeptidase
2301	 44.44	0	2589595..2589810	+	71	197286216	rpsU	PMI2370	-	30S ribosomal subunit protein S21
2302	 41.22	0	2589924..2591672	+	582	197286217	dnaG	PMI2371	-	DNA primase
2303	 42.81	0	2591863..2593719	+	618	197286218	rpoD	PMI2372	-	RNA polymerase sigma-70 factor
2304	 32.28	-1	2594655..2595410	+	251	197286219	-	PMI2373	-	DNA-binding protein
2305	 34.10	-1	2595666..2596583	+	305	197286220	-	PMI2374	-	hypothetical protein
2306	 30.00	-1	2596665..2596844	-	59	197286221	-	PMI2375	-	hypothetical protein
2307	 38.49	0	2596822..2597829	-	335	197286222	-	PMI2376	-	cytochrome bd ubiquinol oxidase subunit II
2308	 39.25	0	2597829..2599181	-	450	197286223	-	PMI2377	-	cytochrome bd ubiquinol oxidase, subunit I
2309	 41.16	0	2599844..2602129	+	761	197286224	cbbbC	PMI2378	-	probable molybdopterin-containing oxidoreductase
2310	 37.89	0	2602202..2603101	-	299	197286225	-	PMI2379	-	LysR-family transcriptional regulator
2311	 38.03	0	2603326..2604858	-	510	197286226	-	PMI2380	-	methyl-accepting chemotaxis protein
2312	 34.48	-1	2605002..2606570	-	522	197286227	-	PMI2381	-	methyl-accepting chemotaxis protein
2313	 38.62	0	2606971..2607651	+	226	197286228	-	PMI2382	-	phosphotransferase/phosphoserine phosphatase
2314	 42.19	0	2607748..2608323	-	191	197286229	terE	PMI2383	-	tellurite resistance protein
2315	 42.66	0	2608400..2608978	-	192	197286230	terD	PMI2384	-	tellurite resistance protein
2316	 41.33	0	2609046..2610071	-	341	197286231	terC	PMI2385	-	tellurite resistance protein
2317	 40.13	0	2610106..2610561	-	151	197286232	terB	PMI2386	-	tellurite resistance protein
2318	 41.38	0	2610586..2611728	-	380	197286233	terA	PMI2387	-	tellurite resistance protein
2319	 39.83	0	2611729..2612313	-	194	197286234	terZ	PMI2388	-	tellurite resistance protein
2320	 40.58	0	2612706..2613851	+	381	197286235	-	PMI2389	-	hypothetical protein
2321	 39.17	0	2613844..2614614	+	256	197286236	-	PMI2390	-	hypothetical protein
2322	 41.04	0	2614617..2615693	+	358	197286237	-	PMI2391	-	hypothetical protein
2323	 39.79	0	2615693..2616637	+	314	197286238	-	PMI2392	-	ATP/GTP-binding protein
2324	 35.04	0	2616912..2617379	+	155	197286239	terW	PMI2393	-	tellurium resistance protein
2325	 34.56	-1	2617514..2617921	-	135	197286240	-	PMI2394	-	TonB-like protein
2326	 39.36	0	2618018..2618731	-	237	197286241	-	PMI2395	-	NUDIX-family hydrolase
2327	 39.63	0	2618884..2619900	+	338	197286242	-	PMI2396	-	hypothetical protein
2328	 38.41	0	2619904..2620848	+	314	197286243	-	PMI2397	-	hypothetical protein
2329	 37.82	0	2620845..2621468	-	207	197286244	tetRJ	PMI2398	-	tetracycline repressor protein
2330	 38.76	0	2621559..2622755	+	398	197286245	tetAJ	PMI2399	-	tetracycline resistance protein (MFS-family transporter)
2331	 42.16	0	2623022..2623327	-	101	197286246	-	PMI2400	-	phage lysis protein (holin)
2332	 38.31	0	2623819..2624079	+	86	197286247	-	PMI2401	-	hypothetical protein
2333	 42.72	0	2624374..2625438	+	354	197286248	dhaK	PMI2402	-	PTS-dependent dihydroxyacetone kinase, dihydroxyacetone-binding subunit
2334	 41.23	0	2625471..2626103	+	210	197286249	dhaL	PMI2403	-	PTS-dependent dihydroxyacetone kinase, ADP-binding subunit
2335	 40.92	0	2626135..2627583	+	482	197286250	dhaM	PMI2404	-	PTS-dependent dihydroxyacetone kinase, phosphotransferase subunit [includes: phosphocarrier protein Hpr and phosphotransferase enzyme IIa component]
2336	 40.92	0	2627627..2628904	-	425	197286251	pgtA	PMI2405	-	phosphoglycerate transport system transcriptional regulator
2337	 37.61	0	2628882..2631245	-	787	197286252	pgtB	PMI2406	-	phosphoglycerate transport system sensor kinase
2338	 39.39	0	2631315..2632601	-	428	197286253	pgtC	PMI2407	-	phosphoglycerate transport system, substrate-binding/regulatory protein
2339	 45.14	+1	2632914..2634251	+	445	197286254	-	PMI2408	-	MFS-family transporter
2340	 43.11	0	2634314..2635765	+	483	197286255	-	PMI2409	-	pyruvate kinase
2341	 41.57	0	2635986..2636252	+	88	197286256	-	PMI2410	-	zinc-finger
2342	 37.65	0	2636339..2638075	-	578	197286257	-	PMI2411	-	pyridoxal-dependent decarboxylase
2343	 40.11	0	2638876..2640189	-	437	197286258	-	PMI2412	-	Mg(2+)/citrate complex transporter
2344	 39.75	0	2640434..2641150	-	238	197286259	deoD	PMI2413	-	purine nucleoside phosphorylase
2345	 41.56	0	2641229..2642455	-	408	197286260	deoB	PMI2414	-	phosphopentomutase
2346	 42.25	0	2642522..2643844	-	440	197286261	deoA	PMI2415	-	thymidine phosphorylase
2347	 42.44	0	2643914..2644693	-	259	197286262	deoC	PMI2416	-	deoxyribose-phosphate aldolase
2348	 48.85	+1	2644690..2644863	-	57	197286263	-	PMI2417	-	hypothetical protein
2349	 42.70	0	2645217..2646518	-	433	197286264	-	PMI2418	-	Na+ dependent nucleoside transporter
2350	 41.12	0	2646806..2647588	-	260	197286265	-	PMI2419	-	TatD-related deoxyribonuclease
2351	 40.58	0	2647585..2648646	-	353	197286266	-	PMI2420	-	patatin-like phospholipase
2352	 34.77	-1	2648743..2649090	-	115	197286267	-	PMI2421	-	phospholipid-binding protein
2353	 41.51	0	2649499..2651088	-	529	197286268	prfC	PMI2422	-	peptide chain release factor 3
2354	 48.30	+1	2651345..2651992	-	215	197286269	-	PMI2423	-	phage repressor
2355	 49.60	+2	2652110..2652361	+	83	197286270	-	PMI2424	-	phage regulatory protein
2356	 46.55	+1	2652417..2653286	+	289	197286271	-	PMI2425	-	hypothetical protein
2357	 47.45	+1	2653327..2653935	+	202	197286272	-	PMI2426	-	hypothetical protein
2358	 48.45	+1	2653922..2654470	+	182	197286273	-	PMI2427	-	phage transglycosylase
2359	 47.00	+1	2654467..2654766	+	99	197286274	-	PMI2428	-	hypothetical protein
2360	 44.19	0	2654763..2655296	+	177	197286275	-	PMI2429	-	phage regulatory protein
2361	 40.05	0	2655354..2655785	+	143	197286276	-	PMI2430	-	phage membrane protein
2362	 48.49	+1	2655818..2659387	-	1189	197286277	-	PMI2431	-	pilus assembly protein
2363	 47.08	+1	2659391..2660779	-	462	197286278	-	PMI2432	-	pilus assembly protein
2364	 48.36	+1	2660782..2661726	-	314	197286279	-	PMI2433	-	pilus assembly
2365	 41.63	0	2662014..2663906	-	630	197286280	-	PMI2434	-	plasmid-related helicase
2366	 47.12	+1	2663903..2665867	-	654	197286281	-	PMI2435	-	plasmid-related protein
2367	 44.78	+1	2666041..2666241	-	66	197286282	-	PMI2436	-	plasmid-related protein
39.69	MEAN

4.91	STD DEV
