IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

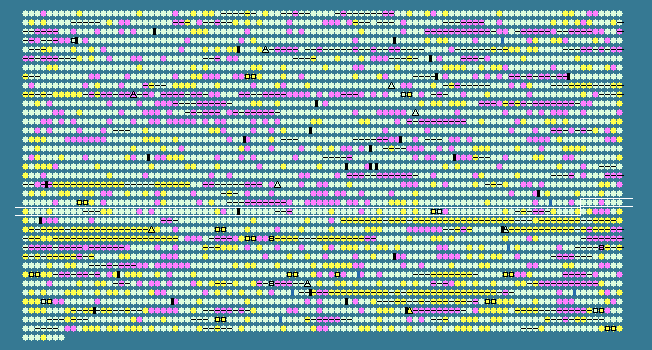

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2194	 41.53	0	2458340..2459047	+	235	197286109	-	PMI2263	-	hypothetical protein
2195	 41.61	0	2459222..2460937	+	571	197286110	proS	PMI2264	-	prolyl-tRNA synthetase
2196	 39.06	0	2461055..2461735	-	226	197286111	cutF	PMI2265	-	copper homeostasis lipoprotein
2197	 32.95	-1	2461997..2462257	+	86	197286112	rof	PMI2266	-	Rho-binding antiterminator
2198	 40.20	0	2462294..2463619	-	441	197286113	tilS	PMI2267	-	tRNA(Ile)-lysidine synthase
2199	 40.19	0	2463794..2464537	-	247	197286114	-	PMI2268	-	short chain dehydrogenase
2200	 41.46	0	2464834..2465793	-	319	197286115	accA	PMI2269	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2201	 43.41	0	2465806..2469288	-	1160	197286116	dnaE	PMI2270	-	DNA polymerase III, alpha chain
2202	 43.15	0	2469311..2469901	-	196	197286117	rnhB	PMI2271	-	ribonuclease HII
2203	 42.37	0	2469901..2471073	-	390	197286118	lpxB	PMI2272	-	lipid-A-disaccharide synthase
2204	 40.55	0	2471081..2471884	-	267	197286119	lpxA	PMI2273	-	acyl-[acyl-carrier-protein]--UDP-N-acetylglucos amine O-acyltransferase
2205	 43.49	0	2471888..2472340	-	150	197286120	fabZ	PMI2274	-	(3R)-hydroxymyristoyl-[acyl carrier protein] dehydratase
2206	 42.66	0	2472467..2473495	-	342	197286121	lpxD	PMI2275	-	UDP-3-o-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2207	 39.76	0	2473499..2473996	-	165	197286122	ompH	PMI2276	-	outer membrane protein
2208	 41.05	0	2474089..2476497	-	802	197286123	yaeT	PMI2277	-	outer membrane protein assembly factor
2209	 42.50	0	2476538..2477890	-	450	197286124	ecfE	PMI2278	-	protease
2210	 42.82	0	2477900..2478763	-	287	197286125	cdsA	PMI2279	-	phosphatidate cytidylyltransferase
2211	 40.18	0	2478765..2479523	-	252	197286126	uppS	PMI2280	-	undecaprenyl pyrophosphate synthetase
2212	 41.37	0	2479749..2480942	-	397	197286127	dxr	PMI2281	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2213	 39.07	0	2481133..2481690	-	185	197286128	frr	PMI2282	-	ribosome recycling factor
2214	 44.86	+1	2481807..2482535	-	242	197286129	pyrH	PMI2283	-	uridylate kinase
2215	 44.37	0	2482671..2483522	-	283	197286130	tsf	PMI2284	-	elongation factor Ts
2216	 43.11	0	2483658..2484383	-	241	197286131	rpsB	PMI2285	-	30S ribosomal protein S2
2217	 40.73	0	2484902..2485699	+	265	197286132	map2	PMI2286	-	methionine aminopeptidase
2218	 40.59	0	2485854..2488499	+	881	197286133	glnD	PMI2287	-	[protein-PII] uridylyltransferase
2219	 40.61	0	2488534..2489358	+	274	197286134	dapD	PMI2288	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2220	 32.30	-1	2489428..2489814	+	128	197286135	-	PMI2289	-	hypothetical protein
2221	 38.06	0	2489934..2490377	-	147	197286136	-	PMI2290	-	flavodoxin
2222	 22.33	-2	2490449..2491939	-	496	197286137	-	PMI2291	-	hypothetical protein
2223	 41.27	0	2492061..2493509	-	482	197286138	ptsG	PMI2292	-	glucose-specific PTS system, EIIBC component
2224	 42.44	0	2493792..2494571	-	259	197286139	truC	PMI2293	-	tRNA pseudouridine synthase C
2225	 40.12	0	2494580..2494903	-	107	197286140	-	PMI2294	-	hypothetical protein
2226	 36.43	0	2495377..2495925	-	182	197286141	syd	PMI2295	-	SecY-interacting protein
2227	 39.36	0	2496089..2496934	+	281	197286142	queF	PMI2296	-	NADPH-dependent 7-cyano-7-deazaguanine reductase
2228	 42.32	0	2497026..2498393	+	455	197286143	-	PMI2297	-	amino acid decarboxylase
2229	 41.87	0	2498400..2499149	+	249	197286144	xni	PMI2298	-	exodeoxyribonuclease IX
2230	 40.53	0	2499238..2500335	-	365	197286145	-	PMI2299	-	hypothetical protein
2231	 38.13	0	2500328..2500723	-	131	197286146	-	PMI2300	-	hypothetical protein
2232	 39.96	0	2500767..2501687	-	306	197286147	gcvA	PMI2301	-	glycine cleavage system transcriptional activator (LysR-family transcriptional regulator)
2233	 43.21	0	2502339..2503553	+	404	197286148	csdA	PMI2302	-	cysteine sulfinate desulfinase
2234	 35.81	0	2503556..2503999	+	147	197286149	-	PMI2303	-	cysteine desulfuration protein
2235	 42.64	0	2504070..2504918	-	282	197286150	-	PMI2304	-	hypothetical protein
2236	 40.37	0	2505027..2506121	-	364	197286151	mltA	PMI2305	-	membrane-bound lytic murein transglycosylase
2237	 42.36	0	2506876..2508138	-	420	197286152	amiC	PMI2306	-	N-acetylmuramoyl-L-alanine amidase AmiC precursor
2238	 41.27	0	2508383..2509717	+	444	197286153	argA	PMI2307	-	amino-acid acetyltransferase
2239	 42.31	0	2509816..2511732	-	638	197286154	recD	PMI2308	-	exodeoxyribonuclease V alpha chain
2240	 41.33	0	2511725..2515363	-	1212	197286155	recB	PMI2309	-	exodeoxyribonuclease V beta chain
2241	 38.35	0	2515360..2518248	-	962	197286156	ptrA	PMI2310	-	protease III precursor
2242	 39.85	0	2518264..2521641	-	1125	197286157	recC	PMI2311	-	exodeoxyribonuclease V gamma chain
2243	 37.19	0	2521657..2521941	-	94	197286158	-	PMI2312	-	hypothetical protein
2244	 40.09	0	2521982..2522440	-	152	197286159	-	PMI2313	-	hypothetical protein
2245	 34.74	-1	2522437..2523075	-	212	197286160	ppdB	PMI2314	-	prepilin peptidase dependent protein B precursor
2246	 38.33	0	2523069..2523548	-	159	197286161	ppdA	PMI2315	-	prepilin peptidase dependent protein A precursor
2247	 40.97	0	2523778..2524707	-	309	197286162	-	PMI2316	-	hypothetical protein
2248	 42.13	0	2524700..2525233	-	177	197286163	-	PMI2317	-	hypothetical protein
2249	 40.38	0	2525410..2526261	-	283	197286164	thyA	PMI2318	-	thymidylate synthase
2250	 42.26	0	2526293..2527177	-	294	197286165	lgt	PMI2319	-	prolipoprotein diacylglyceryl transferase
2251	 41.92	0	2527264..2529510	-	748	197286166	ptsP	PMI2320	-	phosphoenolpyruvate-protein phosphotransferase
2252	 44.63	+1	2529519..2530049	-	176	197286167	nudH	PMI2321	-	(di)nucleoside polyphosphate hydrolase
2253	 41.42	0	2530319..2531332	+	337	197286168	thiB	PMI2322	-	thiamine ABC transporter, substrate-binding protein
2254	 41.62	0	2531332..2532912	+	526	197286169	thiP	PMI2323	-	thiamine ABC transporter, permease protein
2255	 41.17	0	2532905..2533606	+	233	197286170	thiQ	PMI2324	-	thiamine ABC transporter, ATP-binding protein
2256	 36.64	0	2533734..2534186	+	150	197286171	-	PMI2325	-	POSSIBLE EXCISIONASE
2257	 36.14	0	2534186..2534755	+	189	197286172	-	PMI2326	-	hypothetical protein
2258	 41.36	0	2534871..2537225	+	784	197286173	polB	PMI2327	-	DNA polymerase II
2259	 42.11	0	2537417..2540320	+	967	197286174	rapA	PMI2328	-	RNA polymerase-associated protein
2260	 43.63	0	2540382..2541032	+	216	197286175	rluA	PMI2329	-	ribosomal large subunit pseudouridine synthase A
2261	 40.95	0	2541277..2542077	-	266	197286176	djlA	PMI2330	-	DnaJ-like chaperone protein
2262	 41.32	0	2542503..2544869	+	788	197286177	imp	PMI2331	-	organic solvent tolerance protein
2263	 41.57	0	2544944..2546254	+	436	197286178	surA	PMI2332	-	chaperone SurA protein (peptidyl-prolyl cis-trans isomerase)
2264	 45.31	+1	2546244..2547245	+	333	197286179	pdxA	PMI2333	-	4-hydroxythreonine-4-phosphate dehydrogenase
2265	 42.49	0	2547238..2548056	+	272	197286180	ksgA	PMI2334	-	dimethyladenosine transferase
2266	 43.39	0	2548086..2548463	+	125	197286181	apaG	PMI2335	-	hypothetical protein
2267	 41.12	0	2548466..2549287	+	273	197286182	apaH	PMI2336	-	bis(5'-nucleosyl)-tetraphosphatase
2268	 37.65	0	2549655..2550140	-	161	197286183	folA	PMI2337	-	dihydrofolate reductase
2269	 47.23	+1	2550554..2551762	-	402	197286184	-	PMI2338	-	transposase
2270	 42.38	0	2551785..2552204	+	139	197286185	-	PMI2339	-	transposase
2271	 22.78	-2	2552268..2553461	-	397	197286186	-	PMI2340	-	hypothetical protein
2272	 39.78	0	2553568..2556822	-	1084	197286187	-	PMI2341	-	autotransporter (serine protease)
2273	 42.55	0	2557281..2558702	-	473	197286188	sufI	PMI2342	-	multicopper oxidase (suppressor of ftsI)
2274	 39.07	0	2559057..2559806	-	249	197286189	plsC	PMI2343	-	1-acyl-glycerol-3-phosphate acyltransferase
2275	 41.21	0	2559871..2562828	-	985	197286190	parC	PMI2344	-	DNA topoisomerase IV subunit A
2276	 42.77	0	2562862..2564757	-	631	197286191	parE	PMI2345	-	DNA topoisomerase IV subunit B
2277	 39.42	0	2564865..2565455	-	196	197286192	-	PMI2346	-	hypothetical protein
2278	 40.12	0	2565459..2566298	-	279	197286193	icc	PMI2347	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
2279	 43.02	0	2566530..2567159	-	209	197286194	nudF	PMI2348	-	ADP-ribose pyrophosphatase
2280	 40.20	0	2567373..2568770	+	465	197286195	tolC	PMI2349	-	outer membrane protein TolC precursor
2281	 47.60	+1	2569099..2569827	+	242	197286196	-	PMI2350	-	lipoprotein
2282	 40.89	0	2569835..2570998	+	387	197286197	-	PMI2351	-	glutathionylspermidine synthase
2283	 37.91	0	2571138..2571923	-	261	197286198	-	PMI2352	-	aromatic ring-opening dioxygenase
2284	 46.02	+1	2572099..2572752	-	217	197286199	ribB	PMI2353	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
2285	 38.10	0	2573238..2573552	+	104	197286200	-	PMI2354	-	hypothetical protein
2286	 24.77	-2	2573613..2574920	-	435	197286201	-	PMI2355	-	hypothetical protein
2287	 21.07	-2	2574920..2575873	-	317	197286202	-	PMI2356	-	reverse transcriptase
2288	 36.41	0	2575851..2576045	-	64	197286203	-	PMI2357	-	hypothetical protein
2289	 44.07	0	2576084..2577508	-	474	197286204	rfaE	PMI2358	-	bifunctional protein HldE [includes: D-beta-D-heptose 7-phosphate kinase and D-beta-D-heptose 1-phosphate adenosyltransferase]
2290	 41.41	0	2577609..2580443	-	944	197286205	glnE	PMI2359	-	glutamate-ammonia-ligase adenylyltransferase
2291	 41.99	0	2580468..2581391	-	307	197286206	-	PMI2360	-	adenylate cyclase-like protein
2292	 40.74	0	2581611..2582231	+	206	197286207	-	PMI2361	-	hypothetical protein
2293	 45.02	+1	2582259..2583482	+	407	197286208	cca	PMI2362	-	multifunctional Cca protein [includes: tRNA nucleotidyltransferase; 2'-nucleotidase and 2',3'-cyclic phosphodiesterase]
39.69	MEAN

4.91	STD DEV
