IslandPath Analysis: Proteus mirabilis HI4320

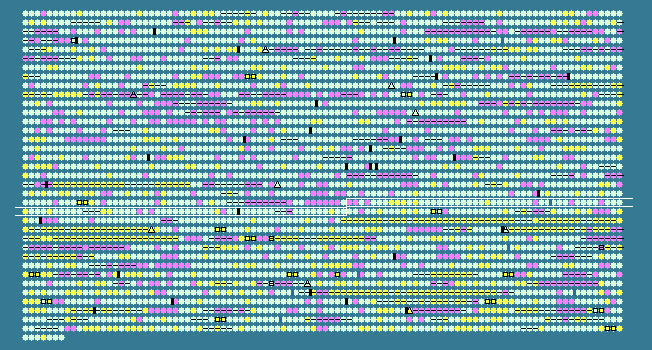

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2155	 28.48	-2	2412726..2413034	-	102	197286070	-	PMI2224	-	fimbrial operon regulator
2156	 34.67	-1	2413793..2414617	-	274	197286071	-	PMI2225	-	metal-dependent phosphoesterase
2157	 37.35	0	2414701..2416590	-	629	197286072	-	PMI2226	-	PTS system, IIabc component
2158	 29.36	-2	2416698..2417552	-	284	197286073	-	PMI2227	-	transcriptional antiterminator
2159	 39.95	0	2417975..2418412	+	145	197286074	-	PMI2228	-	acetyltransferase
2160	 42.72	0	2418922..2419539	+	205	197286075	-	PMI2229	-	cell filamentation protein
2161	 43.03	0	2419536..2419700	-	54	197286076	-	PMI2230	-	hypothetical protein
2162	 51.72	+2	2419966..2420922	-	318	197286077	-	PMI2231	-	transport protein
2163	 47.11	+1	2420922..2421509	-	195	197286078	-	PMI2232	-	TetR-family transcriptional regulator
2164	 43.72	0	2421804..2421986	-	60	197286079	-	PMI2233	-	hypothetical protein
2165	 37.34	0	2421983..2422456	-	157	197286080	-	PMI2234	-	hypothetical protein
2166	 43.82	0	2422775..2425339	+	854	197286081	mutS	PMI2235	-	DNA mismatch repair protein
2167	 39.90	0	2425405..2426394	-	329	197286082	rpoS	PMI2236	-	RNA polymerase sigma factor RpoS
2168	 41.78	0	2427069..2428193	-	374	197286083	nlpD	PMI2237	-	lipoprotein
2169	 41.15	0	2428347..2428973	-	208	197286084	pcm	PMI2238	-	protein-L-isoaspartate O-methyltransferase
2170	 42.88	0	2428967..2429731	-	254	197286085	surE	PMI2239	-	multifunctional protein SurE (stationary-phase survival protein SurE) [includes: 5'/3'-nucleotidase and exopolyphosphatase]
2171	 42.83	0	2429709..2430761	-	350	197286086	truD	PMI2240	-	tRNA pseudouridine synthase D
2172	 41.61	0	2430761..2431243	-	160	197286087	ispF	PMI2241	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2173	 40.70	0	2431245..2431991	-	248	197286088	ispD	PMI2242	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2174	 38.63	0	2432031..2432351	-	106	197286089	ftsB	PMI2243	-	cell division protein FtsB
2175	 42.11	0	2432613..2433227	-	204	197286090	cysC	PMI2244	-	adenylyl-sulfate kinase
2176	 42.32	0	2433227..2434684	-	485	197286091	cysN	PMI2245	-	sulfate adenylyltransferase subunit 1
2177	 40.48	0	2434696..2435604	-	302	197286092	cysD	PMI2246	-	sulfate adenylyltransferase subunit 2
2178	 45.29	+1	2435616..2437037	-	473	197286093	cysG	PMI2247	-	siroheme synthase [includes: uroporphyrin-III C-methyltransferase and sirohydrochlorin ferrochelatase]
2179	 39.34	0	2437258..2437989	-	243	197286094	cysH	PMI2248	-	phosphoadenosine phosphosulfate reductase
2180	 41.59	0	2437986..2439716	-	576	197286095	cysI	PMI2249	-	sulfite reductase [NADPH] hemoprotein beta-component
2181	 39.61	0	2439718..2441532	-	604	197286096	cysJ	PMI2250	-	sulfite reductase [NADPH] flavoprotein alpha-component
2182	 41.87	0	2441830..2442192	+	120	197286097	-	PMI2251	-	6-pyruvoyl tetrahydrobiopterin synthase
2183	 41.52	0	2442252..2442923	-	223	197286098	-	PMI2252	-	hypothetical protein
2184	 41.52	0	2443092..2444459	+	455	197286099	proY	PMI2253	-	proline-specific permease
2185	 39.42	0	2444537..2445718	-	393	197286100	mdeA	PMI2254	-	methionine gamma-lyase
2186	 29.82	-2	2445738..2446136	-	132	197286101	-	PMI2255	-	hypothetical protein
2187	 36.35	0	2446149..2447342	-	397	197286102	-	PMI2256	-	oxidoreductase
2188	 38.04	0	2447528..2448313	-	261	197286103	-	PMI2257	-	endonuclease/exonuclease/phosphatase family protein
2189	 38.80	0	2454438..2455004	-	188	197286104	gmhB	PMI2258	-	D,D-heptose 1,7-bisphosphate phosphatase
2190	 38.57	0	2455215..2456246	+	343	197286105	metN	PMI2259	-	D-methionine ABC transporter, ATP-binding protein
2191	 38.07	0	2456239..2456892	+	217	197286106	metI	PMI2260	-	D-methionine ABC transporter, permease protein
2192	 35.54	0	2456987..2457802	+	271	197286107	metQ	PMI2261	-	D-methionine ABC transporter, substrate-binding lipoprotein
2193	 40.39	0	2457933..2458343	+	136	197286108	rcsF	PMI2262	-	regulator of colanic acid capsule synthesis
2194	 41.53	0	2458340..2459047	+	235	197286109	-	PMI2263	-	hypothetical protein
2195	 41.61	0	2459222..2460937	+	571	197286110	proS	PMI2264	-	prolyl-tRNA synthetase
2196	 39.06	0	2461055..2461735	-	226	197286111	cutF	PMI2265	-	copper homeostasis lipoprotein
2197	 32.95	-1	2461997..2462257	+	86	197286112	rof	PMI2266	-	Rho-binding antiterminator
2198	 40.20	0	2462294..2463619	-	441	197286113	tilS	PMI2267	-	tRNA(Ile)-lysidine synthase
2199	 40.19	0	2463794..2464537	-	247	197286114	-	PMI2268	-	short chain dehydrogenase
2200	 41.46	0	2464834..2465793	-	319	197286115	accA	PMI2269	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2201	 43.41	0	2465806..2469288	-	1160	197286116	dnaE	PMI2270	-	DNA polymerase III, alpha chain
2202	 43.15	0	2469311..2469901	-	196	197286117	rnhB	PMI2271	-	ribonuclease HII
2203	 42.37	0	2469901..2471073	-	390	197286118	lpxB	PMI2272	-	lipid-A-disaccharide synthase
2204	 40.55	0	2471081..2471884	-	267	197286119	lpxA	PMI2273	-	acyl-[acyl-carrier-protein]--UDP-N-acetylglucos amine O-acyltransferase
2205	 43.49	0	2471888..2472340	-	150	197286120	fabZ	PMI2274	-	(3R)-hydroxymyristoyl-[acyl carrier protein] dehydratase
2206	 42.66	0	2472467..2473495	-	342	197286121	lpxD	PMI2275	-	UDP-3-o-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2207	 39.76	0	2473499..2473996	-	165	197286122	ompH	PMI2276	-	outer membrane protein
2208	 41.05	0	2474089..2476497	-	802	197286123	yaeT	PMI2277	-	outer membrane protein assembly factor
2209	 42.50	0	2476538..2477890	-	450	197286124	ecfE	PMI2278	-	protease
2210	 42.82	0	2477900..2478763	-	287	197286125	cdsA	PMI2279	-	phosphatidate cytidylyltransferase
2211	 40.18	0	2478765..2479523	-	252	197286126	uppS	PMI2280	-	undecaprenyl pyrophosphate synthetase
2212	 41.37	0	2479749..2480942	-	397	197286127	dxr	PMI2281	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2213	 39.07	0	2481133..2481690	-	185	197286128	frr	PMI2282	-	ribosome recycling factor
2214	 44.86	+1	2481807..2482535	-	242	197286129	pyrH	PMI2283	-	uridylate kinase
2215	 44.37	0	2482671..2483522	-	283	197286130	tsf	PMI2284	-	elongation factor Ts
2216	 43.11	0	2483658..2484383	-	241	197286131	rpsB	PMI2285	-	30S ribosomal protein S2
2217	 40.73	0	2484902..2485699	+	265	197286132	map2	PMI2286	-	methionine aminopeptidase
2218	 40.59	0	2485854..2488499	+	881	197286133	glnD	PMI2287	-	[protein-PII] uridylyltransferase
2219	 40.61	0	2488534..2489358	+	274	197286134	dapD	PMI2288	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2220	 32.30	-1	2489428..2489814	+	128	197286135	-	PMI2289	-	hypothetical protein
2221	 38.06	0	2489934..2490377	-	147	197286136	-	PMI2290	-	flavodoxin
2222	 22.33	-2	2490449..2491939	-	496	197286137	-	PMI2291	-	hypothetical protein
2223	 41.27	0	2492061..2493509	-	482	197286138	ptsG	PMI2292	-	glucose-specific PTS system, EIIBC component
2224	 42.44	0	2493792..2494571	-	259	197286139	truC	PMI2293	-	tRNA pseudouridine synthase C
2225	 40.12	0	2494580..2494903	-	107	197286140	-	PMI2294	-	hypothetical protein
2226	 36.43	0	2495377..2495925	-	182	197286141	syd	PMI2295	-	SecY-interacting protein
2227	 39.36	0	2496089..2496934	+	281	197286142	queF	PMI2296	-	NADPH-dependent 7-cyano-7-deazaguanine reductase
2228	 42.32	0	2497026..2498393	+	455	197286143	-	PMI2297	-	amino acid decarboxylase
2229	 41.87	0	2498400..2499149	+	249	197286144	xni	PMI2298	-	exodeoxyribonuclease IX
2230	 40.53	0	2499238..2500335	-	365	197286145	-	PMI2299	-	hypothetical protein
2231	 38.13	0	2500328..2500723	-	131	197286146	-	PMI2300	-	hypothetical protein
2232	 39.96	0	2500767..2501687	-	306	197286147	gcvA	PMI2301	-	glycine cleavage system transcriptional activator (LysR-family transcriptional regulator)
2233	 43.21	0	2502339..2503553	+	404	197286148	csdA	PMI2302	-	cysteine sulfinate desulfinase
2234	 35.81	0	2503556..2503999	+	147	197286149	-	PMI2303	-	cysteine desulfuration protein
2235	 42.64	0	2504070..2504918	-	282	197286150	-	PMI2304	-	hypothetical protein
2236	 40.37	0	2505027..2506121	-	364	197286151	mltA	PMI2305	-	membrane-bound lytic murein transglycosylase
2237	 42.36	0	2506876..2508138	-	420	197286152	amiC	PMI2306	-	N-acetylmuramoyl-L-alanine amidase AmiC precursor
2238	 41.27	0	2508383..2509717	+	444	197286153	argA	PMI2307	-	amino-acid acetyltransferase
2239	 42.31	0	2509816..2511732	-	638	197286154	recD	PMI2308	-	exodeoxyribonuclease V alpha chain
2240	 41.33	0	2511725..2515363	-	1212	197286155	recB	PMI2309	-	exodeoxyribonuclease V beta chain
2241	 38.35	0	2515360..2518248	-	962	197286156	ptrA	PMI2310	-	protease III precursor
2242	 39.85	0	2518264..2521641	-	1125	197286157	recC	PMI2311	-	exodeoxyribonuclease V gamma chain
2243	 37.19	0	2521657..2521941	-	94	197286158	-	PMI2312	-	hypothetical protein
2244	 40.09	0	2521982..2522440	-	152	197286159	-	PMI2313	-	hypothetical protein
2245	 34.74	-1	2522437..2523075	-	212	197286160	ppdB	PMI2314	-	prepilin peptidase dependent protein B precursor
2246	 38.33	0	2523069..2523548	-	159	197286161	ppdA	PMI2315	-	prepilin peptidase dependent protein A precursor
2247	 40.97	0	2523778..2524707	-	309	197286162	-	PMI2316	-	hypothetical protein
2248	 42.13	0	2524700..2525233	-	177	197286163	-	PMI2317	-	hypothetical protein
2249	 40.38	0	2525410..2526261	-	283	197286164	thyA	PMI2318	-	thymidylate synthase
2250	 42.26	0	2526293..2527177	-	294	197286165	lgt	PMI2319	-	prolipoprotein diacylglyceryl transferase
2251	 41.92	0	2527264..2529510	-	748	197286166	ptsP	PMI2320	-	phosphoenolpyruvate-protein phosphotransferase
2252	 44.63	+1	2529519..2530049	-	176	197286167	nudH	PMI2321	-	(di)nucleoside polyphosphate hydrolase
2253	 41.42	0	2530319..2531332	+	337	197286168	thiB	PMI2322	-	thiamine ABC transporter, substrate-binding protein
2254	 41.62	0	2531332..2532912	+	526	197286169	thiP	PMI2323	-	thiamine ABC transporter, permease protein
39.69	MEAN

4.91	STD DEV
