IslandPath Analysis: Proteus mirabilis HI4320

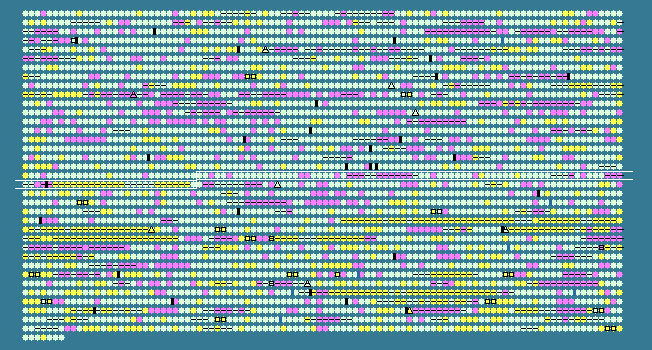

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1830	 41.12	0	2036340..2038136	-	598	197285745	lepA	PMI1890	-	GTP-binding elongation factor
1831	 41.94	0	2038458..2038922	-	154	197285746	rseC	PMI1891	-	sigma-E factor regulatory protein
1832	 36.11	0	2038935..2039906	-	323	197285747	rseB	PMI1892	-	anti sigma E (sigma 24) factor, negative regulator
1833	 43.11	0	2039955..2040578	-	207	197285748	rseA	PMI1893	-	anti sigma E protein
1834	 41.45	0	2040616..2041194	-	192	197285749	rpoE	PMI1894	-	RNA polymerase sigma-E factor
1835	 24.44	-2	2041301..2041525	-	74	197285750	-	PMI1895	-	hypothetical protein
1836	 40.45	0	2041495..2042253	-	252	197285751	-	PMI1896	-	hypothetical protein
1837	 41.22	0	2042522..2043877	+	451	197285752	srmB	PMI1897	-	ATP-dependent RNA helicase
1838	 39.58	0	2044027..2044410	-	127	197285753	grcA	PMI1898	-	autonomous glycyl radical cofactor
1839	 40.68	0	2044745..2045425	+	226	197285754	ung	PMI1899	-	uracil-DNA glycosylase
1840	 40.69	0	2045517..2046128	-	203	197285755	grpE	PMI1900	-	heat shock protein
1841	 42.11	0	2046230..2047129	+	299	197285756	ppnK	PMI1901	-	probable inorganic polyphosphate/ATP-NAD kinase
1842	 40.25	0	2047215..2048876	+	553	197285757	recN	PMI1902	-	DNA repair protein RecN
1843	 39.39	0	2048990..2049352	+	120	197285758	smpA	PMI1903	-	lipoprotein
1844	 40.14	0	2049484..2049777	-	97	197285759	-	PMI1904	-	hypothetical protein
1845	 37.01	0	2049770..2050204	-	144	197285760	-	PMI1905	-	hypothetical protein
1846	 41.82	0	2050361..2050843	+	160	197285761	smpB	PMI1906	-	SsrA-binding protein (small protein B)
1847	 28.17	-2	2051841..2052092	-	83	197285762	-	PMI1907	-	hypothetical protein
1848	 33.22	-1	2052123..2053817	-	564	197285763	-	PMI1908	-	colicin
1849	 43.09	0	2053973..2054515	-	180	197285764	-	PMI1909	-	hypothetical protein
1850	 36.90	0	2054551..2054886	-	111	197285765	imm	PMI1910	-	colicin immunity protein
1851	 40.20	0	2054883..2056208	-	441	197285766	-	PMI1911	-	colicin
1852	 39.11	0	2056688..2058124	-	478	197285767	-	PMI1912	-	FtsK/SpoIIIE-family protein
1853	 35.63	0	2059975..2060541	-	188	197285768	-	PMI1915	-	hypothetical protein
1854	 39.04	0	2060770..2061540	+	256	197285769	-	PMI1916	-	hypothetical protein
1855	 35.79	0	2061556..2062206	+	216	197285770	-	PMI1917	-	hypothetical protein
1856	 35.63	0	2063649..2064344	+	231	197285771	-	PMI1920	-	fimbrial subunit
1857	 36.01	0	2064461..2065582	-	373	197285772	-	PMI1921	-	hypothetical protein
1858	 37.07	0	2066088..2066783	+	231	197285773	-	PMI1922	-	fimbrial subunit
1859	 36.35	0	2066910..2068037	-	375	197285774	-	PMI1923	-	hypothetical protein
1860	 35.73	0	2068566..2069273	+	235	197285775	-	PMI1924	-	fimbrial subunit
1861	 27.27	-2	2069390..2071633	-	747	197285776	-	PMI1925	-	hypothetical protein
1862	 30.59	-1	2071796..2072269	-	157	197285777	-	PMI1926	-	hypothetical protein
1863	 31.40	-1	2072496..2072753	+	85	197285778	-	PMI1927	-	hypothetical protein
1864	 35.06	0	2072954..2073184	+	76	197285779	-	PMI1928	-	hypothetical protein
1865	 33.04	-1	2073454..2074140	+	228	197285780	-	PMI1929	-	fimbrial subunit
1866	 38.64	0	2074733..2075128	+	131	197285781	-	PMI1930	-	hypothetical protein
1867	 39.55	0	2075140..2076636	+	498	197285782	mqo	PMI1931	-	malate:quinone oxidoreductase
1868	 37.01	0	2076748..2077671	-	307	197285783	-	PMI1932	-	transporter
1869	 35.75	0	2078091..2078669	-	192	197285784	-	PMI1933	-	hypothetical protein
1870	 37.48	0	2078698..2079276	-	192	197285785	mdaB	PMI1934	-	modulator of drug activity B (subunit of NADPH quinone reductase)
1871	 40.28	0	2081254..2082780	+	508	197285786	-	PMI1935	-	L-lactate permease
1872	 41.67	0	2082917..2083636	+	239	197285787	-	PMI1936	-	oxidoreductase subunit
1873	 42.12	0	2083647..2085068	+	473	197285788	-	PMI1937	-	iron-sulphur protein protein
1874	 38.87	0	2085070..2085774	+	234	197285789	-	PMI1938	-	hypothetical protein
1875	 36.47	0	2085881..2086294	-	137	197285790	umoC	PMI1939	-	upregulator of flagellar master operon
1876	 35.31	0	2086742..2087095	+	117	197285791	-	PMI1940	-	hypothetical protein
1877	 43.79	0	2087513..2087866	+	117	197285792	-	PMI1941	-	hypothetical protein
1878	 38.07	0	2088334..2088945	-	203	197285793	-	PMI1942	-	hypothetical protein
1879	 39.16	0	2089112..2090278	-	388	197285794	-	PMI1943	-	MFS-family transporter
1880	 40.91	0	2090637..2091494	-	285	197285795	-	PMI1944	-	hypothetical protein
1881	 39.66	0	2091575..2093614	-	679	197285796	ireA	PMI1945	-	TonB-dependent ferric siderophore receptor
1882	 40.18	0	2093852..2095486	-	544	197285797	sglT	PMI1946	-	sodium/glucose cotransporter
1883	 43.82	0	2095863..2096873	-	336	197285798	galR	PMI1947	-	galactose operon repressor (LacI-family transcriptional regulator)
1884	 41.46	0	2097053..2098123	-	356	197285799	galM	PMI1948	-	aldose 1-epimerase
1885	 40.07	0	2098110..2099282	-	390	197285800	galK	PMI1949	-	galactokinase
1886	 39.57	0	2099394..2100452	-	352	197285801	galT	PMI1950	-	galactose-1-phosphate uridylyltransferase
1887	 42.48	0	2100501..2101517	-	338	197285802	galE	PMI1951	-	UDP-glucose 4-epimerase
1888	 40.94	0	2101949..2102908	+	319	197285803	tkrA	PMI1952	-	2-ketogluconate reductase (2-ketoaldonate reductase)
1889	 39.00	0	2102982..2103899	-	305	197285804	-	PMI1953	-	cation efflux protein
1890	 38.58	0	2104440..2104877	+	145	197285805	-	PMI1954	-	universal stress protein
1891	 37.27	0	2104940..2105422	-	160	197285806	eco	PMI1955	-	ecotin precursor
1892	 33.80	-1	2105684..2105899	+	71	197285807	-	PMI1956	-	hypothetical protein
1893	 39.17	0	2106043..2106282	+	79	197285808	-	PMI1957	-	hypothetical protein
1894	 34.55	-1	2106395..2106640	-	81	197285809	-	PMI1958	-	DNA-damage-inducible protein
1895	 40.23	0	2106825..2107172	+	115	197285810	-	PMI1959	-	hypothetical protein
1896	 39.75	0	2107150..2107710	-	186	197285811	-	PMI1960	-	acetyltransferase
1897	 37.26	0	2107785..2108471	-	228	197285812	ccm	PMI1961	-	membrane protein (Ccm1 protein)
1898	 30.82	-1	2109559..2110395	+	278	197285813	-	PMI1962	-	AraC-family transcriptional regulator
1899	 27.54	-2	2110477..2111322	+	281	197285814	-	PMI1963	-	hypothetical protein
1900	 35.68	0	2111380..2113848	-	822	197285815	-	PMI1964	-	exported FKBP-type peptidyl-prolyl cis-trans isomerase
1901	 37.09	0	2113854..2114306	-	150	197285816	-	PMI1965	-	hypothetical protein
1902	 36.43	0	2114769..2115317	+	182	197285817	chrR	PMI1966	-	chromate reductase (NADPH-dependent FMN reductase)
1903	 32.86	-1	2115818..2116027	+	69	197285818	-	PMI1967	-	hypothetical protein
1904	 25.71	-2	2116335..2116544	+	69	197285819	-	PMI1968	-	hypothetical protein
1905	 29.66	-2	2117376..2118083	+	235	197285820	-	PMI1969	-	hypothetical protein
1906	 44.29	0	2118115..2118333	-	72	197285821	-	PMI1970	-	positive regulator of phage late gene transcription
1907	 45.08	+1	2118386..2119483	-	365	197285822	-	PMI1971	-	regulator of late phage gene expression
1908	 45.65	+1	2119483..2119953	-	156	197285823	-	PMI1972	-	phage tail assembly protein
1909	 45.50	+1	2119947..2122781	-	944	197285824	-	PMI1973	-	phage tail fiber protein (tape measure protein)
1910	 45.40	+1	2122908..2123255	-	115	197285825	-	PMI1974	-	phage tail protein
1911	 46.71	+1	2123275..2123790	-	171	197285826	-	PMI1975	-	probable major tail tube protein
1912	 46.38	+1	2123794..2124966	-	390	197285827	-	PMI1976	-	probable major tail sheath protein
1913	 45.16	+1	2125066..2126697	-	543	197285828	-	PMI1977	-	phage variable tail fiber protein
1914	 48.69	+1	2126687..2127298	-	203	197285829	-	PMI1978	-	phage tail protein
1915	 48.29	+1	2127291..2128199	-	302	197285830	-	PMI1979	-	phage baseplate assembly protein
1916	 43.95	0	2128201..2128539	-	112	197285831	-	PMI1980	-	phage baseplate assembly protein
1917	 49.44	+1	2128536..2129162	-	208	197285832	-	PMI1981	-	phage baseplate assembly protein
1918	 42.77	0	2129228..2129863	-	211	197285833	-	PMI1982	-	phage tail completion protein S
1919	 42.47	0	2129853..2130290	-	145	197285834	-	PMI1983	-	phage tail completion protein R
1920	 42.46	0	2130265..2130768	-	167	197285835	-	PMI1984	-	phage lysis protein
1921	 40.00	0	2130765..2131169	-	134	197285836	-	PMI1985	-	phage protein
1922	 42.22	0	2131162..2131476	-	104	197285837	-	PMI1986	-	phage holin
1923	 46.86	+1	2131496..2131702	-	68	197285838	-	PMI1987	-	phage tail protein X
1924	 43.42	0	2131702..2132157	-	151	197285839	-	PMI1988	-	phage head completion/stabilization protein
1925	 46.64	+1	2132235..2132903	-	222	197285840	-	PMI1989	-	phage terminase, endonuclease subunit
1926	 43.72	0	2132903..2134048	-	381	197285841	-	PMI1990	-	phage major capsid protein
1927	 45.68	+1	2134064..2134873	-	269	197285842	-	PMI1991	-	phage capsid scaffolding protein
1928	 44.73	+1	2135046..2136800	+	584	197285843	-	PMI1992	-	phage terminase, ATPase subunit
1929	 42.18	0	2136800..2137828	+	342	197285844	-	PMI1993	-	phage portal protein
39.69	MEAN

4.91	STD DEV
