IslandPath Analysis: Proteus mirabilis HI4320

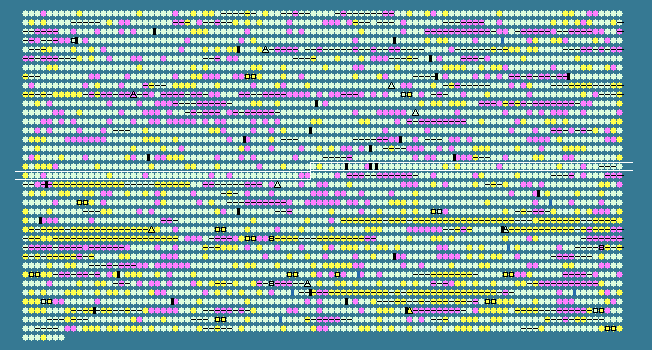

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1749	 39.37	0	1936643..1938811	-	722	197285664	fadJ	PMI1807	-	fatty acid oxidation complex alpha subunit [includes: enoyl-coa hydratase and 3-hydroxyacyl-coa dehydrogenase]
1750	 44.21	0	1938811..1940115	-	434	197285665	fadI	PMI1808	-	3-ketoacyl-CoA thiolase
1751	 39.06	0	1940352..1940648	-	98	197285666	-	PMI1809	-	hypothetical protein
1752	 42.22	0	1940994..1942355	+	453	197285667	fadL	PMI1810	-	long-chain fatty acid transport protein
1753	 41.67	0	1942431..1943174	-	247	197285668	vacJ	PMI1811	-	VacJ lipoprotein
1754	 36.35	0	1944497..1945192	+	231	197285669	-	PMI1812	-	fimbrial adapter
1755	 40.17	0	1945822..1946625	+	267	197285670	-	PMI1813	-	hypothetical protein
1756	 39.52	0	1947407..1949686	+	759	197285671	phsA	PMI1814	-	thiosulfate reductase precursor
1757	 38.54	0	1950280..1951047	+	255	197285672	phsC	PMI1816	-	thiosulfate reductase cytochrome b subunit
1758	 34.98	0	1951618..1951920	-	100	197285673	-	PMI1817	-	transcriptional regulator
1759	 38.76	0	1955083..1956501	+	472	197285674	gltX	PMI1818	-	glutamyl-tRNA synthetase
1760	 42.50	0	1956932..1957684	-	250	197285675	-	PMI1819	-	short-chain dehydrogenase
1761	 37.87	0	1957841..1958281	+	146	197285676	-	PMI1820	-	MarR-family transcriptional regulator
1762	 38.29	0	1958278..1958499	-	73	197285677	-	PMI1821	-	hypothetical protein
1763	 39.66	0	1958663..1959847	-	394	197285678	nupC	PMI1822	-	nucleoside permease
1764	 40.78	0	1960076..1962103	-	675	197285679	ligA	PMI1823	-	DNA ligase
1765	 41.95	0	1962278..1963333	-	351	197285680	zipA	PMI1824	-	cell division protein
1766	 37.22	0	1963556..1964326	+	256	197285681	cysZ	PMI1826	-	sulfate transporter
1767	 41.82	0	1964475..1965428	+	317	197285682	cysK	PMI1827	-	cysteine synthase A
1768	 38.37	0	1965759..1966016	+	85	197285683	hpr	PMI1828	-	PTS system phosphocarrier protein
1769	 40.05	0	1966160..1967887	+	575	197285684	ptsI	PMI1829	-	phosphoenolpyruvate-protein phosphotransferase
1770	 36.67	0	1967937..1968446	+	169	197285685	crr	PMI1830	-	PTS family enzyme IIA component
1771	 43.54	0	1968537..1969418	-	293	197285686	cysM	PMI1831	-	cysteine synthase B
1772	 42.52	0	1969628..1970716	-	362	197285687	cysA	PMI1832	-	sulfate/thiosulfate ABC transporter, ATP-binding protein
1773	 43.42	0	1970736..1971578	-	280	197285688	cysW	PMI1833	-	sulfate/thiosulfate ABC transporter, permease protein
1774	 42.33	0	1971578..1972411	-	277	197285689	cysT	PMI1834	-	sulfate/thiosulfate ABC transporter, permease protein
1775	 39.15	0	1972411..1973442	-	343	197285690	cysP	PMI1835	-	sulfate/thiosulfate ABC transporter, thiosulfate-binding protein
1776	 40.47	0	1973694..1974590	-	298	197285691	-	PMI1836	-	hypothetical protein
1777	 40.44	0	1974739..1975329	-	196	197285692	-	PMI1837	-	lipoprotein
1778	 41.10	0	1975624..1976061	-	145	197285693	-	PMI1838	-	GNAT-family acetyltransferase
1779	 41.14	0	1976195..1977103	+	302	197285694	hemF	PMI1839	-	Coproporphyrinogen III oxidase, aerobic
1780	 34.42	-1	1977183..1977551	-	122	197285695	-	PMI1840	-	lipoprotein
1781	 41.18	0	1977743..1979233	-	496	197285696	engA	PMI1841	-	GTP-binding protein
1782	 42.63	0	1979353..1980525	-	390	197285697	-	PMI1842	-	lipoprotein
1783	 37.84	0	1980540..1981160	-	206	197285698	-	PMI1843	-	hypothetical protein
1784	 41.82	0	1981171..1982454	-	427	197285699	hisS	PMI1844	-	histidyl-tRNA synthetase
1785	 39.93	0	1982577..1983698	-	373	197285700	ispG	PMI1845	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1786	 39.88	0	1983746..1984708	-	320	197285701	-	PMI1846	-	DNA-binding protein
1787	 36.32	0	1984781..1985215	-	144	197285702	-	PMI1847	-	lipoprotein
1788	 40.02	0	1985301..1986482	-	393	197285703	-	PMI1848	-	radical SAM superfamily protein
1789	 40.38	0	1986624..1987049	-	141	197285704	ndk	PMI1849	-	nucleoside diphosphate kinase
1790	 43.32	0	1987285..1989606	-	773	197285705	pbpC	PMI1850	-	penicillin-binding protein 1C
1791	 40.50	0	1989655..1994745	-	1696	197285706	-	PMI1851	-	alpha-2-macroglobulin-like lipoprotein (endopeptidase inhibitor)
1792	 38.03	0	1995007..1995432	-	141	197285707	-	PMI1852	-	hypothetical protein
1793	 41.67	0	1995460..1996755	-	431	197285708	pepB	PMI1853	-	peptidase B
1794	 35.38	0	1997036..1997230	-	64	197285709	-	PMI1854	-	hypothetical protein
1795	 41.96	0	1997246..1997581	-	111	197285710	fdx	PMI1855	-	2Fe-2S ferredoxin
1796	 42.90	0	1997584..1999434	-	616	197285711	hscA	PMI1856	-	chaperone protein HscA
1797	 39.85	0	1999446..1999967	-	173	197285712	hscB	PMI1857	-	co-chaperone protein HscB
1798	 41.36	0	2000016..2000339	-	107	197285713	iscA	PMI1858	-	iron-binding protein (iron-sulfur cluster assembly protein)
1799	 40.05	0	2000430..2000816	-	128	197285714	iscU	PMI1859	-	iron-binding protein
1800	 40.08	0	2000841..2002055	-	404	197285715	iscS	PMI1860	-	cysteine desulfurase
1801	 43.43	0	2002123..2002617	-	164	197285716	iscR	PMI1861	-	iron-sulfur cluster transcriptional regulator
1802	 41.98	0	2002747..2003475	-	242	197285717	-	PMI1862	-	hypothetical tRNA/rRNA methyltransferase
1803	 41.54	0	2003600..2004403	+	267	197285718	suhB	PMI1863	-	inositol-1-monophosphatase
1804	 35.56	0	2004510..2005184	-	224	197285719	-	PMI1864	-	TetR-family transcriptional regulator
1805	 39.72	0	2005210..2006478	-	422	197285720	-	PMI1865	-	peptidase
1806	 40.61	0	2006654..2007808	-	384	197285721	hcaT	PMI1866	-	probable 3-phenylpropionic acid transporter (MFS-family transporter)
1807	 41.55	0	2007901..2009154	-	417	197285722	glyA	PMI1867	-	serine hydroxymethyltransferase
1808	 39.38	0	2009521..2010711	+	396	197285723	hmp	PMI1868	-	flavohemoprotein
1809	 36.45	0	2010807..2011448	-	213	197285724	-	PMI1869	-	hypothetical protein
1810	 38.35	0	2011832..2012170	-	112	197285725	glnB	PMI1870	-	nitrogen regulatory protein P-II
1811	 41.74	0	2012186..2013802	-	538	197285726	nadE	PMI1871	-	glutamine-dependent NAD(+) synthetase
1812	 42.90	0	2013877..2015214	-	445	197285727	-	PMI1872	-	two-component system response regulator (sigma-54 interacting regulator)
1813	 40.35	0	2015226..2016152	-	308	197285728	-	PMI1873	-	lipoprotein
1814	 37.68	0	2016236..2017684	-	482	197285729	-	PMI1874	-	two-component system sensor kinase
1815	 43.43	0	2018372..2022262	-	1296	197285730	purL	PMI1875	-	phosphoribosylformylglycineamide synthetase
1816	 40.61	0	2022527..2023996	+	489	197285731	-	PMI1876	-	transglycosylase
1817	 37.12	0	2024828..2025382	+	184	197285732	pmfA	PMI1877	-	major fimbrial subunit
1818	 39.04	0	2025557..2028043	+	828	197285733	pmfC	PMI1878	-	outer membrane usher protein
1819	 38.56	0	2028075..2028839	+	254	197285734	pmfD	PMI1879	-	fimbrial chaperone protein
1820	 38.27	0	2028865..2029938	+	357	197285735	pmfE	PMI1880	-	minor fimbrial subunit
1821	 35.34	0	2029938..2030486	+	182	197285736	pmfF	PMI1881	-	minor fimbrial subunit
1822	 39.17	0	2030506..2031036	-	176	197285737	tadA	PMI1882	-	tRNA-specific adenosine deaminase
1823	 38.70	0	2031349..2031609	+	86	197285738	-	PMI1883	-	ferredoxin
1824	 39.90	0	2031639..2032019	-	126	197285739	acpS	PMI1884	-	holo-[acyl-carrier protein] synthase
1825	 42.76	0	2032019..2032750	-	243	197285740	pdxJ	PMI1885	-	pyridoxal phosphate biosynthetic protein
1826	 41.84	0	2032820..2033560	-	246	197285741	recO	PMI1886	-	DNA repair protein
1827	 39.05	0	2033573..2034481	-	302	197285742	era	PMI1887	-	GTP-binding protein
1828	 40.53	0	2034478..2035158	-	226	197285743	rnc	PMI1888	-	RNase III, ds RNA
1829	 40.64	0	2035354..2036325	-	323	197285744	lepB	PMI1889	-	signal peptidase I
1830	 41.12	0	2036340..2038136	-	598	197285745	lepA	PMI1890	-	GTP-binding elongation factor
1831	 41.94	0	2038458..2038922	-	154	197285746	rseC	PMI1891	-	sigma-E factor regulatory protein
1832	 36.11	0	2038935..2039906	-	323	197285747	rseB	PMI1892	-	anti sigma E (sigma 24) factor, negative regulator
1833	 43.11	0	2039955..2040578	-	207	197285748	rseA	PMI1893	-	anti sigma E protein
1834	 41.45	0	2040616..2041194	-	192	197285749	rpoE	PMI1894	-	RNA polymerase sigma-E factor
1835	 24.44	-2	2041301..2041525	-	74	197285750	-	PMI1895	-	hypothetical protein
1836	 40.45	0	2041495..2042253	-	252	197285751	-	PMI1896	-	hypothetical protein
1837	 41.22	0	2042522..2043877	+	451	197285752	srmB	PMI1897	-	ATP-dependent RNA helicase
1838	 39.58	0	2044027..2044410	-	127	197285753	grcA	PMI1898	-	autonomous glycyl radical cofactor
1839	 40.68	0	2044745..2045425	+	226	197285754	ung	PMI1899	-	uracil-DNA glycosylase
1840	 40.69	0	2045517..2046128	-	203	197285755	grpE	PMI1900	-	heat shock protein
1841	 42.11	0	2046230..2047129	+	299	197285756	ppnK	PMI1901	-	probable inorganic polyphosphate/ATP-NAD kinase
1842	 40.25	0	2047215..2048876	+	553	197285757	recN	PMI1902	-	DNA repair protein RecN
1843	 39.39	0	2048990..2049352	+	120	197285758	smpA	PMI1903	-	lipoprotein
1844	 40.14	0	2049484..2049777	-	97	197285759	-	PMI1904	-	hypothetical protein
1845	 37.01	0	2049770..2050204	-	144	197285760	-	PMI1905	-	hypothetical protein
1846	 41.82	0	2050361..2050843	+	160	197285761	smpB	PMI1906	-	SsrA-binding protein (small protein B)
1847	 28.17	-2	2051841..2052092	-	83	197285762	-	PMI1907	-	hypothetical protein
1848	 33.22	-1	2052123..2053817	-	564	197285763	-	PMI1908	-	colicin
39.69	MEAN

4.91	STD DEV
