IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

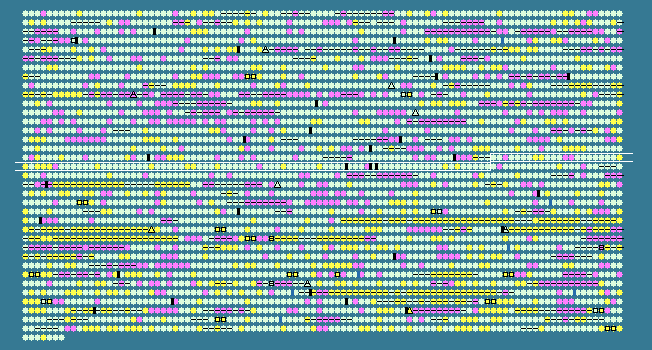

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1679	 37.14	0	1857868..1858998	+	376	197285594	nrdB	PMI1735	-	ribonucleoside-diphosphate reductase 1, beta subunit
1680	 42.29	0	1859023..1859301	+	92	197285595	-	PMI1736	-	ferredoxin
1681	 35.47	0	1859409..1859642	+	77	197285596	-	PMI1737	-	lipoprotein
1682	 41.25	0	1859833..1861044	+	403	197285597	tyrP	PMI1738	-	tyrosine-specific transport protein
1683	 41.07	0	1861149..1861691	-	180	197285598	-	PMI1739	-	hypothetical protein
1684	 40.48	0	1861974..1863428	+	484	197285599	katA	PMI1740	-	catalase
1685	 40.77	0	1863524..1864948	-	474	197285600	menE	PMI1741	-	O-succinylbenzoic acid--CoA ligase
1686	 44.34	0	1864936..1865907	-	323	197285601	menC	PMI1742	-	O-succinylbenzoate-CoA synthase
1687	 43.24	0	1865907..1866764	-	285	197285602	menB	PMI1743	-	naphthoate synthase
1688	 41.15	0	1866777..1867544	-	255	197285603	yfbB	PMI1744	-	acyl-CoA thioester hydrolase
1689	 43.06	0	1867528..1869213	-	561	197285604	menD	PMI1745	-	menaquinone biosynthesis protein mend [includes: 2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase and 2-oxoglutarate decarboxylase]
1690	 40.86	0	1869555..1870883	-	442	197285605	menF	PMI1746	-	menaquinone-specific isochorismate synthase
1691	 28.22	-2	1871095..1872306	+	403	197285606	xaxA	PMI1747	-	toxin
1692	 28.08	-2	1872321..1873328	+	335	197285607	xaxB	PMI1748	-	toxin
1693	 42.72	0	1873693..1875162	-	489	197285608	nuoN	PMI1750	-	NADH-quinone oxidoreductase chain N
1694	 42.61	0	1875169..1876698	-	509	197285609	nuoM	PMI1751	-	NADH-quinone oxidoreductase chain M
1695	 43.03	0	1876718..1878553	-	611	197285610	nuoL	PMI1752	-	NADH-quinone oxidoreductase chain L
1696	 42.57	0	1878550..1878852	-	100	197285611	nuoK	PMI1753	-	NADH-quinone oxidoreductase chain K
1697	 42.32	0	1878849..1879382	-	177	197285612	nuoJ	PMI1754	-	NADH-quinone oxidoreductase chain J
1698	 42.91	0	1879395..1879937	-	180	197285613	nuoI	PMI1755	-	NADH-quinone oxidoreductase chain I
1699	 42.02	0	1879952..1880929	-	325	197285614	nuoH	PMI1756	-	NADH-quinone oxidoreductase chain H
1700	 45.66	+1	1880929..1883661	-	910	197285615	nuoG	PMI1757	-	NADH-quinone oxidoreductase chain G
1701	 46.45	+1	1883715..1885079	-	454	197285616	nuoF	PMI1758	-	NADH-quinone oxidoreductase chain F
1702	 41.94	0	1885076..1885621	-	181	197285617	nuoE	PMI1759	-	NADH-quinone oxidoreductase chain E
1703	 45.08	+1	1885624..1887420	-	598	197285618	nuoC	PMI1760	-	NADH-quinone oxidoreductase chain C/D
1704	 45.48	+1	1887497..1888171	-	224	197285619	nuoB	PMI1761	-	NADH-quinone oxidoreductase chain B
1705	 46.36	+1	1888189..1888641	-	150	197285620	nuoA	PMI1762	-	NADH-quinone oxidoreductase chain A
1706	 33.33	-1	1888751..1889017	+	88	197285621	-	PMI1763	-	hypothetical protein
1707	 42.05	0	1889437..1890354	-	305	197285622	hexA	PMI1764	-	LysR-family transcriptional regulator
1708	 40.58	0	1891197..1892411	+	404	197285623	-	PMI1765	-	aminotransferase
1709	 37.29	0	1892544..1893125	+	193	197285624	-	PMI1766	-	5'-nucleotidase
1710	 42.57	0	1893195..1895024	-	609	197285625	-	PMI1767	-	cation transporter
1711	 41.78	0	1895134..1895796	-	220	197285626	-	PMI1768	-	phosphatase
1712	 40.36	0	1895831..1896328	-	165	197285627	-	PMI1769	-	hypothetical protein
1713	 44.08	0	1896466..1896921	-	151	197285628	-	PMI1770	-	hypothetical protein
1714	 41.56	0	1897313..1898515	+	400	197285629	ackA	PMI1771	-	acetate kinase
1715	 41.59	0	1898593..1900737	+	714	197285630	pta	PMI1772	-	phosphate acetyltransferase
1716	 40.21	0	1902531..1904930	+	799	197285631	gcd	PMI1773	-	quinoprotein glucose dehydrogenase
1717	 37.01	0	1905008..1906231	-	407	197285632	-	PMI1774	-	alanine racemase
1718	 40.18	0	1906488..1907744	-	418	197285633	-	PMI1775	-	PTS system EIIC component
1719	 37.50	0	1907755..1908042	-	95	197285634	-	PMI1776	-	PTS system EIIB component
1720	 37.61	0	1908072..1908515	-	147	197285635	-	PMI1777	-	PTS system EIIA component
1721	 41.07	0	1908742..1909788	+	348	197285636	-	PMI1778	-	LacI-family transcriptional regulator
1722	 43.46	0	1909785..1910327	-	180	197285637	-	PMI1779	-	NUDIX hydrolase
1723	 40.65	0	1910523..1911137	+	204	197285638	-	PMI1780	-	glutathione-S transferase
1724	 40.07	0	1911202..1912107	+	301	197285639	-	PMI1781	-	cell division inhibitor, NAD(P)-binding
1725	 41.92	0	1912127..1912708	-	193	197285640	ubiX	PMI1782	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1726	 40.65	0	1912830..1914347	-	505	197285641	purF	PMI1783	-	amidophosphoribosyltransferase
1727	 42.28	0	1914378..1914869	-	163	197285642	cvpA	PMI1784	-	colicin V production protein
1728	 48.04	+1	1915052..1915690	-	212	197285643	dedD	PMI1785	-	hypothetical protein
1729	 43.96	0	1915680..1916978	-	432	197285644	folC	PMI1786	-	FolC bifunctional protein [includes: folylpolyglutamate synthase and dihydrofolate synthase]
1730	 42.89	0	1916971..1917933	-	320	197285645	accD	PMI1787	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit beta
1731	 36.61	0	1918230..1918931	-	233	197285646	dedA	PMI1788	-	hypothetical protein
1732	 43.03	0	1918971..1919816	-	281	197285647	truA	PMI1789	-	tRNA pseudouridine synthase A
1733	 43.22	0	1919840..1920850	-	336	197285648	usg	PMI1790	-	aspartate-semialdehyde dehydrogenase
1734	 41.31	0	1920895..1922022	-	375	197285649	pdxB	PMI1792	-	erythronate-4-phosphate dehydrogenase
1735	 38.55	0	1922171..1922956	-	261	197285650	-	PMI1793	-	transcriptional regulator
1736	 38.00	0	1923078..1923998	+	306	197285651	-	PMI1794	-	hypothetical protein
1737	 42.74	0	1924567..1925778	-	403	197285652	fabB	PMI1795	-	3-oxoacyl-[acyl-carrier-protein] synthase I
1738	 40.44	0	1925983..1928022	+	679	197285653	-	PMI1796	-	FAD-dependent oxidoreductase
1739	 38.25	0	1928110..1928658	-	182	197285654	-	PMI1797	-	acetyltransferase
1740	 32.78	-1	1928760..1929656	-	298	197285655	-	PMI1798	-	lipoprotein
1741	 37.36	0	1929978..1930250	-	90	197285656	-	PMI1799	-	hypothetical protein
1742	 39.82	0	1930387..1930941	-	184	197285657	-	PMI1800	-	hypothetical protein
1743	 39.45	0	1930958..1931758	-	266	197285658	-	PMI1801	-	hypothetical protein
1744	 43.37	0	1931931..1933016	-	361	197285659	aroC	PMI1802	-	chorismate synthase
1745	 39.44	0	1933105..1934037	-	310	197285660	-	PMI1803	-	methylase
1746	 39.46	0	1934432..1934986	+	184	197285661	-	PMI1804	-	ferritin-like protein
1747	 39.41	0	1935139..1935681	+	180	197285662	-	PMI1805	-	hypothetical protein
1748	 41.36	0	1935724..1936209	-	161	197285663	sixA	PMI1806	-	phosphohistidine phosphatase
1749	 39.37	0	1936643..1938811	-	722	197285664	fadJ	PMI1807	-	fatty acid oxidation complex alpha subunit [includes: enoyl-coa hydratase and 3-hydroxyacyl-coa dehydrogenase]
1750	 44.21	0	1938811..1940115	-	434	197285665	fadI	PMI1808	-	3-ketoacyl-CoA thiolase
1751	 39.06	0	1940352..1940648	-	98	197285666	-	PMI1809	-	hypothetical protein
1752	 42.22	0	1940994..1942355	+	453	197285667	fadL	PMI1810	-	long-chain fatty acid transport protein
1753	 41.67	0	1942431..1943174	-	247	197285668	vacJ	PMI1811	-	VacJ lipoprotein
1754	 36.35	0	1944497..1945192	+	231	197285669	-	PMI1812	-	fimbrial adapter
1755	 40.17	0	1945822..1946625	+	267	197285670	-	PMI1813	-	hypothetical protein
1756	 39.52	0	1947407..1949686	+	759	197285671	phsA	PMI1814	-	thiosulfate reductase precursor
1757	 38.54	0	1950280..1951047	+	255	197285672	phsC	PMI1816	-	thiosulfate reductase cytochrome b subunit
1758	 34.98	0	1951618..1951920	-	100	197285673	-	PMI1817	-	transcriptional regulator
1759	 38.76	0	1955083..1956501	+	472	197285674	gltX	PMI1818	-	glutamyl-tRNA synthetase
1760	 42.50	0	1956932..1957684	-	250	197285675	-	PMI1819	-	short-chain dehydrogenase
1761	 37.87	0	1957841..1958281	+	146	197285676	-	PMI1820	-	MarR-family transcriptional regulator
1762	 38.29	0	1958278..1958499	-	73	197285677	-	PMI1821	-	hypothetical protein
1763	 39.66	0	1958663..1959847	-	394	197285678	nupC	PMI1822	-	nucleoside permease
1764	 40.78	0	1960076..1962103	-	675	197285679	ligA	PMI1823	-	DNA ligase
1765	 41.95	0	1962278..1963333	-	351	197285680	zipA	PMI1824	-	cell division protein
1766	 37.22	0	1963556..1964326	+	256	197285681	cysZ	PMI1826	-	sulfate transporter
1767	 41.82	0	1964475..1965428	+	317	197285682	cysK	PMI1827	-	cysteine synthase A
1768	 38.37	0	1965759..1966016	+	85	197285683	hpr	PMI1828	-	PTS system phosphocarrier protein
1769	 40.05	0	1966160..1967887	+	575	197285684	ptsI	PMI1829	-	phosphoenolpyruvate-protein phosphotransferase
1770	 36.67	0	1967937..1968446	+	169	197285685	crr	PMI1830	-	PTS family enzyme IIA component
1771	 43.54	0	1968537..1969418	-	293	197285686	cysM	PMI1831	-	cysteine synthase B
1772	 42.52	0	1969628..1970716	-	362	197285687	cysA	PMI1832	-	sulfate/thiosulfate ABC transporter, ATP-binding protein
1773	 43.42	0	1970736..1971578	-	280	197285688	cysW	PMI1833	-	sulfate/thiosulfate ABC transporter, permease protein
1774	 42.33	0	1971578..1972411	-	277	197285689	cysT	PMI1834	-	sulfate/thiosulfate ABC transporter, permease protein
1775	 39.15	0	1972411..1973442	-	343	197285690	cysP	PMI1835	-	sulfate/thiosulfate ABC transporter, thiosulfate-binding protein
1776	 40.47	0	1973694..1974590	-	298	197285691	-	PMI1836	-	hypothetical protein
1777	 40.44	0	1974739..1975329	-	196	197285692	-	PMI1837	-	lipoprotein
1778	 41.10	0	1975624..1976061	-	145	197285693	-	PMI1838	-	GNAT-family acetyltransferase
39.69	MEAN

4.91	STD DEV
