IslandPath Analysis: Proteus mirabilis HI4320

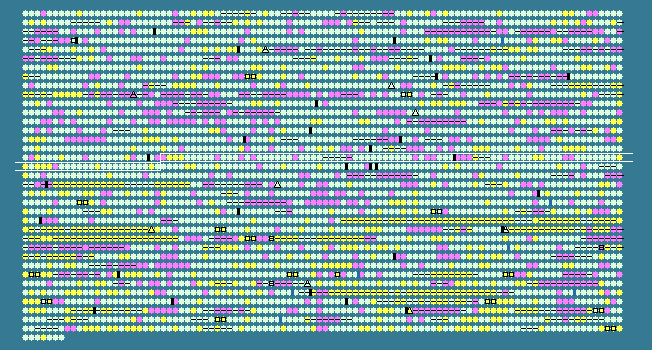

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1624	 29.02	-2	1794321..1794923	+	200	197285539	rcsA	PMI1680	-	colanic acid capsular biosynthesis activation protein (LuxR-family transcriptional regulator)
1625	 44.14	0	1795263..1798343	-	1026	197285540	ttrA	PMI1681	-	tetrathionate reductase subunit A
1626	 43.44	0	1798336..1799364	-	342	197285541	ttrC	PMI1682	-	tetrathionate reductase subunit C
1627	 44.53	0	1799361..1800101	-	246	197285542	ttrB	PMI1683	-	tetrathionate reductase subunit B
1628	 40.31	0	1800265..1802028	+	587	197285543	ttrS	PMI1684	-	two component system sensor kinase of tetrathionate reductase complex
1629	 39.64	0	1802039..1802641	+	200	197285544	ttrR	PMI1685	-	two component system response regulator of tetrathionate reductase complex
1630	 40.66	0	1802716..1803657	+	313	197285545	htrB	PMI1686	-	lipid A biosynthesis lauroyl acyltransferase (heat shock protein B)
1631	 40.03	0	1803942..1805150	+	402	197285546	mdtG	PMI1687	-	multidrug resistance protein (MFS-family transporter)
1632	 41.54	0	1805571..1807106	+	511	197285547	-	PMI1688	-	di-/tripeptide transporter
1633	 21.59	-2	1807417..1807731	+	104	197285548	-	PMI1689	-	hypothetical protein
1634	 38.97	0	1807896..1808675	+	259	197285549	-	PMI1690	-	hypothetical protein
1635	 40.66	0	1808776..1809198	+	140	197285550	-	PMI1691	-	thioesterase superfamilyl protein
1636	 40.25	0	1809428..1809745	-	105	197285551	-	PMI1692	-	hypothetical protein
1637	 35.99	0	1809899..1810537	-	212	197285552	-	PMI1693	-	acetyltransferase
1638	 40.57	0	1810806..1811897	-	363	197285553	-	PMI1694	-	NADH-dependent flavin oxidoreductase
1639	 34.83	0	1812166..1812432	-	88	197285554	-	PMI1695	-	hypothetical protein
1640	 37.54	0	1813416..1814081	+	221	197285555	rssB	PMI1696	-	swarming motility regulation two-component system, response regulator
1641	 36.47	0	1814082..1815485	+	467	197285556	rssA	PMI1697	-	swarming motility regulation two-component system, sensor kinase
1642	 40.61	0	1815542..1815871	-	109	197285557	-	PMI1698	-	hypothetical protein
1643	 39.22	0	1815868..1816530	-	220	197285558	-	PMI1699	-	branched-chain amino acid transporter
1644	 41.53	0	1816615..1817175	+	186	197285559	-	PMI1700	-	transcriptional regulator
1645	 37.53	0	1817238..1818095	-	285	197285560	-	PMI1701	-	D-alanine aminotransferase
1646	 35.41	0	1818282..1818860	+	192	197285561	-	PMI1702	-	hypothetical protein
1647	 36.39	0	1818940..1820577	-	545	197285562	-	PMI1703	-	hypothetical protein
1648	 38.11	0	1821177..1822433	+	418	197285563	-	PMI1704	-	mechanosensitive ion channel protein
1649	 41.66	0	1822787..1825225	+	812	197285564	dmsA	PMI1705	-	dimethyl sulfoxide reductase chain A
1650	 41.26	0	1825237..1825854	+	205	197285565	dmsB	PMI1706	-	anaerobic dimethyl sulfoxide reductase chain B
1651	 40.41	0	1825858..1826634	+	258	197285566	dmsC	PMI1707	-	anaerobic dimethyl sulfoxide reductase chain C
1652	 40.15	0	1826750..1827292	-	180	197285567	-	PMI1708	-	hypothetical protein
1653	 37.78	0	1827859..1828038	+	59	197285568	-	PMI1709	-	hypothetical protein
1654	 37.72	0	1828299..1829552	-	417	197285569	-	PMI1710	-	phage protein
1655	 33.64	-1	1829558..1830214	-	218	197285570	-	PMI1711	-	phage protein
1656	 40.82	0	1830211..1831398	-	395	197285571	-	PMI1712	-	phage protein
1657	 37.39	0	1831391..1831735	-	114	197285572	-	PMI1713	-	phage protein
1658	 42.28	0	1831732..1832424	-	230	197285573	-	PMI1714	-	phage protein
1659	 40.71	0	1832427..1833239	-	270	197285574	-	PMI1715	-	phage protein
1660	 37.38	0	1833208..1833528	-	106	197285575	-	PMI1716	-	phage protein
1661	 36.40	0	1833541..1834029	-	162	197285576	-	PMI1717	-	phage protein
1662	 37.07	0	1834032..1836335	-	767	197285577	-	PMI1718	-	phage protein
1663	 41.18	0	1836418..1836876	-	152	197285578	-	PMI1719	-	phage protein
1664	 43.05	0	1836936..1837388	-	150	197285579	-	PMI1720	-	phage protein
1665	 42.61	0	1837399..1838886	-	495	197285580	-	PMI1721	-	phage protein
1666	 31.19	-1	1838895..1839407	-	170	197285581	-	PMI1722	-	phage protein
1667	 37.78	0	1839444..1839893	-	149	197285582	-	PMI1723	-	phage protein (endopeptidase/lysis protein)
1668	 30.37	-1	1839890..1840294	-	134	197285583	-	PMI1724	-	phage protein
1669	 34.00	-1	1840297..1840596	-	99	197285584	-	PMI1725	-	phage holin (lysis protein)
1670	 37.75	0	1840978..1841793	-	271	197285585	-	PMI1726	-	phage antitermination protein
1671	 39.43	0	1842039..1842776	+	245	197285586	-	PMI1727	-	phage repressor protein
1672	 38.43	0	1842876..1843895	-	339	197285587	-	PMI1728	-	tryptophanyl-tRNA synthetase
1673	 33.04	-1	1845004..1847697	+	897	197285588	rsbA	PMI1729	-	swarming behavior regulation two-component system, sensor kinase
1674	 35.92	0	1847715..1848371	+	218	197285589	rcsB	PMI1730	-	two component system, response regulator (capsular synthesis regulator component B)
1675	 34.75	-1	1848619..1851447	-	942	197285590	rcsC	PMI1731	-	two component system, [includes both sensor kinase and response regulator domains] (capsular synthesis regulator component C)
1676	 43.20	0	1851648..1854281	-	877	197285591	gyrA	PMI1732	-	DNA gyrase subunit A
1677	 41.60	0	1854466..1855203	+	245	197285592	ubiG	PMI1733	-	3-demethylubiquinone-9 3-methyltransferase
1678	 39.70	0	1855565..1857856	+	763	197285593	nrdA	PMI1734	-	ribonucleoside-diphosphate reductase 1 alpha chain
1679	 37.14	0	1857868..1858998	+	376	197285594	nrdB	PMI1735	-	ribonucleoside-diphosphate reductase 1, beta subunit
1680	 42.29	0	1859023..1859301	+	92	197285595	-	PMI1736	-	ferredoxin
1681	 35.47	0	1859409..1859642	+	77	197285596	-	PMI1737	-	lipoprotein
1682	 41.25	0	1859833..1861044	+	403	197285597	tyrP	PMI1738	-	tyrosine-specific transport protein
1683	 41.07	0	1861149..1861691	-	180	197285598	-	PMI1739	-	hypothetical protein
1684	 40.48	0	1861974..1863428	+	484	197285599	katA	PMI1740	-	catalase
1685	 40.77	0	1863524..1864948	-	474	197285600	menE	PMI1741	-	O-succinylbenzoic acid--CoA ligase
1686	 44.34	0	1864936..1865907	-	323	197285601	menC	PMI1742	-	O-succinylbenzoate-CoA synthase
1687	 43.24	0	1865907..1866764	-	285	197285602	menB	PMI1743	-	naphthoate synthase
1688	 41.15	0	1866777..1867544	-	255	197285603	yfbB	PMI1744	-	acyl-CoA thioester hydrolase
1689	 43.06	0	1867528..1869213	-	561	197285604	menD	PMI1745	-	menaquinone biosynthesis protein mend [includes: 2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase and 2-oxoglutarate decarboxylase]
1690	 40.86	0	1869555..1870883	-	442	197285605	menF	PMI1746	-	menaquinone-specific isochorismate synthase
1691	 28.22	-2	1871095..1872306	+	403	197285606	xaxA	PMI1747	-	toxin
1692	 28.08	-2	1872321..1873328	+	335	197285607	xaxB	PMI1748	-	toxin
1693	 42.72	0	1873693..1875162	-	489	197285608	nuoN	PMI1750	-	NADH-quinone oxidoreductase chain N
1694	 42.61	0	1875169..1876698	-	509	197285609	nuoM	PMI1751	-	NADH-quinone oxidoreductase chain M
1695	 43.03	0	1876718..1878553	-	611	197285610	nuoL	PMI1752	-	NADH-quinone oxidoreductase chain L
1696	 42.57	0	1878550..1878852	-	100	197285611	nuoK	PMI1753	-	NADH-quinone oxidoreductase chain K
1697	 42.32	0	1878849..1879382	-	177	197285612	nuoJ	PMI1754	-	NADH-quinone oxidoreductase chain J
1698	 42.91	0	1879395..1879937	-	180	197285613	nuoI	PMI1755	-	NADH-quinone oxidoreductase chain I
1699	 42.02	0	1879952..1880929	-	325	197285614	nuoH	PMI1756	-	NADH-quinone oxidoreductase chain H
1700	 45.66	+1	1880929..1883661	-	910	197285615	nuoG	PMI1757	-	NADH-quinone oxidoreductase chain G
1701	 46.45	+1	1883715..1885079	-	454	197285616	nuoF	PMI1758	-	NADH-quinone oxidoreductase chain F
1702	 41.94	0	1885076..1885621	-	181	197285617	nuoE	PMI1759	-	NADH-quinone oxidoreductase chain E
1703	 45.08	+1	1885624..1887420	-	598	197285618	nuoC	PMI1760	-	NADH-quinone oxidoreductase chain C/D
1704	 45.48	+1	1887497..1888171	-	224	197285619	nuoB	PMI1761	-	NADH-quinone oxidoreductase chain B
1705	 46.36	+1	1888189..1888641	-	150	197285620	nuoA	PMI1762	-	NADH-quinone oxidoreductase chain A
1706	 33.33	-1	1888751..1889017	+	88	197285621	-	PMI1763	-	hypothetical protein
1707	 42.05	0	1889437..1890354	-	305	197285622	hexA	PMI1764	-	LysR-family transcriptional regulator
1708	 40.58	0	1891197..1892411	+	404	197285623	-	PMI1765	-	aminotransferase
1709	 37.29	0	1892544..1893125	+	193	197285624	-	PMI1766	-	5'-nucleotidase
1710	 42.57	0	1893195..1895024	-	609	197285625	-	PMI1767	-	cation transporter
1711	 41.78	0	1895134..1895796	-	220	197285626	-	PMI1768	-	phosphatase
1712	 40.36	0	1895831..1896328	-	165	197285627	-	PMI1769	-	hypothetical protein
1713	 44.08	0	1896466..1896921	-	151	197285628	-	PMI1770	-	hypothetical protein
1714	 41.56	0	1897313..1898515	+	400	197285629	ackA	PMI1771	-	acetate kinase
1715	 41.59	0	1898593..1900737	+	714	197285630	pta	PMI1772	-	phosphate acetyltransferase
1716	 40.21	0	1902531..1904930	+	799	197285631	gcd	PMI1773	-	quinoprotein glucose dehydrogenase
1717	 37.01	0	1905008..1906231	-	407	197285632	-	PMI1774	-	alanine racemase
1718	 40.18	0	1906488..1907744	-	418	197285633	-	PMI1775	-	PTS system EIIC component
1719	 37.50	0	1907755..1908042	-	95	197285634	-	PMI1776	-	PTS system EIIB component
1720	 37.61	0	1908072..1908515	-	147	197285635	-	PMI1777	-	PTS system EIIA component
1721	 41.07	0	1908742..1909788	+	348	197285636	-	PMI1778	-	LacI-family transcriptional regulator
1722	 43.46	0	1909785..1910327	-	180	197285637	-	PMI1779	-	NUDIX hydrolase
1723	 40.65	0	1910523..1911137	+	204	197285638	-	PMI1780	-	glutathione-S transferase
39.69	MEAN

4.91	STD DEV
