IslandPath Analysis: Proteus mirabilis HI4320

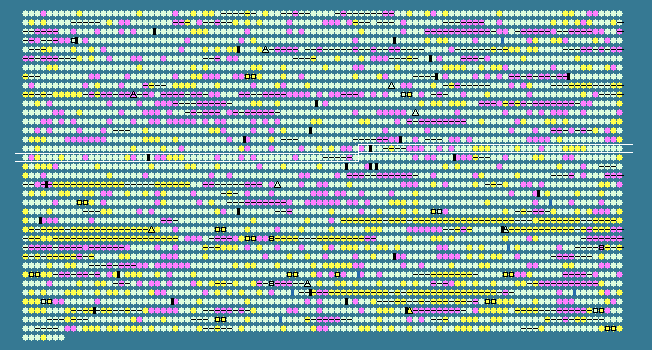

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1557	 35.86	0	1722878..1723312	-	144	197285472	-	PMI1613	-	universal stress protein
1558	 38.92	0	1723634..1725046	-	470	197285473	cycA	PMI1614	-	D-serine/D-alanine/glycine transporter
1559	 40.07	0	1725788..1727272	-	494	197285474	putP	PMI1615	-	sodium/proline symporter (proline permease)
1560	 43.06	0	1727740..1731708	+	1322	197285475	putA	PMI1616	-	bifunctional PutA protein [includes: proline dehydrogenase and delta-1-pyrroline-5-carboxylate
1561	 39.92	0	1731852..1732382	-	176	197285476	fliZ	PMI1617	-	FliZ protein
1562	 45.23	+1	1732441..1733163	-	240	197285477	fliA	PMI1618	-	RNA polymerase sigma factor for flagellar operon
1563	 36.59	0	1733606..1734709	-	367	197285478	fliC2	PMI1619	-	flagellin 2
1564	 38.37	0	1735019..1736110	-	363	197285479	fliC1	PMI1620	-	flagellin 1
1565	 35.73	0	1736497..1737915	+	472	197285480	fliD	PMI1621	-	flagellar hook-associated protein 2
1566	 35.34	0	1737941..1738339	+	132	197285481	fliS	PMI1622	-	flagellar protein FliS
1567	 35.31	0	1738358..1738711	+	117	197285482	fliT	PMI1623	-	flagella protein
1568	 38.76	0	1739005..1740147	-	380	197285483	-	PMI1624	-	hypothetical protein
1569	 38.26	0	1740613..1740876	-	87	197285484	-	PMI1625	-	hypothetical protein
1570	 35.06	0	1740930..1741160	-	76	197285485	-	PMI1626	-	hypothetical protein
1571	 36.65	0	1741563..1742255	+	230	197285486	-	PMI1627	-	fimbrial subunit
1572	 35.09	0	1742540..1742653	+	37	197285487	-	PMI1628	-	metalloelastase
1573	 39.94	0	1742664..1742996	-	110	197285488	fliE	PMI1629	-	flagellar hook-basal body complex protein
1574	 42.68	0	1743252..1744973	+	573	197285489	fliF	PMI1630	-	flagellar M-ring protein
1575	 42.44	0	1744970..1745968	+	332	197285490	fliG	PMI1631	-	flagellar motor switch protein
1576	 43.43	0	1745961..1746683	+	240	197285491	fliH	PMI1632	-	flagellar assembly protein
1577	 46.72	+1	1746683..1748056	+	457	197285492	fliI	PMI1633	-	flagellum-specific ATP synthase
1578	 46.76	+1	1748087..1748533	+	148	197285493	fliJ	PMI1634	-	flagellar protein FliJ
1579	 43.03	0	1748533..1749945	+	470	197285494	fliK	PMI1635	-	flagellar hook-length control protein
1580	 41.20	0	1750123..1750605	+	160	197285495	fliL	PMI1636	-	flagellar protein FliL
1581	 43.02	0	1750611..1751642	+	343	197285496	fliM	PMI1637	-	flagellar motor switch protein
1582	 41.85	0	1751635..1752045	+	136	197285497	fliN	PMI1638	-	flagellar motor switch protein
1583	 46.09	+1	1752049..1752495	+	148	197285498	fliO	PMI1639	-	flagellar protein
1584	 42.80	0	1752495..1753265	+	256	197285499	fliP	PMI1640	-	flagellar biosynthetic protein
1585	 41.11	0	1753280..1753549	+	89	197285500	fliQ	PMI1641	-	flagellar biosynthetic protein
1586	 38.95	0	1753555..1754337	+	260	197285501	fliR	PMI1642	-	flagellar biosynthetic protein
1587	 35.42	0	1754418..1754561	-	47	197285502	-	PMI1643	-	hypothetical protein
1588	 38.84	0	1754650..1755594	-	314	197285503	flgL	PMI1644	-	flagellar hook-associated protein 3 (hook-filament junction protein)
1589	 39.90	0	1755620..1757263	-	547	197285504	flgK	PMI1645	-	flagellar hook-associated protein 1
1590	 42.35	0	1757382..1758368	-	328	197285505	flgJ	PMI1646	-	peptidoglycan hydrolase (muramidase)
1591	 45.26	+1	1758368..1759474	-	368	197285506	flgI	PMI1647	-	flagellar P-ring protein precursor (basal body P-ring protein)
1592	 44.35	0	1759489..1760232	-	247	197285507	flgH	PMI1648	-	flagellar L-ring protein precursor
1593	 44.19	0	1760295..1761077	-	260	197285508	flgG	PMI1649	-	flagellar basal-body rod protein (distal rod protein)
1594	 48.15	+1	1761097..1761852	-	251	197285509	flgF	PMI1650	-	flagellar basal-body rod protein
1595	 40.79	0	1761874..1763094	-	406	197285510	flgE	PMI1651	-	flagellar hook protein
1596	 38.74	0	1763123..1763917	-	264	197285511	flgD	PMI1652	-	basal-body rod modification protein
1597	 42.72	0	1763930..1764334	-	134	197285512	flgC	PMI1653	-	flagellar basal-body rod protein
1598	 40.58	0	1764340..1764753	-	137	197285513	flgB	PMI1654	-	flagellar basal-body rod protein
1599	 40.33	0	1764963..1765619	+	218	197285514	flgA	PMI1655	-	flagella basal body P-ring formation protein
1600	 41.33	0	1766296..1766595	+	99	197285515	flgM	PMI1656	-	negative regulator of flagellin synthesis (anti-sigma-28 factor)
1601	 37.41	0	1766607..1767047	+	146	197285516	flgN	PMI1657	-	flagella synthesis protein
1602	 28.42	-2	1767216..1768478	-	420	197285517	floA	PMI1658	-	haemagglutinin
1603	 43.57	0	1768884..1770974	-	696	197285518	flhA	PMI1659	-	flagellar biosynthesis protein
1604	 42.91	0	1770967..1772115	-	382	197285519	flhB	PMI1660	-	flagellar biosynthetic protein
1605	 39.73	0	1772544..1773200	-	218	197285520	cheZ	PMI1661	-	chemotaxis phosphatase
1606	 40.51	0	1773210..1773599	-	129	197285521	cheY	PMI1662	-	chemotaxis response regulator
1607	 43.40	0	1773659..1774711	-	350	197285522	cheB	PMI1663	-	chemotaxis response regulator protein-glutamate methylesterase
1608	 38.38	0	1774704..1775594	-	296	197285523	cheR	PMI1664	-	chemotaxis protein methyltransferase
1609	 39.53	0	1775601..1777247	-	548	197285524	-	PMI1665	-	methyl-accepting chemotaxis protein
1610	 40.13	0	1777307..1779013	-	568	197285525	-	PMI1666	-	methyl-accepting chemotaxis protein
1611	 36.13	0	1779361..1779861	-	166	197285526	cheW	PMI1667	-	chemotaxis protein
1612	 40.63	0	1779883..1782102	-	739	197285527	cheA	PMI1668	-	chemotaxis protein
1613	 40.10	0	1782138..1783187	-	349	197285528	motB	PMI1669	-	chemotaxis protein (motility protein B)
1614	 42.51	0	1783190..1784083	-	297	197285529	motA	PMI1670	-	chemotaxis protein (motility protein A)
1615	 37.97	0	1784218..1784799	-	193	197285530	flhC	PMI1671	-	flagellar transcriptional activator
1616	 37.89	0	1784802..1785152	-	116	197285531	flhD	PMI1672	-	flagellar transcriptional activator
1617	 37.65	0	1787910..1788071	-	53	197285532	-	PMI1673	-	hypothetical protein
1618	 43.35	0	1788474..1789172	-	232	197285533	mgtC	PMI1674	-	Mg(2+) transport ATPase protein C
1619	 35.38	0	1789537..1789731	-	64	197285534	dsrB	PMI1675	-	protein DsrB
1620	 41.78	0	1789840..1790052	-	70	197285535	cspC	PMI1676	-	cold shock-like protein
1621	 36.69	0	1790508..1791014	+	168	197285536	-	PMI1677	-	hypothetical protein
1622	 41.41	0	1792488..1793540	+	350	197285537	pyrC	PMI1678	-	dihydroorotase
1623	 34.90	0	1793752..1794006	+	84	197285538	-	PMI1679	-	hypothetical protein
1624	 29.02	-2	1794321..1794923	+	200	197285539	rcsA	PMI1680	-	colanic acid capsular biosynthesis activation protein (LuxR-family transcriptional regulator)
1625	 44.14	0	1795263..1798343	-	1026	197285540	ttrA	PMI1681	-	tetrathionate reductase subunit A
1626	 43.44	0	1798336..1799364	-	342	197285541	ttrC	PMI1682	-	tetrathionate reductase subunit C
1627	 44.53	0	1799361..1800101	-	246	197285542	ttrB	PMI1683	-	tetrathionate reductase subunit B
1628	 40.31	0	1800265..1802028	+	587	197285543	ttrS	PMI1684	-	two component system sensor kinase of tetrathionate reductase complex
1629	 39.64	0	1802039..1802641	+	200	197285544	ttrR	PMI1685	-	two component system response regulator of tetrathionate reductase complex
1630	 40.66	0	1802716..1803657	+	313	197285545	htrB	PMI1686	-	lipid A biosynthesis lauroyl acyltransferase (heat shock protein B)
1631	 40.03	0	1803942..1805150	+	402	197285546	mdtG	PMI1687	-	multidrug resistance protein (MFS-family transporter)
1632	 41.54	0	1805571..1807106	+	511	197285547	-	PMI1688	-	di-/tripeptide transporter
1633	 21.59	-2	1807417..1807731	+	104	197285548	-	PMI1689	-	hypothetical protein
1634	 38.97	0	1807896..1808675	+	259	197285549	-	PMI1690	-	hypothetical protein
1635	 40.66	0	1808776..1809198	+	140	197285550	-	PMI1691	-	thioesterase superfamilyl protein
1636	 40.25	0	1809428..1809745	-	105	197285551	-	PMI1692	-	hypothetical protein
1637	 35.99	0	1809899..1810537	-	212	197285552	-	PMI1693	-	acetyltransferase
1638	 40.57	0	1810806..1811897	-	363	197285553	-	PMI1694	-	NADH-dependent flavin oxidoreductase
1639	 34.83	0	1812166..1812432	-	88	197285554	-	PMI1695	-	hypothetical protein
1640	 37.54	0	1813416..1814081	+	221	197285555	rssB	PMI1696	-	swarming motility regulation two-component system, response regulator
1641	 36.47	0	1814082..1815485	+	467	197285556	rssA	PMI1697	-	swarming motility regulation two-component system, sensor kinase
1642	 40.61	0	1815542..1815871	-	109	197285557	-	PMI1698	-	hypothetical protein
1643	 39.22	0	1815868..1816530	-	220	197285558	-	PMI1699	-	branched-chain amino acid transporter
1644	 41.53	0	1816615..1817175	+	186	197285559	-	PMI1700	-	transcriptional regulator
1645	 37.53	0	1817238..1818095	-	285	197285560	-	PMI1701	-	D-alanine aminotransferase
1646	 35.41	0	1818282..1818860	+	192	197285561	-	PMI1702	-	hypothetical protein
1647	 36.39	0	1818940..1820577	-	545	197285562	-	PMI1703	-	hypothetical protein
1648	 38.11	0	1821177..1822433	+	418	197285563	-	PMI1704	-	mechanosensitive ion channel protein
1649	 41.66	0	1822787..1825225	+	812	197285564	dmsA	PMI1705	-	dimethyl sulfoxide reductase chain A
1650	 41.26	0	1825237..1825854	+	205	197285565	dmsB	PMI1706	-	anaerobic dimethyl sulfoxide reductase chain B
1651	 40.41	0	1825858..1826634	+	258	197285566	dmsC	PMI1707	-	anaerobic dimethyl sulfoxide reductase chain C
1652	 40.15	0	1826750..1827292	-	180	197285567	-	PMI1708	-	hypothetical protein
1653	 37.78	0	1827859..1828038	+	59	197285568	-	PMI1709	-	hypothetical protein
1654	 37.72	0	1828299..1829552	-	417	197285569	-	PMI1710	-	phage protein
1655	 33.64	-1	1829558..1830214	-	218	197285570	-	PMI1711	-	phage protein
1656	 40.82	0	1830211..1831398	-	395	197285571	-	PMI1712	-	phage protein
39.69	MEAN

4.91	STD DEV
