IslandPath Analysis: Proteus mirabilis HI4320

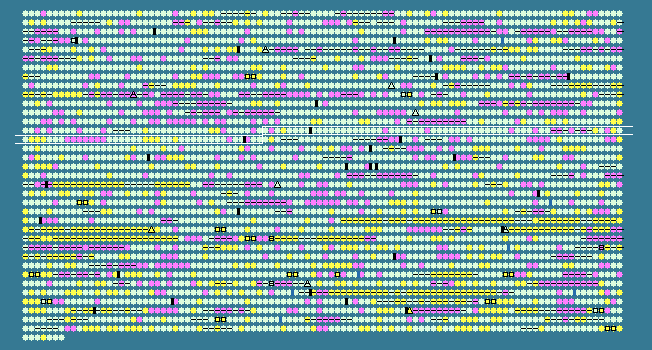

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1341	 38.34	0	1473407..1473985	+	192	197285256	sodB	PMI1397	-	superoxide dismutase [Fe]
1342	 26.92	-2	1474220..1474375	+	51	197285257	-	PMI1398	-	hypothetical protein
1343	 42.79	0	1474472..1475497	+	341	197285258	purR	PMI1399	-	purine nucleotide synthesis repressor (LacI-family transcriptional regulator)
1344	 45.07	+1	1475507..1476409	-	300	197285259	-	PMI1400	-	LysR-family transcriptional regulator
1345	 42.04	0	1476529..1477746	+	405	197285260	-	PMI1401	-	MFS-family transporter
1346	 39.74	0	1478049..1479203	+	384	197285261	cfa	PMI1402	-	cyclopropane-fatty-acyl-phospholipid synthase
1347	 38.51	0	1479293..1479949	-	218	197285262	ribE	PMI1403	-	riboflavin synthase alpha chain
1348	 41.56	0	1480253..1481626	+	457	197285263	mdtK	PMI1404	-	multidrug resistance protein
1349	 40.91	0	1482432..1483844	+	470	197285264	pykF	PMI1405	-	pyruvate kinase
1350	 40.48	0	1483959..1485512	-	517	197285265	gadC	PMI1406	-	probable glutamate/gamma-aminobutyrate antiporter (extreme acid sensitivity protein)
1351	 42.82	0	1485617..1487008	-	463	197285266	gadB	PMI1407	-	glutamate decarboxylase beta
1352	 37.80	0	1487412..1488464	+	350	197285267	-	PMI1408	-	conjugated bile acid hydrolase
1353	 38.33	0	1488740..1488979	+	79	197285268	lpp	PMI1409	-	major outer membrane lipoprotein (murein-lipoprotein)
1354	 42.70	0	1489083..1490000	-	305	197285269	-	PMI1410	-	peptidoglycan-binding protein
1355	 41.96	0	1490118..1490546	-	142	197285270	sufE	PMI1411	-	cysteine desulfuration protein
1356	 41.30	0	1490568..1491809	-	413	197285271	sufS	PMI1412	-	cysteine desulfurase (selenocysteine lyase)
1357	 40.37	0	1491816..1493123	-	435	197285272	sufD	PMI1413	-	subunit of cysteine desulfurase activator complex
1358	 39.22	0	1493098..1493844	-	248	197285273	sufC	PMI1414	-	probable ATP-binding component of cysteine desulfurase (ATP-dependent transporter)
1359	 41.68	0	1493889..1495385	-	498	197285274	sufB	PMI1415	-	component of cysteine desulfurase activator complex
1360	 40.11	0	1495403..1495771	-	122	197285275	sufA	PMI1416	-	scaffold protein for iron-sulfur cluster assembly
1361	 31.37	-1	1496179..1496790	-	203	197285276	-	PMI1417	-	lipoprotein
1362	 39.86	0	1496941..1497354	-	137	197285277	-	PMI1418	-	thioesterase
1363	 41.28	0	1497351..1500407	-	1018	197285278	-	PMI1419	-	FAD-binding oxidase (flavoprotein)
1364	 39.89	0	1500625..1501737	+	370	197285279	-	PMI1420	-	hypothetical protein
1365	 42.63	0	1502191..1504566	-	791	197285280	ppsA	PMI1421	-	phosphoenolpyruvate synthase
1366	 36.45	0	1504785..1505651	+	288	197285281	-	PMI1422	-	hypothetical protein
1367	 42.10	0	1505772..1506821	+	349	197285282	aroH	PMI1423	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1368	 32.79	-1	1507078..1507260	+	60	197285283	-	PMI1424	-	hemin uptake protein
1369	 37.27	0	1507335..1509569	+	744	197285284	hmuR1	PMI1425	-	hemin receptor
1370	 40.97	0	1509649..1511691	+	680	197285285	hmuR2	PMI1426	-	hemin receptor
1371	 39.19	0	1511685..1512776	+	363	197285286	hmuS	PMI1427	-	hemin transport protein
1372	 40.44	0	1512792..1513607	+	271	197285287	hmuT	PMI1428	-	hemin-binding periplasmic protein
1373	 40.80	0	1513607..1514611	+	334	197285288	hmuU	PMI1429	-	hemin transport system permease protein HmuU
1374	 40.91	0	1514572..1515402	+	276	197285289	hmuV	PMI1430	-	hemin transport system ATP-binding protein
1375	 39.32	0	1515512..1515979	-	155	197285290	-	PMI1431	-	AsnC-family transcriptional regulator
1376	 37.42	0	1516140..1516751	+	203	197285291	-	PMI1432	-	LysE-type transporter
1377	 41.03	0	1516834..1518249	-	471	197285292	-	PMI1433	-	GntR-family transcriptional regulator
1378	 40.22	0	1518398..1519732	+	444	197285293	-	PMI1434	-	cytochrome oxidase subunit I
1379	 40.48	0	1519722..1520729	+	335	197285294	-	PMI1435	-	cytochrome oxidase subunit II
1380	 38.27	0	1520710..1520871	+	53	197285295	-	PMI1436	-	hypothetical protein
1381	 43.09	0	1521159..1522019	+	286	197285296	-	PMI1437	-	iron utilization protein
1382	 35.16	0	1522540..1522923	+	127	197285297	-	PMI1438	-	hypothetical protein
1383	 37.91	0	1523193..1523978	-	261	197285298	phoH	PMI1439	-	PhoH protein (phosphate starvation-inducible protein PsiH)
1384	 38.51	0	1524325..1524768	+	147	197285299	-	PMI1440	-	hypothetical protein
1385	 40.80	0	1524779..1525756	-	325	197285300	endA	PMI1441	-	endonuclease I precursor
1386	 29.71	-2	1525918..1526193	+	91	197285301	-	PMI1442	-	hypothetical protein
1387	 39.45	0	1526199..1526672	-	157	197285302	-	PMI1443	-	hypothetical protein
1388	 40.55	0	1526663..1527466	-	267	197285303	-	PMI1444	-	hypothetical protein
1389	 31.16	-1	1527656..1528483	-	275	197285304	-	PMI1445	-	hypothetical protein
1390	 33.06	-1	1528470..1529564	-	364	197285305	-	PMI1446	-	hypothetical protein
1391	 38.20	0	1529768..1530178	-	136	197285306	-	PMI1447	-	hypothetical protein
1392	 30.80	-1	1530498..1531169	+	223	197285307	-	PMI1448	-	lipoprotein
1393	 37.21	0	1531297..1531734	-	145	197285308	uspG1	PMI1449	-	universal stress protein G
1394	 35.99	0	1531801..1532139	-	112	197285309	-	PMI1450	-	hypothetical protein
1395	 39.39	0	1532255..1532683	-	142	197285310	uspG2	PMI1451	-	universal stress protein G
1396	 43.66	0	1532830..1533720	-	296	197285311	-	PMI1452	-	hypothetical protein
1397	 36.94	0	1534011..1534232	+	73	197285312	-	PMI1453	-	hypothetical protein
1398	 36.00	0	1534499..1534873	+	124	197285313	-	PMI1454	-	hypothetical protein
1399	 43.66	0	1535091..1536068	+	325	197285314	hemB	PMI1455	-	delta-aminolevulinic acid dehydratase
1400	 39.78	0	1536223..1536687	+	154	197285315	-	PMI1456	-	hypothetical protein
1401	 40.53	0	1536773..1538050	-	425	197285316	codA	PMI1457	-	cytosine deaminase
1402	 43.25	0	1538040..1539290	-	416	197285317	codB	PMI1458	-	cytosine permease
1403	 43.65	0	1539677..1541344	-	555	197285318	betA	PMI1459	-	choline dehydrogenase
1404	 43.56	0	1541390..1542865	-	491	197285319	betB	PMI1460	-	betaine aldehyde dehydrogenase
1405	 41.79	0	1542890..1543492	-	200	197285320	betI	PMI1461	-	TetR-family transcriptional regulator
1406	 39.65	0	1543702..1545744	+	680	197285321	betT	PMI1462	-	high-affinity choline transport protein
1407	 39.81	0	1546004..1547161	+	385	197285322	-	PMI1463	-	aminotransferase
1408	 32.08	-1	1547222..1547779	-	185	197285323	-	PMI1464	-	fimbrial subunit
1409	 34.01	-1	1547798..1548832	-	344	197285324	-	PMI1465	-	fimbrial adhesin
1410	 31.11	-1	1548820..1551423	-	867	197285325	-	PMI1466	-	fimbrial outer membrane usher protein
1411	 31.02	-1	1551457..1552149	-	230	197285326	-	PMI1467	-	fimbrial chaperone protein
1412	 28.36	-2	1552174..1552716	-	180	197285327	-	PMI1468	-	fimbrial subunit
1413	 35.29	0	1552778..1553338	-	186	197285328	-	PMI1469	-	fimbrial subunit
1414	 23.51	-2	1553584..1553919	-	111	197285329	-	PMI1470	-	fimbrial operon regulator
1415	 42.36	0	1554709..1555716	-	335	197285330	oppF	PMI1471	-	oligopeptide ABC transporter, ATP-binding protein
1416	 42.73	0	1555713..1556702	-	329	197285331	oppD	PMI1472	-	oligopeptide ABC transporter, ATP-binding protein
1417	 42.13	0	1556710..1557618	-	302	197285332	oppC	PMI1473	-	oligopeptide ABC transporter, permease protein
1418	 40.50	0	1557637..1558557	-	306	197285333	oppB	PMI1474	-	oligopeptide ABC transporter, permease protein
1419	 39.01	0	1558636..1560273	-	545	197285334	oppA	PMI1475	-	oligopeptide ABC transporter, oligopeptide-binding protein
1420	 39.31	0	1560540..1562180	-	546	197285335	oppA2	PMI1476	-	oligopeptide ABC transporter, oligopeptide-binding protein
1421	 43.38	0	1562831..1564213	-	460	197285336	cysG	PMI1477	-	siroheme synthase [includes: uroporphyrin-III C-methyltransferase, precorrin-2 dehydrogenase and sirohydrochlorin ferrochelatase]
1422	 43.84	0	1564239..1564571	-	110	197285337	nirD	PMI1478	-	nitrite reductase [NAD(P)H] small subunit
1423	 43.27	0	1564568..1567114	-	848	197285338	nirB	PMI1479	-	nitrite reductase [NAD(P)H] large subunit
1424	 41.54	0	1567443..1569014	+	523	197285339	-	PMI1480	-	ABC transporter, substrate binding protein
1425	 41.79	0	1569089..1570129	+	346	197285340	-	PMI1481	-	ABC transporter, permease protein
1426	 45.37	+1	1570129..1570959	+	276	197285341	-	PMI1482	-	ABC transporter, permease protein
1427	 42.65	0	1570952..1571788	+	278	197285342	-	PMI1483	-	ABC transporter, ATP-binding protein
1428	 39.08	0	1571778..1572491	+	237	197285343	-	PMI1484	-	ABC transporter, ATP-binding protein
1429	 39.69	0	1572584..1573228	-	214	197285344	-	PMI1485	-	hypothetical protein
1430	 41.63	0	1573743..1576406	+	887	197285345	adhE	PMI1486	-	aldehyde-alcohol dehydrogenase [includes: alcohol dehydrogenase, acetaldehyde dehydrogenase (acetylating), pyruvate-formate-lyase deactivase]
1431	 37.19	0	1577583..1578179	-	198	197285346	tdk	PMI1487	-	thymidine kinase
1432	 39.75	0	1578689..1579093	+	134	197285347	hns	PMI1488	-	DNA-binding protein (histone-like structuring protein)
1433	 37.40	0	1579323..1580330	-	335	197285348	wbnF	PMI1489	-	probable nucleotide sugar epimerase
1434	 38.85	0	1580586..1581491	-	301	197285349	galU	PMI1490	-	UTP--glucose-1-phosphate uridylyltransferase
1435	 34.90	0	1581673..1582692	-	339	197285350	-	PMI1491	-	response regulator
1436	 40.93	0	1582833..1583306	+	157	197285351	-	PMI1492	-	hypothetical protein
1437	 38.99	0	1583345..1584193	+	282	197285352	purU	PMI1493	-	formyltetrahydrofolate deformylase
1438	 31.25	-1	1584579..1585442	-	287	197285353	-	PMI1494	-	LysR-family transcriptional regulator
1439	 42.75	0	1585886..1586692	+	268	197285354	xthA	PMI1495	-	exodeoxyribonuclease III
1440	 42.33	0	1586782..1588749	-	655	197285355	topB	PMI1496	-	DNA topoisomerase III
39.69	MEAN

4.91	STD DEV
