IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

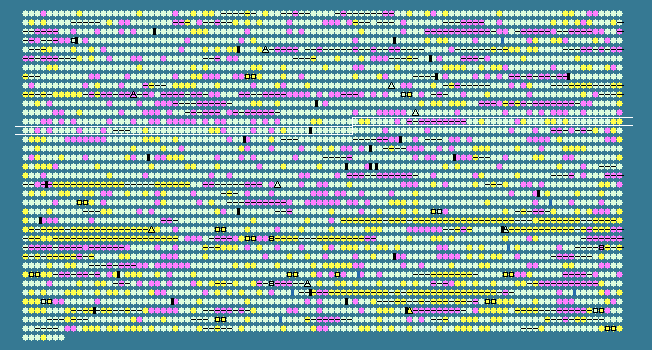

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1256	 41.67	0	1388071..1388394	-	107	197285171	-	PMI1312	-	translation initiaiton factor
1257	 45.92	+1	1388387..1389133	-	248	197285172	pyrF	PMI1313	-	orotidine-5'-phosphate decarboxylase
1258	 43.25	0	1389177..1390346	-	389	197285173	-	PMI1314	-	hypothetical protein
1259	 37.74	0	1390359..1390676	-	105	197285174	-	PMI1315	-	hypothetical protein
1260	 40.69	0	1390835..1391554	-	239	197285175	pgpB	PMI1316	-	phosphatidylglycerophosphatase B
1261	 38.00	0	1391833..1392432	+	199	197285176	ribA	PMI1317	-	GTP cyclohydrolase II
1262	 38.24	0	1392662..1393477	+	271	197285177	nlpA	PMI1318	-	lipoprotein-28
1263	 29.53	-2	1393532..1395004	-	490	197285178	-	PMI1319	-	transferase
1264	 42.80	0	1395199..1397871	-	890	197285179	acnA	PMI1320	-	aconitate hydratase 1
1265	 33.69	-1	1398087..1398926	+	279	197285180	-	PMI1321	-	hypothetical protein
1266	 40.21	0	1398986..1399960	-	324	197285181	cysB	PMI1322	-	cys regulon transcriptional activator (LysR-family transcriptional regulator)
1267	 33.33	-1	1400111..1400302	-	63	197285182	-	PMI1323	-	hypothetical protein
1268	 31.86	-1	1400402..1401148	-	248	197285183	-	PMI1324	-	lipoprotein
1269	 29.87	-2	1401253..1402002	-	249	197285184	-	PMI1325	-	lipoprotein
1270	 31.73	-1	1402106..1402855	-	249	197285185	-	PMI1326	-	lipoprotein
1271	 31.33	-1	1402960..1403709	-	249	197285186	-	PMI1327	-	lipoprotein
1272	 31.08	-1	1403814..1404566	-	250	197285187	-	PMI1328	-	lipoprotein
1273	 33.86	-1	1404547..1406457	-	636	197285188	-	PMI1329	-	lipase
1274	 36.01	0	1406479..1407264	-	261	197285189	-	PMI1330	-	regulatory protein
1275	 38.45	0	1407264..1409237	-	657	197285190	-	PMI1331	-	VgrG-like protein
1276	 41.30	0	1409271..1409546	-	91	197285191	-	PMI1332	-	hypothetical protein
1277	 43.24	0	1410453..1410977	-	174	197285192	sodC	PMI1333	-	copper-zinc superoxide dismutase
1278	 42.88	0	1411151..1413748	-	865	197285193	topA	PMI1334	-	DNA topoisomerase I
1279	 36.51	0	1414051..1414302	+	83	197285194	-	PMI1335	-	hypothetical protein
1280	 40.02	0	1414635..1415681	-	348	197285195	sohB	PMI1336	-	probable protease
1281	 42.75	0	1415892..1416656	+	254	197285196	-	PMI1337	-	short chain dehydrogenase
1282	 40.78	0	1416680..1417270	+	196	197285197	btuR	PMI1338	-	cobalamin adenosyltransferase
1283	 31.54	-1	1417323..1418270	-	315	197285198	-	PMI1339	-	lipoprotein
1284	 44.88	+1	1418468..1419394	-	308	197285199	rluB	PMI1340	-	ribosomal large subunit pseudouridine synthase B
1285	 38.33	0	1419761..1420381	-	206	197285200	-	PMI1341	-	dsRNA-binding protein
1286	 43.09	0	1420406..1421266	-	286	197285201	trpH	PMI1342	-	hypothetical protein
1287	 41.06	0	1421585..1423162	+	525	197285202	trpE	PMI1343	-	anthranilate synthase component I
1288	 43.83	0	1423156..1423755	+	199	197285203	trpD	PMI1344	-	anthranilate synthase component (glutamine amidotransferase)
1289	 44.04	0	1423757..1424755	+	332	197285204	trpD'	PMI1345	-	anthranilate synthase component (anthranilate phosphoribosyltransferase)
1290	 39.01	0	1424761..1426134	+	457	197285205	trpC	PMI1346	-	tryptophan biosynthesis protein [includes: indole-3-glycerol phosphate synthase; N-(5'-phospho-ribosyl)anthranilate isomerase]
1291	 43.74	0	1426151..1427341	+	396	197285206	trpB	PMI1347	-	tryptophan synthase beta chain
1292	 41.60	0	1427341..1428150	+	269	197285207	trpA	PMI1348	-	tryptophan synthase alpha chain
1293	 40.32	0	1428421..1428735	+	104	197285208	-	PMI1349	-	lipoprotein
1294	 38.16	0	1429387..1430028	-	213	197285209	ompW	PMI1350	-	outer membrane protein
1295	 37.40	0	1430472..1431233	+	253	197285210	-	PMI1351	-	hypothetical protein
1296	 40.22	0	1431366..1433150	-	594	197285211	-	PMI1352	-	sulfate transporter
1297	 36.24	0	1433456..1434109	+	217	197285212	ispZ	PMI1353	-	probable intracellular septation protein
1298	 42.59	0	1434183..1434614	+	143	197285213	-	PMI1354	-	acyl-CoA thioester hydrolase
1299	 45.87	+1	1434713..1435438	-	241	197285214	tonB	PMI1355	-	TonB protein
1300	 45.56	+1	1435554..1435733	-	59	197285215	-	PMI1356	-	hypothetical protein
1301	 41.55	0	1436041..1437501	+	486	197285216	cls	PMI1357	-	cardiolipin synthetase
1302	 39.70	0	1437609..1437938	+	109	197285217	-	PMI1358	-	hypothetical protein
1303	 30.91	-1	1438086..1438622	-	178	197285218	-	PMI1359	-	outer membrane protein (attachment invasion locus protein)
1304	 36.92	0	1438975..1439364	+	129	197285219	-	PMI1360	-	hypothetical protein
1305	 30.36	-1	1439453..1439755	-	100	197285220	-	PMI1361	-	hypothetical protein
1306	 38.23	0	1440211..1440864	+	217	197285221	-	PMI1362	-	transport protein
1307	 38.76	0	1441215..1442135	+	306	197285222	-	PMI1363	-	hypothetical protein
1308	 41.16	0	1442450..1443433	-	327	197285223	-	PMI1364	-	transport protein
1309	 37.24	0	1443798..1444130	+	110	197285224	-	PMI1365	-	lipoprotein
1310	 33.87	-1	1444423..1444983	+	186	197285225	-	PMI1366	-	hypothetical protein
1311	 38.77	0	1445339..1446958	-	539	197285226	mppA	PMI1367	-	periplasmic murein peptide-binding protein precursor
1312	 39.48	0	1447184..1447687	+	167	197285227	tpx	PMI1368	-	thiol peroxidase
1313	 36.53	0	1447787..1449352	-	521	197285228	tyrR	PMI1369	-	transcriptional regulator
1314	 27.19	-2	1449489..1449911	-	140	197285229	-	PMI1370	-	hypothetical protein
1315	 39.45	0	1450376..1451422	-	348	197285230	-	PMI1371	-	hypothetical protein
1316	 40.36	0	1451419..1452813	-	464	197285231	-	PMI1372	-	ATP-binding protein
1317	 38.37	0	1452794..1453051	-	85	197285232	pspD	PMI1373	-	phage shock protein D
1318	 36.41	0	1453136..1453492	-	118	197285233	pspC	PMI1374	-	phage shock protein C
1319	 40.69	0	1453492..1453722	-	76	197285234	pspB	PMI1375	-	phage shock protein B
1320	 38.57	0	1453759..1454427	-	222	197285235	pspA	PMI1376	-	phage shock protein A
1321	 43.68	0	1454644..1455648	+	334	197285236	pspF	PMI1377	-	psp operon transcriptional activator
1322	 40.37	0	1455927..1457618	+	563	197285237	sapA	PMI1378	-	peptide transport periplasmic protein
1323	 41.20	0	1457615..1458580	+	321	197285238	sapB	PMI1379	-	peptide transport system permease protein
1324	 41.28	0	1458567..1459460	+	297	197285239	sapC	PMI1380	-	peptide transport system permease protein
1325	 42.61	0	1459460..1460461	+	333	197285240	sapD	PMI1381	-	peptide transport system ATP-binding protein
1326	 40.37	0	1460451..1461260	+	269	197285241	sapF	PMI1382	-	peptide transport system ATP-binding protein
1327	 42.08	0	1461469..1462257	+	262	197285242	fabI	PMI1383	-	enoyl-[acyl-carrier-protein] reductase (NADH)
1328	 39.71	0	1462476..1463087	+	203	197285243	gst	PMI1384	-	glutathione S-transferase
1329	 42.87	0	1463166..1464035	-	289	197285244	pdxY	PMI1385	-	pyridoxamine kinase
1330	 42.04	0	1464156..1465442	-	428	197285245	tyrS	PMI1386	-	tyrosyl-tRNA synthetase
1331	 38.99	0	1465561..1466214	-	217	197285246	pdxH	PMI1387	-	pyridoxamine 5'-phosphate oxidase
1332	 43.58	0	1466258..1467370	-	370	197285247	-	PMI1388	-	hypothetical protein
1333	 43.38	0	1467591..1468058	+	155	197285248	slyB	PMI1389	-	outer membrane lipoprotein
1334	 33.57	-1	1468403..1468831	-	142	197285249	slyA	PMI1390	-	MarR-family transcriptional regulator
1335	 36.25	0	1469294..1469533	-	79	197285250	-	PMI1391	-	hypothetical protein
1336	 42.65	0	1469714..1470121	+	135	197285251	gloA	PMI1392	-	lactoylglutathione lyase
1337	 41.00	0	1470217..1470855	+	212	197285252	rnt	PMI1393	-	ribonuclease T
1338	 40.12	0	1470977..1471315	-	112	197285253	-	PMI1394	-	glutaredoxin
1339	 34.82	0	1471720..1472055	-	111	197285254	-	PMI1395	-	hypothetical protein
1340	 38.85	0	1472352..1473167	+	271	197285255	-	PMI1396	-	hypothetical protein
1341	 38.34	0	1473407..1473985	+	192	197285256	sodB	PMI1397	-	superoxide dismutase [Fe]
1342	 26.92	-2	1474220..1474375	+	51	197285257	-	PMI1398	-	hypothetical protein
1343	 42.79	0	1474472..1475497	+	341	197285258	purR	PMI1399	-	purine nucleotide synthesis repressor (LacI-family transcriptional regulator)
1344	 45.07	+1	1475507..1476409	-	300	197285259	-	PMI1400	-	LysR-family transcriptional regulator
1345	 42.04	0	1476529..1477746	+	405	197285260	-	PMI1401	-	MFS-family transporter
1346	 39.74	0	1478049..1479203	+	384	197285261	cfa	PMI1402	-	cyclopropane-fatty-acyl-phospholipid synthase
1347	 38.51	0	1479293..1479949	-	218	197285262	ribE	PMI1403	-	riboflavin synthase alpha chain
1348	 41.56	0	1480253..1481626	+	457	197285263	mdtK	PMI1404	-	multidrug resistance protein
1349	 40.91	0	1482432..1483844	+	470	197285264	pykF	PMI1405	-	pyruvate kinase
1350	 40.48	0	1483959..1485512	-	517	197285265	gadC	PMI1406	-	probable glutamate/gamma-aminobutyrate antiporter (extreme acid sensitivity protein)
1351	 42.82	0	1485617..1487008	-	463	197285266	gadB	PMI1407	-	glutamate decarboxylase beta
1352	 37.80	0	1487412..1488464	+	350	197285267	-	PMI1408	-	conjugated bile acid hydrolase
1353	 38.33	0	1488740..1488979	+	79	197285268	lpp	PMI1409	-	major outer membrane lipoprotein (murein-lipoprotein)
1354	 42.70	0	1489083..1490000	-	305	197285269	-	PMI1410	-	peptidoglycan-binding protein
1355	 41.96	0	1490118..1490546	-	142	197285270	sufE	PMI1411	-	cysteine desulfuration protein
39.69	MEAN

4.91	STD DEV
