IslandPath Analysis: Proteus mirabilis HI4320

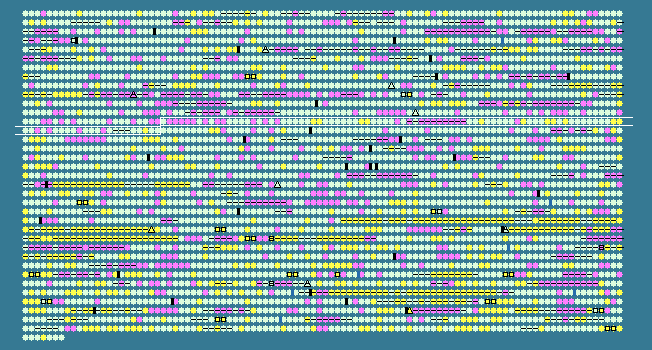

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1224	 37.61	0	1356199..1356900	+	233	197285139	-	PMI1280	-	ArsR-family transcriptional regulator
1225	 28.82	-2	1356937..1357401	-	154	197285140	-	PMI1281	-	hypothetical protein
1226	 34.84	0	1357391..1357789	-	132	197285141	-	PMI1282	-	hypothetical protein
1227	 32.00	-1	1358773..1359900	+	375	197285142	-	PMI1283	-	hypothetical protein
1228	 33.92	-1	1360035..1360544	-	169	197285143	-	PMI1284	-	probable acetyltransferase
1229	 30.08	-1	1360699..1361190	+	163	197285144	-	PMI1285	-	hypothetical protein
1230	 42.34	0	1361449..1361670	+	73	197285145	osmB	PMI1286	-	osmotically-inducible lipoprotein
1231	 35.29	0	1361766..1361969	+	67	197285146	-	PMI1287	-	hypothetical protein
1232	 40.93	0	1362212..1362961	+	249	197285147	ydfG	PMI1288	-	NADP-dependent L-serine/L-allo-threonine dehydrogenase
1233	 36.13	0	1363059..1363415	+	118	197285148	-	PMI1289	-	hypothetical protein
1234	 34.60	-1	1363465..1363701	+	78	197285149	-	PMI1290	-	hypothetical protein
1235	 39.73	0	1363931..1364602	-	223	197285150	bioD	PMI1291	-	dethiobiotin synthetase
1236	 37.62	0	1364798..1366009	-	403	197285151	mlc	PMI1292	-	protein Mlc (making large colonies protein) (ROK-family transcriptional regulator)
1237	 38.69	0	1366139..1367053	-	304	197285152	-	PMI1293	-	LysR-family transcriptional regulator
1238	 39.02	0	1367192..1368457	+	421	197285153	-	PMI1294	-	MFS-family transporter
1239	 36.13	0	1368930..1369859	+	309	197285154	tus	PMI1295	-	DNA replication terminus site-binding protein
1240	 43.13	0	1369935..1371332	-	465	197285155	fumC	PMI1296	-	fumarate hydratase, class II
1241	 36.08	0	1371907..1373580	+	557	197285156	-	PMI1297	-	hypothetical protein
1242	 38.02	0	1373662..1374621	-	319	197285157	-	PMI1298	-	hypothetical protein
1243	 21.15	-2	1374672..1374827	-	51	197285158	-	PMI1299	-	hypothetical protein
1244	 42.32	0	1375181..1376182	+	333	197285159	add	PMI1300	-	adenosine deaminase
1245	 40.26	0	1376241..1377236	-	331	197285160	-	PMI1301	-	hypothetical protein
1246	 40.71	0	1377259..1378302	-	347	197285161	-	PMI1302	-	oxidoreductase
1247	 37.82	0	1378435..1378902	+	155	197285162	-	PMI1303	-	hypothetical protein
1248	 39.52	0	1378996..1379577	+	193	197285163	rnfA	PMI1304	-	electron transport complex protein
1249	 43.22	0	1379577..1380203	+	208	197285164	rnfB	PMI1305	-	electron transport complex protein
1250	 45.20	+1	1380196..1382715	+	839	197285165	rnfC	PMI1306	-	electron transport complex protein
1251	 41.50	0	1382721..1383797	+	358	197285166	rnfD	PMI1307	-	electron transport complex protein
1252	 40.69	0	1383797..1384435	+	212	197285167	rnfG	PMI1308	-	electron transport complex protein
1253	 38.72	0	1384437..1385141	+	234	197285168	rnfE	PMI1309	-	electron transport complex protein
1254	 40.53	0	1385154..1385792	+	212	197285169	nth	PMI1310	-	endonuclease III
1255	 42.49	0	1385905..1387848	+	647	197285170	rnb	PMI1311	-	exoribonuclease II
1256	 41.67	0	1388071..1388394	-	107	197285171	-	PMI1312	-	translation initiaiton factor
1257	 45.92	+1	1388387..1389133	-	248	197285172	pyrF	PMI1313	-	orotidine-5'-phosphate decarboxylase
1258	 43.25	0	1389177..1390346	-	389	197285173	-	PMI1314	-	hypothetical protein
1259	 37.74	0	1390359..1390676	-	105	197285174	-	PMI1315	-	hypothetical protein
1260	 40.69	0	1390835..1391554	-	239	197285175	pgpB	PMI1316	-	phosphatidylglycerophosphatase B
1261	 38.00	0	1391833..1392432	+	199	197285176	ribA	PMI1317	-	GTP cyclohydrolase II
1262	 38.24	0	1392662..1393477	+	271	197285177	nlpA	PMI1318	-	lipoprotein-28
1263	 29.53	-2	1393532..1395004	-	490	197285178	-	PMI1319	-	transferase
1264	 42.80	0	1395199..1397871	-	890	197285179	acnA	PMI1320	-	aconitate hydratase 1
1265	 33.69	-1	1398087..1398926	+	279	197285180	-	PMI1321	-	hypothetical protein
1266	 40.21	0	1398986..1399960	-	324	197285181	cysB	PMI1322	-	cys regulon transcriptional activator (LysR-family transcriptional regulator)
1267	 33.33	-1	1400111..1400302	-	63	197285182	-	PMI1323	-	hypothetical protein
1268	 31.86	-1	1400402..1401148	-	248	197285183	-	PMI1324	-	lipoprotein
1269	 29.87	-2	1401253..1402002	-	249	197285184	-	PMI1325	-	lipoprotein
1270	 31.73	-1	1402106..1402855	-	249	197285185	-	PMI1326	-	lipoprotein
1271	 31.33	-1	1402960..1403709	-	249	197285186	-	PMI1327	-	lipoprotein
1272	 31.08	-1	1403814..1404566	-	250	197285187	-	PMI1328	-	lipoprotein
1273	 33.86	-1	1404547..1406457	-	636	197285188	-	PMI1329	-	lipase
1274	 36.01	0	1406479..1407264	-	261	197285189	-	PMI1330	-	regulatory protein
1275	 38.45	0	1407264..1409237	-	657	197285190	-	PMI1331	-	VgrG-like protein
1276	 41.30	0	1409271..1409546	-	91	197285191	-	PMI1332	-	hypothetical protein
1277	 43.24	0	1410453..1410977	-	174	197285192	sodC	PMI1333	-	copper-zinc superoxide dismutase
1278	 42.88	0	1411151..1413748	-	865	197285193	topA	PMI1334	-	DNA topoisomerase I
1279	 36.51	0	1414051..1414302	+	83	197285194	-	PMI1335	-	hypothetical protein
1280	 40.02	0	1414635..1415681	-	348	197285195	sohB	PMI1336	-	probable protease
1281	 42.75	0	1415892..1416656	+	254	197285196	-	PMI1337	-	short chain dehydrogenase
1282	 40.78	0	1416680..1417270	+	196	197285197	btuR	PMI1338	-	cobalamin adenosyltransferase
1283	 31.54	-1	1417323..1418270	-	315	197285198	-	PMI1339	-	lipoprotein
1284	 44.88	+1	1418468..1419394	-	308	197285199	rluB	PMI1340	-	ribosomal large subunit pseudouridine synthase B
1285	 38.33	0	1419761..1420381	-	206	197285200	-	PMI1341	-	dsRNA-binding protein
1286	 43.09	0	1420406..1421266	-	286	197285201	trpH	PMI1342	-	hypothetical protein
1287	 41.06	0	1421585..1423162	+	525	197285202	trpE	PMI1343	-	anthranilate synthase component I
1288	 43.83	0	1423156..1423755	+	199	197285203	trpD	PMI1344	-	anthranilate synthase component (glutamine amidotransferase)
1289	 44.04	0	1423757..1424755	+	332	197285204	trpD'	PMI1345	-	anthranilate synthase component (anthranilate phosphoribosyltransferase)
1290	 39.01	0	1424761..1426134	+	457	197285205	trpC	PMI1346	-	tryptophan biosynthesis protein [includes: indole-3-glycerol phosphate synthase; N-(5'-phospho-ribosyl)anthranilate isomerase]
1291	 43.74	0	1426151..1427341	+	396	197285206	trpB	PMI1347	-	tryptophan synthase beta chain
1292	 41.60	0	1427341..1428150	+	269	197285207	trpA	PMI1348	-	tryptophan synthase alpha chain
1293	 40.32	0	1428421..1428735	+	104	197285208	-	PMI1349	-	lipoprotein
1294	 38.16	0	1429387..1430028	-	213	197285209	ompW	PMI1350	-	outer membrane protein
1295	 37.40	0	1430472..1431233	+	253	197285210	-	PMI1351	-	hypothetical protein
1296	 40.22	0	1431366..1433150	-	594	197285211	-	PMI1352	-	sulfate transporter
1297	 36.24	0	1433456..1434109	+	217	197285212	ispZ	PMI1353	-	probable intracellular septation protein
1298	 42.59	0	1434183..1434614	+	143	197285213	-	PMI1354	-	acyl-CoA thioester hydrolase
1299	 45.87	+1	1434713..1435438	-	241	197285214	tonB	PMI1355	-	TonB protein
1300	 45.56	+1	1435554..1435733	-	59	197285215	-	PMI1356	-	hypothetical protein
1301	 41.55	0	1436041..1437501	+	486	197285216	cls	PMI1357	-	cardiolipin synthetase
1302	 39.70	0	1437609..1437938	+	109	197285217	-	PMI1358	-	hypothetical protein
1303	 30.91	-1	1438086..1438622	-	178	197285218	-	PMI1359	-	outer membrane protein (attachment invasion locus protein)
1304	 36.92	0	1438975..1439364	+	129	197285219	-	PMI1360	-	hypothetical protein
1305	 30.36	-1	1439453..1439755	-	100	197285220	-	PMI1361	-	hypothetical protein
1306	 38.23	0	1440211..1440864	+	217	197285221	-	PMI1362	-	transport protein
1307	 38.76	0	1441215..1442135	+	306	197285222	-	PMI1363	-	hypothetical protein
1308	 41.16	0	1442450..1443433	-	327	197285223	-	PMI1364	-	transport protein
1309	 37.24	0	1443798..1444130	+	110	197285224	-	PMI1365	-	lipoprotein
1310	 33.87	-1	1444423..1444983	+	186	197285225	-	PMI1366	-	hypothetical protein
1311	 38.77	0	1445339..1446958	-	539	197285226	mppA	PMI1367	-	periplasmic murein peptide-binding protein precursor
1312	 39.48	0	1447184..1447687	+	167	197285227	tpx	PMI1368	-	thiol peroxidase
1313	 36.53	0	1447787..1449352	-	521	197285228	tyrR	PMI1369	-	transcriptional regulator
1314	 27.19	-2	1449489..1449911	-	140	197285229	-	PMI1370	-	hypothetical protein
1315	 39.45	0	1450376..1451422	-	348	197285230	-	PMI1371	-	hypothetical protein
1316	 40.36	0	1451419..1452813	-	464	197285231	-	PMI1372	-	ATP-binding protein
1317	 38.37	0	1452794..1453051	-	85	197285232	pspD	PMI1373	-	phage shock protein D
1318	 36.41	0	1453136..1453492	-	118	197285233	pspC	PMI1374	-	phage shock protein C
1319	 40.69	0	1453492..1453722	-	76	197285234	pspB	PMI1375	-	phage shock protein B
1320	 38.57	0	1453759..1454427	-	222	197285235	pspA	PMI1376	-	phage shock protein A
1321	 43.68	0	1454644..1455648	+	334	197285236	pspF	PMI1377	-	psp operon transcriptional activator
1322	 40.37	0	1455927..1457618	+	563	197285237	sapA	PMI1378	-	peptide transport periplasmic protein
1323	 41.20	0	1457615..1458580	+	321	197285238	sapB	PMI1379	-	peptide transport system permease protein
39.69	MEAN

4.91	STD DEV
