IslandPath Analysis: Proteus mirabilis HI4320

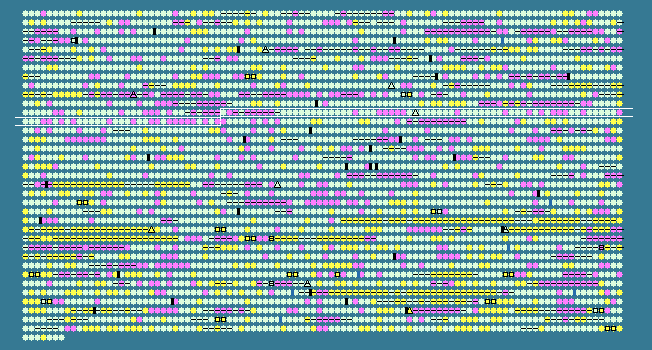

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1134	 36.26	0	1249629..1250174	-	181	197285049	-	PMI1188	-	fimbrial subunit
1135	 35.32	0	1251058..1251612	-	184	197285050	-	PMI1190	-	fimbrial subunit
1136	 34.46	-1	1251902..1252522	-	206	197285051	acpD	PMI1191	-	acyl carrier protein phosphodiesterase
1137	 39.75	0	1252744..1256640	+	1298	197285052	hrpA	PMI1192	-	ATP-dependent helicase
1138	 24.53	-2	1256699..1257016	-	105	197285053	-	PMI1193	-	hypothetical protein
1139	 28.16	-2	1257029..1258033	-	334	197285054	-	PMI1194	-	fimbrial subunit
1140	 27.40	-2	1258043..1260436	-	797	197285055	-	PMI1195	-	outer membrane fimbrial usher protein
1141	 25.93	-2	1260445..1261119	-	224	197285056	-	PMI1196	-	fimbrial chaparone
1142	 28.92	-2	1261147..1261713	-	188	197285057	-	PMI1197	-	fimbrial subunit
1143	 38.28	0	1262202..1263596	-	464	197285058	ydgI	PMI1198	-	arginine/ornithine antiporter
1144	 40.46	0	1263865..1264818	-	317	197285059	-	PMI1199	-	hypothetical protein
1145	 41.63	0	1265206..1266735	+	509	197285060	pntA	PMI1200	-	NAD(P) transhydrogenase subunit alpha (pyridine nucleotide transhydrogenase subunit alpha)
1146	 41.11	0	1266747..1268135	+	462	197285061	pntB	PMI1201	-	NAD(P) transhydrogenase subunit beta (pyridine nucleotide transhydrogenase subunit beta)
1147	 39.96	0	1268218..1269168	-	316	197285062	uspE	PMI1202	-	universal stress protein E
1148	 41.24	0	1269311..1270069	-	252	197285063	fnr	PMI1203	-	fumarate and nitrate reduction regulatory protein
1149	 40.63	0	1270635..1273031	+	798	197285064	-	PMI1204	-	dimethyl sulfoxide reductase chain A precursor
1150	 38.89	0	1273028..1273657	+	209	197285065	-	PMI1205	-	anaerobic dimethyl sulfoxide reductase chain B
1151	 36.66	0	1273654..1274526	+	290	197285066	-	PMI1206	-	anaerobic dimethyl sulfoxide reductase chain C
1152	 38.53	0	1274547..1275431	+	294	197285067	-	PMI1207	-	ferredoxin
1153	 39.28	0	1275562..1276587	+	341	197285068	-	PMI1208	-	probable zinc-binding dehydrogenase
1154	 36.27	0	1277098..1278933	+	611	197285069	disA	PMI1209	-	tyrosine decarboxylase
1155	 40.32	0	1279291..1280106	+	271	197285070	-	PMI1210	-	PadR-family transcriptional regulator
1156	 34.62	-1	1280099..1280254	+	51	197285071	-	PMI1211	-	hypothetical protein
1157	 38.84	0	1280536..1281243	+	235	197285072	-	PMI1212	-	hypothetical protein
1158	 40.60	0	1281536..1282099	+	187	197285073	ahpC	PMI1213	-	alkyl hydroperoxide reductase subunit C
1159	 41.32	0	1282192..1283757	+	521	197285074	ahpF	PMI1214	-	alkyl hydroperoxide reductase subunit F
1160	 34.94	0	1284070..1285062	+	330	197285075	-	PMI1215	-	hypothetical protein
1161	 29.19	-2	1285324..1285806	+	160	197285076	-	PMI1216	-	hypothetical protein
1162	 36.02	0	1285965..1286447	+	160	197285077	-	PMI1217	-	acetyltransferase
1163	 36.19	0	1286640..1287548	+	302	197285078	-	PMI1218	-	efflux protein
1164	 23.61	-2	1287671..1289131	+	486	197285079	-	PMI1219	-	hypothetical protein
1165	 37.53	0	1289203..1290654	+	483	197285080	amn	PMI1220	-	AMP nucleosidase
1166	 41.59	0	1290737..1291729	-	330	197285081	-	PMI1221	-	integrase/recombinase
1167	 40.46	0	1292037..1293074	-	345	197285082	-	PMI1222	-	exported L-asparaginase
1168	 42.92	0	1293788..1294861	+	357	197285083	-	PMI1223	-	HlyD-family secretion protein
1169	 41.17	0	1294858..1297626	+	922	197285084	-	PMI1224	-	ABC-type multidrug transport system
1170	 40.07	0	1297627..1298754	+	375	197285085	-	PMI1225	-	ABC-2 type transporter
1171	 40.06	0	1298782..1299465	-	227	197285086	kdpE	PMI1226	-	two-component response regulator of kdp operon
1172	 41.07	0	1299462..1302164	-	900	197285087	kdpD	PMI1227	-	two-component sensor kinase
1173	 29.20	-2	1302685..1303119	+	144	197285088	-	PMI1229	-	hypothetical protein
1174	 37.37	0	1303138..1304625	+	495	197285089	-	PMI1230	-	hypothetical protein
1175	 41.77	0	1304759..1305754	+	331	197285090	dhaK1	PMI1231	-	dihydroxyacetone kinase (glycerone kinase), kinase subunit
1176	 39.71	0	1305754..1306365	+	203	197285091	dhaK2	PMI1232	-	dihydroxyacetone kinase, phosphatase subunit
1177	 38.93	0	1306389..1307300	+	303	197285092	-	PMI1233	-	dihydrodipicolinate synthase
1178	 37.96	0	1307395..1308366	-	323	197285093	-	PMI1234	-	pyridoxal-phosphate dependent
1179	 37.09	0	1308363..1308761	-	132	197285094	-	PMI1235	-	endoribonuclease
1180	 38.74	0	1309076..1309834	-	252	197285095	-	PMI1236	-	acetyltransferase
1181	 34.41	-1	1310674..1311321	+	215	197285096	-	PMI1237	-	transport protein
1182	 37.54	0	1311426..1312043	+	205	197285097	-	PMI1238	-	pyridoxamine 5'-phosphate oxidase
1183	 36.76	0	1312164..1312775	+	203	197285098	-	PMI1239	-	probable base excision DNA repair protein
1184	 38.66	0	1312855..1313718	+	287	197285099	ada	PMI1240	-	regulatory protein of adaptative response [contains: methylated-DNA--protein-cysteine methyltransferase]
1185	 29.39	-2	1313763..1314092	+	109	197285100	-	PMI1241	-	hypothetical protein
1186	 37.06	0	1314187..1315929	-	580	197285101	-	PMI1242	-	ABC transporter ATP-binding protein
1187	 35.88	0	1316402..1317502	+	366	197285102	ddlA	PMI1243	-	D-alanine:D-alanine ligase A
1188	 37.24	0	1317538..1317921	+	127	197285103	-	PMI1244	-	hydrolase
1189	 33.85	-1	1318167..1318556	+	129	197285104	-	PMI1245	-	hypothetical protein
1190	 28.93	-2	1318746..1319267	+	173	197285105	-	PMI1246	-	hypothetical protein
1191	 36.20	0	1319484..1320284	+	266	197285106	metQ	PMI1247	-	probable D-methionine-binding lipoprotein
1192	 38.08	0	1320420..1321703	+	427	197285107	-	PMI1248	-	methionine gamma-lyase
1193	 36.81	0	1321773..1322318	-	181	197285108	-	PMI1249	-	acetyltransferase
1194	 33.92	-1	1322515..1323360	+	281	197285109	-	PMI1250	-	transcriptional regulator
1195	 36.46	0	1323367..1324551	-	394	197285110	-	PMI1251	-	MFS-family transporter
1196	 39.67	0	1324814..1325776	+	320	197285111	accA	PMI1252	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1197	 38.40	0	1325849..1326736	+	295	197285112	-	PMI1253	-	LysR-family transcriptional regulator
1198	 38.39	0	1326740..1328242	-	500	197285113	-	PMI1254	-	MFS-family transporter
1199	 37.19	0	1328397..1328993	+	198	197285114	-	PMI1255	-	TetR-family transcriptional regulator
1200	 24.78	-2	1329427..1330431	+	334	197285115	-	PMI1256	-	hypothetical protein
1201	 39.40	0	1330564..1332162	-	532	197285116	-	PMI1257	-	ABC transporter ATP-binding protein
1202	 41.67	0	1332413..1332868	+	151	197285117	-	PMI1258	-	hypothetical protein
1203	 39.61	0	1332925..1334325	+	466	197285118	-	PMI1259	-	probable amidohydrolase
1204	 32.82	-1	1334399..1335370	-	323	197285119	-	PMI1260	-	LysR-family transcriptional regulator
1205	 31.90	-1	1335363..1336547	-	394	197285120	-	PMI1261	-	MFS-family transporter
1206	 41.51	0	1336739..1337827	-	362	197285121	-	PMI1262	-	ATP-binding protein
1207	 31.91	-1	1338131..1338412	+	93	197285122	-	PMI1263	-	hypothetical protein
1208	 37.94	0	1338416..1339456	+	346	197285123	-	PMI1264	-	HlyD-family secretion protein (multidrug resistance protein)
1209	 35.00	0	1339443..1341299	+	618	197285124	-	PMI1265	-	multidrug resistance protein
1210	 39.44	0	1341299..1342771	+	490	197285125	-	PMI1266	-	channel-forming component of a multidrug resistance efflux pump
1211	 37.84	0	1342829..1343227	+	132	197285126	-	PMI1267	-	hypothetical protein
1212	 39.84	0	1343319..1344671	+	450	197285127	-	PMI1268	-	ATP-binding/heat shock protein
1213	 39.38	0	1344809..1345834	+	341	197285128	-	PMI1269	-	beta-eliminating lyase
1214	 42.42	0	1346007..1346270	+	87	197285129	-	PMI1270	-	hypothetical protein
1215	 33.67	-1	1346630..1347229	+	199	197285130	-	PMI1271	-	LysE-family transporter
1216	 42.68	0	1347291..1348745	-	484	197285131	xylB	PMI1272	-	xylulose kinase
1217	 39.94	0	1348824..1350140	-	438	197285132	xylA	PMI1273	-	xylose isomerase
1218	 42.75	0	1350151..1351626	-	491	197285133	-	PMI1274	-	Na+/H+ antiporter
1219	 35.98	0	1351633..1352802	-	389	197285134	-	PMI1275	-	aminotransferase
1220	 37.01	0	1352991..1354160	+	389	197285135	xylR	PMI1276	-	xylose operon regulator (AraC-family transcriptional regulator)
1221	 37.54	0	1354173..1354457	-	94	197285136	-	PMI1277	-	hypothetical protein
1222	 35.86	0	1354562..1355629	-	355	197285137	-	PMI1278	-	hypothetical protein
1223	 34.29	-1	1355851..1356165	+	104	197285138	-	PMI1279	-	hypothetical protein
1224	 37.61	0	1356199..1356900	+	233	197285139	-	PMI1280	-	ArsR-family transcriptional regulator
1225	 28.82	-2	1356937..1357401	-	154	197285140	-	PMI1281	-	hypothetical protein
1226	 34.84	0	1357391..1357789	-	132	197285141	-	PMI1282	-	hypothetical protein
1227	 32.00	-1	1358773..1359900	+	375	197285142	-	PMI1283	-	hypothetical protein
1228	 33.92	-1	1360035..1360544	-	169	197285143	-	PMI1284	-	probable acetyltransferase
1229	 30.08	-1	1360699..1361190	+	163	197285144	-	PMI1285	-	hypothetical protein
1230	 42.34	0	1361449..1361670	+	73	197285145	osmB	PMI1286	-	osmotically-inducible lipoprotein
1231	 35.29	0	1361766..1361969	+	67	197285146	-	PMI1287	-	hypothetical protein
1232	 40.93	0	1362212..1362961	+	249	197285147	ydfG	PMI1288	-	NADP-dependent L-serine/L-allo-threonine dehydrogenase
1233	 36.13	0	1363059..1363415	+	118	197285148	-	PMI1289	-	hypothetical protein
39.69	MEAN

4.91	STD DEV
