IslandPathversion 1.0

IslandPath Analysis: Proteus mirabilis HI4320

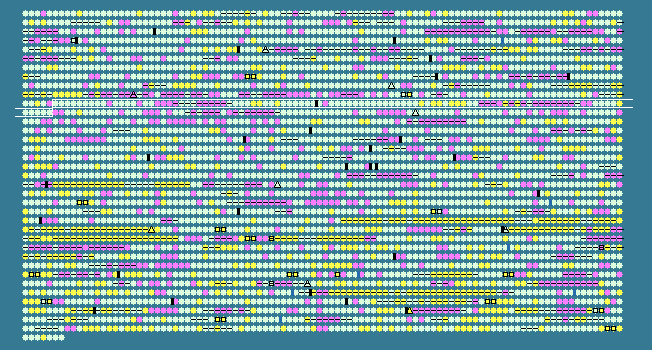

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.69 STD DEV: 4.91
Proteus mirabilis HI4320, complete genome - 1..4063606
3607 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1006	 42.41	0	1107654..1108799	+	381	197284921	arnB	PMI1043	-	UDP-4-amino-4-deoxy-l-arabinose--oxoglutarate aminotransferase
1007	 40.47	0	1108799..1109779	+	326	197284922	arnC	PMI1044	-	undecaprenyl-phosphate 4-deoxy-4-formamido-l-arabinose transferase
1008	 39.49	0	1109779..1111761	+	660	197284923	arnA	PMI1045	-	bifunctional polymyxin resistance protein [includes: UDP-glucuronic acid decarboxylase and UDP-4-amino-4-deoxy-l-arabinose formyltransferase
1009	 41.50	0	1111761..1112654	+	297	197284924	-	PMI1046	-	polysaccharide deacetylase
1010	 40.31	0	1112662..1114323	+	553	197284925	arnT	PMI1047	-	undecaprenyl phosphate-alpha-4-amino-4-deoxy-l-arabinose arabinosyl transferase
1011	 37.13	0	1114323..1114664	+	113	197284926	-	PMI1048	-	hypothetical protein
1012	 38.81	0	1114661..1115062	+	133	197284927	-	PMI1049	-	hypothetical protein
1013	 39.43	0	1115210..1115701	+	163	197284928	nlpC	PMI1050	-	lipoprotein
1014	 40.00	0	1115779..1116798	+	339	197284929	lplA	PMI1051	-	lipoate-protein ligase A
1015	 34.42	-1	1116915..1117283	-	122	197284930	pqrA	PMI1052	-	AraC-family transcriptional regulator
1016	 40.81	0	1117864..1119066	-	400	197284931	-	PMI1053	-	FAD dependent oxidoreductase
1017	 40.48	0	1119084..1119797	-	237	197284932	-	PMI1054	-	GntR-family transcriptional regulator
1018	 40.60	0	1119798..1121765	-	655	197284933	-	PMI1055	-	TRAP-type C4-dicarboxylate transport system permease component
1019	 39.42	0	1121778..1122812	-	344	197284934	-	PMI1056	-	TRAP-type transport system substrate-binding protein
1020	 35.87	0	1123218..1123730	-	170	197284935	-	PMI1057	-	hypothetical protein
1021	 39.46	0	1123899..1125578	-	559	197284936	budB	PMI1058	-	acetolactate synthase, catabolic
1022	 36.68	0	1125643..1126479	-	278	197284937	budA	PMI1059	-	alpha-acetolactate decarboxylase
1023	 27.54	-2	1127237..1127512	+	91	197284938	-	PMI1060	-	fimbrial operon regulator
1024	 35.65	0	1127562..1128080	+	172	197284939	-	PMI1061	-	fimbrial protein
1025	 31.57	-1	1128290..1130665	+	791	197284940	-	PMI1062	-	Fimbrial usher protein
1026	 34.23	-1	1130658..1131326	+	222	197284941	-	PMI1063	-	fimbrial chaperone
1027	 36.40	0	1131337..1132347	+	336	197284942	-	PMI1064	-	fimbrial protein
1028	 37.18	0	1132348..1132893	+	181	197284943	-	PMI1065	-	fimbrial subunit
1029	 36.61	0	1132904..1133452	+	182	197284944	-	PMI1066	-	fimbrial protein
1030	 27.87	-2	1133454..1134002	+	182	197284945	-	PMI1067	-	fimbrial protein
1031	 23.88	-2	1134187..1134588	-	133	197284946	-	PMI1068	-	hypothetical protein
1032	 31.84	-1	1136286..1136822	-	178	197284947	-	PMI1070	-	hypothetical protein
1033	 31.91	-1	1136839..1136979	-	46	197284948	-	PMI1071	-	hypothetical protein
1034	 33.54	-1	1137942..1138424	-	160	197284949	hocA	PMI1073	-	phosphotriesterase
1035	 37.96	0	1142794..1143225	-	143	197284950	-	PMI1075	-	hypothetical protein
1036	 41.48	0	1143741..1144832	-	363	197284951	engD	PMI1080	-	GTP-dependent nucleic acid-binding protein
1037	 38.46	0	1145024..1145608	-	194	197284952	pth	PMI1081	-	peptidyl-tRNA hydrolase
1038	 39.78	0	1145953..1146231	+	92	197284953	-	PMI1082	-	hypothetical protein
1039	 44.20	0	1146469..1147416	-	315	197284954	prsA	PMI1083	-	ribose-phosphate pyrophosphokinase
1040	 45.09	+1	1147505..1148380	-	291	197284955	ispE	PMI1084	-	4-diphosphocytidyl-2-c-methyl-d-erythritol kinase
1041	 41.00	0	1148377..1149015	-	212	197284956	lolB	PMI1085	-	outer-membrane lipoprotein
1042	 41.73	0	1149255..1150517	+	420	197284957	hemA	PMI1086	-	glutamyl-tRNA reductase
1043	 44.78	+1	1150546..1151628	+	360	197284958	prfA	PMI1087	-	peptide chain release factor 1
1044	 41.70	0	1151628..1152476	+	282	197284959	hemK	PMI1088	-	protein methyltransferase (protein-glutamine N-methyltransferase)
1045	 37.88	0	1152457..1153269	+	270	197284960	sirB1	PMI1089	-	hypothetical protein
1046	 42.57	0	1153327..1154181	+	284	197284961	kdsA	PMI1090	-	2-dehydro-3-deoxyphosphooctulonate aldolase
1047	 39.89	0	1154189..1155118	+	309	197284962	-	PMI1091	-	hypothetical protein
1048	 37.99	0	1155196..1155474	+	92	197284963	-	PMI1092	-	hypothetical protein
1049	 41.50	0	1155644..1157344	-	566	197284964	-	PMI1093	-	sulfate transporter
1050	 38.96	0	1158306..1159247	+	313	197284965	-	PMI1094	-	2-hydroxyacid dehydrogenase
1051	 27.46	-2	1159439..1162300	+	953	197284966	-	PMI1095	-	hypothetical protein
1052	 38.92	0	1162545..1163153	+	202	197284967	-	PMI1096	-	2-oxoglutarate and Fe(II)-dependent oxygenase superfamily protein
1053	 40.32	0	1163377..1163934	+	185	197284968	-	PMI1097	-	chaperone
1054	 36.58	0	1164172..1164726	-	184	197284969	-	PMI1098	-	lipoprotein
1055	 41.90	0	1164768..1165970	-	400	197284970	mdtH	PMI1099	-	multidrug resistance protein (MFS-family transporter)
1056	 39.35	0	1166165..1166746	+	193	197284971	rimJ	PMI1100	-	ribosomal-protein-alanine acetyltransferase
1057	 39.58	0	1166917..1168452	+	511	197284972	mviN	PMI1101	-	hypothetical protein
1058	 40.29	0	1169492..1169764	+	90	197284973	-	PMI1102	-	lipoprotein
1059	 41.36	0	1169911..1171641	-	576	197284974	argS	PMI1103	-	arginyl-tRNA synthetase
1060	 36.40	0	1171814..1172368	+	184	197284975	-	PMI1104	-	hypothetical protein
1061	 42.36	0	1172535..1173287	+	250	197284976	cutC	PMI1105	-	copper homeostasis protein
1062	 38.87	0	1173343..1174932	-	529	197284977	-	PMI1106	-	lipoprotein
1063	 36.40	0	1175287..1176849	-	520	197284978	-	PMI1107	-	ABC transporter, ATP-binding protein
1064	 40.72	0	1177186..1178160	-	324	197284979	-	PMI1108	-	hypothetical protein
1065	 38.53	0	1178163..1178912	-	249	197284980	-	PMI1109	-	hypothetical protein
1066	 38.60	0	1179097..1179495	-	132	197284981	-	PMI1110	-	hypothetical protein
1067	 43.19	0	1179763..1181547	+	594	197284982	aspS	PMI1111	-	aspartyl-tRNA synthetase
1068	 42.24	0	1181548..1181985	+	145	197284983	ntpA	PMI1112	-	DATP pyrophosphohydrolase
1069	 44.05	0	1182014..1182769	+	251	197284984	-	PMI1113	-	hypothetical protein
1070	 44.25	0	1182894..1183415	+	173	197284985	ruvC	PMI1114	-	Holliday junction nuclease
1071	 42.15	0	1183518..1184141	+	207	197284986	ruvA	PMI1115	-	Holliday junction ATP-dependent DNA helicase
1072	 43.92	0	1184154..1185164	+	336	197284987	ruvB	PMI1116	-	Holliday junction ATP-dependent DNA helicase
1073	 48.17	+1	1185979..1186497	+	172	197284988	hcp	PMI1117	-	hypothetical protein
1074	 48.07	+1	1186581..1188683	+	700	197284989	-	PMI1118	-	Rhs-family protein
1075	 42.90	0	1188696..1189751	+	351	197284990	-	PMI1119	-	hypothetical protein
1076	 43.08	0	1189744..1194855	+	1703	197284991	-	PMI1120	-	Rhs-family protein
1077	 25.16	-2	1194871..1195482	+	203	197284992	-	PMI1121	-	hypothetical protein
1078	 26.67	-2	1195540..1195719	+	59	197284993	-	PMI1122	-	hypothetical protein
1079	 29.51	-2	1195694..1195876	+	60	197284994	-	PMI1123	-	hypothetical protein
1080	 25.23	-2	1195873..1196193	+	106	197284995	-	PMI1124	-	hypothetical protein
1081	 43.74	0	1196255..1197397	+	380	197284996	-	PMI1125	-	Rhs-family protein
1082	 29.09	-2	1197400..1197729	+	109	197284997	-	PMI1126	-	hypothetical protein
1083	 44.44	0	1197795..1197947	+	50	197284998	-	PMI1127	-	hypothetical protein
1084	 26.04	-2	1199654..1199941	+	95	197284999	-	PMI1129	-	hypothetical protein
1085	 36.43	0	1199975..1200103	+	42	197285000	-	PMI1130	-	hypothetical protein
1086	 29.63	-2	1201193..1201732	+	179	197285001	-	PMI1132	-	hypothetical protein
1087	 35.53	0	1202583..1202900	+	105	197285002	-	PMI1135	-	hypothetical protein
1088	 32.48	-1	1202903..1203370	+	155	197285003	-	PMI1136	-	hypothetical protein
1089	 23.58	-2	1204565..1204933	+	122	197285004	-	PMI1139	-	hypothetical protein
1090	 30.45	-1	1205946..1206257	+	103	197285005	-	PMI1141	-	hypothetical protein
1091	 31.27	-1	1208268..1208558	+	96	197285006	-	PMI1144	-	ribonuclease inhibitor
1092	 25.47	-2	1208895..1209212	+	105	197285007	-	PMI1145	-	hypothetical protein
1093	 40.11	0	1209300..1209476	-	58	197285008	-	PMI1146	-	hypothetical protein
1094	 31.18	-1	1209647..1209832	+	61	197285009	-	PMI1147	-	hypothetical protein
1095	 36.16	0	1209999..1210352	+	117	197285010	-	PMI1148	-	hypothetical protein
1096	 42.88	0	1210670..1211455	-	261	197285011	znuB	PMI1150	-	high-affinity zinc uptake system membrane protein
1097	 39.12	0	1211448..1212173	-	241	197285012	znuC	PMI1151	-	high-affinity zinc uptake system ATP-binding protein
1098	 37.57	0	1212248..1213192	+	314	197285013	znuA	PMI1152	-	high-affinity zinc uptake system substrate-binding protein
1099	 42.81	0	1213205..1214533	+	442	197285014	-	PMI1153	-	peptidase
1100	 43.28	0	1214640..1215614	+	324	197285015	msbB	PMI1154	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
1101	 43.10	0	1215704..1217146	-	480	197285016	pykA	PMI1155	-	pyruvate kinase II
1102	 39.98	0	1217377..1218219	-	280	197285017	hexR	PMI1156	-	hex regulon repressor (RpiR-family transcriptional regulator)
1103	 40.51	0	1218574..1220049	+	491	197285018	zwf	PMI1157	-	glucose-6-phosphate 1-dehydrogenase
1104	 36.96	0	1220632..1221072	+	146	197285019	mdtJ	PMI1158	-	multidrug resistance protein
1105	 39.34	0	1221074..1221406	+	110	197285020	mdtI	PMI1159	-	multidrug resistance protein
39.69	MEAN

4.91	STD DEV
