IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus str. AS9601

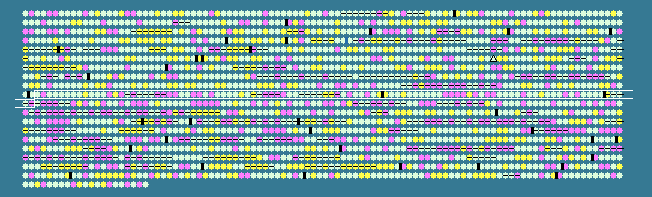

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
903	 30.41	0	777862..779607	-	581	123968439	-	A9601_09061	-	multidrug ABC transporter
904	 27.30	0	779670..779984	+	104	123968440	-	A9601_09071	-	hypothetical protein
905	 34.11	0	780018..781052	+	344	123968441	-	A9601_09081	-	anthranilate phosphoribosyltransferase
906	 32.11	0	781067..782206	+	379	123968442	carA	A9601_09091	-	carbamoyl phosphate synthase small subunit
907	 33.33	0	782544..782633	+	29	123968443	-	A9601_09101	-	hypothetical protein
908	 32.33	0	782630..783028	+	132	123968444	-	A9601_09111	-	hypothetical protein
909	 32.74	0	783033..784040	+	335	123968445	-	A9601_09121	-	RNA methyltransferase TrmH, group 3
910	 34.60	0	784166..784402	+	78	123968446	-	A9601_09131	-	hypothetical protein
911	 36.16	+1	784433..785881	+	482	123968447	gatA	A9601_09141	-	glutamyl-tRNA(Gln) amidotransferase A subunit
912	 32.76	0	785966..789463	+	1165	123968448	dnaE	A9601_09151	-	DNA polymerase III subunit alpha
913	 33.33	0	789465..789914	-	149	123968449	-	A9601_09161	-	hypothetical protein
914	 30.74	0	789924..790193	-	89	123968450	rpsO	A9601_09171	-	30S ribosomal protein S15
915	 25.22	-1	790225..790902	-	225	123968451	ruvA	A9601_09181	-	putative holliday junction DNA helicase RuvA
916	 39.67	+1	790903..791265	-	120	123968452	-	A9601_09191	-	cAMP phosphodiesterases class-II
917	 25.59	-1	791284..792174	-	296	123968453	-	A9601_09201	-	integral membrane protein, DUF6
918	 28.27	0	792271..794304	+	677	123968454	dnaG	A9601_09211	-	DNA primase
919	 25.43	-1	794321..794788	-	155	123968455	-	A9601_09221	-	Serine hydroxymethyltransferase
920	 30.77	0	794799..796085	-	428	123968456	umuC	A9601_09231	-	putative UmuC protein
921	 29.02	0	796082..796498	-	138	123968457	umuD	A9601_09241	-	putative SOS mutagenesis protein UmuD
922	 28.54	0	796597..797013	-	138	123968458	-	A9601_09251	-	hypothetical protein
923	 20.72	-2	797033..797365	-	110	123968459	-	A9601_09261	-	hypothetical protein
924	 25.45	-1	797422..798246	+	274	123968460	ksgA	A9601_09271	-	dimethyladenosine transferase
925	 27.88	0	798259..799194	+	311	123968461	ispE	A9601_09281	-	putative 4-diphosphocytidyl-2C-methyl-D-erythritol kinase (CMK)
926	 22.77	-1	799219..799521	+	100	123968462	-	A9601_09291	-	hypothetical protein
927	 34.45	0	799701..800684	+	327	123968463	pdhB	A9601_09301	-	pyruvate dehydrogenase E1 beta subunit
928	 29.66	0	800688..802157	+	489	123968464	secD	A9601_09311	-	preprotein translocase subunit SecD
929	 26.67	-1	802178..803092	+	304	123968465	secF	A9601_09321	-	preprotein translocase subunit SecF
930	 26.25	-1	803297..804340	-	347	123968466	-	A9601_09331	-	permease
931	 34.75	0	804354..804707	-	117	123968467	psb28	A9601_09341	-	photosystem II reaction center protein Psb28
932	 26.99	-1	804768..805808	-	346	123968468	-	A9601_09351	-	tRNA 2-selenouridine synthase
933	 31.11	0	805845..806564	+	239	123968469	-	A9601_09361	-	hypothetical protein
934	 28.05	0	806613..807047	+	144	123968470	rsbW	A9601_09371	-	anti-sigma regulatory factor (Ser/Thr protein kinase)
935	 29.92	0	807026..807289	-	87	123968471	-	A9601_09381	-	hypothetical protein
936	 30.02	0	807302..808357	-	351	123968472	-	A9601_09391	-	methyltransferase
937	 36.36	+1	808459..809880	-	473	123968473	glnA	A9601_09401	-	glutamine synthetase, glutamate--ammonia ligase
938	 34.94	0	810094..811278	+	394	123968474	spt	A9601_09411	-	serine:pyruvate/alanine:glyoxylate aminotransferase
939	 35.16	0	811253..811690	-	145	123968475	cumB	A9601_09421	-	putative cytidine/deoxycytidylate deaminase
940	 31.24	0	811812..813197	+	461	123968476	gadB	A9601_09431	-	pyridoxal-dependent decarboxylase family protein
941	 26.52	-1	813207..813338	+	43	123968477	-	A9601_09441	-	hypothetical protein
942	 26.67	-1	813331..814830	-	499	123968478	-	A9601_09451	-	GTPase SAR1
943	 17.98	-2	814832..815287	-	151	123968479	lspA	A9601_09461	-	putative lipoprotein signal peptidase
944	 23.68	-1	815287..815856	-	189	123968480	-	A9601_09471	-	hypothetical protein
945	 33.50	0	815872..817104	-	410	123968481	salY	A9601_09481	-	putative ABC transporter
946	 34.23	0	817097..818887	-	596	123968482	pykF	A9601_09491	-	pyruvate kinase
947	 30.91	0	818949..819278	+	109	123968483	-	A9601_09501	-	pyrophosphatase
948	 28.67	0	819281..819559	-	92	123968484	-	A9601_09511	-	hypothetical protein
949	 32.56	0	819598..819855	-	85	123968485	-	A9601_09521	-	hypothetical protein
950	 32.30	0	820171..821712	-	513	123968486	ilvA	A9601_09531	-	threonine dehydratase
951	 35.66	0	821829..823718	+	629	123968487	dxs	A9601_09541	-	1-deoxy-D-xylulose-5-phosphate synthase
952	 36.78	+1	823737..823997	-	86	123968488	psaK	A9601_09551	-	photosystem I PsaK protein (subunit X)
953	 26.19	-1	824064..824399	-	111	123968489	-	A9601_09561	-	hypothetical protein
954	 30.03	0	824392..824694	-	100	123968490	-	A9601_09571	-	hypothetical protein
955	 27.72	0	824698..825231	-	177	123968491	-	A9601_09581	-	Alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergens family protein
956	 34.18	0	825237..825473	-	78	123968492	rpmB	A9601_09591	-	50S ribosomal protein L28
957	 30.97	0	825513..827417	-	634	123968493	htpG	A9601_09601	-	heat shock protein 90
958	 25.17	-1	827536..828687	-	383	123968494	hisZ	A9601_09611	-	ATP phosphoribosyltransferase regulatory subunit
959	 32.74	0	828706..829554	-	282	123968495	suhB	A9601_09621	-	myo-inositol-1(or 4)-monophosphatase
960	 35.20	0	829560..829934	-	124	123968496	-	A9601_09631	-	ferredoxin, petF-like protein
961	 35.39	0	830284..832281	+	665	123968497	-	A9601_09641	-	molecular chaperone DnaK, heat shock protein hsp70
962	 34.69	0	832232..833191	+	319	123968498	-	A9601_09651	-	DnaJ2 protein
963	 30.99	0	833225..833608	+	127	123968499	-	A9601_09661	-	hypothetical protein
964	 36.76	+1	833646..834083	+	145	123968500	-	A9601_09671	-	cyclophilin-type peptidyl-prolyl cis-trans isomerase
965	 32.58	0	834087..835811	-	574	123968501	ribB	A9601_09681	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
966	 31.91	0	835900..836955	+	351	123968502	argC	A9601_09691	-	N-acetyl-gamma-glutamyl-phosphate reductase
967	 29.83	0	836939..837595	-	218	123968503	purN	A9601_09701	-	phosphoribosylglycinamide formyltransferase
968	 29.67	0	837779..839362	+	527	123968504	pgi	A9601_09711	-	glucose-6-phosphate isomerase
969	 29.95	0	839359..841929	-	856	123968505	leuS	A9601_09721	-	leucyl-tRNA synthetase
970	 28.92	0	842035..842895	+	286	123968506	dapF	A9601_09731	-	diaminopimelate epimerase
971	 26.68	-1	842895..844067	+	390	123968507	-	A9601_09741	-	class-V aminotransferase family cysteine desulfurase
972	 26.32	-1	844067..844693	+	208	123968508	-	A9601_09751	-	hypothetical protein
973	 23.48	-1	844701..845918	+	405	123968509	dacB	A9601_09761	-	D-Ala-D-Ala carboxypeptidase 3
974	 27.85	0	845927..846400	-	157	123968510	coaD	A9601_09771	-	putative pantetheine-phosphate adenylyltransferase
975	 34.97	0	846461..846949	+	162	123968511	-	A9601_09781	-	hypothetical protein
976	 27.31	0	846959..848917	+	652	123968512	uvrC	A9601_09791	-	excinuclease ABC subunit C
977	 28.22	0	849006..849572	+	188	123968513	-	A9601_09801	-	hypothetical protein
978	 27.31	0	849565..850212	+	215	123968514	-	A9601_09811	-	metal-dependent phosphoesterase
979	 27.85	0	850214..853951	-	1245	123968515	cobN	A9601_09821	-	cobalamin biosynthetic protein CobN
980	 31.69	0	854024..854938	+	304	123968516	ilvE	A9601_09831	-	branched-chain amino acid aminotransferase
981	 30.70	0	854957..858523	+	1188	123968517	metH	A9601_09841	-	putative methionine synthase
982	 33.79	0	858533..858751	-	72	123968518	-	A9601_09851	-	hypothetical protein
983	 33.85	0	858850..859233	+	127	123968519	-	A9601_09861	-	hypothetical protein
984	 27.80	0	859282..860112	+	276	123968520	apa2	A9601_09871	-	putative ATP adenylyltransferase
985	 34.21	0	860116..860229	-	37	123968521	-	A9601_09881	-	hypothetical protein
986	 30.07	0	860440..861450	+	336	123968522	-	A9601_09891	-	DnaJ domain-containing protein
987	 40.23	+1	861865..862125	-	86	123968523	-	A9601_09901	-	carboxylesterase
988	 30.35	0	862219..864663	-	814	123968524	pheT	A9601_09911	-	phenylalanyl-tRNA synthetase beta chain
989	 33.33	0	864764..864958	+	64	161353815	rpmG	A9601_09921	-	50S ribosomal protein L33
990	 34.68	0	864976..865197	+	73	123968526	rpsR	A9601_09931	-	30S ribosomal protein S18
991	 22.70	-1	865243..866427	+	394	123968527	-	A9601_09941	-	ribonuclease II
992	 30.23	0	866496..868040	+	514	123968528	metG	A9601_09951	-	methionyl-tRNA synthetase
993	 22.85	-1	868066..868647	+	193	123968529	-	A9601_09961	-	SMC domain-containing protein
994	 30.94	0	868644..869270	-	208	123968530	-	A9601_09971	-	hypothetical protein
995	 31.73	0	869382..869693	+	103	123968531	-	A9601_09981	-	fusion glycoprotein F0
996	 30.12	0	869704..870264	+	186	123968532	cobU	A9601_09991	-	putative cobinamide kinase
997	 29.61	0	870267..870749	+	160	123968533	cspR	A9601_10001	-	SpoU family tRNA/rRNA methyltransferase
998	 36.81	+1	870920..871207	+	95	123968534	clpS	A9601_10011	-	ATP-dependent Clp protease adaptor
999	 32.14	0	871219..871470	+	83	123968535	-	A9601_10021	-	hypothetical protein
1000	 29.41	0	871824..871976	+	50	123968536	-	A9601_10031	-	hypothetical protein
1001	 32.31	0	872000..872389	-	129	123968537	-	A9601_10041	-	hypothetical protein
1002	 27.45	0	872386..872538	-	50	123968538	-	A9601_10051	-	hypothetical protein
31.48	MEAN

4.43	STD DEV
