IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus str. AS9601

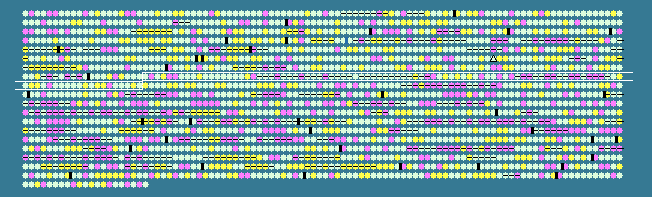

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
721	 29.95	0	642039..642482	+	147	123968257	-	A9601_07221	-	hypothetical protein
722	 26.36	-1	642492..643265	+	257	123968258	-	A9601_07231	-	hypothetical protein
723	 33.18	0	643353..644015	+	220	123968259	-	A9601_07241	-	hypothetical protein
724	 37.05	+1	644032..644676	-	214	123968260	tesA	A9601_07251	-	lysophospholipase L1
725	 25.91	-1	644726..645856	-	376	123968261	-	A9601_07261	-	putative phosphonate ABC transporter
726	 26.99	-1	646233..646973	-	246	123968262	-	A9601_07271	-	putative phosphonate ABC transporter
727	 28.08	0	646970..647863	-	297	123968263	phnD	A9601_07281	-	phosphonate ABC transporter phosphonate-binding protein
728	 32.32	0	647876..649054	-	392	123968264	aspC	A9601_07291	-	aminotransferases class-I
729	 31.15	0	649216..649719	+	167	123968265	-	A9601_07301	-	Uracil-DNA glycosylase
730	 36.29	+1	649755..650972	+	405	123968266	ispG	A9601_07311	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
731	 30.34	0	651033..652367	+	444	123968267	-	A9601_07321	-	carboxyl-terminal processing protease
732	 33.33	0	652364..653278	-	304	123968268	nadA	A9601_07331	-	quinolinate synthetase
733	 32.04	0	653442..654215	+	257	123968269	-	A9601_07341	-	putative transcripton factor
734	 34.21	0	654239..655036	-	265	123968270	-	A9601_07351	-	hypothetical protein
735	 30.98	0	655068..656258	+	396	123968271	-	A9601_07361	-	hypothetical protein
736	 30.22	0	656255..657346	-	363	123968272	aroB	A9601_07371	-	3-dehydroquinate synthase
737	 31.23	0	657471..658661	+	396	123968273	purK	A9601_07381	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
738	 35.33	0	659025..659324	+	99	123968274	-	A9601_07391	-	hypothetical protein
739	 26.24	-1	659321..659461	+	46	123968275	-	A9601_07401	-	hypothetical protein
740	 34.64	0	659451..659603	+	50	123968276	-	A9601_07411	-	hypothetical protein
741	 28.95	0	659615..659728	-	37	123968277	-	A9601_07421	-	hypothetical protein
742	 32.00	0	659728..660477	-	249	123968278	-	A9601_07431	-	NAD-dependent DNA ligase N-terminus
743	 27.05	-1	660478..660684	-	68	123968279	-	A9601_07441	-	hypothetical protein
744	 29.07	0	660716..660973	-	85	123968280	-	A9601_07451	-	hypothetical protein
745	 30.38	0	661043..661279	-	78	123968281	-	A9601_07461	-	hypothetical protein
746	 32.99	0	661471..661761	+	96	123968282	-	A9601_07471	-	hypothetical protein
747	 25.14	-1	662493..662675	-	60	123968283	-	A9601_07481	-	hypothetical protein
748	 32.32	0	662682..662879	-	65	123968284	-	A9601_07491	-	hypothetical protein
749	 29.41	0	662971..663225	-	84	123968285	-	A9601_07501	-	high light inducible protein
750	 29.17	0	663575..663694	-	39	123968286	-	A9601_07511	-	hypothetical protein
751	 25.86	-1	663746..663919	-	57	123968287	-	A9601_07521	-	hypothetical protein
752	 33.80	0	664019..664231	-	70	123968288	-	A9601_07531	-	hypothetical protein
753	 28.27	0	664413..664649	-	78	123968289	-	A9601_07541	-	DDT domain-containing protein
754	 30.99	0	664633..664803	-	56	123968290	-	A9601_07551	-	hypothetical protein
755	 28.99	0	664865..665071	-	68	123968291	-	A9601_07561	-	hypothetical protein
756	 32.58	0	665247..665912	+	221	123968292	-	A9601_07571	-	short-chain dehydrogenase/reductase
757	 32.62	0	666014..666154	-	46	123968293	-	A9601_07581	-	hypothetical protein
758	 29.41	0	666445..666699	-	84	123968294	-	A9601_07591	-	hypothetical protein
759	 29.82	0	666699..666926	-	75	123968295	-	A9601_07601	-	D12 class N6 adenine-specific DNA methyltransferase
760	 32.73	0	667019..667183	-	54	123968296	-	A9601_07611	-	hypothetical protein
761	 30.56	0	667189..667440	-	83	123968297	-	A9601_07621	-	DnaJ domain-containing protein
762	 28.57	0	667734..667859	-	41	123968298	-	A9601_07631	-	hypothetical protein
763	 34.60	0	668393..668629	+	78	123968299	-	A9601_07641	-	hypothetical protein
764	 29.22	0	668651..668893	+	80	123968300	-	A9601_07651	-	hypothetical protein
765	 28.72	0	668914..669108	-	64	123968301	-	A9601_07661	-	hypothetical protein
766	 37.82	+1	669202..669513	-	103	123968302	-	A9601_07671	-	LysM domain-containing protein
767	 29.17	0	669796..670179	+	127	123968303	-	A9601_07681	-	hypothetical protein
768	 27.96	0	670187..670279	+	30	123968304	-	A9601_07691	-	hypothetical protein
769	 25.36	-1	670276..670413	+	45	123968305	-	A9601_07701	-	hypothetical protein
770	 32.82	0	670497..670889	+	130	123968306	-	A9601_07711	-	hypothetical protein
771	 37.12	+1	670967..671098	+	43	123968307	-	A9601_07721	-	hypothetical protein
772	 34.75	0	671282..672337	+	351	123968308	-	A9601_07731	-	VIC family potassium channel protein
773	 37.96	+1	672438..673409	+	323	123968309	-	A9601_07741	-	ABC transporter, substrate binding protein, phosphate
774	 34.81	0	673515..674462	+	315	123968310	pstC	A9601_07751	-	putative phosphate ABC transporter
775	 36.35	+1	674469..675362	+	297	123968311	pstA	A9601_07761	-	putative phosphate ABC transporter
776	 32.96	0	675363..676172	+	269	123968312	pstB	A9601_07771	-	putative phosphate ABC transporter, ATP binding subunit
777	 25.64	-1	676400..676555	+	51	123968313	-	A9601_07781	-	hypothetical protein
778	 29.25	0	676566..676712	+	48	123968314	-	A9601_07791	-	hypothetical protein
779	 31.02	0	676895..677197	-	100	123968315	-	A9601_07801	-	hypothetical protein
780	 27.19	0	677404..678054	-	216	123968316	-	A9601_07811	-	Serine/threonine specific protein phosphatase
781	 29.96	0	678055..680541	-	828	123968317	-	A9601_07821	-	DEAD/DEAH box helicase domain-containing protein
782	 26.81	-1	680538..682178	-	546	123968318	-	A9601_07831	-	ATP-dependent DNA ligase
783	 29.08	0	682181..683167	-	328	123968319	-	A9601_07841	-	RNA processing exonuclease
784	 25.36	-1	683203..683616	-	137	123968320	-	A9601_07851	-	COMC family protein
785	 27.30	0	683701..683982	-	93	123968321	-	A9601_07861	-	major surface glycoprotein
786	 28.11	0	684081..685400	-	439	123968322	-	A9601_07871	-	hypothetical protein
787	 30.89	0	685532..685900	-	122	123968323	-	A9601_07881	-	CopG family protein
788	 27.45	0	686131..686334	+	67	123968324	-	A9601_07891	-	hypothetical protein
789	 21.84	-2	686377..686550	-	57	123968325	-	A9601_07901	-	hypothetical protein
790	 33.84	0	686688..686885	+	65	123968326	-	A9601_07911	-	hypothetical protein
791	 29.23	0	686909..687103	-	64	123968327	-	A9601_07921	-	hypothetical protein
792	 27.32	0	687247..687429	+	60	123968328	-	A9601_07931	-	hypothetical protein
793	 20.93	-2	687605..687733	-	42	123968329	-	A9601_07941	-	hypothetical protein
794	 28.49	0	687743..688093	-	116	123968330	-	A9601_07951	-	alpha-2-macroglobulin family protein
795	 25.99	-1	688133..688309	-	58	123968331	-	A9601_07961	-	hypothetical protein
796	 22.60	-2	688391..688828	-	145	123968332	-	A9601_07971	-	hypothetical protein
797	 25.93	-1	688957..689226	+	89	123968333	-	A9601_07981	-	hypothetical protein
798	 28.42	0	689240..689422	-	60	123968334	-	A9601_07991	-	hypothetical protein
799	 28.32	0	689487..689765	-	92	123968335	-	A9601_08001	-	hypothetical protein
800	 39.22	+1	689881..689982	+	33	123968336	petN	A9601_08011	-	cytochrome b6-f complex subunit PetN
801	 28.16	0	690123..690779	-	218	123968337	-	A9601_08021	-	Thf1-like protein
802	 36.39	+1	690815..691402	+	195	123968338	-	A9601_08031	-	ATP-dependent Clp protease proteolytic subunit
803	 37.72	+1	691399..693312	-	637	123968339	-	A9601_08041	-	FtsH ATP-dependent protease-like protein
804	 32.38	0	693420..693629	+	69	123968340	-	A9601_08051	-	hypothetical protein
805	 26.44	-1	693631..694848	-	405	123968341	-	A9601_08061	-	insulinase family protein
806	 29.98	0	694842..696092	-	416	123968342	-	A9601_08071	-	Zn-dependent peptidase
807	 28.37	0	696134..696859	+	241	123968343	pcyA	A9601_08081	-	phycocyanobilin:ferredoxin oxidoreductase
808	 32.57	0	696859..697773	+	304	123968344	-	A9601_08091	-	ABC transporter
809	 34.61	0	697773..698945	+	390	123968345	-	A9601_08101	-	ABC-transporter, membrane spanning component
810	 33.47	0	698959..699687	+	242	123968346	-	A9601_08111	-	ABC transporter, ATP-binding component
811	 38.00	+1	699706..699855	+	49	123968347	-	A9601_08121	-	hypothetical protein
812	 31.14	0	699917..700828	+	303	123968348	-	A9601_08131	-	glycosyl transferase family protein
813	 37.73	+1	700958..701662	+	234	123968349	rpsB	A9601_08141	-	30S ribosomal protein S2
814	 36.23	+1	701707..702363	+	218	123968350	tsf	A9601_08151	-	elongation factor Ts
815	 24.42	-1	702299..703453	+	384	123968351	-	A9601_08161	-	adenylate cyclase
816	 28.19	0	703476..705923	+	815	123968352	recG	A9601_08171	-	ATP-dependent DNA helicase recG
817	 33.22	0	706667..708454	-	595	123968353	sir	A9601_08201	-	sulfite reductase subunit beta
818	 29.50	0	708542..710704	+	720	123968354	glyS	A9601_08211	-	glycyl-tRNA synthetase beta subunit
819	 36.61	+1	710685..712025	-	446	123968355	chlP	A9601_08221	-	aromatic-ring hydroxylase (flavoprotein monooxygenase)
820	 32.35	0	712139..712852	+	237	123968356	vanY	A9601_08231	-	putative carboxypeptidase
31.48	MEAN

4.43	STD DEV
