IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus str. AS9601

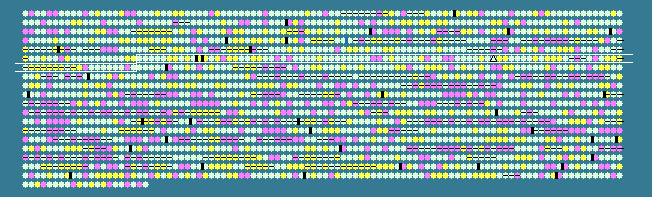

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
520	 33.33	0	452589..452906	+	105	123968056	-	A9601_05191	-	hypothetical protein
521	 30.83	0	452875..453633	-	252	123968057	tatC	A9601_05201	-	Tat family protein secretion protein
522	 32.57	0	453714..453974	-	86	123968058	-	A9601_05211	-	hypothetical protein
523	 28.57	0	454004..455704	-	566	123968059	-	A9601_05221	-	secreted protein MPB70 precursor
524	 31.35	0	455778..456332	+	184	123968060	gmk	A9601_05231	-	guanylate kinase
525	 38.56	+1	456510..457064	-	184	123968061	psaF	A9601_05241	-	photosystem I PsaF protein (subunit III)
526	 35.76	0	457139..458209	+	356	123968062	qri7	A9601_05251	-	o-sialoglycoprotein endopeptidase
527	 30.51	0	458215..458391	+	58	123968063	-	A9601_05261	-	high light inducible protein
528	 38.23	+1	458552..459757	+	401	123968064	nhaP	A9601_05271	-	CPA1 family Na+/H+ antiporter
529	 32.56	0	459758..461188	-	476	123968065	gltX	A9601_05281	-	glutamyl-tRNA synthetase
530	 43.08	+2	461429..461623	-	64	123968066	-	A9601_05291	-	hypothetical protein
531	 35.83	0	461785..462264	-	159	123968067	rplS	A9601_05301	-	50S ribosomal protein L19
532	 33.66	0	462288..462596	-	102	123968068	-	A9601_05311	-	hypothetical protein
533	 35.60	0	462692..463531	+	279	123968069	map	A9601_05321	-	methionine aminopeptidase
534	 27.22	0	463535..464254	-	239	123968070	-	A9601_05331	-	short chain dehydrogenase
535	 35.05	0	464410..465519	+	369	123968071	pta	A9601_05341	-	phosphotransacetylase domain-containing protein
536	 36.45	+1	465545..466057	+	170	123968072	-	A9601_05351	-	hypothetical protein
537	 28.92	0	466124..466621	+	165	123968073	-	A9601_05361	-	nucleotide-binding protein
538	 32.38	0	466648..466857	+	69	123968074	-	A9601_05371	-	hypothetical protein
539	 36.07	+1	466966..467769	+	267	123968075	hflC	A9601_05381	-	Band 7 protein
540	 40.78	+2	467841..469142	-	433	123968076	hemL	A9601_05391	-	glutamate-1-semialdehyde aminotransferase
541	 30.85	0	469369..470214	-	281	123968077	xthA	A9601_05401	-	exodeoxyribonuclease III
542	 29.59	0	470287..470580	+	97	123968078	-	A9601_05411	-	hypothetical protein
543	 27.17	0	470612..471211	+	199	123968079	-	A9601_05421	-	hypothetical protein
544	 31.79	0	471263..472495	+	410	123968080	-	A9601_05431	-	hypothetical protein
545	 26.54	-1	472492..473448	+	318	123968081	-	A9601_05441	-	hypothetical protein
546	 32.55	0	473445..474983	-	512	123968082	thiP	A9601_05451	-	putative iron ABC transporter
547	 32.12	0	475010..476161	-	383	123968083	-	A9601_05461	-	G3E family GTPase
548	 30.24	0	476191..476481	-	96	123968084	phhB	A9601_05471	-	pterin-4-alpha-carbinolamine dehydratase
549	 30.04	0	476518..476973	-	151	123968085	-	A9601_05481	-	hypothetical protein
550	 35.03	0	478650..479237	+	195	123968086	-	A9601_05511	-	putative inorganic pyrophosphatase
551	 34.70	0	479244..480194	-	316	123968087	hemC	A9601_05521	-	porphobilinogen deaminase
552	 33.67	0	480292..481476	-	394	123968088	-	A9601_05531	-	RNA polymerase sigma factor RpoD
553	 31.09	0	481797..484073	+	758	123968089	priA	A9601_05541	-	primosomal protein N' (replication factor Y)
554	 28.56	0	484074..485183	-	369	123968090	-	A9601_05551	-	hypothetical protein
555	 33.22	0	485187..486038	-	283	123968091	argB	A9601_05561	-	acetylglutamate kinase
556	 32.02	0	486102..486632	-	176	123968092	-	A9601_05571	-	hypothetical protein
557	 31.43	0	486647..486856	+	69	123968093	-	A9601_05581	-	hypothetical protein
558	 34.27	0	486858..487283	-	141	123968094	-	A9601_05591	-	single-stranded DNA-binding protein
559	 27.82	0	487312..488109	+	265	123968095	cobK	A9601_05601	-	precorrin-6X reductase
560	 27.12	0	488123..488428	+	101	123968096	cutA	A9601_05611	-	CutA1 divalent ion tolerance protein
561	 32.53	0	488434..489435	-	333	123968097	-	A9601_05621	-	carbohydrate kinase
562	 38.22	+1	489451..490761	-	436	123968098	purA	A9601_05631	-	adenylosuccinate synthetase
563	 32.42	0	490843..491280	-	145	123968099	psb27	A9601_05641	-	putative photosystem II reaction center Psb27 protein
564	 32.95	0	491307..493109	-	600	123968100	proS	A9601_05651	-	prolyl-tRNA synthetase
565	 29.91	0	493284..493634	+	116	123968101	-	A9601_05661	-	resolvase
566	 30.98	0	493731..493985	+	84	123968102	-	A9601_05671	-	Reverse transcriptase (RNA-dependent)
567	 35.68	0	493975..494529	+	184	123968103	-	A9601_05681	-	inorganic pyrophosphatase
568	 25.77	-1	494526..494882	+	118	123968104	arsC	A9601_05691	-	putative arsenate reductase
569	 30.76	0	494912..495571	+	219	123968105	-	A9601_05701	-	Signal peptidase I
570	 31.08	0	495625..496953	-	442	123968106	gpmB	A9601_05711	-	putative alpha-ribazole-5'-P phosphatase
571	 26.95	-1	497070..498431	+	453	123968107	-	A9601_05721	-	membrane-associated protease
572	 23.54	-1	498516..498944	+	142	123968108	-	A9601_05731	-	hypothetical protein
573	 32.59	0	498944..500695	+	583	123968109	-	A9601_05741	-	peptidoglycan synthetase
574	 33.33	0	500786..501787	+	333	161353818	tal	A9601_05751	-	transaldolase B
575	 32.89	0	501812..502945	-	377	123968111	fixC	A9601_05761	-	NAD binding site
576	 30.60	0	502942..503490	-	182	123968112	frr	A9601_05771	-	ribosome recycling factor
577	 39.29	+1	503513..504217	-	234	123968113	pyrH	A9601_05781	-	uridylate kinase
578	 33.04	0	504346..505038	-	230	123968114	cobO	A9601_05791	-	cob(I)alamin adenosyltransferase
579	 30.60	0	505073..506242	-	389	123968115	-	A9601_05801	-	phage integrase family protein
580	 36.22	+1	506309..507484	+	391	123968116	hemH	A9601_05811	-	ferrochelatase
581	 36.68	+1	507621..509384	+	587	123968117	ilvB	A9601_05821	-	acetolactate synthase 3 catalytic subunit
582	 30.45	0	509560..509802	+	80	123968118	-	A9601_05831	-	hypothetical protein
583	 31.63	0	509809..510396	-	195	123968119	-	A9601_05841	-	hypothetical protein
584	 32.56	0	510614..511519	-	301	123968120	-	A9601_05851	-	hypothetical protein
585	 34.25	0	511516..512721	-	401	123968121	rps1b	A9601_05861	-	30S ribosomal protein S1 protein B, putative Nbp1
586	 35.97	+1	512788..513582	+	264	123968122	-	A9601_05871	-	creatininase
587	 32.80	0	513667..514422	+	251	123968123	-	A9601_05881	-	hypothetical protein
588	 36.50	+1	514532..515572	+	346	123968124	-	A9601_05891	-	dehydrogenase
589	 38.59	+1	515576..516583	+	335	123968125	accA	A9601_05901	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
590	 36.60	+1	516558..517292	+	244	123968126	-	A9601_05911	-	short chain dehydrogenase
591	 34.14	0	517446..518186	+	246	123968127	folE	A9601_05921	-	putative GTP cyclohydrolase I
592	 30.44	0	518183..518839	-	218	123968128	trpF	A9601_05931	-	phosphoribosylanthranilate isomerase
593	 26.72	-1	518895..520118	+	407	123968129	-	A9601_05941	-	Zn-dependent proteases
594	 28.33	0	520115..520774	-	219	123968130	lplA	A9601_05951	-	protein ligase
595	 33.33	0	520941..521075	+	44	123968131	psaM	A9601_05961	-	photosystem I reaction center subunit XII
596	 25.29	-1	521158..521505	+	115	123968132	-	A9601_05971	-	hypothetical protein
597	 33.63	0	521559..522563	+	334	123968133	-	A9601_05981	-	protochlorophyllide oxidoreductase
598	 35.70	0	522570..523457	-	295	123968134	chlL	A9601_05991	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
599	 36.26	+1	523647..525218	-	523	123968135	chlB	A9601_06001	-	light-independent protochlorophyllide reductase subunit B
600	 35.96	+1	525225..526481	-	418	123968136	chlN	A9601_06011	-	light-independent protochlorophyllide reductase subunit N
601	 34.15	0	526639..527007	-	122	123968137	-	A9601_06021	-	hypothetical protein
602	 38.78	+1	527105..527875	+	256	123968138	-	A9601_06031	-	hypothetical protein
603	 37.09	+1	527883..528467	-	194	123968139	-	A9601_06041	-	HAM1 family protein
604	 47.12	+2	528795..529106	+	103	123968140	ccmK	A9601_06051	-	carboxysome shell protein CsoS1
605	 40.68	+2	529175..530590	+	471	123968141	rbcL	A9601_06061	-	ribulose bisophosphate carboxylase
606	 41.81	+2	530681..531022	+	113	123968142	rbcS	A9601_06071	-	ribulose bisphosphate carboxylase, small chain
607	 38.03	+1	531106..533403	+	765	123968143	csoS2	A9601_06081	-	carboxysome shell protein CsoS2
608	 32.48	0	533411..534940	+	509	123968144	csoS3	A9601_06091	-	carboxysome shell protein CsoS3
609	 37.70	+1	534943..535194	+	83	123968145	-	A9601_06101	-	putative carboxysome peptide A
610	 38.96	+1	535213..535461	+	82	123968146	-	A9601_06111	-	putative carboxysome peptide B
611	 25.42	-1	535536..535775	+	79	123968147	-	A9601_06121	-	hypothetical protein
612	 31.58	0	535782..536009	-	75	123968148	-	A9601_06131	-	hypothetical protein
613	 32.32	0	536095..536487	-	130	123968149	tdcF	A9601_06141	-	YjgF family translation initiation inhibitor
614	 29.93	0	536512..537423	-	303	123968150	-	A9601_06151	-	putative hydroxyacylglutathione hydrolase
615	 33.02	0	537293..537931	+	212	123968151	hisG	A9601_06161	-	ATP phosphoribosyltransferase catalytic subunit
616	 33.00	0	537944..539740	+	598	123968152	-	A9601_06171	-	putative multidrug efflux ABC transporter
617	 34.09	0	539740..540270	+	176	123968153	-	A9601_06181	-	putative acetyltransferase
618	 26.32	-1	540271..540954	-	227	123968154	-	A9601_06191	-	cell wall biosynthesis glycosyltransferase
619	 28.92	0	540960..541571	-	203	123968155	-	A9601_06201	-	hypothetical protein
31.48	MEAN

4.43	STD DEV
