IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus str. AS9601

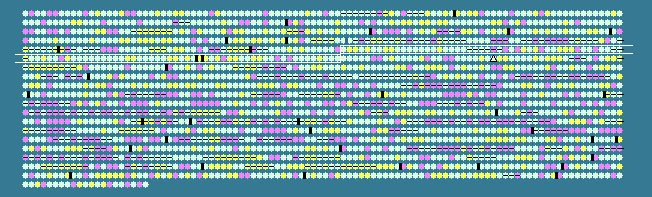

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
454	 30.92	0	392240..394183	+	647	123967990	fadD	A9601_04531	-	putative long-chain-fatty-acid--CoA ligase
455	 35.36	0	394222..394665	+	147	123967991	-	A9601_04541	-	hypothetical protein
456	 37.57	+1	394884..396251	+	455	123967992	pdhC	A9601_04551	-	branched-chain alpha-keto acid dehydrogenase subunit E2
457	 29.24	0	396258..397382	+	374	123967993	queA	A9601_04561	-	queuosine biosynthesis protein
458	 38.60	+1	397385..398371	-	328	123967994	-	A9601_04571	-	O-acetylserine (thiol)-lyase A
459	 29.66	0	398456..399925	-	489	123967995	-	A9601_04581	-	putative cystathionine gamma-synthase
460	 33.33	0	399929..401092	-	387	123967996	metB	A9601_04591	-	putative cystathionine gamma-synthase
461	 39.08	+1	401169..401777	-	202	123967997	rpsD	A9601_04601	-	30S ribosomal protein S4
462	 39.06	+1	401918..402109	+	63	123967998	-	A9601_04611	-	hypothetical protein
463	 28.05	0	402114..402416	+	100	123967999	-	A9601_04621	-	thioredoxin family protein
464	 29.69	0	402426..403961	+	511	123968000	murE	A9601_04631	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
465	 32.06	0	404043..404747	+	234	123968001	-	A9601_04641	-	putative short chain dehydrogenase
466	 29.42	0	404775..405950	-	391	123968002	-	A9601_04651	-	putative L-cysteine/cystine lyase
467	 32.20	0	405987..406781	-	264	123968003	-	A9601_04661	-	putative methyltransferase
468	 33.33	0	406859..407050	-	63	123968004	-	A9601_04671	-	hypothetical protein
469	 28.29	0	407289..407546	+	85	123968005	-	A9601_04681	-	hypothetical protein
470	 36.59	+1	407569..407814	-	81	123968006	-	A9601_04691	-	NifU-like protein
471	 30.79	0	407885..409381	+	498	123968007	mqo	A9601_04701	-	malate:quinone oxidoreductase
472	 34.38	0	409437..411245	+	602	123968008	lepA	A9601_04711	-	GTP-binding protein LepA
473	 34.52	0	411415..412170	+	251	123968009	dppC	A9601_04721	-	putative ABC transporter, oligopeptides
474	 31.40	0	412173..412844	-	223	123968010	-	A9601_04731	-	tRNA/rRNA methyltransferase (SpoU)
475	 34.31	0	412941..413144	+	67	123968011	-	A9601_04741	-	hypothetical protein
476	 28.75	0	413320..413712	+	130	123968012	-	A9601_04751	-	hypothetical protein
477	 32.49	0	413715..413951	+	78	123968013	-	A9601_04761	-	hypothetical protein
478	 34.15	0	414001..414123	+	40	123968014	-	A9601_04771	-	hypothetical protein
479	 27.10	0	414083..415573	+	496	123968015	-	A9601_04781	-	hypothetical protein
480	 33.33	0	415679..415858	+	59	123968016	-	A9601_04791	-	hypothetical protein
481	 22.92	-1	415878..416021	+	47	123968017	-	A9601_04801	-	hypothetical protein
482	 29.46	0	416073..417389	+	438	123968018	sun	A9601_04811	-	Sun protein (Fmu protein)
483	 26.84	-1	417399..419168	-	589	123968019	mrcB	A9601_04821	-	putative penicillin binding protein
484	 35.23	0	419170..420117	-	315	123968020	chlG	A9601_04831	-	bacteriochlorophyll/chlorophyll a synthase
485	 33.33	0	420126..420350	-	74	123968021	-	A9601_04841	-	hypothetical protein
486	 36.19	+1	420410..421180	+	256	123968022	hisF	A9601_04851	-	imidazole glycerol phosphate synthase subunit HisF (cyclase)
487	 27.07	0	421224..421925	+	233	123968023	ubiE	A9601_04861	-	ubiquinone/menaquinone biosynthesis methyltransferases
488	 29.84	0	421931..422416	-	161	123968024	-	A9601_04871	-	hypothetical protein
489	 29.60	0	422492..423241	+	249	123968025	birA	A9601_04881	-	putative biotin--acetyl-CoA-carboxylase ligase
490	 35.95	+1	423244..423930	-	228	123968026	salX	A9601_04891	-	ABC transporter ATP-binding protein
491	 36.42	+1	423947..425467	-	506	123968027	ndhB	A9601_04901	-	NAD(P)H-quinone oxidoreductase subunit 2
492	 35.56	0	425643..428249	+	868	123968028	topA	A9601_04911	-	DNA topoisomerase I
493	 18.41	-2	428257..428859	+	200	123968029	-	A9601_04921	-	hypothetical protein
494	 31.46	0	428880..429518	+	212	123968030	-	A9601_04931	-	hypothetical protein
495	 33.33	0	429531..430688	+	385	123968031	cobT	A9601_04941	-	hypothetical protein
496	 27.93	0	430689..431687	+	332	123968032	-	A9601_04951	-	hypothetical protein
497	 31.24	0	431676..432773	-	365	123968033	-	A9601_04961	-	aldo/keto reductase
498	 30.12	0	432932..433585	+	217	123968034	ribE	A9601_04971	-	riboflavin synthase subunit alpha
499	 33.62	0	433596..433949	-	117	123968035	-	A9601_04981	-	hypothetical protein
500	 30.18	0	434046..434648	-	200	123968036	ctaE	A9601_04991	-	cytochrome c oxidase, subunit III
501	 36.22	+1	434649..436274	-	541	123968037	cyoB	A9601_05001	-	cytochrome c oxidase, subunit I
502	 30.22	0	436271..437074	-	267	123968038	ctaC	A9601_05011	-	putative cytochrome c oxidase, subunit 2
503	 29.99	0	437338..438264	+	308	123968039	ctaA	A9601_05021	-	hypothetical protein
504	 38.82	+1	438261..439262	+	333	123968040	cyoE	A9601_05031	-	putative protoheme IX farnesyltransferase
505	 31.37	0	439302..440318	+	338	123968041	ccmA	A9601_05041	-	putative multidrug efflux ABC transporter
506	 31.76	0	440366..441190	+	274	123968042	-	A9601_05051	-	putative multidrug efflux ABC transporter
507	 27.71	0	441198..441713	+	171	123968043	-	A9601_05061	-	glycoprotein
508	 37.63	+1	441717..443462	-	581	123968044	groEL	A9601_05071	-	chaperonin GroEL
509	 30.56	0	443594..443773	+	59	123968045	-	A9601_05081	-	hypothetical protein
510	 32.27	0	443774..444523	-	249	123968046	-	A9601_05091	-	3-oxoacyl-[acyl-carrier protein] reductase
511	 33.04	0	444615..445286	+	223	123968047	ispD	A9601_05101	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
512	 33.10	0	445287..446156	-	289	123968048	-	A9601_05111	-	putative carboxypeptidase
513	 31.57	0	446166..447074	-	302	123968049	ubiA	A9601_05121	-	prenyltransferase
514	 32.21	0	447179..448774	+	531	123968050	ppx	A9601_05131	-	putative exopolyphosphatase
515	 29.67	0	448771..449262	-	163	123968051	-	A9601_05141	-	hypothetical protein
516	 33.07	0	449318..450073	-	251	123968052	cobM	A9601_05151	-	putative precorrin-4 C11-methyltransferase
517	 30.31	0	450066..450959	-	297	123968053	lgt	A9601_05161	-	prolipoprotein diacylglyceryl transferase
518	 37.95	+1	450970..451923	-	317	123968054	petA	A9601_05171	-	apocytochrome f
519	 41.53	+2	451929..452465	-	178	123968055	petC	A9601_05181	-	cytochrome b6-f complex iron-sulfur subunit
520	 33.33	0	452589..452906	+	105	123968056	-	A9601_05191	-	hypothetical protein
521	 30.83	0	452875..453633	-	252	123968057	tatC	A9601_05201	-	Tat family protein secretion protein
522	 32.57	0	453714..453974	-	86	123968058	-	A9601_05211	-	hypothetical protein
523	 28.57	0	454004..455704	-	566	123968059	-	A9601_05221	-	secreted protein MPB70 precursor
524	 31.35	0	455778..456332	+	184	123968060	gmk	A9601_05231	-	guanylate kinase
525	 38.56	+1	456510..457064	-	184	123968061	psaF	A9601_05241	-	photosystem I PsaF protein (subunit III)
526	 35.76	0	457139..458209	+	356	123968062	qri7	A9601_05251	-	o-sialoglycoprotein endopeptidase
527	 30.51	0	458215..458391	+	58	123968063	-	A9601_05261	-	high light inducible protein
528	 38.23	+1	458552..459757	+	401	123968064	nhaP	A9601_05271	-	CPA1 family Na+/H+ antiporter
529	 32.56	0	459758..461188	-	476	123968065	gltX	A9601_05281	-	glutamyl-tRNA synthetase
530	 43.08	+2	461429..461623	-	64	123968066	-	A9601_05291	-	hypothetical protein
531	 35.83	0	461785..462264	-	159	123968067	rplS	A9601_05301	-	50S ribosomal protein L19
532	 33.66	0	462288..462596	-	102	123968068	-	A9601_05311	-	hypothetical protein
533	 35.60	0	462692..463531	+	279	123968069	map	A9601_05321	-	methionine aminopeptidase
534	 27.22	0	463535..464254	-	239	123968070	-	A9601_05331	-	short chain dehydrogenase
535	 35.05	0	464410..465519	+	369	123968071	pta	A9601_05341	-	phosphotransacetylase domain-containing protein
536	 36.45	+1	465545..466057	+	170	123968072	-	A9601_05351	-	hypothetical protein
537	 28.92	0	466124..466621	+	165	123968073	-	A9601_05361	-	nucleotide-binding protein
538	 32.38	0	466648..466857	+	69	123968074	-	A9601_05371	-	hypothetical protein
539	 36.07	+1	466966..467769	+	267	123968075	hflC	A9601_05381	-	Band 7 protein
540	 40.78	+2	467841..469142	-	433	123968076	hemL	A9601_05391	-	glutamate-1-semialdehyde aminotransferase
541	 30.85	0	469369..470214	-	281	123968077	xthA	A9601_05401	-	exodeoxyribonuclease III
542	 29.59	0	470287..470580	+	97	123968078	-	A9601_05411	-	hypothetical protein
543	 27.17	0	470612..471211	+	199	123968079	-	A9601_05421	-	hypothetical protein
544	 31.79	0	471263..472495	+	410	123968080	-	A9601_05431	-	hypothetical protein
545	 26.54	-1	472492..473448	+	318	123968081	-	A9601_05441	-	hypothetical protein
546	 32.55	0	473445..474983	-	512	123968082	thiP	A9601_05451	-	putative iron ABC transporter
547	 32.12	0	475010..476161	-	383	123968083	-	A9601_05461	-	G3E family GTPase
548	 30.24	0	476191..476481	-	96	123968084	phhB	A9601_05471	-	pterin-4-alpha-carbinolamine dehydratase
549	 30.04	0	476518..476973	-	151	123968085	-	A9601_05481	-	hypothetical protein
550	 35.03	0	478650..479237	+	195	123968086	-	A9601_05511	-	putative inorganic pyrophosphatase
551	 34.70	0	479244..480194	-	316	123968087	hemC	A9601_05521	-	porphobilinogen deaminase
552	 33.67	0	480292..481476	-	394	123968088	-	A9601_05531	-	RNA polymerase sigma factor RpoD
553	 31.09	0	481797..484073	+	758	123968089	priA	A9601_05541	-	primosomal protein N' (replication factor Y)
31.48	MEAN

4.43	STD DEV
