IslandPath Analysis: Prochlorococcus marinus str. AS9601

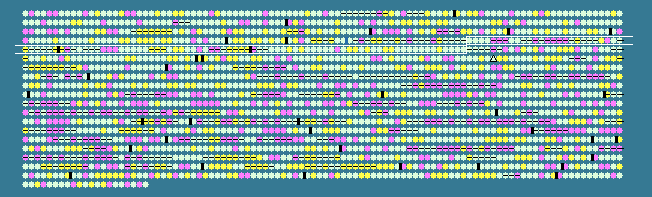

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
375	 33.33	0	339228..339443	-	71	123967911	-	A9601_03741	-	hypothetical protein
376	 29.87	0	339535..339852	+	105	123967912	-	A9601_03751	-	helper component proteinase
377	 32.82	0	339854..340246	-	130	123967913	-	A9601_03761	-	hypothetical protein
378	 29.59	0	340251..340517	-	88	123967914	-	A9601_03771	-	mttA/Hcf106 family protein
379	 18.12	-2	340608..340745	-	45	123967915	-	A9601_03781	-	hypothetical protein
380	 27.92	0	340926..341165	+	79	123967916	-	A9601_03791	-	hypothetical protein
381	 15.91	-2	341184..341315	-	43	123967917	-	A9601_03801	-	hypothetical protein
382	 32.89	0	341466..341915	+	149	123967918	-	A9601_03811	-	putative bacterioferritin comigratory protein
383	 31.87	0	341982..342254	+	90	123967919	-	A9601_03821	-	hypothetical protein
384	 31.01	0	342351..342695	-	114	123967920	-	A9601_03831	-	hypothetical protein
385	 30.13	0	342923..343297	-	124	123967921	-	A9601_03841	-	hypothetical protein
386	 26.48	-1	343362..343799	+	145	123967922	-	A9601_03851	-	hypothetical protein
387	 29.32	0	343854..344102	+	82	123967923	-	A9601_03861	-	TIR domain-containing protein
388	 24.81	-1	344208..344336	-	42	123967924	-	A9601_03871	-	hypothetical protein
389	 26.64	-1	344383..345249	-	288	123967925	-	A9601_03881	-	abortive infection protein
390	 24.58	-1	345345..346178	-	277	123967926	-	A9601_03891	-	glycosyl transferase family protein
391	 27.73	0	346275..347042	+	255	123967927	-	A9601_03901	-	glycosyl transferase
392	 30.49	0	348325..349275	+	316	123967928	-	A9601_03911	-	proline iminopeptidase
393	 35.06	0	349299..349472	-	57	123967929	-	A9601_03921	-	hypothetical protein
394	 28.32	0	349600..351096	-	498	123967930	-	A9601_03931	-	putative deoxyribodipyrimidine photolyase
395	 28.53	0	351184..351807	+	207	123967931	-	A9601_03941	-	TENA/THI-4 protein
396	 33.33	0	351857..352636	+	259	123967932	thiD	A9601_03951	-	phosphomethylpyrimidine kinase
397	 37.74	+1	352655..352813	-	52	123967933	-	A9601_03961	-	hypothetical protein
398	 26.39	-1	353023..353166	+	47	123967934	-	A9601_03971	-	hypothetical protein
399	 32.69	0	353246..353713	+	155	123967935	-	A9601_03981	-	hypothetical protein
400	 30.16	0	353784..354161	+	125	123967936	-	A9601_03991	-	phosphoenolpyruvate carboxykinase
401	 35.52	0	354198..354380	-	60	123967937	-	A9601_04001	-	hypothetical protein
402	 32.98	0	354616..354900	+	94	123967938	-	A9601_04011	-	hypothetical protein
403	 28.67	0	355379..355678	+	99	123967939	-	A9601_04021	-	hypothetical protein
404	 33.33	0	355675..355860	-	61	123967940	-	A9601_04031	-	hypothetical protein
405	 34.81	0	355889..356023	-	44	123967941	-	A9601_04041	-	hypothetical protein
406	 36.46	+1	356249..356440	-	63	123967942	-	A9601_04051	-	hypothetical protein
407	 40.87	+2	356786..357037	+	83	123967943	-	A9601_04061	-	hypothetical protein
408	 23.78	-1	357102..357530	+	142	123967944	-	A9601_04071	-	hypothetical protein
409	 31.85	0	357437..357571	-	44	123967945	-	A9601_04081	-	hypothetical protein
410	 28.85	0	357578..357733	-	51	123967946	-	A9601_04091	-	hypothetical protein
411	 30.95	0	357864..358115	+	83	123967947	-	A9601_04101	-	hypothetical protein
412	 31.43	0	358105..358314	+	69	123967948	-	A9601_04111	-	hypothetical protein
413	 33.06	0	358557..358919	+	120	123967949	-	A9601_04121	-	hypothetical protein
414	 26.67	-1	359042..359296	-	84	123967950	-	A9601_04131	-	hypothetical protein
415	 25.32	-1	359367..359603	+	78	123967951	-	A9601_04141	-	hypothetical protein
416	 26.67	-1	359740..359934	+	64	123967952	-	A9601_04151	-	hypothetical protein
417	 33.86	0	360061..360825	-	254	123967953	-	A9601_04161	-	putative dehydrogenase
418	 33.22	0	361007..361858	+	283	123967954	-	A9601_04171	-	hypothetical protein
419	 30.20	0	361948..362202	+	84	123967955	-	A9601_04181	-	hypothetical protein
420	 30.70	0	362468..362695	-	75	123967956	-	A9601_04191	-	hypothetical protein
421	 34.48	0	362696..362956	-	86	123967957	-	A9601_04201	-	high light inducible protein
422	 37.62	+1	362956..363165	-	69	123967958	-	A9601_04211	-	high light inducible protein
423	 40.14	+1	363383..363529	+	48	123967959	-	A9601_04221	-	hypothetical protein
424	 35.73	0	363566..364066	-	166	123967960	-	A9601_04231	-	hypothetical protein
425	 31.28	0	364066..364260	-	64	123967961	-	A9601_04241	-	hypothetical protein
426	 42.66	+2	364502..365284	+	260	123967962	-	A9601_04251	-	periplasmic protein
427	 37.57	+1	365384..365572	-	62	123967963	-	A9601_04261	-	hypothetical protein
428	 29.71	0	365886..366299	+	137	123967964	vsr	A9601_04271	-	hypothetical protein
429	 28.60	0	366365..369070	+	901	123967965	-	A9601_04281	-	hypothetical protein
430	 25.44	-1	369074..370048	+	324	123967966	-	A9601_04291	-	hypothetical protein
431	 32.07	0	370048..372033	+	661	123967967	-	A9601_04301	-	hypothetical protein
432	 26.44	-1	372036..372920	+	294	123967968	-	A9601_04311	-	hypothetical protein
433	 27.68	0	372921..373733	+	270	123967969	-	A9601_04321	-	hypothetical protein
434	 33.81	0	373751..375847	-	698	123967970	dcm	A9601_04331	-	DNA-cytosine methyltransferase
435	 37.11	+1	375844..376557	-	237	123967971	-	A9601_04341	-	hypothetical protein
436	 38.76	+1	376554..377585	-	343	123967972	-	A9601_04351	-	hypothetical protein
437	 41.68	+2	377588..379552	-	654	123967973	-	A9601_04361	-	hypothetical protein
438	 43.27	+2	379721..380686	-	321	123967974	-	A9601_04371	-	hypothetical protein
439	 27.48	0	381090..381533	+	147	123967975	aroQ	A9601_04381	-	3-dehydroquinate dehydratase
440	 34.65	0	381534..382142	+	202	123967976	miaE	A9601_04391	-	putative tRNA-(MS[2]IO[6]A)-hydroxylase-like protein
441	 31.35	0	382159..382914	+	251	123967977	cobI	A9601_04401	-	precorrin-2-C20-methyltransferase
442	 32.51	0	382914..383399	+	161	123967978	-	A9601_04411	-	hypothetical protein
443	 33.99	0	383474..384847	+	457	123967979	engA	A9601_04421	-	GTP-binding protein EngA
444	 30.05	0	384847..385761	+	304	123967980	cbiQ	A9601_04431	-	cobalt ABC transporter permease
445	 35.15	0	385781..385945	+	54	123967981	-	A9601_04441	-	hypothetical protein
446	 32.64	0	386113..386685	+	190	123967982	-	A9601_04451	-	TIM-barrel fold family protein
447	 35.59	0	386836..387411	+	191	123967983	-	A9601_04461	-	hypothetical protein
448	 29.27	0	387419..388231	+	270	123967984	proC	A9601_04471	-	Delta 1-pyrroline-5-carboxylate reductase
449	 34.02	0	388237..389394	-	385	123967985	-	A9601_04481	-	putative glycosyl transferase, group 1
450	 34.22	0	389480..390265	-	261	123967986	recO	A9601_04491	-	putative recombination protein O
451	 28.94	0	390266..390925	-	219	123967987	deoC	A9601_04501	-	putative deoxyribose-phosphate aldolase
452	 28.72	0	390933..391517	-	194	123967988	lrtA	A9601_04511	-	light repressed protein A
453	 26.42	-1	391562..392212	+	216	123967989	lipB	A9601_04521	-	putative lipoate-protein ligase B
454	 30.92	0	392240..394183	+	647	123967990	fadD	A9601_04531	-	putative long-chain-fatty-acid--CoA ligase
455	 35.36	0	394222..394665	+	147	123967991	-	A9601_04541	-	hypothetical protein
456	 37.57	+1	394884..396251	+	455	123967992	pdhC	A9601_04551	-	branched-chain alpha-keto acid dehydrogenase subunit E2
457	 29.24	0	396258..397382	+	374	123967993	queA	A9601_04561	-	queuosine biosynthesis protein
458	 38.60	+1	397385..398371	-	328	123967994	-	A9601_04571	-	O-acetylserine (thiol)-lyase A
459	 29.66	0	398456..399925	-	489	123967995	-	A9601_04581	-	putative cystathionine gamma-synthase
460	 33.33	0	399929..401092	-	387	123967996	metB	A9601_04591	-	putative cystathionine gamma-synthase
461	 39.08	+1	401169..401777	-	202	123967997	rpsD	A9601_04601	-	30S ribosomal protein S4
462	 39.06	+1	401918..402109	+	63	123967998	-	A9601_04611	-	hypothetical protein
463	 28.05	0	402114..402416	+	100	123967999	-	A9601_04621	-	thioredoxin family protein
464	 29.69	0	402426..403961	+	511	123968000	murE	A9601_04631	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
465	 32.06	0	404043..404747	+	234	123968001	-	A9601_04641	-	putative short chain dehydrogenase
466	 29.42	0	404775..405950	-	391	123968002	-	A9601_04651	-	putative L-cysteine/cystine lyase
467	 32.20	0	405987..406781	-	264	123968003	-	A9601_04661	-	putative methyltransferase
468	 33.33	0	406859..407050	-	63	123968004	-	A9601_04671	-	hypothetical protein
469	 28.29	0	407289..407546	+	85	123968005	-	A9601_04681	-	hypothetical protein
470	 36.59	+1	407569..407814	-	81	123968006	-	A9601_04691	-	NifU-like protein
471	 30.79	0	407885..409381	+	498	123968007	mqo	A9601_04701	-	malate:quinone oxidoreductase
472	 34.38	0	409437..411245	+	602	123968008	lepA	A9601_04711	-	GTP-binding protein LepA
473	 34.52	0	411415..412170	+	251	123968009	dppC	A9601_04721	-	putative ABC transporter, oligopeptides
474	 31.40	0	412173..412844	-	223	123968010	-	A9601_04731	-	tRNA/rRNA methyltransferase (SpoU)
31.48	MEAN

4.43	STD DEV
