IslandPath Analysis: Prochlorococcus marinus str. AS9601

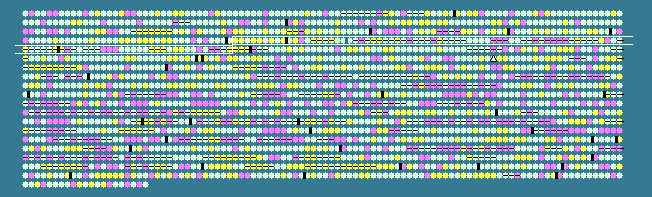

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
336	 37.12	+1	307761..309002	-	413	123967872	metK	A9601_03351	-	S-adenosylmethionine synthetase
337	 37.36	+1	309140..310231	-	363	123967873	rps1a	A9601_03361	-	30S ribosomal protein S1
338	 32.71	0	310341..310820	-	159	123967874	-	A9601_03371	-	transcriptional regulator NrdR
339	 40.40	+2	310913..311011	-	32	123967875	psbT	A9601_03381	-	photosystem II reaction center protein T
340	 41.14	+2	311035..312558	-	507	123967876	psbB	A9601_03391	-	photosystem II PsbB protein (CP47)
341	 34.71	0	312781..313143	+	120	123967877	fdx	A9601_03401	-	ferredoxin
342	 37.91	+1	313249..313401	+	50	123967878	psbM	A9601_03411	-	photosystem II reaction center M protein (PsbM)
343	 30.00	0	313413..314282	+	289	123967879	hemK	A9601_03421	-	putative protein methyltransferase
344	 36.08	+1	314306..314887	+	193	123967880	sua5	A9601_03431	-	putative translation factor (SUA5)
345	 32.11	0	315202..315528	-	108	123967881	minE	A9601_03441	-	septum site-determining protein MinE
346	 36.11	+1	315530..316357	-	275	123967882	minD	A9601_03451	-	putative septum site-determining protein MinD
347	 27.75	0	316457..317119	-	220	123967883	-	A9601_03461	-	septum site-determining protein
348	 29.44	0	317130..318386	-	418	123967884	-	A9601_03471	-	HD superfamily phosphohydrolase
349	 36.34	+1	318414..319709	-	431	123967885	-	A9601_03481	-	carboxyl-terminal protease
350	 38.05	+1	319781..320437	+	218	123967886	petB	A9601_03491	-	cytochrome b6
351	 34.78	0	320471..320953	+	160	123967887	petD	A9601_03501	-	cytochrome b6-f complex subunit IV
352	 35.76	0	320956..322395	-	479	123967888	-	A9601_03511	-	putative neutral invertase-like protein
353	 30.63	0	322657..322767	-	36	123967889	-	A9601_03521	-	hypothetical protein
354	 30.91	0	322661..322825	+	54	123967890	-	A9601_03531	-	hypothetical protein
355	 31.06	0	328123..329001	-	292	123967891	mutM	A9601_03541	-	formamidopyrimidine-DNA glycolase (Fapy-DNA glycolase)
356	 34.76	0	329006..329215	-	69	123967892	psaE	A9601_03551	-	photosystem I reaction center subunit IV
357	 21.92	-2	329296..330057	-	253	123967893	-	A9601_03561	-	LysM domain-containing protein
358	 28.66	0	330130..331521	-	463	123967894	-	A9601_03571	-	putative aldehyde dehydrogenase
359	 35.02	0	331678..332568	+	296	123967895	-	A9601_03581	-	GCN5-related N-acetyltransferase
360	 36.55	+1	332639..332887	-	82	123967896	-	A9601_03591	-	hypothetical protein
361	 30.11	0	332989..333081	+	30	123967897	-	A9601_03601	-	hypothetical protein
362	 31.06	0	333099..333230	-	43	123967898	-	A9601_03611	-	hypothetical protein
363	 38.41	+1	333342..333479	-	45	123967899	-	A9601_03621	-	hypothetical protein
364	 28.07	0	333596..333709	-	37	123967900	-	A9601_03631	-	hypothetical protein
365	 25.52	-1	333845..334279	+	144	123967901	-	A9601_03641	-	NADH-plastoquinone oxidoreductase chain 5-like
366	 29.02	0	334276..334785	-	169	123967902	-	A9601_03651	-	hypothetical protein
367	 28.37	0	334941..335081	+	46	123967903	-	A9601_03661	-	hypothetical protein
368	 34.63	0	335352..335660	-	102	123967904	-	A9601_03671	-	hypothetical protein
369	 27.05	-1	335960..336166	+	68	123967905	-	A9601_03681	-	hypothetical protein
370	 35.05	0	336257..336547	+	96	123967906	-	A9601_03691	-	hypothetical protein
371	 33.33	0	336559..336762	-	67	123967907	-	A9601_03701	-	hypothetical protein
372	 33.07	0	336880..338409	-	509	123967908	-	A9601_03711	-	phytoene dehydrogenase
373	 33.33	0	338449..338559	-	36	123967909	-	A9601_03721	-	hypothetical protein
374	 30.04	0	338741..339226	+	161	123967910	-	A9601_03731	-	hypothetical protein
375	 33.33	0	339228..339443	-	71	123967911	-	A9601_03741	-	hypothetical protein
376	 29.87	0	339535..339852	+	105	123967912	-	A9601_03751	-	helper component proteinase
377	 32.82	0	339854..340246	-	130	123967913	-	A9601_03761	-	hypothetical protein
378	 29.59	0	340251..340517	-	88	123967914	-	A9601_03771	-	mttA/Hcf106 family protein
379	 18.12	-2	340608..340745	-	45	123967915	-	A9601_03781	-	hypothetical protein
380	 27.92	0	340926..341165	+	79	123967916	-	A9601_03791	-	hypothetical protein
381	 15.91	-2	341184..341315	-	43	123967917	-	A9601_03801	-	hypothetical protein
382	 32.89	0	341466..341915	+	149	123967918	-	A9601_03811	-	putative bacterioferritin comigratory protein
383	 31.87	0	341982..342254	+	90	123967919	-	A9601_03821	-	hypothetical protein
384	 31.01	0	342351..342695	-	114	123967920	-	A9601_03831	-	hypothetical protein
385	 30.13	0	342923..343297	-	124	123967921	-	A9601_03841	-	hypothetical protein
386	 26.48	-1	343362..343799	+	145	123967922	-	A9601_03851	-	hypothetical protein
387	 29.32	0	343854..344102	+	82	123967923	-	A9601_03861	-	TIR domain-containing protein
388	 24.81	-1	344208..344336	-	42	123967924	-	A9601_03871	-	hypothetical protein
389	 26.64	-1	344383..345249	-	288	123967925	-	A9601_03881	-	abortive infection protein
390	 24.58	-1	345345..346178	-	277	123967926	-	A9601_03891	-	glycosyl transferase family protein
391	 27.73	0	346275..347042	+	255	123967927	-	A9601_03901	-	glycosyl transferase
392	 30.49	0	348325..349275	+	316	123967928	-	A9601_03911	-	proline iminopeptidase
393	 35.06	0	349299..349472	-	57	123967929	-	A9601_03921	-	hypothetical protein
394	 28.32	0	349600..351096	-	498	123967930	-	A9601_03931	-	putative deoxyribodipyrimidine photolyase
395	 28.53	0	351184..351807	+	207	123967931	-	A9601_03941	-	TENA/THI-4 protein
396	 33.33	0	351857..352636	+	259	123967932	thiD	A9601_03951	-	phosphomethylpyrimidine kinase
397	 37.74	+1	352655..352813	-	52	123967933	-	A9601_03961	-	hypothetical protein
398	 26.39	-1	353023..353166	+	47	123967934	-	A9601_03971	-	hypothetical protein
399	 32.69	0	353246..353713	+	155	123967935	-	A9601_03981	-	hypothetical protein
400	 30.16	0	353784..354161	+	125	123967936	-	A9601_03991	-	phosphoenolpyruvate carboxykinase
401	 35.52	0	354198..354380	-	60	123967937	-	A9601_04001	-	hypothetical protein
402	 32.98	0	354616..354900	+	94	123967938	-	A9601_04011	-	hypothetical protein
403	 28.67	0	355379..355678	+	99	123967939	-	A9601_04021	-	hypothetical protein
404	 33.33	0	355675..355860	-	61	123967940	-	A9601_04031	-	hypothetical protein
405	 34.81	0	355889..356023	-	44	123967941	-	A9601_04041	-	hypothetical protein
406	 36.46	+1	356249..356440	-	63	123967942	-	A9601_04051	-	hypothetical protein
407	 40.87	+2	356786..357037	+	83	123967943	-	A9601_04061	-	hypothetical protein
408	 23.78	-1	357102..357530	+	142	123967944	-	A9601_04071	-	hypothetical protein
409	 31.85	0	357437..357571	-	44	123967945	-	A9601_04081	-	hypothetical protein
410	 28.85	0	357578..357733	-	51	123967946	-	A9601_04091	-	hypothetical protein
411	 30.95	0	357864..358115	+	83	123967947	-	A9601_04101	-	hypothetical protein
412	 31.43	0	358105..358314	+	69	123967948	-	A9601_04111	-	hypothetical protein
413	 33.06	0	358557..358919	+	120	123967949	-	A9601_04121	-	hypothetical protein
414	 26.67	-1	359042..359296	-	84	123967950	-	A9601_04131	-	hypothetical protein
415	 25.32	-1	359367..359603	+	78	123967951	-	A9601_04141	-	hypothetical protein
416	 26.67	-1	359740..359934	+	64	123967952	-	A9601_04151	-	hypothetical protein
417	 33.86	0	360061..360825	-	254	123967953	-	A9601_04161	-	putative dehydrogenase
418	 33.22	0	361007..361858	+	283	123967954	-	A9601_04171	-	hypothetical protein
419	 30.20	0	361948..362202	+	84	123967955	-	A9601_04181	-	hypothetical protein
420	 30.70	0	362468..362695	-	75	123967956	-	A9601_04191	-	hypothetical protein
421	 34.48	0	362696..362956	-	86	123967957	-	A9601_04201	-	high light inducible protein
422	 37.62	+1	362956..363165	-	69	123967958	-	A9601_04211	-	high light inducible protein
423	 40.14	+1	363383..363529	+	48	123967959	-	A9601_04221	-	hypothetical protein
424	 35.73	0	363566..364066	-	166	123967960	-	A9601_04231	-	hypothetical protein
425	 31.28	0	364066..364260	-	64	123967961	-	A9601_04241	-	hypothetical protein
426	 42.66	+2	364502..365284	+	260	123967962	-	A9601_04251	-	periplasmic protein
427	 37.57	+1	365384..365572	-	62	123967963	-	A9601_04261	-	hypothetical protein
428	 29.71	0	365886..366299	+	137	123967964	vsr	A9601_04271	-	hypothetical protein
429	 28.60	0	366365..369070	+	901	123967965	-	A9601_04281	-	hypothetical protein
430	 25.44	-1	369074..370048	+	324	123967966	-	A9601_04291	-	hypothetical protein
431	 32.07	0	370048..372033	+	661	123967967	-	A9601_04301	-	hypothetical protein
432	 26.44	-1	372036..372920	+	294	123967968	-	A9601_04311	-	hypothetical protein
433	 27.68	0	372921..373733	+	270	123967969	-	A9601_04321	-	hypothetical protein
434	 33.81	0	373751..375847	-	698	123967970	dcm	A9601_04331	-	DNA-cytosine methyltransferase
435	 37.11	+1	375844..376557	-	237	123967971	-	A9601_04341	-	hypothetical protein
31.48	MEAN

4.43	STD DEV
