IslandPath Analysis: Prochlorococcus marinus str. AS9601

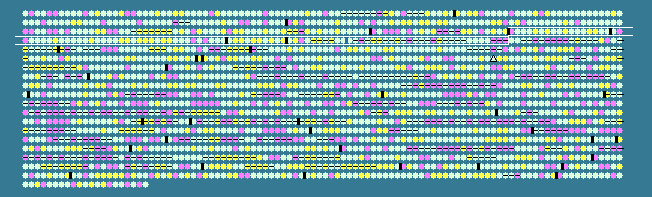

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
282	 27.30	0	259475..259756	+	93	123967818	-	A9601_02811	-	hypothetical protein
283	 31.96	0	259769..260059	+	96	123967819	-	A9601_02821	-	hypothetical protein
284	 29.42	0	260056..261639	-	527	123967820	mviN	A9601_02831	-	hypothetical protein
285	 33.33	0	261710..262450	+	246	123967821	sfsA	A9601_02841	-	putative sugar fermentation stimulation protein
286	 42.98	+2	262631..264091	+	486	123967822	amtB	A9601_02851	-	ammonium transporter
287	 33.08	0	264180..265376	+	398	123967823	lytB	A9601_02861	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
288	 36.54	+1	265480..266040	+	186	123967824	-	A9601_02871	-	hypothetical protein
289	 31.98	0	266042..267595	-	517	123967825	purH	A9601_02881	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
290	 33.82	0	267629..268246	+	205	123967826	-	A9601_02891	-	esterase
291	 35.23	0	268243..268611	-	122	123967827	-	A9601_02901	-	hypothetical protein
292	 33.60	0	268862..269998	+	378	123967828	-	A9601_02911	-	two-component sensor histidine kinase
293	 29.15	0	269976..270716	-	246	123967829	cobS	A9601_02921	-	cobalamin-5-phosphate synthase CobS
294	 34.41	0	270815..271933	+	372	123967830	tgt	A9601_02931	-	tRNA-guanine transglycosylase
295	 35.46	0	271967..272107	+	46	123967831	psbK	A9601_02941	-	photosystem II reaction center protein K
296	 35.82	0	272134..273138	-	334	123967832	-	A9601_02951	-	putative oxidoreductase
297	 34.21	0	273101..273214	+	37	123967833	-	A9601_02961	-	hypothetical protein
298	 31.28	0	273189..274457	-	422	123967834	-	A9601_02971	-	hemolysin-like protein
299	 31.91	0	274689..275249	+	186	123967835	pyrE	A9601_02981	-	orotate phosphoribosyltransferase
300	 25.45	-1	275260..276096	+	278	123967836	-	A9601_02991	-	aminomethyltransferase
301	 27.48	0	276082..277500	-	472	123967837	-	A9601_03001	-	RecB family nuclease
302	 30.58	0	277581..279035	+	484	123967838	-	A9601_03011	-	phosphotransferase superclass
303	 32.36	0	278999..279613	+	204	123967839	-	A9601_03021	-	xanthosine triphosphate pyrophosphatase
304	 32.86	0	279616..281100	-	494	123967840	-	A9601_03031	-	retinal pigment epithelial membrane protein
305	 34.16	0	281174..281779	-	201	123967841	hisB	A9601_03041	-	imidazoleglycerol-phosphate dehydratase
306	 38.95	+1	281800..282582	-	260	123967842	fabI	A9601_03051	-	enoyl-(acyl carrier protein) reductase
307	 28.96	0	282688..283281	+	197	123967843	-	A9601_03061	-	hypothetical protein
308	 31.34	0	283335..284540	+	401	123967844	degT	A9601_03071	-	putative pleiotropic regulatory protein
309	 30.54	0	284525..285958	-	477	123967845	phrB	A9601_03081	-	putative DNA photolyase
310	 32.80	0	285955..286518	-	187	123967846	-	A9601_03091	-	NUDIX hydrolase
311	 32.28	0	286566..287132	-	188	123967847	folK	A9601_03101	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
312	 37.23	+1	287181..289364	+	727	123967848	chlD	A9601_03111	-	protoporphyrin IX magnesium chelatase subunit ChlD
313	 29.67	0	289372..290217	-	281	123967849	-	A9601_03121	-	putative ABC transporter
314	 32.78	0	290223..290945	-	240	123967850	-	A9601_03131	-	ABC transporter ATP-binding protein
315	 33.19	0	291140..292525	+	461	123967851	-	A9601_03141	-	hypothetical protein
316	 32.02	0	292522..293052	-	176	123967852	ndhJ	A9601_03151	-	NADH dehydrogenase subunit J
317	 36.05	+1	293052..293786	-	244	123967853	ndhK	A9601_03161	-	NADH dehydrogenase subunit B
318	 35.81	0	293791..294153	-	120	123967854	ndhC	A9601_03171	-	NADH dehydrogenase subunit A
319	 34.73	0	294230..294658	+	142	123967855	rub	A9601_03181	-	putative rubredoxin
320	 35.20	0	294668..295684	+	338	123967856	-	A9601_03191	-	Ycf48-like protein
321	 37.25	+1	295815..296069	+	84	123967857	psbE	A9601_03201	-	cytochrome b559 subunit alpha
322	 42.86	+2	296072..296218	+	48	123967858	psbF	A9601_03211	-	cytochrome b559 subunit beta
323	 29.17	0	296230..296349	+	39	123967859	psbL	A9601_03221	-	photosystem II reaction center L
324	 43.43	+2	296359..296556	+	65	123967860	psbJ	A9601_03231	-	photosystem II reaction center protein J
325	 35.01	0	296600..297493	-	297	123967861	-	A9601_03241	-	5'-methylthioadenosine phosphorylase
326	 29.74	0	297504..299675	+	723	123967862	-	A9601_03251	-	selenide,water dikinase
327	 28.29	0	299676..300923	-	415	123967863	-	A9601_03261	-	tRNA nucleotidyltransferase/poly(A) polymerase
328	 32.84	0	300929..303337	-	802	123967864	uvrD	A9601_03271	-	UvrD/REP helicase
329	 24.15	-1	303360..303566	-	68	123967865	-	A9601_03281	-	hypothetical protein
330	 29.63	0	303745..304257	+	170	123967866	cpeB	A9601_03291	-	phycobilisome protein
331	 27.17	0	304241..304792	-	183	123967867	cpeS	A9601_03301	-	phycoerythrin linker protein CpeS
332	 33.33	0	304767..304946	-	59	123967868	-	A9601_03311	-	hypothetical protein
333	 33.81	0	305063..305698	-	211	123967869	-	A9601_03321	-	hypothetical protein
334	 30.48	0	305846..306265	+	139	123967870	-	A9601_03331	-	Pollen allergen
335	 33.01	0	306518..307747	-	409	123967871	xylB	A9601_03341	-	carbohydrate kinase
336	 37.12	+1	307761..309002	-	413	123967872	metK	A9601_03351	-	S-adenosylmethionine synthetase
337	 37.36	+1	309140..310231	-	363	123967873	rps1a	A9601_03361	-	30S ribosomal protein S1
338	 32.71	0	310341..310820	-	159	123967874	-	A9601_03371	-	transcriptional regulator NrdR
339	 40.40	+2	310913..311011	-	32	123967875	psbT	A9601_03381	-	photosystem II reaction center protein T
340	 41.14	+2	311035..312558	-	507	123967876	psbB	A9601_03391	-	photosystem II PsbB protein (CP47)
341	 34.71	0	312781..313143	+	120	123967877	fdx	A9601_03401	-	ferredoxin
342	 37.91	+1	313249..313401	+	50	123967878	psbM	A9601_03411	-	photosystem II reaction center M protein (PsbM)
343	 30.00	0	313413..314282	+	289	123967879	hemK	A9601_03421	-	putative protein methyltransferase
344	 36.08	+1	314306..314887	+	193	123967880	sua5	A9601_03431	-	putative translation factor (SUA5)
345	 32.11	0	315202..315528	-	108	123967881	minE	A9601_03441	-	septum site-determining protein MinE
346	 36.11	+1	315530..316357	-	275	123967882	minD	A9601_03451	-	putative septum site-determining protein MinD
347	 27.75	0	316457..317119	-	220	123967883	-	A9601_03461	-	septum site-determining protein
348	 29.44	0	317130..318386	-	418	123967884	-	A9601_03471	-	HD superfamily phosphohydrolase
349	 36.34	+1	318414..319709	-	431	123967885	-	A9601_03481	-	carboxyl-terminal protease
350	 38.05	+1	319781..320437	+	218	123967886	petB	A9601_03491	-	cytochrome b6
351	 34.78	0	320471..320953	+	160	123967887	petD	A9601_03501	-	cytochrome b6-f complex subunit IV
352	 35.76	0	320956..322395	-	479	123967888	-	A9601_03511	-	putative neutral invertase-like protein
353	 30.63	0	322657..322767	-	36	123967889	-	A9601_03521	-	hypothetical protein
354	 30.91	0	322661..322825	+	54	123967890	-	A9601_03531	-	hypothetical protein
355	 31.06	0	328123..329001	-	292	123967891	mutM	A9601_03541	-	formamidopyrimidine-DNA glycolase (Fapy-DNA glycolase)
356	 34.76	0	329006..329215	-	69	123967892	psaE	A9601_03551	-	photosystem I reaction center subunit IV
357	 21.92	-2	329296..330057	-	253	123967893	-	A9601_03561	-	LysM domain-containing protein
358	 28.66	0	330130..331521	-	463	123967894	-	A9601_03571	-	putative aldehyde dehydrogenase
359	 35.02	0	331678..332568	+	296	123967895	-	A9601_03581	-	GCN5-related N-acetyltransferase
360	 36.55	+1	332639..332887	-	82	123967896	-	A9601_03591	-	hypothetical protein
361	 30.11	0	332989..333081	+	30	123967897	-	A9601_03601	-	hypothetical protein
362	 31.06	0	333099..333230	-	43	123967898	-	A9601_03611	-	hypothetical protein
363	 38.41	+1	333342..333479	-	45	123967899	-	A9601_03621	-	hypothetical protein
364	 28.07	0	333596..333709	-	37	123967900	-	A9601_03631	-	hypothetical protein
365	 25.52	-1	333845..334279	+	144	123967901	-	A9601_03641	-	NADH-plastoquinone oxidoreductase chain 5-like
366	 29.02	0	334276..334785	-	169	123967902	-	A9601_03651	-	hypothetical protein
367	 28.37	0	334941..335081	+	46	123967903	-	A9601_03661	-	hypothetical protein
368	 34.63	0	335352..335660	-	102	123967904	-	A9601_03671	-	hypothetical protein
369	 27.05	-1	335960..336166	+	68	123967905	-	A9601_03681	-	hypothetical protein
370	 35.05	0	336257..336547	+	96	123967906	-	A9601_03691	-	hypothetical protein
371	 33.33	0	336559..336762	-	67	123967907	-	A9601_03701	-	hypothetical protein
372	 33.07	0	336880..338409	-	509	123967908	-	A9601_03711	-	phytoene dehydrogenase
373	 33.33	0	338449..338559	-	36	123967909	-	A9601_03721	-	hypothetical protein
374	 30.04	0	338741..339226	+	161	123967910	-	A9601_03731	-	hypothetical protein
375	 33.33	0	339228..339443	-	71	123967911	-	A9601_03741	-	hypothetical protein
376	 29.87	0	339535..339852	+	105	123967912	-	A9601_03751	-	helper component proteinase
377	 32.82	0	339854..340246	-	130	123967913	-	A9601_03761	-	hypothetical protein
378	 29.59	0	340251..340517	-	88	123967914	-	A9601_03771	-	mttA/Hcf106 family protein
379	 18.12	-2	340608..340745	-	45	123967915	-	A9601_03781	-	hypothetical protein
380	 27.92	0	340926..341165	+	79	123967916	-	A9601_03791	-	hypothetical protein
381	 15.91	-2	341184..341315	-	43	123967917	-	A9601_03801	-	hypothetical protein
31.48	MEAN

4.43	STD DEV
