IslandPath Analysis: Prochlorococcus marinus str. AS9601

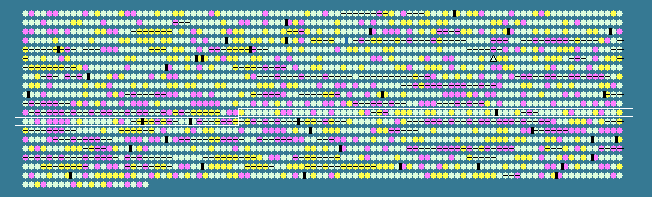

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 4.43
Prochlorococcus marinus str. AS9601, complete genome - 1..1669886
1921 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1137	 37.97	+1	959033..959269	-	78	123968673	-	A9601_11401	-	hypothetical protein
1138	 31.31	0	959180..959278	+	32	123968674	-	A9601_11411	-	hypothetical protein
1139	 32.64	0	959398..960840	+	480	123968675	-	A9601_11421	-	hypothetical protein
1140	 33.97	0	960842..961783	+	313	123968676	-	A9601_11431	-	hypothetical protein
1141	 34.62	0	961795..962652	+	285	123968677	-	A9601_11441	-	transglutaminase-like superfamily protein
1142	 30.59	0	962827..963300	+	157	123968678	-	A9601_11451	-	hypothetical protein
1143	 35.45	0	963384..963902	+	172	123968679	-	A9601_11461	-	hypothetical protein
1144	 22.32	-2	963912..964265	-	117	123968680	-	A9601_11471	-	lipoprotein
1145	 18.28	-2	964265..964450	-	61	123968681	-	A9601_11481	-	hypothetical protein
1146	 32.41	0	964467..965336	-	289	123968682	-	A9601_11491	-	putative pfkB family carbohydrate kinase
1147	 30.11	0	965378..965749	+	123	123968683	-	A9601_11501	-	hypothetical protein
1148	 30.00	0	965746..966975	-	409	123968684	-	A9601_11511	-	major facilitator superfamily multidrug-efflux transporter
1149	 27.34	0	966978..968528	+	516	123968685	-	A9601_11521	-	putative dienelactone hydrolase
1150	 32.65	0	968525..969547	-	340	123968686	dppB	A9601_11531	-	putative ABC transporter, oligopeptides
1151	 29.96	0	969540..971111	-	523	123968687	ddpA	A9601_11541	-	ABC transporter substrate-binding protein
1152	 25.64	-1	971129..971401	-	90	123968688	-	A9601_11551	-	hypothetical protein
1153	 32.33	0	971451..972752	-	433	123968689	thrA	A9601_11561	-	homoserine dehydrogenase
1154	 29.50	0	972798..973214	-	138	123968690	-	A9601_11571	-	hypothetical protein
1155	 28.74	0	973254..973841	-	195	123968691	-	A9601_11581	-	5-formyltetrahydrofolate cyclo-ligase
1156	 34.39	0	973822..974295	-	157	123968692	ruvC	A9601_11591	-	crossover junction endodeoxyribonuclease RuvC
1157	 36.27	+1	974301..975389	-	362	123968693	chlI	A9601_11601	-	protoporphyrin IX magnesium chelatase subunit ChlI
1158	 27.62	0	975507..976259	-	250	123968694	lasT	A9601_11611	-	tRNA/rRNA methyltransferase
1159	 32.01	0	976256..976558	-	100	123968695	-	A9601_11621	-	hypothetical protein
1160	 37.50	+1	976698..976817	+	39	123968696	petG	A9601_11631	-	cytochrome b6-f complex subunit PetG
1161	 27.83	0	976794..977393	-	199	123968697	-	A9601_11641	-	N6-adenine-specific methylase
1162	 32.36	0	977407..978024	-	205	123968698	hisH	A9601_11651	-	imidazole glycerol phosphate synthase subunit HisH
1163	 38.27	+1	978036..978359	-	107	123968699	-	A9601_11661	-	thioredoxin
1164	 38.83	+1	978590..979753	-	387	123968700	guaB	A9601_11671	-	inositol-5-monophosphate dehydrogenase
1165	 35.76	0	979934..982531	+	865	123968701	-	A9601_11681	-	DNA gyrase subunit A
1166	 33.25	0	982555..983766	+	403	123968702	-	A9601_11691	-	putative lycopene beta cyclase
1167	 34.28	0	983774..985357	-	527	123968703	-	A9601_11701	-	hypothetical protein
1168	 36.81	+1	985583..987223	+	546	123968704	leuA	A9601_11711	-	2-isopropylmalate synthase
1169	 36.90	+1	987306..987698	+	130	123968705	-	A9601_11721	-	fiber protein
1170	 31.91	0	987708..989180	-	490	123968706	-	A9601_11731	-	HD superfamily hydrolase
1171	 32.22	0	989255..990151	+	298	123968707	folD	A9601_11741	-	putative bifunctional methylenetetrahydrofolate dehydrogenase methenyltetrahydrofolate/cyclohydrolase
1172	 37.65	+1	990189..991091	+	300	123968708	ispA	A9601_11751	-	polyprenyl synthetase
1173	 34.38	0	991105..991584	+	159	123968709	-	A9601_11761	-	hypothetical protein
1174	 31.18	0	991581..992972	-	463	123968710	cobB	A9601_11771	-	putative cobyrinic acid a,c-diamide synthase
1175	 35.09	0	992866..992979	+	37	123968711	-	A9601_11781	-	hypothetical protein
1176	 31.80	0	992976..994277	-	433	123968712	-	A9601_11791	-	putative glucose 6-phosphate dehydrogenase effector OpcA
1177	 34.91	0	994280..995803	-	507	123968713	zwf	A9601_11801	-	glucose-6-phosphate 1-dehydrogenase
1178	 35.78	0	995914..996894	-	326	123968714	petH	A9601_11811	-	ferredoxin-NADP oxidoreductase (FNR)
1179	 33.15	0	997224..997766	+	180	123968715	-	A9601_11821	-	hypothetical protein
1180	 34.58	0	997892..999010	-	372	123968716	-	A9601_11831	-	adaptive-response sensory kinase
1181	 28.70	0	999117..999656	+	179	123968717	-	A9601_11841	-	hypothetical protein
1182	 28.74	0	999729..1000163	+	144	123968718	-	A9601_11851	-	Villin headpiece domain-containing protein
1183	 36.14	+1	1000177..1001172	-	331	123968719	prsA	A9601_11861	-	ribose-phosphate pyrophosphokinase
1184	 32.61	0	1001419..1002939	+	506	123968720	malQ	A9601_11871	-	putative 4-alpha-glucanotransferase
1185	 20.61	-2	1002953..1003447	-	164	123968721	-	A9601_11881	-	helix-turn-helix
1186	 30.98	0	1003681..1005210	-	509	123968722	-	A9601_11891	-	kinase
1187	 30.83	0	1005275..1006672	+	465	123968723	cad	A9601_11901	-	Orn/Lys/Arg decarboxylase family protein
1188	 30.89	0	1006682..1007539	+	285	123968724	cdsA	A9601_11911	-	phosphatidate cytidylyltransferase
1189	 31.73	0	1007552..1008484	-	310	123968725	todF	A9601_11921	-	Alpha/beta hydrolase fold
1190	 30.86	0	1008459..1009550	-	363	123968726	gldA	A9601_11931	-	putative glycerol dehydrogenase
1191	 36.30	+1	1009566..1012094	-	842	123968727	clpC	A9601_11941	-	ClpC
1192	 24.94	-1	1012274..1012714	-	146	123968728	-	A9601_11951	-	putative ribosomal-protein-alanine acetyltransferase
1193	 33.11	0	1012803..1014176	+	457	123968729	lysA	A9601_11961	-	diaminopimelate decarboxylase
1194	 34.10	0	1014205..1015113	+	302	123968730	-	A9601_11971	-	hypothetical protein
1195	 30.35	0	1015117..1015920	+	267	123968731	uppS	A9601_11981	-	undecaprenyl pyrophosphate synthetase
1196	 35.12	0	1015926..1016933	+	335	123968732	bioB	A9601_11991	-	biotin synthase
1197	 27.33	0	1016930..1017862	+	310	123968733	-	A9601_12001	-	sulfurtransferase
1198	 32.16	0	1017874..1018383	+	169	123968734	-	A9601_12011	-	hypothetical protein
1199	 32.56	0	1018371..1019270	-	299	123968735	-	A9601_12021	-	lipoyl synthase
1200	 35.67	0	1019274..1019873	-	199	123968736	recR	A9601_12031	-	RecR protein
1201	 32.97	0	1019977..1020534	+	185	123968737	psbP	A9601_12041	-	photosystem II oxygen evolving complex protein PsbP
1202	 29.78	0	1020549..1022321	-	590	123968738	-	A9601_12051	-	multidrug ABC transporter
1203	 25.49	-1	1022333..1022485	-	50	123968739	-	A9601_12061	-	hypothetical protein
1204	 29.69	0	1022636..1024417	-	593	123968740	srmB	A9601_12071	-	putative ATP-dependent RNA helicase
1205	 24.00	-1	1024556..1026259	-	567	123968741	recD	A9601_12081	-	exodeoxyribonuclease V 67 kD polypeptide
1206	 23.19	-1	1026261..1029887	-	1208	123968742	recB	A9601_12091	-	UvrD/REP helicase subunit B
1207	 21.73	-2	1029900..1030373	-	157	123968743	-	A9601_12101	-	S-isoprenylcysteine methyltransferase-like protein
1208	 24.51	-1	1030377..1033559	-	1060	123968744	recC	A9601_12111	-	exodeoxyribonuclease V subunit C 125 kD polypeptide
1209	 30.50	0	1033577..1033894	-	105	123968745	-	A9601_12121	-	hypothetical protein
1210	 35.15	0	1033903..1034619	-	238	123968746	pdxJ	A9601_12131	-	pyridoxal phosphate biosynthetic protein PdxJ
1211	 30.89	0	1034780..1035394	+	204	123968747	-	A9601_12141	-	phospholipid and glycerol acyltransferase
1212	 30.81	0	1035438..1035953	+	171	123968748	-	A9601_12151	-	hypothetical protein
1213	 31.60	0	1035966..1036196	+	76	123968749	-	A9601_12161	-	BolA-like protein
1214	 32.41	0	1036200..1036523	+	107	123968750	-	A9601_12171	-	glutaredoxin-like protein
1215	 33.33	0	1036572..1036841	-	89	123968751	-	A9601_12181	-	hypothetical protein
1216	 44.17	+2	1036928..1037665	+	245	123968752	-	A9601_12191	-	two-component response regulator
1217	 24.85	-1	1037662..1038168	-	168	123968753	-	A9601_12201	-	hypothetical protein
1218	 33.98	0	1038185..1039729	-	514	123968754	crtH	A9601_12211	-	putative carotenoid isomerase
1219	 33.40	0	1039754..1041166	-	470	123968755	gid	A9601_12221	-	tRNA (uracil-5-)-methyltransferase Gid
1220	 39.32	+1	1041173..1041289	-	38	123968756	pbsY	A9601_12231	-	photosystem II protein Y
1221	 42.59	+2	1041976..1042083	+	35	123968757	-	A9601_12241	-	high light inducible protein
1222	 39.19	+1	1042760..1043869	-	369	123968758	-	A9601_12251	-	porin
1223	 24.93	-1	1043975..1045819	-	614	123968759	-	A9601_12261	-	TPR repeat-containing sulfotransferase
1224	 40.17	+1	1045950..1047017	-	355	123968760	-	A9601_12271	-	porin
1225	 26.06	-1	1047197..1047361	-	54	123968761	-	A9601_12281	-	hypothetical protein
1226	 29.52	0	1047594..1047698	+	34	123968762	-	A9601_12291	-	hypothetical protein
1227	 30.80	0	1047827..1048339	-	170	123968763	apt	A9601_12301	-	adenine phosphoribosyltransferase
1228	 33.94	0	1048836..1049828	+	330	123968764	-	A9601_12311	-	hypothetical protein
1229	 32.63	0	1050254..1051825	+	523	123968765	-	A9601_12321	-	hypothetical protein
1230	 26.44	-1	1051895..1052155	-	86	123968766	-	A9601_12331	-	hypothetical protein
1231	 32.07	0	1052148..1052702	-	184	123968767	rpoE	A9601_12341	-	hypothetical protein
1232	 28.72	0	1052706..1053095	-	129	123968768	-	A9601_12351	-	hypothetical protein
1233	 35.34	0	1053354..1053602	-	82	123968769	-	A9601_12361	-	hypothetical protein
1234	 27.41	0	1053602..1053871	-	89	123968770	-	A9601_12371	-	hypothetical protein
1235	 24.03	-1	1053921..1054049	-	42	123968771	-	A9601_12381	-	hypothetical protein
1236	 36.79	+1	1054078..1054395	-	105	123968772	-	A9601_12391	-	hypothetical protein
31.48	MEAN

4.43	STD DEV
