IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

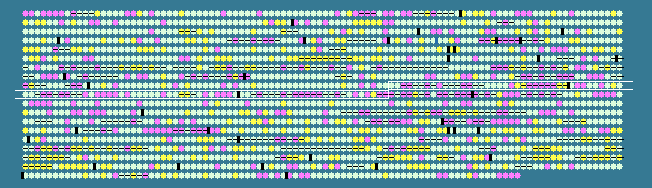

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
862	 34.30	0	786778..787815	-	345	33240313	lpxD	Pro0863	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
863	 33.61	0	787848..788942	-	364	33240314	proB	Pro0864	-	gamma-glutamyl kinase
864	 29.24	-1	788939..789451	-	170	33240315	-	Pro0865	-	HAD superfamily hydrolase
865	 33.33	0	789457..789993	-	178	33240316	-	Pro0866	-	hypothetical protein
866	 39.61	0	790024..790485	-	153	33240317	-	Pro0867	-	endonuclease
867	 33.91	0	790478..791512	-	344	33240318	-	Pro0868	-	hypothetical protein
868	 32.22	-1	791603..792772	-	389	33240319	-	Pro0869	-	hypothetical protein
869	 33.87	0	792875..793432	-	185	33240320	-	Pro0870	-	thioredoxin family protein
870	 32.78	-1	793492..795120	-	542	33240321	cheY	Pro0871	-	CheY-like domain-containing protein
871	 37.22	0	795218..795988	-	256	33240322	hisA	Pro0872	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribonucleotide (ProFAR) isomerase
872	 34.00	0	796099..797001	+	300	33240323	wcaG	Pro0873	-	putative mRNA binding protein
873	 34.62	0	796982..797524	-	180	33240324	pgsA	Pro0874	-	phosphatidylglycerophosphate synthase
874	 32.82	-1	797810..798394	+	194	33240325	-	Pro0875	-	glutaredoxin domain/DNA-binding domain-containing protein
875	 26.02	-2	798398..798643	+	81	33240326	-	Pro0876	-	hypothetical protein
876	 34.46	0	798633..799523	+	296	33240327	wecD	Pro0877	-	GCN5-related N-acetyltransferase
877	 35.98	0	799556..799744	-	62	33240328	-	Pro0878	-	hypothetical protein
878	 34.22	0	799764..800441	-	225	33240329	-	Pro0879	-	putative NADH-flavin reductase
879	 34.56	0	800525..801178	-	217	33240330	nth	Pro0880	-	putative endonuclease
880	 35.49	0	801199..802263	+	354	33240331	potA	Pro0881	-	ABC-type spermidine/putrescine transport system ATPase component
881	 36.63	0	802582..803127	+	181	33240332	ftn	Pro0882	-	ferritin
882	 28.72	-2	803155..803436	-	93	33240333	-	Pro0883	-	hypothetical protein
883	 40.57	0	803442..804035	-	197	33240334	-	Pro0884	-	cAMP family transcriptional regulator
884	 42.23	+1	804325..805380	-	351	33240335	pcbC	Pro0885	-	chlorophyll a/b-binding light-harvesting protein PcbC
885	 30.74	-1	805599..806330	+	243	33240336	-	Pro0886	-	hypothetical protein
886	 31.37	-1	806335..806538	+	67	33240337	-	Pro0887	-	Zn-ribbon protein
887	 29.21	-1	806551..807351	-	266	33240338	modF	Pro0888	-	ABC-type molybdenum transport system ATPase component
888	 30.39	-1	807333..807434	-	33	33240339	-	Pro0889	-	hypothetical protein
889	 31.69	-1	807436..808773	-	445	33240340	hcaE	Pro0890	-	Rieske iron-sulfur protein 2Fe-2S subunit
890	 42.47	+1	808981..809166	-	61	33240341	-	Pro0891	-	hypothetical protein
891	 42.94	+1	809662..810723	+	353	33240342	pcbG	Pro0892	-	chlorophyll a/b binding light harvesting protein PcbG
892	 36.81	0	811319..812296	-	325	33240343	ansA	Pro0893	-	L-asparaginase II
893	 25.44	-2	812297..812803	-	168	33240344	-	Pro0894	-	hypothetical protein
894	 30.46	-1	812815..813162	-	115	33240345	-	Pro0895	-	hypothetical protein
895	 39.94	0	813155..813790	-	211	33240346	-	Pro0896	-	hypothetical protein
896	 36.13	0	813913..817239	+	1108	33240347	carB	Pro0897	-	carbamoyl phosphate synthase large subunit
897	 29.39	-1	817254..817481	-	75	33240348	-	Pro0898	-	hypothetical protein
898	 33.85	0	817556..819298	-	580	33240349	mdlB	Pro0899	-	multidrug ABC transporter
899	 40.74	0	819317..819532	+	71	33240350	-	Pro0900	-	S4-like RNA-binding protein
900	 38.25	0	819548..820279	+	243	33240351	tpiA	Pro0901	-	triosephosphate isomerase
901	 33.59	0	820320..821105	+	261	33240352	folP	Pro0902	-	dihydropteroate synthase
902	 36.25	0	821126..825139	-	1337	33240353	chlH	Pro0903	-	magnesium chelatase
903	 38.87	0	825277..826107	+	276	33240354	dapB	Pro0904	-	dihydrodipicolinate reductase
904	 31.79	-1	826124..826771	+	215	33240355	-	Pro0905	-	hypothetical protein
905	 29.48	-1	826833..827948	+	371	33240356	ubiH	Pro0906	-	2-polyprenyl-6-methoxyphenol hydroxylase related enzyme
906	 35.50	0	827969..828199	+	76	33240357	-	Pro0907	-	hypothetical protein
907	 33.50	0	828364..828969	+	201	33240358	-	Pro0908	-	hypothetical protein
908	 30.47	-1	828972..829565	+	197	33240359	-	Pro0909	-	hypothetical protein
909	 35.61	0	829645..829995	+	116	33240360	-	Pro0910	-	hypothetical protein
910	 34.92	0	830615..830929	+	104	33240361	-	Pro0911	-	hypothetical protein
911	 26.25	-2	831289..831669	-	126	33240362	-	Pro0912	-	hypothetical protein
912	 35.38	0	831770..831964	-	64	33240363	-	Pro0913	-	hypothetical protein
913	 32.29	-1	832234..832617	-	127	33240364	-	Pro0914	-	hypothetical protein
914	 28.89	-2	832805..833074	+	89	33240365	-	Pro0915	-	hypothetical protein
915	 30.41	-1	833094..833435	+	113	33240366	-	Pro0916	-	LysM repeat-containing protein
916	 31.52	-1	833911..834186	-	91	33240367	-	Pro0917	-	hypothetical protein
917	 39.22	0	834283..834384	+	33	33240368	petN	Pro0918	-	cytochrome b6-f complex subunit PetN
918	 27.60	-2	834537..835181	-	214	33240369	-	Pro0919	-	Thf1-like protein
919	 39.76	0	835259..835849	+	196	33240370	clpP	Pro0920	-	ATP-dependent Clp protease proteolytic subunit
920	 37.30	0	835861..837777	-	638	33240371	ftsH	Pro0921	-	cell division protein FtsH
921	 33.98	0	837894..839123	-	409	33240372	salY	Pro0922	-	putative ABC transporter
922	 37.09	0	839129..840913	-	594	33240373	pykF	Pro0923	-	pyruvate kinase
923	 40.00	0	840991..841320	+	109	33240374	mazG	Pro0924	-	MazG family pyrophosphatase
924	 31.37	-1	841340..841645	-	101	33240375	-	Pro0925	-	hypothetical protein
925	 35.40	0	841669..842151	-	160	33240376	-	Pro0926	-	transcriptional regulator
926	 36.12	0	842240..843781	-	513	33240377	ilvA	Pro0927	-	threonine dehydratase
927	 40.94	0	843898..845829	+	643	33240378	dxs	Pro0928	-	1-deoxy-D-xylulose-5-phosphate synthase
928	 45.35	+2	846000..846257	-	85	33240379	psaK	Pro0929	-	photosystem I PsaK protein (subunit X)
929	 35.56	0	846334..846648	-	104	33240380	-	Pro0930	-	hypothetical protein
930	 35.56	0	846645..846959	-	104	33240381	-	Pro0931	-	hypothetical protein
931	 29.71	-1	846959..847510	-	183	33240382	ccp	Pro0932	-	peroxiredoxin
932	 38.40	0	847533..847769	-	78	161407960	rpmB	Pro0933	-	50S ribosomal protein L28
933	 32.54	-1	847814..849715	-	633	33240384	htpG	Pro0934	-	heat shock protein 90
934	 33.33	0	849798..850019	-	73	33240385	-	Pro0935	-	ferredoxin
935	 33.33	0	850027..851202	-	391	33240386	hisZ	Pro0936	-	ATP phosphoribosyltransferase regulatory subunit
936	 37.50	0	851248..852111	-	287	33240387	suhB	Pro0937	-	inositol monophosphatase family protein
937	 38.48	0	852504..854504	+	666	33240388	dnaK	Pro0938	-	molecular chaperone DnaK, heat shock protein hsp70
938	 36.68	0	854488..855414	+	308	33240389	cbpA	Pro0939	-	DnaJ-class molecular chaperone
939	 36.07	0	855464..855865	+	133	33240390	-	Pro0940	-	hypothetical protein
940	 31.84	-1	855876..856811	+	311	33240391	murQ	Pro0941	-	N-acetylmuramic acid-6-phosphate etherase
941	 37.44	0	856901..857338	+	145	33240392	ppiB	Pro0942	-	peptidyl-prolyl cis-trans isomerase
942	 36.38	0	857355..858995	-	546	33240393	ribB	Pro0943	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
943	 35.93	0	859086..860165	+	359	33240394	argC	Pro0944	-	N-acetyl-gamma-glutamyl-phosphate reductase
944	 30.52	-1	860174..860812	-	212	33240395	purN	Pro0945	-	folate-dependent phosphoribosylglycinamide formyltransferase PurN
945	 34.64	0	860990..862591	+	533	33240396	pgi	Pro0946	-	glucose-6-phosphate isomerase
946	 33.14	0	862588..865200	-	870	33240397	leuS	Pro0947	-	leucyl-tRNA synthetase
947	 31.93	-1	865323..866180	+	285	33240398	dapF	Pro0948	-	diaminopimelate epimerase
948	 32.49	-1	866191..867378	+	395	33240399	nifS	Pro0949	-	cysteine sulfinate desulfinase/cysteine desulfurase
949	 30.69	-1	867383..868024	+	213	33240400	-	Pro0950	-	hypothetical protein
950	 28.52	-2	868036..869301	+	421	33240401	dacB	Pro0951	-	D-alanyl-D-alanine carboxypeptidase
951	 34.57	0	869302..869787	-	161	33240402	coaD	Pro0952	-	phosphopantetheine adenylyltransferase
952	 40.37	0	869857..870339	+	160	33240403	-	Pro0953	-	DIM6/NTAB family protein
953	 31.25	-1	870346..872268	+	640	33240404	uvrC	Pro0954	-	excinuclease ABC subunit C
954	 33.69	0	872378..872944	+	188	33240405	-	Pro0955	-	hypothetical protein
955	 34.40	0	872949..873602	+	217	33240406	-	Pro0956	-	PHP family metal-dependent phosphoesterase
956	 32.53	-1	873619..877368	-	1249	33240407	cobN	Pro0957	-	cobalamin biosynthesis protein CobN
957	 35.96	0	877443..878357	+	304	33240408	ilvE	Pro0958	-	branched-chain amino acid aminotransferase
958	 33.19	0	878388..881936	+	1182	33240409	metH	Pro0959	-	putative methionine synthase
959	 42.42	+1	881948..882178	-	76	33240410	-	Pro0960	-	hypothetical protein
960	 32.03	-1	882714..883556	+	280	33240411	APA2	Pro0961	-	putative ATP adenylyltransferase
961	 33.33	0	883553..883750	-	65	33240412	-	Pro0962	-	hypothetical protein
37.01	MEAN

3.99	STD DEV
