IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

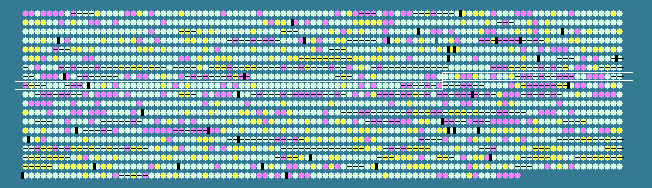

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
771	 35.82	0	700385..701428	-	347	33240222	-	Pro0772	-	tRNA 2-selenouridine synthase
772	 39.67	0	701466..702191	+	241	33240223	-	Pro0773	-	hypothetical protein
773	 41.22	+1	702305..702748	+	147	33240224	rsbW	Pro0774	-	anti-sigma regulatory factor (Ser/Thr protein kinase)
774	 32.91	-1	702698..702934	-	78	33240225	-	Pro0775	-	hypothetical protein
775	 32.79	-1	702956..703687	-	243	33240226	-	Pro0776	-	alpha/beta fold family hydrolase
776	 41.21	+1	703846..704556	+	236	33240227	dnaQ	Pro0777	-	putative DNA polymerase III, epsilon subunit
777	 37.08	0	704687..704926	+	79	33240228	-	Pro0778	-	hypothetical protein
778	 37.36	0	705071..706336	+	421	33240229	hisS	Pro0779	-	histidyl-tRNA synthetase
779	 24.81	-2	706371..706628	+	85	33240230	-	Pro0780	-	hypothetical protein
780	 34.22	0	706628..706966	+	112	33240231	-	Pro0781	-	hypothetical protein
781	 40.09	0	707091..707312	+	73	33240232	-	Pro0782	-	hypothetical protein
782	 42.80	+1	707932..708987	+	351	33240233	pcbA	Pro0783	-	chlorophyll a/b binding light harvesting protein PcbA
783	 35.36	0	709152..710534	+	460	33240234	gltS	Pro0784	-	putative sodium:solute symporter, ESS family
784	 31.78	-1	710600..710857	+	85	33240235	-	Pro0785	-	hypothetical protein
785	 31.20	-1	710887..711588	-	233	33240236	gst	Pro0786	-	glutathione S-transferase omega class
786	 33.87	0	711684..712241	+	185	33240237	-	Pro0787	-	hypothetical protein
787	 29.12	-1	712345..712605	+	86	33240238	-	Pro0788	-	hypothetical protein
788	 34.74	0	712632..713342	-	236	33240239	fabG	Pro0789	-	short-chain dehydrogenase/reductase family protein
789	 35.43	0	713347..714633	-	428	33240240	lcyE	Pro0790	-	lycopene epsilon cyclase
790	 31.64	-1	714903..715907	+	334	33240241	por	Pro0791	-	putative light-dependent protochlorophyllide oxido-reductase
791	 32.45	-1	715924..716940	-	338	33240242	mscS	Pro0792	-	small-conductance mechanosensitive channel
792	 30.45	-1	717090..717644	-	184	33240243	pncA	Pro0793	-	isochorismatase family hydrolase
793	 38.66	0	717794..718300	+	168	33240244	fur	Pro0794	-	Fe2+/Zn2+ uptake regulation protein
794	 34.19	0	718321..719250	-	309	33240245	-	Pro0795	-	NifB/MoaA family Fe-S oxidoreductase
795	 30.49	-1	719298..720527	-	409	33240246	-	Pro0796	-	putative glucosylglycerolphosphate phosphatase
796	 32.29	-1	720713..722245	+	510	33240247	-	Pro0797	-	hypothetical protein
797	 27.00	-2	722345..723496	+	383	33240248	-	Pro0798	-	homoserine/choline kinase family protein
798	 37.30	0	723575..724279	+	234	33240249	-	Pro0799	-	hypothetical protein
799	 38.00	0	724313..725641	+	442	33240250	MET17	Pro0800	-	putative O-Acetyl homoserine sulfhydrylase
800	 37.25	0	725657..726550	+	297	33240251	metA	Pro0801	-	putative homoserine O-succinyltransferase
801	 32.09	-1	726553..727116	+	187	33240252	alkB	Pro0802	-	alkylated DNA repair protein
802	 44.68	+1	727144..727425	-	93	33240253	-	Pro0803	-	hypothetical protein
803	 36.76	0	727573..729150	-	525	33240254	SUL1	Pro0804	-	putative sulfate transporter
804	 33.80	0	729183..730469	-	428	33240255	glcD	Pro0805	-	FAD linked oxidase, N-terminal
805	 36.19	0	730556..731605	+	349	33240256	-	Pro0806	-	hypothetical protein
806	 35.27	0	731998..732255	+	85	33240257	-	Pro0807	-	hypothetical protein
807	 34.98	0	732239..733879	-	546	33240258	cetA	Pro0808	-	GMC family oxidoreductase
808	 38.94	0	733949..734251	-	100	33240259	-	Pro0809	-	hypothetical protein
809	 32.08	-1	734416..734892	+	158	33240260	-	Pro0810	-	pentapeptide repeat-containing protein
810	 22.68	-2	734897..735262	-	121	33240261	-	Pro0811	-	hypothetical protein
811	 36.08	0	735265..735774	-	169	33240262	-	Pro0812	-	hypothetical protein
812	 39.49	0	736371..736565	+	64	33240263	-	Pro0813	-	hypothetical protein
813	 35.21	0	736618..736884	-	88	33240264	-	Pro0814	-	hypothetical protein
814	 40.69	0	737110..739503	-	797	33240265	-	Pro0815	-	ribonucleotide reductase (class II)
815	 36.08	0	739564..740256	+	230	33240266	smtA	Pro0816	-	SAM-dependent methyltransferase
816	 31.02	-1	740329..741582	-	417	33240267	pqqL	Pro0817	-	Zn-dependent peptidase
817	 36.62	0	741583..742860	-	425	33240268	pqqL	Pro0818	-	Zn-dependent peptidase
818	 36.02	0	742912..743655	+	247	33240269	pcyA	Pro0819	-	phycocyanobilin:ferredoxin oxidoreductase
819	 35.32	0	743688..744542	+	284	33240270	devB	Pro0820	-	DevB-like secretion protein
820	 37.94	0	744542..745714	+	390	33240271	devC	Pro0821	-	ABC transporter transmembrane protein
821	 37.69	0	745729..746439	+	236	33240272	devA	Pro0822	-	ABC transporter ATP-binding protein
822	 40.00	0	746469..746618	+	49	33240273	-	Pro0823	-	hypothetical protein
823	 36.98	0	746717..747649	+	310	33240274	wcaA	Pro0824	-	glycosyl transferase, family 2
824	 40.73	0	747785..748501	+	238	33240275	rpsB	Pro0825	-	30S ribosomal protein S2
825	 37.46	0	748578..749231	+	217	33240276	tsf	Pro0826	-	elongation factor Ts
826	 29.16	-1	749237..750433	+	398	33240277	-	Pro0827	-	hypothetical protein
827	 35.87	0	750391..752916	+	841	33240278	recG	Pro0828	-	ATP-dependent DNA helicase recG
828	 40.86	0	753064..753741	+	225	33240279	ddpX	Pro0829	-	D-alanyl-D-alanine dipeptidase
829	 36.39	0	753696..755492	-	598	33240280	sir	Pro0830	-	sulfite reductase subunit beta
830	 37.26	0	755581..757746	+	721	33240281	glyS	Pro0831	-	glycyl-tRNA synthetase beta subunit
831	 40.10	0	757756..759099	-	447	33240282	chlP	Pro0832	-	aromatic-ring hydroxylase (flavoprotein monooxygenase)
832	 38.08	0	759211..759969	+	252	33240283	vanY	Pro0833	-	D-alanyl-D-alanine carboxypeptidase
833	 37.66	0	760056..761858	+	600	33240284	typA	Pro0834	-	tyrosine binding protein
834	 31.64	-1	761882..762235	+	117	33240285	-	Pro0835	-	hypothetical protein
835	 39.09	0	762434..763162	+	242	33240286	-	Pro0836	-	unclassified ABC-type transport system ATPase component
836	 32.59	-1	763159..764370	+	403	33240287	-	Pro0837	-	putative permease
837	 33.54	0	764388..765338	+	316	33240288	ccmC	Pro0838	-	putative heme transporter
838	 40.19	0	765353..766096	-	247	33240289	rpe	Pro0839	-	Pentose-5-phosphate-3-epimerase
839	 42.39	+1	766305..767309	+	334	33240290	glpX	Pro0840	-	fructose 1,6-bisphosphatase II
840	 36.07	0	767342..768655	+	437	33240291	hemA	Pro0841	-	glutamyl-tRNA reductase
841	 39.97	0	768769..770064	+	431	33240292	glgC	Pro0842	-	glucose-1-phosphate adenylyltransferase
842	 38.62	0	770220..771638	+	472	33240293	gnd	Pro0843	-	6-phosphogluconate dehydrogenase
843	 38.80	0	771646..772359	+	237	33240294	nagB	Pro0844	-	6-phosphogluconolactonase
844	 38.74	0	772434..772988	+	184	33240295	-	Pro0845	-	NAD dependent epimerase/dehydratase
845	 38.97	0	772975..773382	+	135	33240296	-	Pro0846	-	hypothetical protein
846	 40.01	0	773383..775059	-	558	33240297	ilvD	Pro0847	-	dihydroxy-acid dehydratase
847	 38.67	0	775100..775399	-	99	33240298	-	Pro0848	-	hypothetical protein
848	 37.54	0	775424..776041	-	205	33240299	upp	Pro0849	-	Uracil phosphoribosyltransferase
849	 34.70	0	776110..776622	+	170	33240300	-	Pro0850	-	pentapeptide repeat-containing protein
850	 36.03	0	776653..777726	+	357	33240301	-	Pro0851	-	G3E family GTPase
851	 36.98	0	777826..778017	+	63	33240302	-	Pro0852	-	Zn-ribbon protein
852	 38.46	0	778133..778405	+	90	33240303	purS	Pro0853	-	phosphoribosylformylglycinamidine (FGAM) synthase, PurS component
853	 37.44	0	778418..779074	+	218	33240304	purL	Pro0854	-	phosphoribosylformylglycinamidine synthase domain-containing protein
854	 40.97	0	779131..780204	-	357	33240305	cbbA	Pro0855	-	fructose-1,6-bisphosphate aldolase
855	 39.51	0	780355..781422	-	355	33240306	fda	Pro0856	-	fructose-1,6-bisphosphate aldolase class I
856	 37.02	0	781571..782683	-	370	33240307	mviM	Pro0857	-	putative oxidoreductase
857	 29.34	-1	782692..783042	-	116	33240308	-	Pro0858	-	hypothetical protein
858	 38.91	0	783084..783962	-	292	33240309	accD	Pro0859	-	acetyl-CoA carboxylase subunit beta
859	 31.97	-1	783996..784580	-	194	33240310	pulO	Pro0860	-	prepilin peptidase
860	 36.89	0	784660..785559	-	299	33240311	prk	Pro0861	-	phosphoribulokinase
861	 36.91	0	785650..786738	-	362	33240312	leuB	Pro0862	-	isocitrate dehydrogenase
862	 34.30	0	786778..787815	-	345	33240313	lpxD	Pro0863	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
863	 33.61	0	787848..788942	-	364	33240314	proB	Pro0864	-	gamma-glutamyl kinase
864	 29.24	-1	788939..789451	-	170	33240315	-	Pro0865	-	HAD superfamily hydrolase
865	 33.33	0	789457..789993	-	178	33240316	-	Pro0866	-	hypothetical protein
866	 39.61	0	790024..790485	-	153	33240317	-	Pro0867	-	endonuclease
867	 33.91	0	790478..791512	-	344	33240318	-	Pro0868	-	hypothetical protein
868	 32.22	-1	791603..792772	-	389	33240319	-	Pro0869	-	hypothetical protein
869	 33.87	0	792875..793432	-	185	33240320	-	Pro0870	-	thioredoxin family protein
870	 32.78	-1	793492..795120	-	542	33240321	cheY	Pro0871	-	CheY-like domain-containing protein
37.01	MEAN

3.99	STD DEV
