IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

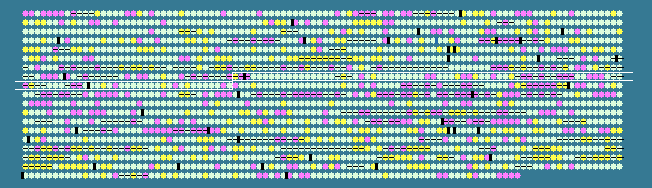

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
736	 43.01	+1	668400..669743	-	447	33240187	-	Pro0737	-	porin-like protein
737	 33.33	0	670322..670666	-	114	33240188	-	Pro0738	-	hypothetical protein
738	 26.67	-2	671067..671231	-	54	33240189	-	Pro0739	-	hypothetical protein
739	 35.29	0	671233..671946	-	237	33240190	msrA	Pro0740	-	peptide methionine sulfoxide reductase
740	 36.90	0	671971..672222	-	83	33240191	-	Pro0741	-	hypothetical protein
741	 36.87	0	672319..674070	-	583	33240192	mdlB	Pro0742	-	multidrug ABC transporter
742	 36.27	0	674156..674461	+	101	33240193	-	Pro0743	-	hypothetical protein
743	 38.50	0	674580..675605	+	341	33240194	trpD	Pro0744	-	anthranilate phosphoribosyltransferase
744	 38.31	0	675646..676791	+	381	33240195	carA	Pro0745	-	carbamoyl phosphate synthase small subunit
745	 37.12	0	676799..677221	+	140	33240196	spoIIAA	Pro0746	-	anti-anti-sigma regulatory factor
746	 39.86	0	677218..677631	+	137	33240197	-	Pro0747	-	hypothetical protein
747	 37.23	0	677636..678892	+	418	33240198	spoU	Pro0748	-	rRNA methylase
748	 39.83	0	679040..679270	+	76	33240199	-	Pro0749	-	hypothetical protein
749	 39.56	0	679321..680781	+	486	33240200	gatA	Pro0750	-	Asp-tRNAAsn/Glu-tRNAGln amidotransferase A subunit
750	 35.61	0	681024..684530	+	1168	33240201	dnaE	Pro0751	-	DNA polymerase III subunit alpha
751	 33.86	0	684536..684913	-	125	33240202	-	Pro0752	-	hypothetical protein
752	 36.67	0	684948..685217	-	89	33240203	rpsO	Pro0753	-	30S ribosomal protein S15
753	 33.93	0	685286..685954	-	222	33240204	ruvA	Pro0754	-	Holliday junction resolvasome DNA-binding subunit
754	 42.31	+1	685980..686369	-	129	33240205	-	Pro0755	-	hypothetical protein
755	 36.82	0	686395..687282	-	295	33240206	rhaT	Pro0756	-	DMT family permease
756	 40.22	0	687410..689470	+	686	33240207	dnaG	Pro0757	-	DNA primase
757	 30.15	-1	689520..689990	-	156	33240208	-	Pro0758	-	hypothetical protein
758	 38.21	0	690057..691328	-	423	33240209	dinP	Pro0759	-	nucleotidyltransferase/DNA polymerase
759	 42.36	+1	691340..691771	-	143	33240210	umuD	Pro0760	-	family S24 peptidase
760	 35.84	0	691842..692279	-	145	33240211	-	Pro0761	-	hypothetical protein
761	 36.72	0	692310..692693	-	127	33240212	-	Pro0762	-	hypothetical protein
762	 38.21	0	692833..693672	+	279	33240213	ksgA	Pro0763	-	dimethyladenosine transferase
763	 37.50	0	693669..694628	+	319	33240214	ispE	Pro0764	-	4-diphosphocytidyl-2C-methyl-D-erythritol 2-phosphate synthase
764	 38.38	0	694625..694981	+	118	33240215	-	Pro0765	-	hypothetical protein
765	 36.79	0	695189..696172	+	327	33240216	acoB	Pro0766	-	pyruvate dehydrogenase E1 beta subunit
766	 35.76	0	696176..697660	+	494	33240217	secD	Pro0767	-	preprotein translocase subunit SecD
767	 33.54	0	697670..698635	+	321	33240218	secF	Pro0768	-	preprotein translocase subunit SecF
768	 33.33	0	698656..698880	+	74	33240219	-	Pro0769	-	hypothetical protein
769	 32.82	-1	698877..699854	-	325	33240220	perM	Pro0770	-	hypothetical protein
770	 38.42	0	699968..700321	-	117	33240221	psb28	Pro0771	-	photosystem II reaction center protein Psb28
771	 35.82	0	700385..701428	-	347	33240222	-	Pro0772	-	tRNA 2-selenouridine synthase
772	 39.67	0	701466..702191	+	241	33240223	-	Pro0773	-	hypothetical protein
773	 41.22	+1	702305..702748	+	147	33240224	rsbW	Pro0774	-	anti-sigma regulatory factor (Ser/Thr protein kinase)
774	 32.91	-1	702698..702934	-	78	33240225	-	Pro0775	-	hypothetical protein
775	 32.79	-1	702956..703687	-	243	33240226	-	Pro0776	-	alpha/beta fold family hydrolase
776	 41.21	+1	703846..704556	+	236	33240227	dnaQ	Pro0777	-	putative DNA polymerase III, epsilon subunit
777	 37.08	0	704687..704926	+	79	33240228	-	Pro0778	-	hypothetical protein
778	 37.36	0	705071..706336	+	421	33240229	hisS	Pro0779	-	histidyl-tRNA synthetase
779	 24.81	-2	706371..706628	+	85	33240230	-	Pro0780	-	hypothetical protein
780	 34.22	0	706628..706966	+	112	33240231	-	Pro0781	-	hypothetical protein
781	 40.09	0	707091..707312	+	73	33240232	-	Pro0782	-	hypothetical protein
782	 42.80	+1	707932..708987	+	351	33240233	pcbA	Pro0783	-	chlorophyll a/b binding light harvesting protein PcbA
783	 35.36	0	709152..710534	+	460	33240234	gltS	Pro0784	-	putative sodium:solute symporter, ESS family
784	 31.78	-1	710600..710857	+	85	33240235	-	Pro0785	-	hypothetical protein
785	 31.20	-1	710887..711588	-	233	33240236	gst	Pro0786	-	glutathione S-transferase omega class
786	 33.87	0	711684..712241	+	185	33240237	-	Pro0787	-	hypothetical protein
787	 29.12	-1	712345..712605	+	86	33240238	-	Pro0788	-	hypothetical protein
788	 34.74	0	712632..713342	-	236	33240239	fabG	Pro0789	-	short-chain dehydrogenase/reductase family protein
789	 35.43	0	713347..714633	-	428	33240240	lcyE	Pro0790	-	lycopene epsilon cyclase
790	 31.64	-1	714903..715907	+	334	33240241	por	Pro0791	-	putative light-dependent protochlorophyllide oxido-reductase
791	 32.45	-1	715924..716940	-	338	33240242	mscS	Pro0792	-	small-conductance mechanosensitive channel
792	 30.45	-1	717090..717644	-	184	33240243	pncA	Pro0793	-	isochorismatase family hydrolase
793	 38.66	0	717794..718300	+	168	33240244	fur	Pro0794	-	Fe2+/Zn2+ uptake regulation protein
794	 34.19	0	718321..719250	-	309	33240245	-	Pro0795	-	NifB/MoaA family Fe-S oxidoreductase
795	 30.49	-1	719298..720527	-	409	33240246	-	Pro0796	-	putative glucosylglycerolphosphate phosphatase
796	 32.29	-1	720713..722245	+	510	33240247	-	Pro0797	-	hypothetical protein
797	 27.00	-2	722345..723496	+	383	33240248	-	Pro0798	-	homoserine/choline kinase family protein
798	 37.30	0	723575..724279	+	234	33240249	-	Pro0799	-	hypothetical protein
799	 38.00	0	724313..725641	+	442	33240250	MET17	Pro0800	-	putative O-Acetyl homoserine sulfhydrylase
800	 37.25	0	725657..726550	+	297	33240251	metA	Pro0801	-	putative homoserine O-succinyltransferase
801	 32.09	-1	726553..727116	+	187	33240252	alkB	Pro0802	-	alkylated DNA repair protein
802	 44.68	+1	727144..727425	-	93	33240253	-	Pro0803	-	hypothetical protein
803	 36.76	0	727573..729150	-	525	33240254	SUL1	Pro0804	-	putative sulfate transporter
804	 33.80	0	729183..730469	-	428	33240255	glcD	Pro0805	-	FAD linked oxidase, N-terminal
805	 36.19	0	730556..731605	+	349	33240256	-	Pro0806	-	hypothetical protein
806	 35.27	0	731998..732255	+	85	33240257	-	Pro0807	-	hypothetical protein
807	 34.98	0	732239..733879	-	546	33240258	cetA	Pro0808	-	GMC family oxidoreductase
808	 38.94	0	733949..734251	-	100	33240259	-	Pro0809	-	hypothetical protein
809	 32.08	-1	734416..734892	+	158	33240260	-	Pro0810	-	pentapeptide repeat-containing protein
810	 22.68	-2	734897..735262	-	121	33240261	-	Pro0811	-	hypothetical protein
811	 36.08	0	735265..735774	-	169	33240262	-	Pro0812	-	hypothetical protein
812	 39.49	0	736371..736565	+	64	33240263	-	Pro0813	-	hypothetical protein
813	 35.21	0	736618..736884	-	88	33240264	-	Pro0814	-	hypothetical protein
814	 40.69	0	737110..739503	-	797	33240265	-	Pro0815	-	ribonucleotide reductase (class II)
815	 36.08	0	739564..740256	+	230	33240266	smtA	Pro0816	-	SAM-dependent methyltransferase
816	 31.02	-1	740329..741582	-	417	33240267	pqqL	Pro0817	-	Zn-dependent peptidase
817	 36.62	0	741583..742860	-	425	33240268	pqqL	Pro0818	-	Zn-dependent peptidase
818	 36.02	0	742912..743655	+	247	33240269	pcyA	Pro0819	-	phycocyanobilin:ferredoxin oxidoreductase
819	 35.32	0	743688..744542	+	284	33240270	devB	Pro0820	-	DevB-like secretion protein
820	 37.94	0	744542..745714	+	390	33240271	devC	Pro0821	-	ABC transporter transmembrane protein
821	 37.69	0	745729..746439	+	236	33240272	devA	Pro0822	-	ABC transporter ATP-binding protein
822	 40.00	0	746469..746618	+	49	33240273	-	Pro0823	-	hypothetical protein
823	 36.98	0	746717..747649	+	310	33240274	wcaA	Pro0824	-	glycosyl transferase, family 2
824	 40.73	0	747785..748501	+	238	33240275	rpsB	Pro0825	-	30S ribosomal protein S2
825	 37.46	0	748578..749231	+	217	33240276	tsf	Pro0826	-	elongation factor Ts
826	 29.16	-1	749237..750433	+	398	33240277	-	Pro0827	-	hypothetical protein
827	 35.87	0	750391..752916	+	841	33240278	recG	Pro0828	-	ATP-dependent DNA helicase recG
828	 40.86	0	753064..753741	+	225	33240279	ddpX	Pro0829	-	D-alanyl-D-alanine dipeptidase
829	 36.39	0	753696..755492	-	598	33240280	sir	Pro0830	-	sulfite reductase subunit beta
830	 37.26	0	755581..757746	+	721	33240281	glyS	Pro0831	-	glycyl-tRNA synthetase beta subunit
831	 40.10	0	757756..759099	-	447	33240282	chlP	Pro0832	-	aromatic-ring hydroxylase (flavoprotein monooxygenase)
832	 38.08	0	759211..759969	+	252	33240283	vanY	Pro0833	-	D-alanyl-D-alanine carboxypeptidase
833	 37.66	0	760056..761858	+	600	33240284	typA	Pro0834	-	tyrosine binding protein
834	 31.64	-1	761882..762235	+	117	33240285	-	Pro0835	-	hypothetical protein
835	 39.09	0	762434..763162	+	242	33240286	-	Pro0836	-	unclassified ABC-type transport system ATPase component
37.01	MEAN

3.99	STD DEV
