IslandPath Analysis: Prochlorococcus marinus subsp. marinus str. CCMP1375

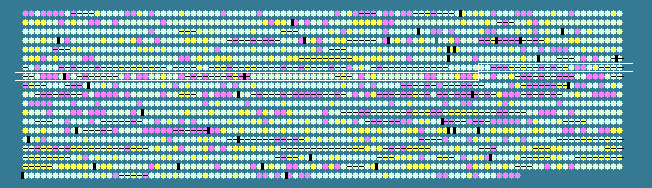

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.01 STD DEV: 3.99
Prochlorococcus marinus subsp. marinus str. CCMP1375, complete genome - 1..1751080
1883 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
677	 39.52	0	623897..624106	+	69	33240128	-	Pro0678	-	hypothetical protein
678	 33.81	0	624259..626154	-	631	33240129	-	Pro0679	-	nucleotide-diphosphate-sugar epimerase, membrane associated
679	 29.37	-1	626255..627238	-	327	33240130	rfe	Pro0680	-	UDP-N-acetylmuramyl pentapeptide phosphotransferase/UDP-N-acetylglucosamine-1-phosphate transferase
680	 33.00	-1	627245..628147	-	300	33240131	-	Pro0681	-	nucleoside-diphosphate-sugar epimerase
681	 30.20	-1	628144..629292	-	382	33240132	rfaG	Pro0682	-	glycosyltransferase
682	 42.09	+1	629584..630120	-	178	33240133	-	Pro0683	-	hypothetical protein
683	 36.72	0	630215..630391	-	58	33240134	-	Pro0684	-	hypothetical protein
684	 43.94	+1	630559..630756	-	65	33240135	-	Pro0685	-	hypothetical protein
685	 38.18	0	630945..631109	+	54	33240136	-	Pro0686	-	hypothetical protein
686	 34.96	0	632104..632349	+	81	33240137	-	Pro0687	-	hypothetical protein
687	 32.34	-1	632352..632552	-	66	33240138	-	Pro0688	-	hypothetical protein
688	 35.88	0	633210..633563	-	117	33240139	-	Pro0689	-	hypothetical protein
689	 33.33	0	634024..634422	-	132	33240140	-	Pro0690	-	hypothetical protein
690	 36.72	0	634861..635037	-	58	33240141	-	Pro0691	-	hypothetical protein
691	 41.29	+1	635119..635319	-	66	33240142	-	Pro0692	-	hypothetical protein
692	 36.75	0	635488..635604	-	38	33240143	-	Pro0693	-	hypothetical protein
693	 32.34	-1	635829..636029	-	66	33240144	-	Pro0694	-	hypothetical protein
694	 33.33	0	636428..636811	+	127	33240145	-	Pro0695	-	hypothetical protein
695	 35.33	0	636868..637368	-	166	33240146	-	Pro0696	-	hypothetical protein
696	 41.11	+1	637643..637822	-	59	33240147	-	Pro0697	-	hypothetical protein
697	 38.49	0	638341..638922	+	193	33240148	-	Pro0698	-	hypothetical protein
698	 40.72	0	638919..640841	+	640	33240149	sdhA	Pro0699	-	succinate dehydrogenase flavoprotein subunit
699	 39.81	0	640838..641578	+	246	33240150	sdhB	Pro0700	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
700	 37.27	0	642190..642519	+	109	33240151	-	Pro0701	-	hypothetical protein
701	 35.36	0	642819..645533	-	904	33240152	sbcC	Pro0702	-	ATPase
702	 40.00	0	645540..646724	-	394	33240153	sbcD	Pro0703	-	DNA repair exonuclease
703	 37.08	0	646988..647254	+	88	33240154	-	Pro0704	-	SH3-like domain-containing protein
704	 32.62	-1	647448..647588	+	46	33240155	-	Pro0705	-	hypothetical protein
705	 31.54	-1	647629..647907	-	92	33240156	-	Pro0706	-	Zn ribbon-like protein
706	 29.73	-1	647929..649206	-	425	33240157	hsdS	Pro0707	-	restriction endonuclease S subunit
707	 34.02	0	649203..650945	-	580	33240158	hsdM	Pro0708	-	Type I restriction-modification system methyltransferase subunit
708	 30.70	-1	651296..651523	-	75	33240159	-	Pro0709	-	hypothetical protein
709	 38.14	0	651677..652342	+	221	33240160	fabG	Pro0710	-	short-chain dehydrogenase/reductase family protein
710	 36.56	0	652463..652648	+	61	33240161	-	Pro0711	-	hypothetical protein
711	 33.14	0	652685..653206	-	173	33240162	-	Pro0712	-	hypothetical protein
712	 36.81	0	653296..653439	+	47	33240163	-	Pro0713	-	hypothetical protein
713	 39.08	0	653491..653664	-	57	33240164	-	Pro0714	-	hypothetical protein
714	 34.16	0	653864..654106	-	80	33240165	-	Pro0715	-	hypothetical protein
715	 36.88	0	654219..654725	-	168	33240166	-	Pro0716	-	hypothetical protein
716	 34.90	0	655047..655301	+	84	33240167	-	Pro0717	-	hypothetical protein
717	 35.35	0	655340..655537	+	65	33240168	-	Pro0718	-	hypothetical protein
718	 31.55	-1	655664..656167	-	167	33240169	-	Pro0719	-	hypothetical protein
719	 34.62	0	656300..657079	-	259	33240170	-	Pro0720	-	hypothetical protein
720	 29.71	-1	657313..657864	+	183	33240171	-	Pro0721	-	hypothetical protein
721	 27.78	-2	657874..658251	-	125	33240172	-	Pro0722	-	hypothetical protein
722	 36.82	0	658375..658575	-	66	33240173	-	Pro0723	-	hypothetical protein
723	 37.38	0	658863..659183	-	106	33240174	-	Pro0724	-	hypothetical protein
724	 40.58	0	659846..660052	+	68	33240175	-	Pro0725	-	hypothetical protein
725	 36.67	0	660478..660657	-	59	33240176	-	Pro0726	-	hypothetical protein
726	 38.01	0	660844..662040	-	398	33240177	wcaA	Pro0727	-	glycosyltransferase
727	 33.33	0	662087..663865	+	592	33240178	amyA	Pro0728	-	glycosidase
728	 34.33	0	663855..664658	+	267	33240179	-	Pro0729	-	mannosyl-3-phosphoglycerate phosphatase
729	 33.24	0	664663..665682	+	339	33240180	-	Pro0730	-	phosphoribulokinase/uridine kinase family protein
730	 35.09	0	665755..665982	+	75	33240181	-	Pro0731	-	hypothetical protein
731	 33.07	0	666151..666528	+	125	33240182	-	Pro0732	-	hypothetical protein
732	 36.30	0	666626..666760	+	44	33240183	-	Pro0733	-	hypothetical protein
733	 36.59	0	666828..667103	-	91	33240184	-	Pro0734	-	hypothetical protein
734	 37.36	0	667190..668059	+	289	33240185	uppP	Pro0735	-	undecaprenyl pyrophosphate phosphatase
735	 24.24	-2	668062..668226	+	54	33240186	-	Pro0736	-	hypothetical protein
736	 43.01	+1	668400..669743	-	447	33240187	-	Pro0737	-	porin-like protein
737	 33.33	0	670322..670666	-	114	33240188	-	Pro0738	-	hypothetical protein
738	 26.67	-2	671067..671231	-	54	33240189	-	Pro0739	-	hypothetical protein
739	 35.29	0	671233..671946	-	237	33240190	msrA	Pro0740	-	peptide methionine sulfoxide reductase
740	 36.90	0	671971..672222	-	83	33240191	-	Pro0741	-	hypothetical protein
741	 36.87	0	672319..674070	-	583	33240192	mdlB	Pro0742	-	multidrug ABC transporter
742	 36.27	0	674156..674461	+	101	33240193	-	Pro0743	-	hypothetical protein
743	 38.50	0	674580..675605	+	341	33240194	trpD	Pro0744	-	anthranilate phosphoribosyltransferase
744	 38.31	0	675646..676791	+	381	33240195	carA	Pro0745	-	carbamoyl phosphate synthase small subunit
745	 37.12	0	676799..677221	+	140	33240196	spoIIAA	Pro0746	-	anti-anti-sigma regulatory factor
746	 39.86	0	677218..677631	+	137	33240197	-	Pro0747	-	hypothetical protein
747	 37.23	0	677636..678892	+	418	33240198	spoU	Pro0748	-	rRNA methylase
748	 39.83	0	679040..679270	+	76	33240199	-	Pro0749	-	hypothetical protein
749	 39.56	0	679321..680781	+	486	33240200	gatA	Pro0750	-	Asp-tRNAAsn/Glu-tRNAGln amidotransferase A subunit
750	 35.61	0	681024..684530	+	1168	33240201	dnaE	Pro0751	-	DNA polymerase III subunit alpha
751	 33.86	0	684536..684913	-	125	33240202	-	Pro0752	-	hypothetical protein
752	 36.67	0	684948..685217	-	89	33240203	rpsO	Pro0753	-	30S ribosomal protein S15
753	 33.93	0	685286..685954	-	222	33240204	ruvA	Pro0754	-	Holliday junction resolvasome DNA-binding subunit
754	 42.31	+1	685980..686369	-	129	33240205	-	Pro0755	-	hypothetical protein
755	 36.82	0	686395..687282	-	295	33240206	rhaT	Pro0756	-	DMT family permease
756	 40.22	0	687410..689470	+	686	33240207	dnaG	Pro0757	-	DNA primase
757	 30.15	-1	689520..689990	-	156	33240208	-	Pro0758	-	hypothetical protein
758	 38.21	0	690057..691328	-	423	33240209	dinP	Pro0759	-	nucleotidyltransferase/DNA polymerase
759	 42.36	+1	691340..691771	-	143	33240210	umuD	Pro0760	-	family S24 peptidase
760	 35.84	0	691842..692279	-	145	33240211	-	Pro0761	-	hypothetical protein
761	 36.72	0	692310..692693	-	127	33240212	-	Pro0762	-	hypothetical protein
762	 38.21	0	692833..693672	+	279	33240213	ksgA	Pro0763	-	dimethyladenosine transferase
763	 37.50	0	693669..694628	+	319	33240214	ispE	Pro0764	-	4-diphosphocytidyl-2C-methyl-D-erythritol 2-phosphate synthase
764	 38.38	0	694625..694981	+	118	33240215	-	Pro0765	-	hypothetical protein
765	 36.79	0	695189..696172	+	327	33240216	acoB	Pro0766	-	pyruvate dehydrogenase E1 beta subunit
766	 35.76	0	696176..697660	+	494	33240217	secD	Pro0767	-	preprotein translocase subunit SecD
767	 33.54	0	697670..698635	+	321	33240218	secF	Pro0768	-	preprotein translocase subunit SecF
768	 33.33	0	698656..698880	+	74	33240219	-	Pro0769	-	hypothetical protein
769	 32.82	-1	698877..699854	-	325	33240220	perM	Pro0770	-	hypothetical protein
770	 38.42	0	699968..700321	-	117	33240221	psb28	Pro0771	-	photosystem II reaction center protein Psb28
771	 35.82	0	700385..701428	-	347	33240222	-	Pro0772	-	tRNA 2-selenouridine synthase
772	 39.67	0	701466..702191	+	241	33240223	-	Pro0773	-	hypothetical protein
773	 41.22	+1	702305..702748	+	147	33240224	rsbW	Pro0774	-	anti-sigma regulatory factor (Ser/Thr protein kinase)
774	 32.91	-1	702698..702934	-	78	33240225	-	Pro0775	-	hypothetical protein
775	 32.79	-1	702956..703687	-	243	33240226	-	Pro0776	-	alpha/beta fold family hydrolase
776	 41.21	+1	703846..704556	+	236	33240227	dnaQ	Pro0777	-	putative DNA polymerase III, epsilon subunit
37.01	MEAN

3.99	STD DEV
